This is the 4inch variant of the Waveshare 4inch RPi LCD (A), 480×320 in TFT LCD Displays. Available at ₹2,690.40 (₹2,280.00 + GST) with free shipping across India.
Waveshare 4inch RPi LCD (A), 480×320

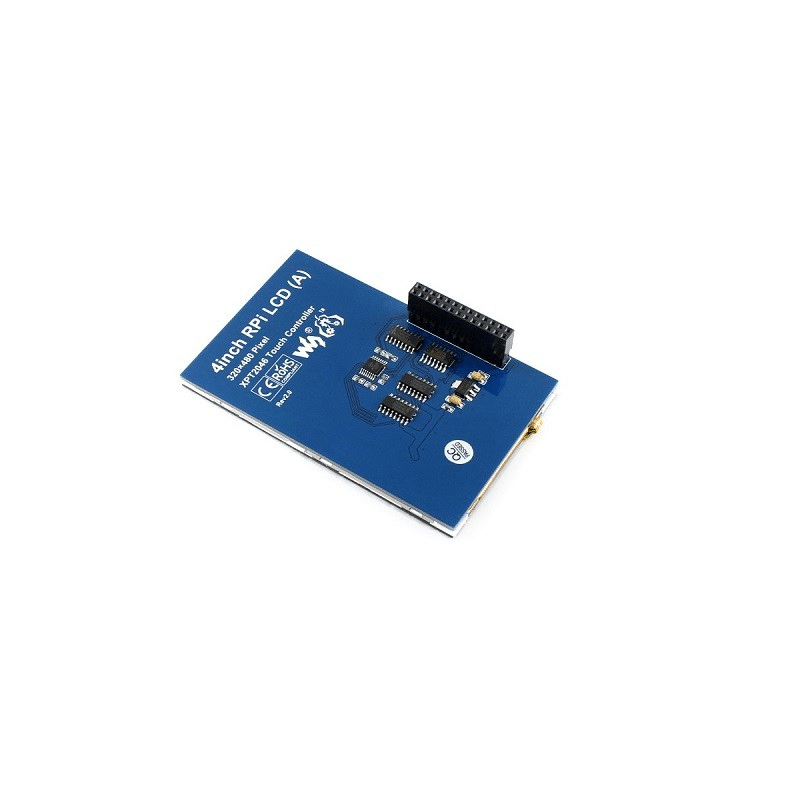

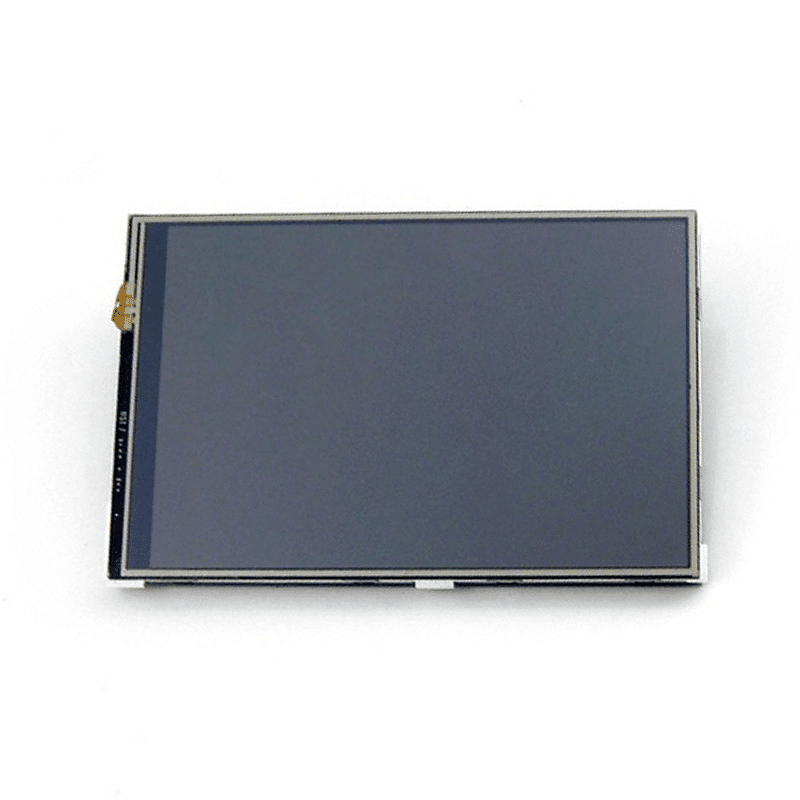

This is a Waveshare 4-inch Resistive Touch Screen TFT LCD display, with a resolution of 480×320, SPI interface, and a resistive touch panel, which supports any revision of Raspberry Pi (directly pluggable). This LCD can support Raspbian / Ubuntu / Kali. Supports the FBCP software driver as well, allows config software resolution, and sets up dual-display.
Features:
- 480×320 hardware resolution
- Resistive touch control
- Supports any revision of Raspberry Pi (directly-pluggable)
- Drivers provided (works with your own Raspbian/Ubuntu/Kali)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display
- Combined with the Raspberry Pi, allows you to:
- Take photos by touching (up to 17 camera modes)
- Use software keyboard (system interaction without keyboard/mouse)
Specification:
| Item Type: | Display |
|---|---|
| Display Size (Inch): | 4 |
| Touchscreen (Y/N): | Yes |
| Resolution: | 480×320 |
| Interface: | SPI |
| LCD Type | TFT |
| Touch Type | Resistive |
| Touch Screen Controller | XPT2046 |
| Color: | 64K 65536 colors |
| Backlight mode | LED |
Package Includes:
1 x 4inch RPi LCD (A)
1 x Touch pen
1 x RPi screws pack (2pcs)
1 x Quick start sheet
Arduino Boost Converter Module: Step Up Voltage for Projects
Running a project that needs higher voltage than your battery can supply? An Arduino boost converter project solves...
Read More →
ATmega328P vs ATmega2560: Choosing an AVR Microcontroller
Table of Contents Overview: Two Workhorses of the AVR Family Head-to-Head Specifications Flash, SRAM, and EEPROM Compared I/O...
Read More →
Arduino GSM SIM800L: Send SMS and Call with AT Commands
The SIM800L is one of the most versatile and affordable GSM/GPRS modules available, and pairing it with Arduino...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 4" |
| SKU | AI7758 |
| Weight | 0.09 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare 4inch RPi LCD (A), 480×320 is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine WAVESHARE product sourced from authorized channels
