This is the 54inch variant of the Waveshare 240×240, General 1.54inch LCD Display Module, IPS, 65K RGB in TFT LCD Displays. Available at ₹777.62 (₹659.00 + GST) with free shipping across India.
Waveshare 240×240, General 1.54inch LCD Display Module, IPS, 65K RGB

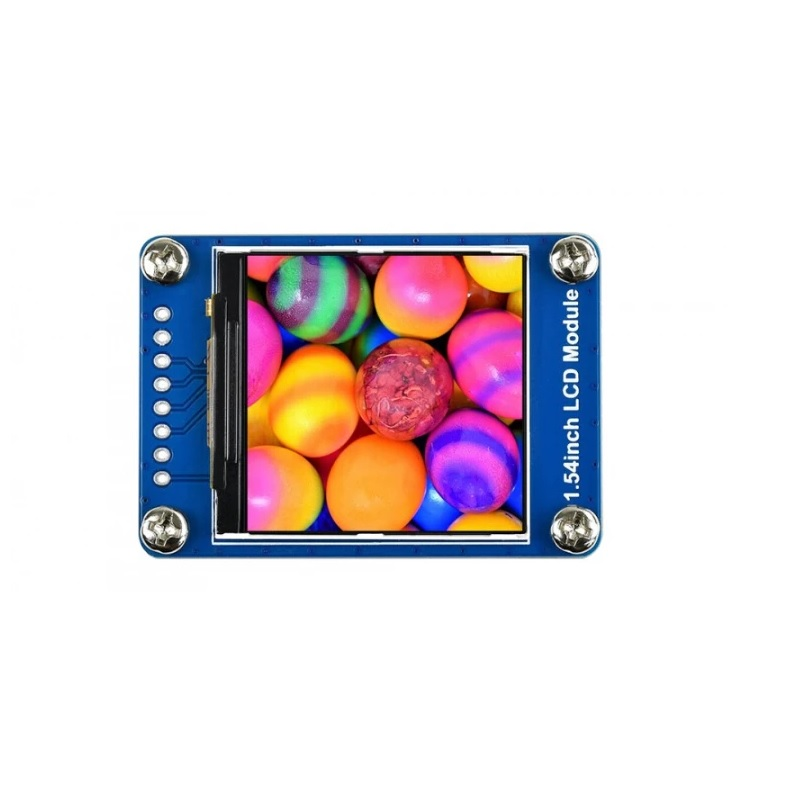

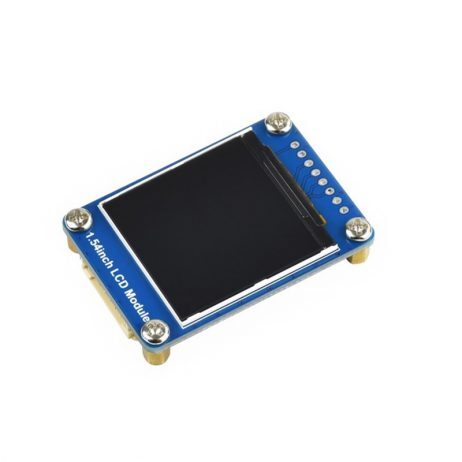

This product is a Waveshare LCD display module with a 1.54-inch TFT screen. It has a resolution of 240X240 pixels and uses the ST7789 controller chip, which communicates through the SPI interface.
This display module is ideal for adding a small, colorful, and bright screen to any project, even those with limited memory and pins.
The 1.54 Inch SPI 240X240 TFT LCD Display Module is consistent in its driver chip, so you don’t have to worry about compatibility issues with your code.
The module comes with the TFT display already soldered on, as well as a 3.3V regulator with ultra-low dropout and a level shifter that can handle both 3.3V and 5V power and logic.
Features:
- SPI interface requires minimum GPIO for controlling.
- Compatible with the 3.3/5V operation voltage level.
- Features Backlight Control Circuit.
- The basic functions have been encapsulated on the demo, which can realize picture rotation, draw dots, lines, circles, rectangles, and display pictures.
Useful link:
To do Hardware and Software setup, please follow this tutorial.
Specification:
| Driver | ST7789 |
|---|---|
| Interface | SPI |
| Display Color | RGB, 65K color |
| Pixel Resolution | 240×240 |
| Length (mm): | 50 |
| Width (mm) | 34 |
| Height (mm) | 9.4 |
| Weight (g): | 16 |
| Shipping Weight | 0.025 kg |
| Shipping Dimensions | 7 × 5 × 2.3 cm |
Package Includes:
1 x Waveshare 240×240, General 1.54inch LCD Display Module, IPS, 65K RGB
Waveshare 240×240, General 1.54inch LCD Display Module, Overview
The Waveshare 1.54″ LCD Display Module features a 240×240 pixel IPS TFT panel driven by the ST7789 controller over SPI. It’s designed to provide vibrant 65K colors in a compact 50×34×9.4 mm package, ideal for embedding into microcontroller and single-board computer projects.
Key Features of Waveshare 240×240, General 1.54inch LCD Display Module,
- 240×240 resolution with 65K RGB colors for clear text and graphics
- ST7789 driver chip ensures consistent performance and easy code reuse
- SPI interface minimises GPIO usage and speeds up data transfers
- Built-in 3.3 V regulator and level shifter support both 3.3 V & 5 V logic
- IPS panel provides wide viewing angles and stable color reproduction
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Portable handheld devices and custom wearables
- Miniature control panels for robotics and automation
- IoT dashboards displaying sensor data or status icons
- Arduino and Raspberry Pi GUI interfaces
- DIY gaming consoles or retro emulators
- Industrial instrument readouts and small-form-factor displays
How to Use Waveshare 240×240, General 1.54inch LCD Display Module,

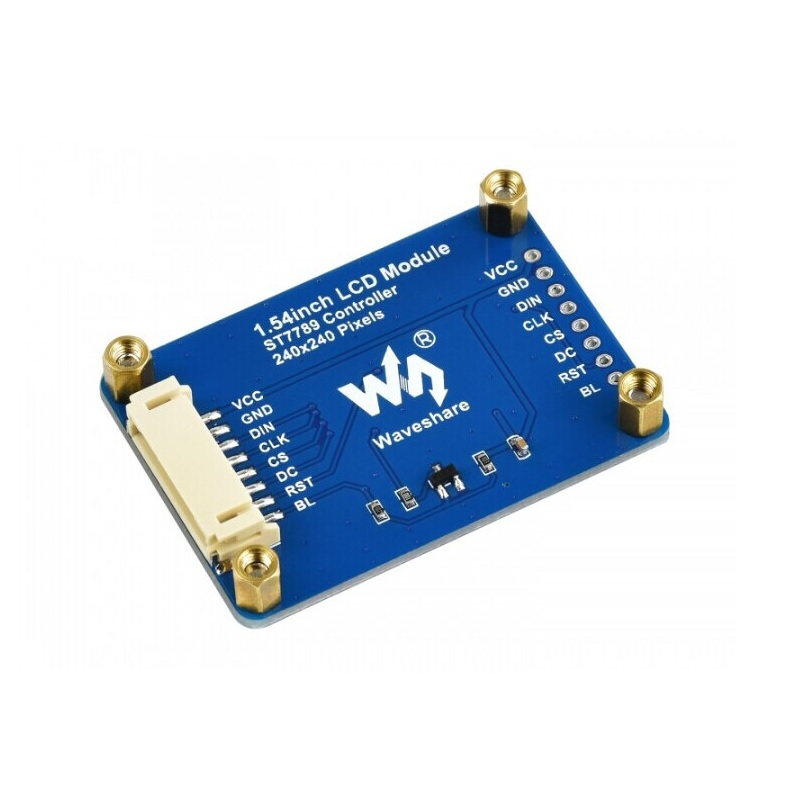

Connect VCC to 3.3 V, GND to ground, then wire SCL (clock), SDA (data), CS, DC and RESET pins to your MCU’s SPI and control GPIOs. Install an ST7789-compatible library on your platform, initialise the display in your code, and use provided drawing routines to render text and graphics.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can this display run on 5 V logic?
Yes. The onboard level shifter and 3.3 V regulator allow you to drive the module from 5 V signals safely while the display itself operates at 3.3 V.
Is touch input supported?
No. This general 1.54″ module provides only a TFT display without touch functionality. For touch support, you’ll need a separate touch-enabled version.
Will this work with Arduino and Raspberry Pi?
Absolutely. The SPI interface and ST7789 driver are compatible with Arduino libraries (e.g., Adafruit_GFX) and Raspberry Pi’s spidev. Just connect SPI pins and include the proper driver in your code.
MicroPython on ESP32: Getting Started Guide for Arduino Users
MicroPython on ESP32 offers Arduino users a faster, more interactive way to develop IoT projects using Python instead...
Read More →
Arduino MKR WiFi 1010 vs Uno: When to Upgrade
The Arduino MKR WiFi 1010 represents a fundamentally different philosophy from the classic Uno — it's designed for...
Read More →
Arduino Parking Sensor: Reverse Distance Alert System
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 1.54" |
| Resolution | 240x240 |
| Package Quantity | 240 pcs |
| SKU | AI1484 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 240×240, General 1.54inch LCD Display Module, IPS, 65K RGB is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
