This is the 24V variant of the Water Flow Sensor (Sea) YF-B8 Flowmeter G1/2 1-30L/min 3-24V Brass in Flow. Available at ₹502.68 (₹426.00 + GST) with free shipping across India.
Looking for Water Flow Sensor Yf-b8? Water Flow Sensor (Sea) YF-B8 Flowmeter G1/2 1-30L/min 3-24V Brass is available at Zbotic with fast shipping across India.

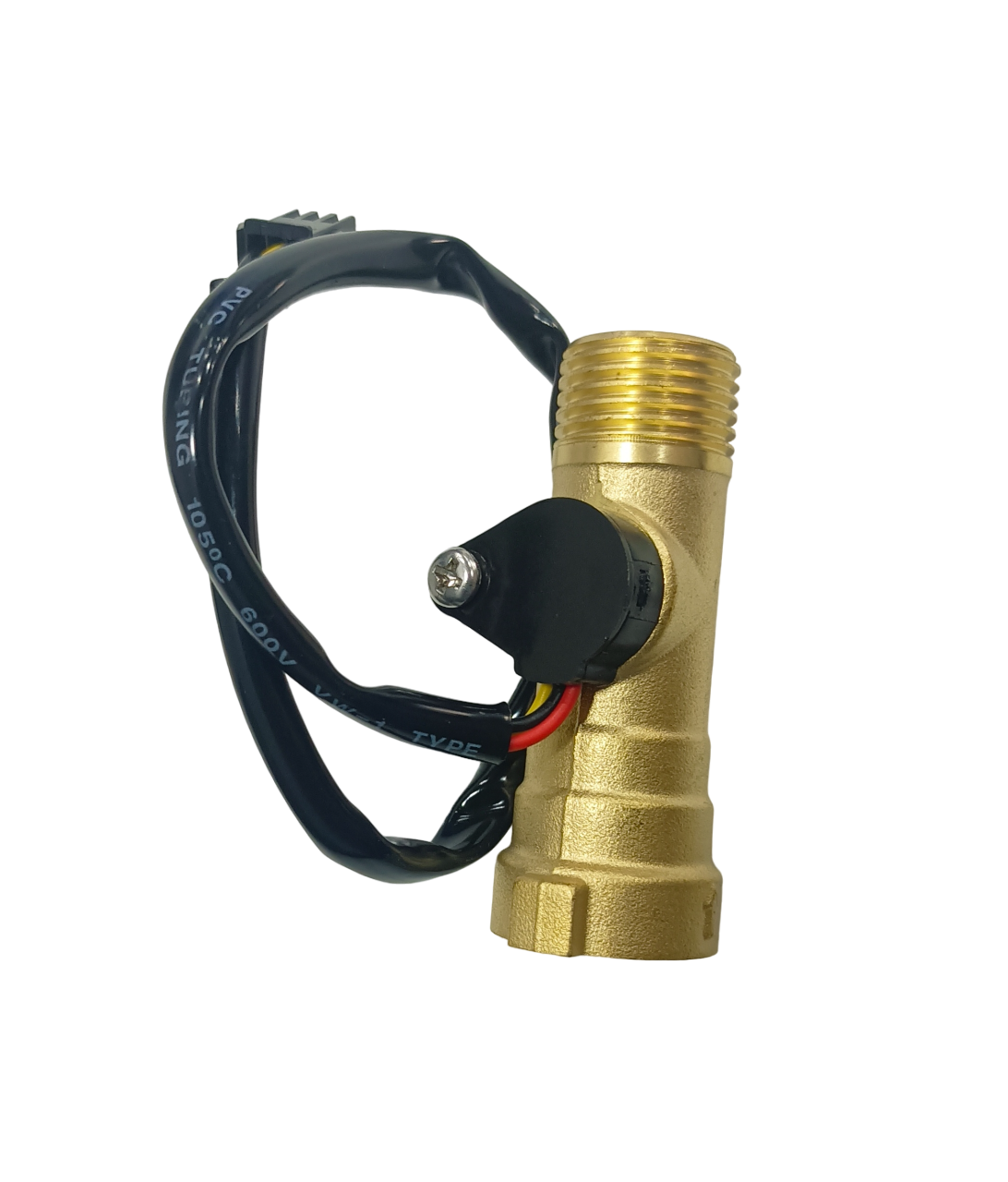

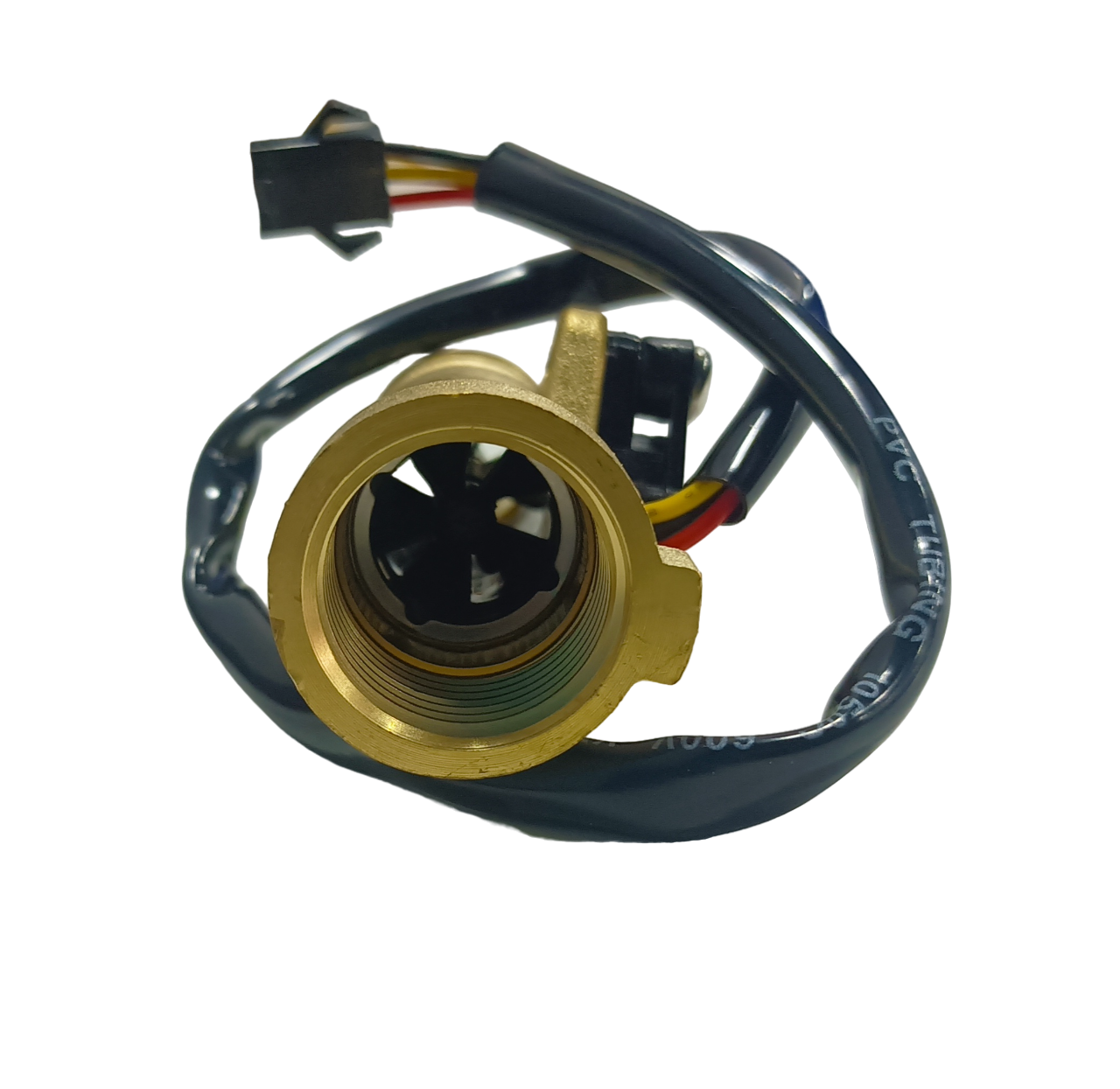

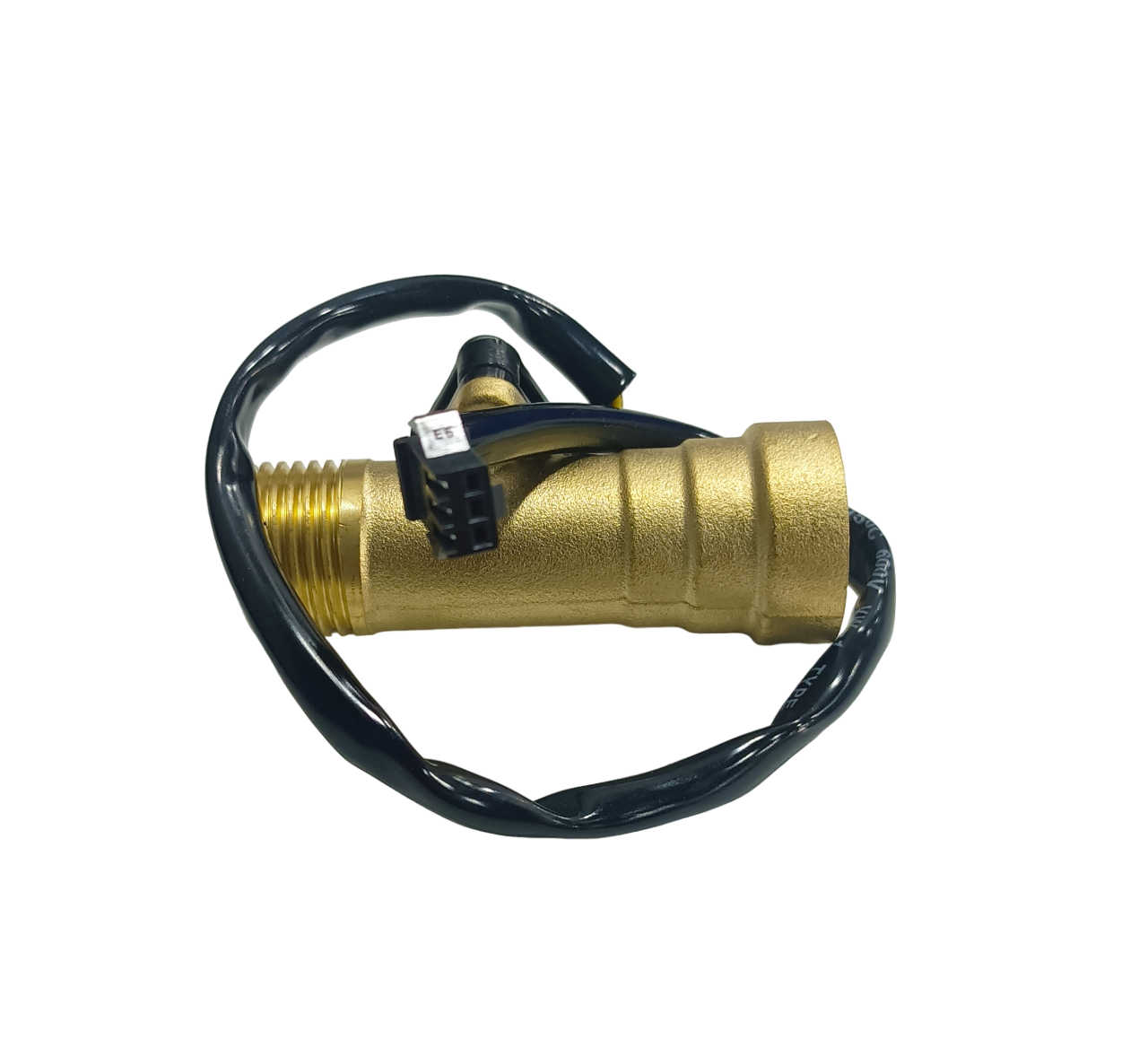

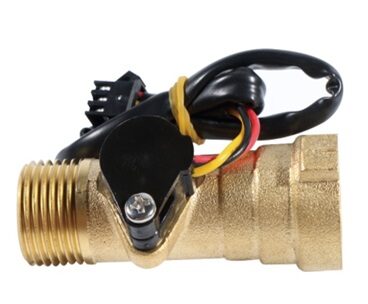

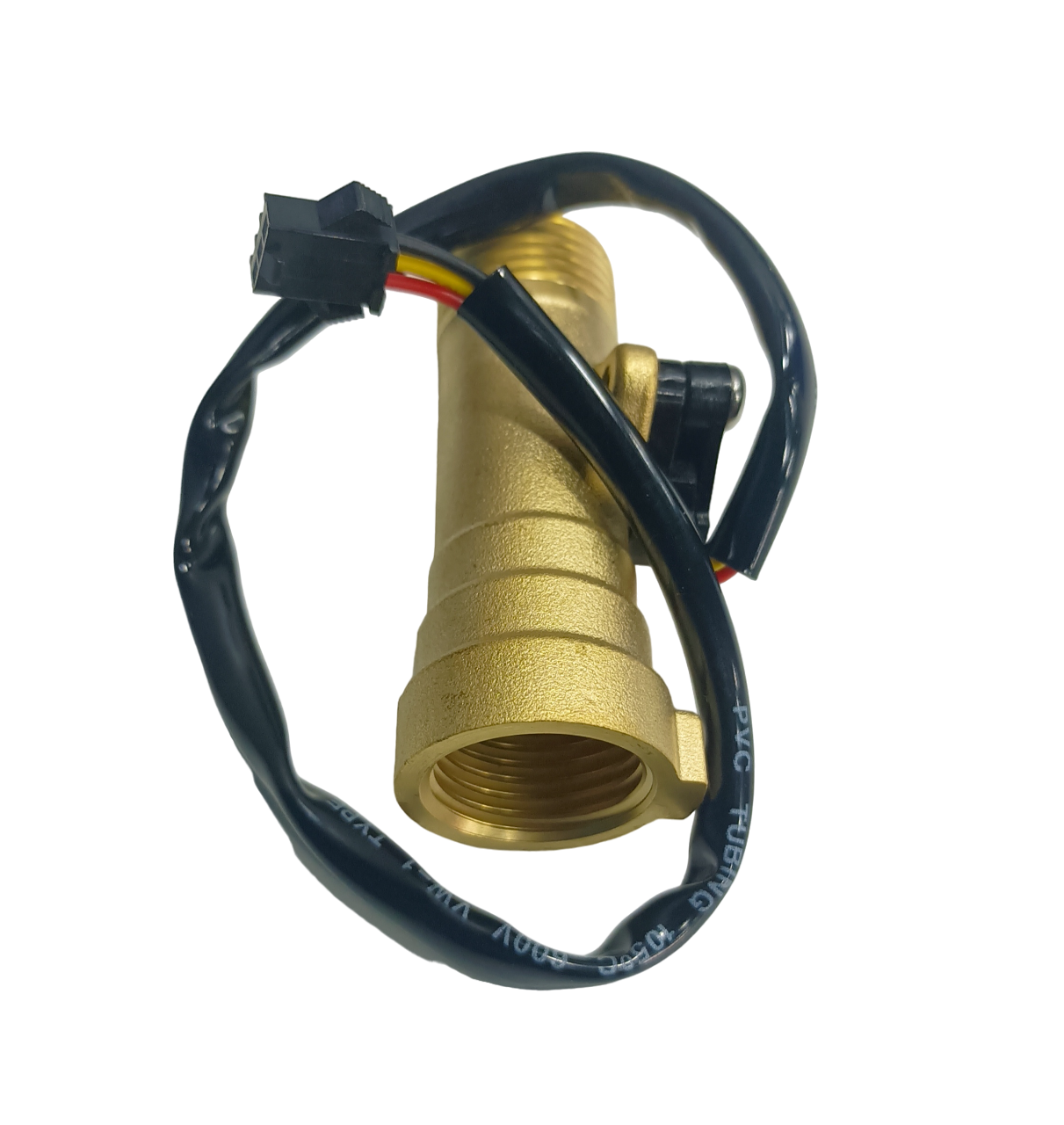

Water Flow Sensor (Sea) YF-B8 Flowmeter G1/2 1-30L/min 3-24V Brass
The water flow sensor is a device used to sense the water flow rate in a tank. There is a Hall element in the flow sensor. When liquid flows by the sensor, it drives the Hall element inside the sensor to rotate. By calculating the rotate speed of the element, the water flow sensor can give a precise outcome of the water flow rate passed by the pipe.
Specification
| Parameter | Description |
|---|---|
| Product Material | Brass |
| Flow Range / Accuracy | 1-30L/min, ±3% |
| Rated Voltage | DC=5-18V |
| Max Working Current | 10mA |
| Withstand Hydraulic Pressure | >1.75MPa |
| Working Voltage Range | DC3-24V |
| Insulation Resistance | >100MΩ |
| Pulse Characteristic | 11*Q=L/min, ±3% |
| Medium Temperature | -20°C to +80°C |
| Max Output Pulse | >DC 4.7V (Input Voltage DC 5V) |
| Min Output Pulse | >DC 0.5V (Input Voltage DC 5V) |
| Output Pulse Duty Ratio | 50%±10% |
| Applicable Medium | Water |
PACKAGE INCLUDES
1 X Water Flow Sensor (Sea) YF-B8 Flowmeter G1/2 1-30L/min 3-24V Brass
Datasheet
Water Flow Sensor (Sea) YF-B8 Flowmeter G1/2 1-30L/min Overview
The Water Flow Sensor (Sea) YF-B8 is a brass inline flowmeter with a G1/2″ thread designed to measure liquid flow rates between 1 and 30 L/min. It uses an internal Hall-effect rotor to generate pulse signals proportional to water flow, making it ideal for precise monitoring in various systems.
Key Features of Water Flow Sensor (Sea) YF-B8 Flowmeter G1/2 1-30L/min
- Brass construction for durability and corrosion resistance
- Flow range of 1–30 L/min with ±3% accuracy
- G1/2″ threaded inlet and outlet for easy inline installation
- Operates on DC 5–18 V with a maximum current draw of 10 mA
- Hall-effect rotor produces pulse output for real-time flow monitoring
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Monitoring water consumption in coffee machines and vending machines
- Flow control in domestic water heaters and purification systems
- Integration into agricultural irrigation controllers for precise dosing
- Liquid flow measurement in medical testing and lab equipment
- Industrial water metering and pump performance feedback
- DIY projects requiring accurate water flow data for automation
How to Use Water Flow Sensor (Sea) YF-B8 Flowmeter G1/2 1-30L/min
Install the YF-B8 inline by screwing the G1/2″ connections into your piping, ensuring the arrow on the brass body aligns with flow direction. Connect the red and black wires to a 5–18 V DC supply, then feed the yellow (or signal) wire into a microcontroller’s digital input. Count pulses over a fixed interval and apply the calibration factor to calculate the flow rate in litres per minute.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the rated operating voltage for the YF-B8 sensor?
The YF-B8 flowmeter operates on any DC supply between 5 V and 18 V, drawing a maximum current of 10 mA. Ensure stable regulation to maintain accuracy.
How accurate is the flow reading from this sensor?
This brass sensor provides flow measurements from 1 L/min up to 30 L/min with an accuracy of ±3%, making it suitable for applications where consistent monitoring is essential.
Can I install the sensor in any orientation?
For best performance, mount the sensor horizontally or vertically with the flow arrow pointing in the direction of water movement. Avoid air pockets upstream to ensure reliable Hall-effect rotor operation.
Technical Specifications
| Model | YF-B8 |
|---|---|
| SKU | AI3878 |
| Weight | 0.1222 kg |
| Availability | In Stock |
Applications & Use Cases
The Water Flow Sensor (Sea) YF-B8 Flowmeter G1/2 1-30L/min 3-24V Brass is a versatile flow used across a wide range of applications including water quality monitoring, hydroponics, aquariums, industrial water treatment, and smart irrigation.
Common use cases:
- Measuring TDS in a hydroponic nutrient solution
- Monitoring pH in an aquarium
- Tracking water flow in an irrigation system
This product is ideal for aquaculture professionals, hydroponic growers, and environmental engineers.
Technical Tip: Calibrate pH and TDS sensors regularly with standard solutions. Keep probe tips clean and submerged when not in use.
