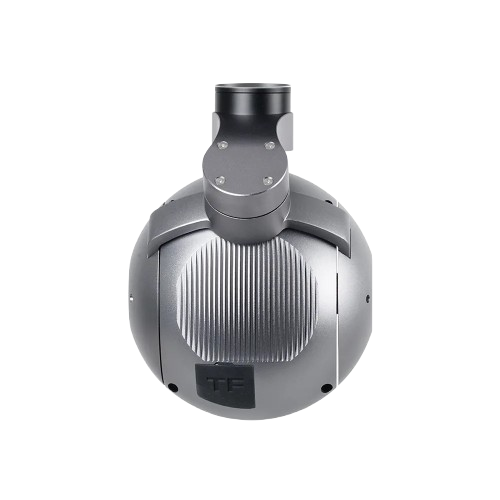

VIEWPRO A30T-50 30X EO/IR Gimbal Camera with AI Auto-Identification and Object Tracking

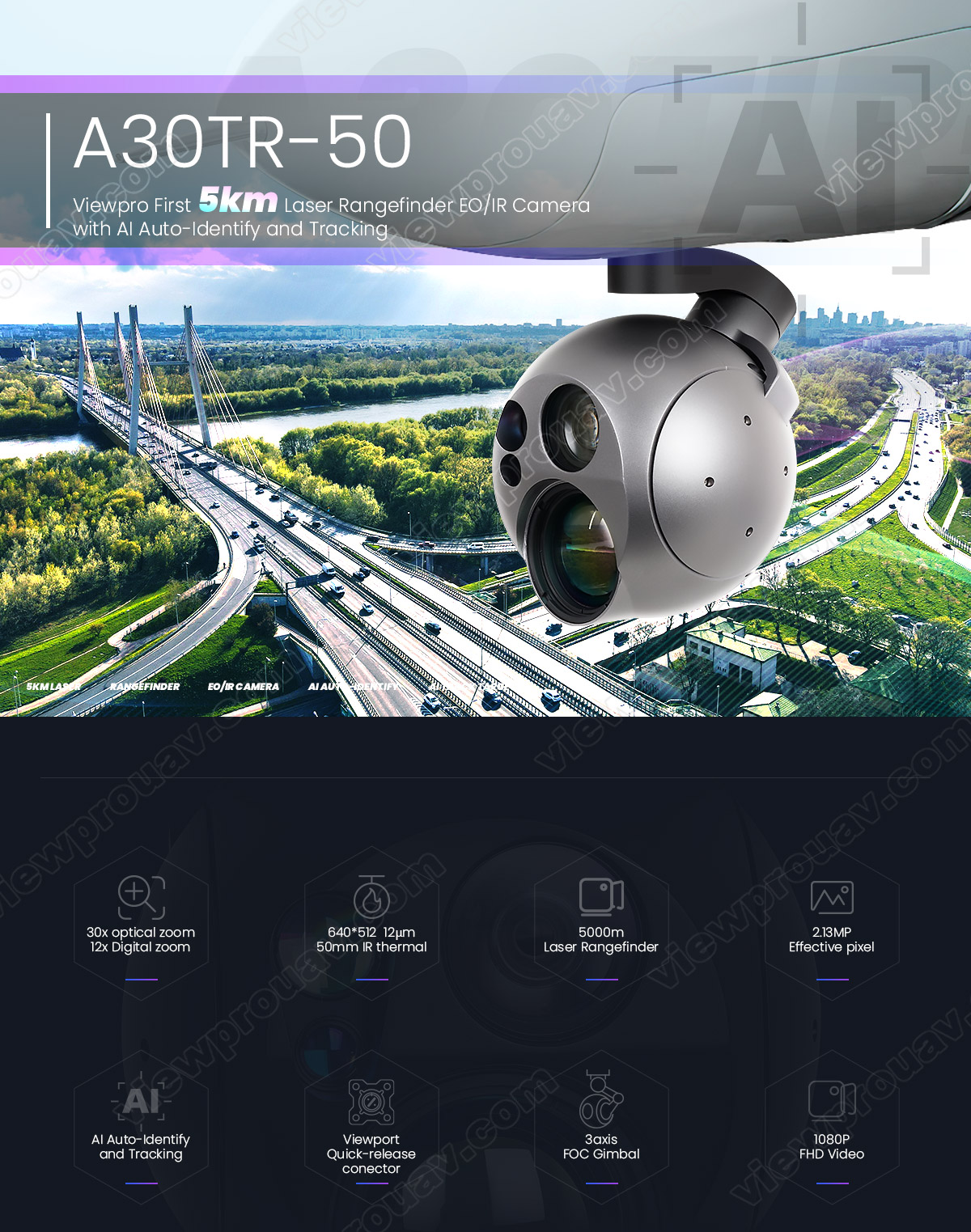

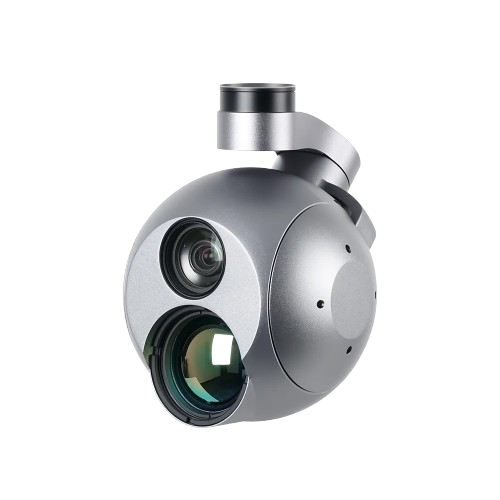

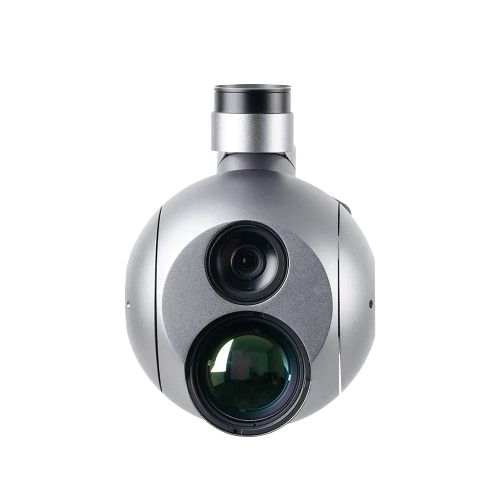

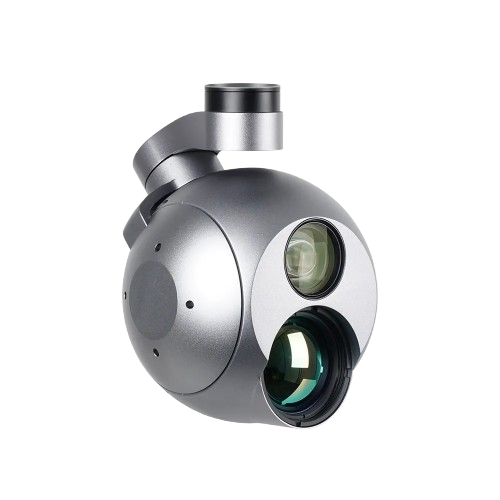

VIEWPRO A30T-50 30X EO/IR Gimbal Camera is a 3-axis high-precision gimbal that integrates an AI-based sensor with a 30x optical zoom EO SONY camera, a 50mm 640*512 12μm IR thermal sensor, and a 5km laser rangefinder. Supports car and human auto detection and stable tracking. A30TIR-50 can be installed on all kinds of drones for public safety, first response, inspections, patrol, disaster prevention, emergency monitoring inspections, search and rescue, etc.

Specification

Hardware Parameter
Working voltage	16V
Input voltage	4S ~ 6S(16V~24V )
Output voltage	5V (connect with PWM)
Dynamic current	850~1800mA @ 16V
Working environment temp.	-20℃ ~ +60℃
Output	micro HDMI(1080P 30/60fps) / IP (RTSP/UDP 1080p/720p  30fps)
Local-storage	TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format	JPG(1920*1080)
Video storage format	MP4  (1080P 30fps)

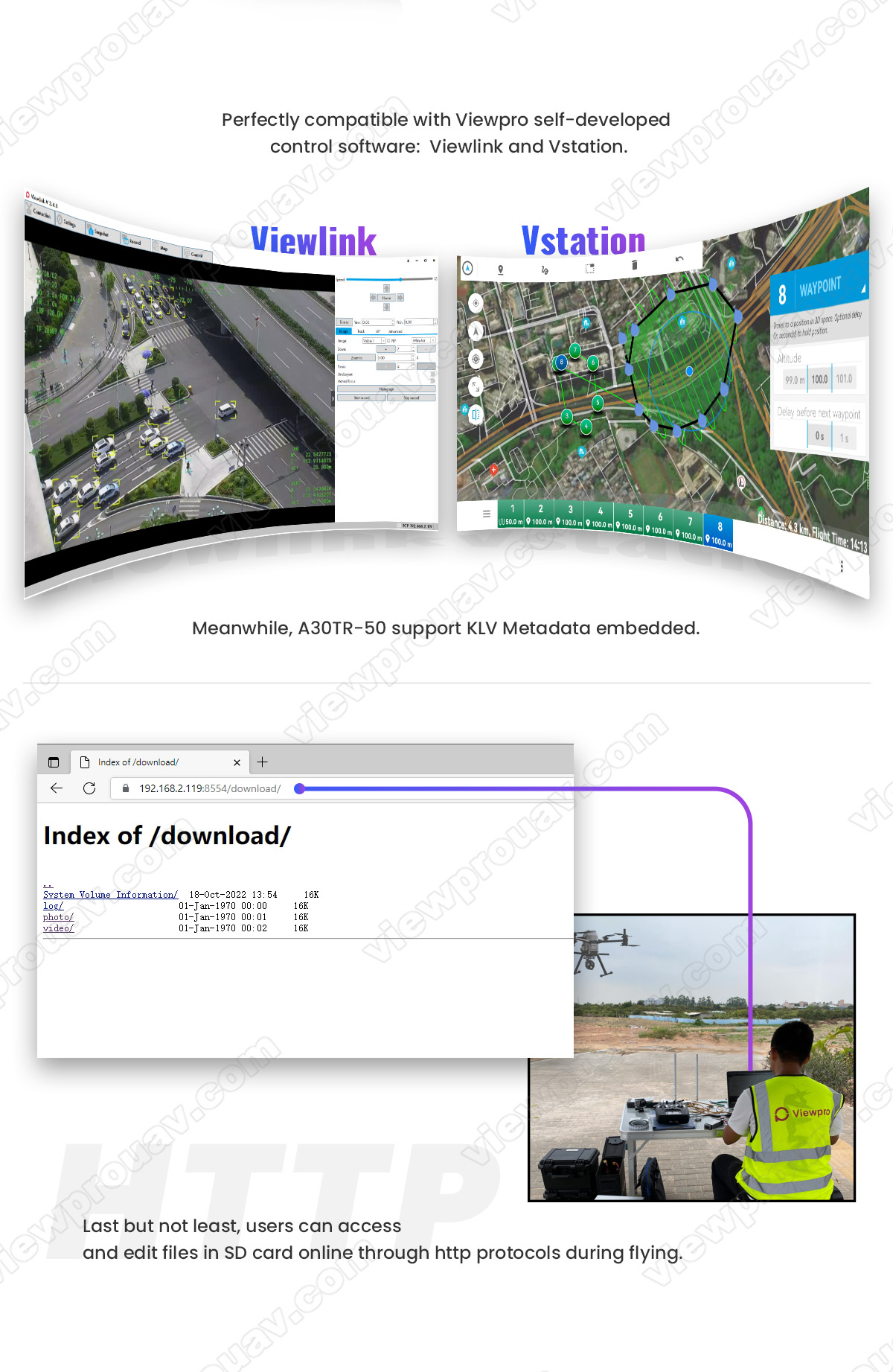

Card reading online	HTTP read pictures

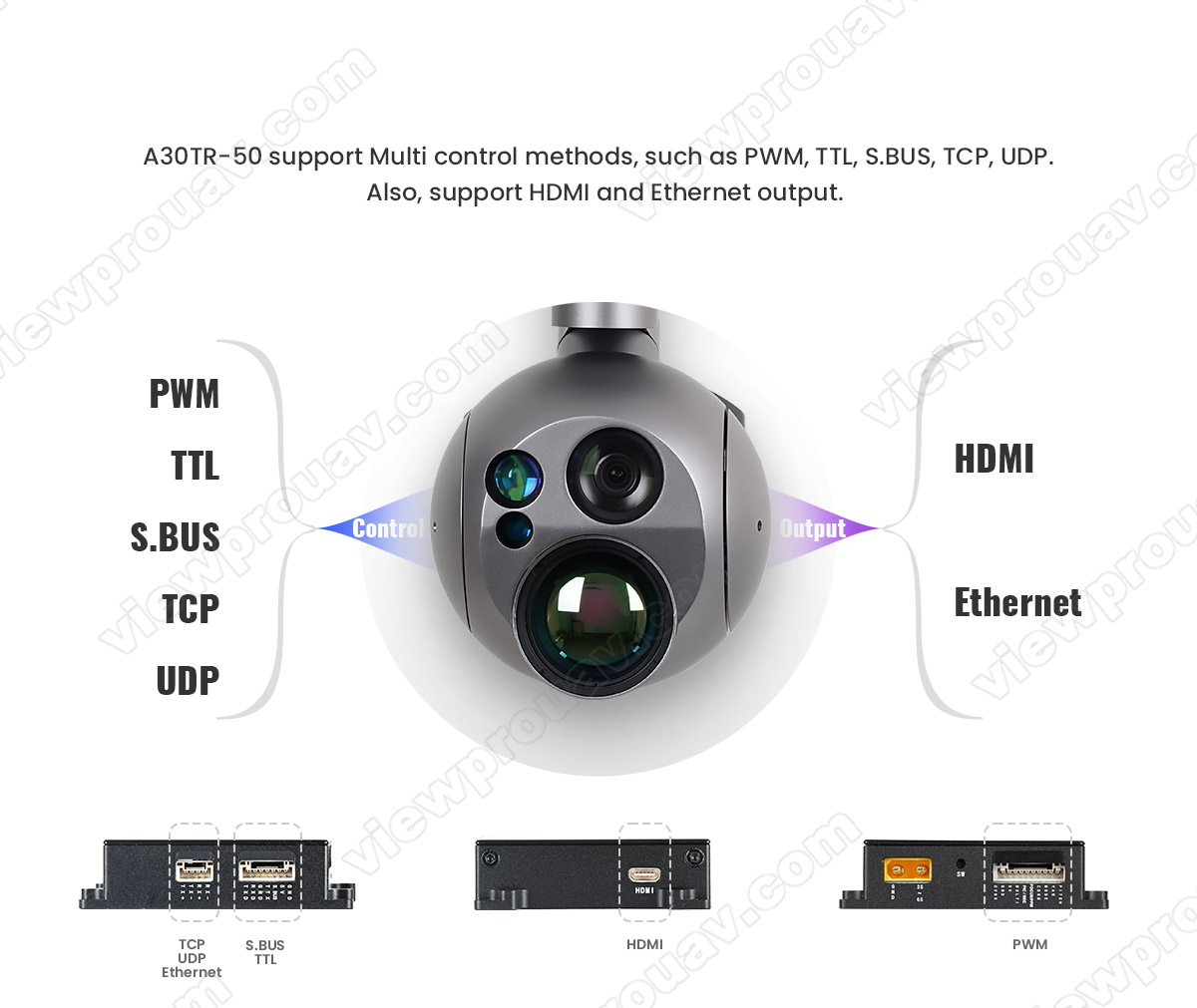

Control method	PWM  / TTL / S.BUS / TCP(IP output)/UDP(IP output version)
Geotagging	Support, display time and GPS coordinate in picture exif
Gimbal Spec
Mechanical Range	Pitch/Tilt: -55°～125°,      Roll: ±40°,    Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～120°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center	√
Camera spec
Imager Sensor	SONY 1/2.8″ “Exmor R” CMOS
Picture quality	Full HD 1080 (1920*1080)
Effective pixel	2.13MP
Lens optical zoom	30x, F=4.3~129mm
Digital zoom	12x (360x with optical zoom)
Min object distance	10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle	1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
Sync system	Internal
S/N ratio	more than 50dB
Min illumination	Color [email protected]
Exposure control	Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain	Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed	1/1s to 1/10,000s, 22 steps
Backlight compensation	Yes
Aperture control	16 steps
Defog	Yes
OSD	Yes

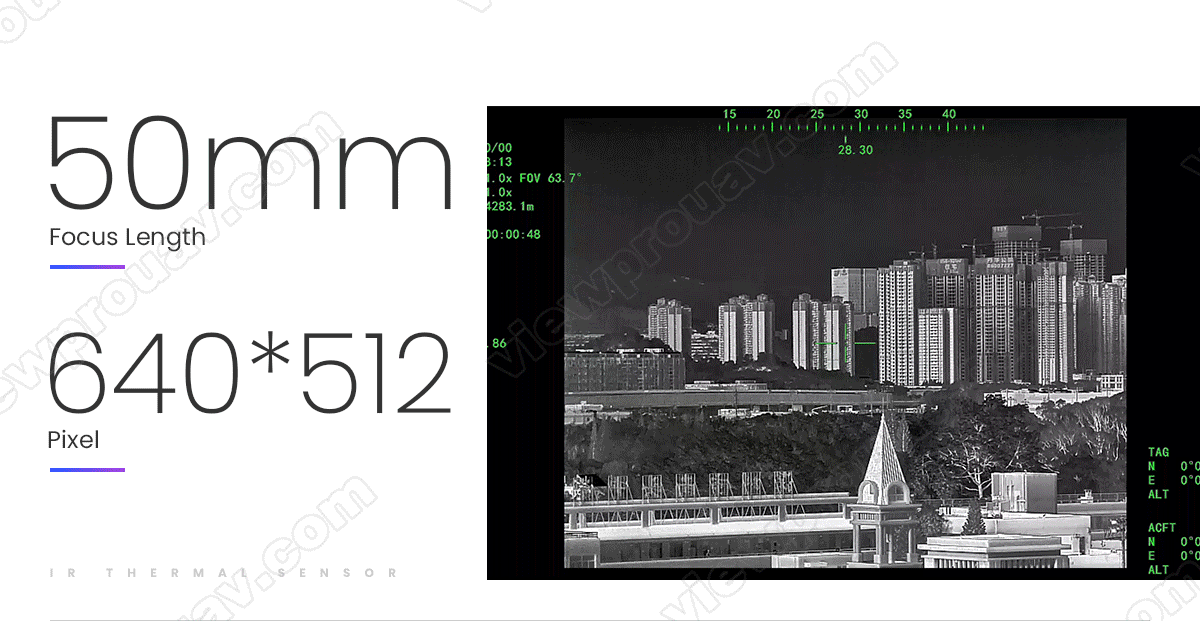

IR Thermal Imager Spec
Focus Length	50mm
Coating Film	DLC
Horizontal FOV	8.8°
Vertical FOV	7.0°
Diagonal FOV	11.2°
Detective Distance (Man: 1.8×0.5m)	2083 meters
Recognize Distance (Man: 1.8×0.5m)	521 meters
Verified Distance (Man: 1.8×0.5m)	260 meters
Detective Distance (Car: 4.2×1.8m)	6389 meters
Recognize Distance (Car: 4.2×1.8m)	1597 meters
Verified Distance (Car: 4.2×1.8m)	799 meters
Working mode	Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel	640*512
Pixel pitch	12μm
Focusing method	Athermal prime lens
NETD	≤[email protected] @25℃

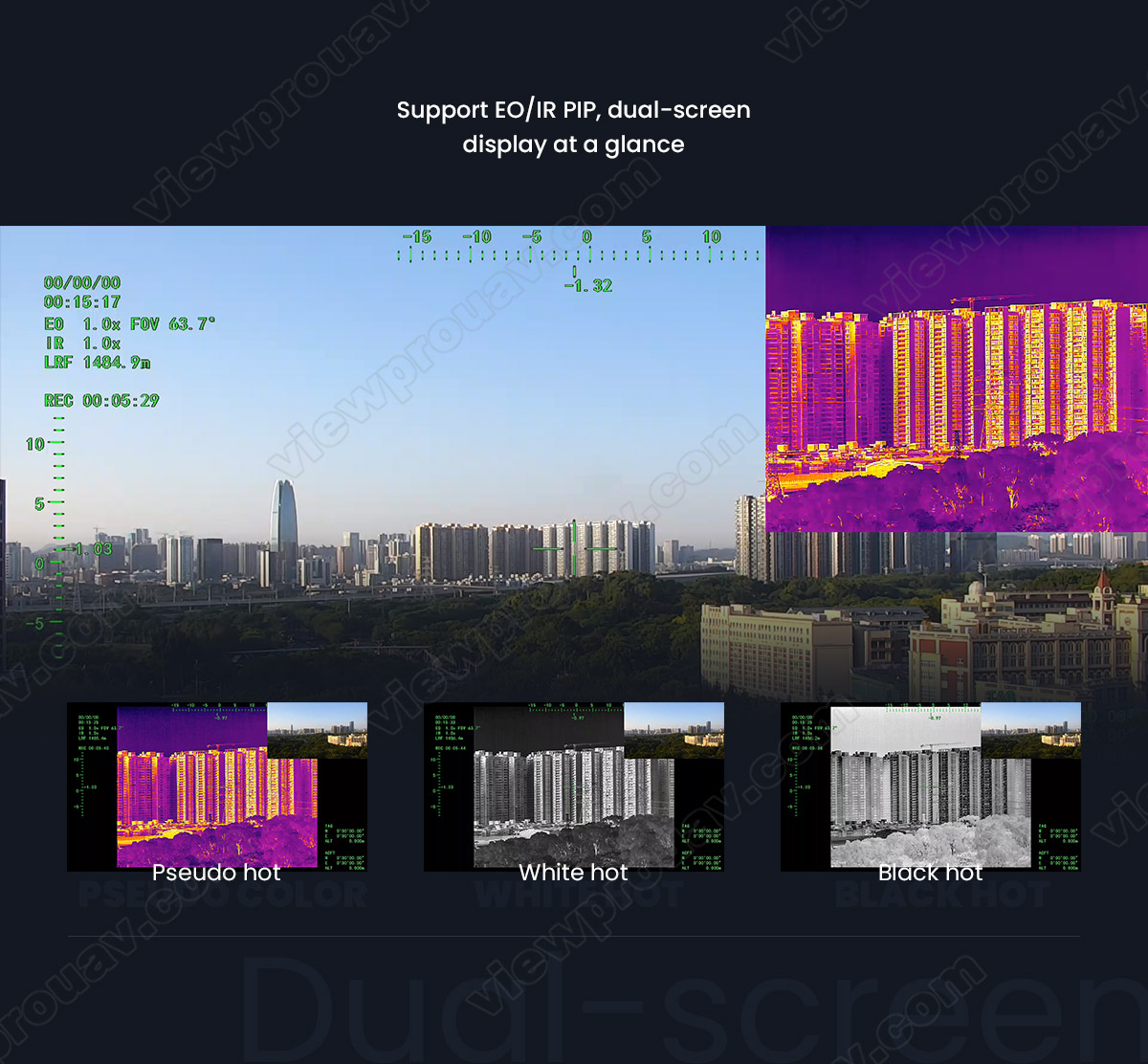

Color palette	White hot, black hot, pseudo color
Digital zoom	1x ~ 8x
Sync correct time	Yes
EO / IR Camera Object Tracking
Update rate of deviation pixel	30Hz
Output delay of deviation pixel	<30ms
Minimum object contrast	5%
SNR	4
Minimum object size	16*16 pixel
Maximum object size	256*256 pixel
Tracking speed	±48 pixel/frame
Object memory time	100 frames
EO Camera AI Performance
Targets type	Car and human
Simultaneous detection quantity	≥ 10 targets
Min contrast ratio	5%
Min target size	5×5 pixel
Car detection rate	≥85%
False alarm rate	≤10%
Packing Information

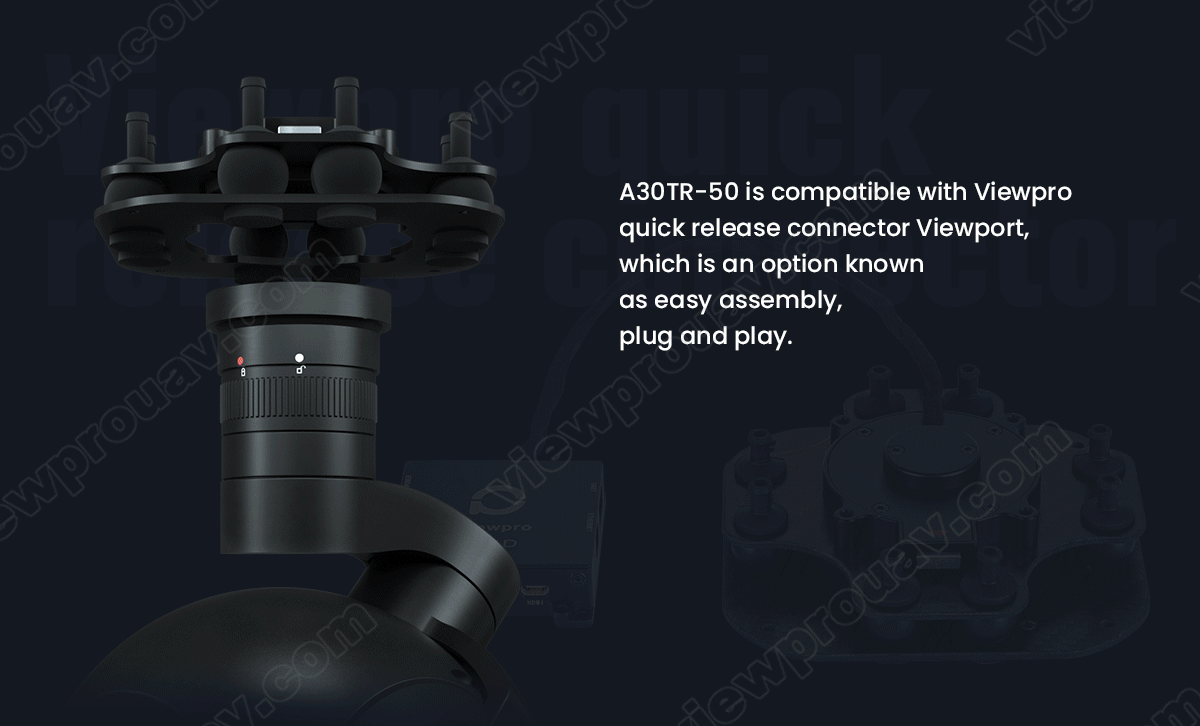

N.W.	1352g (Viewport version)

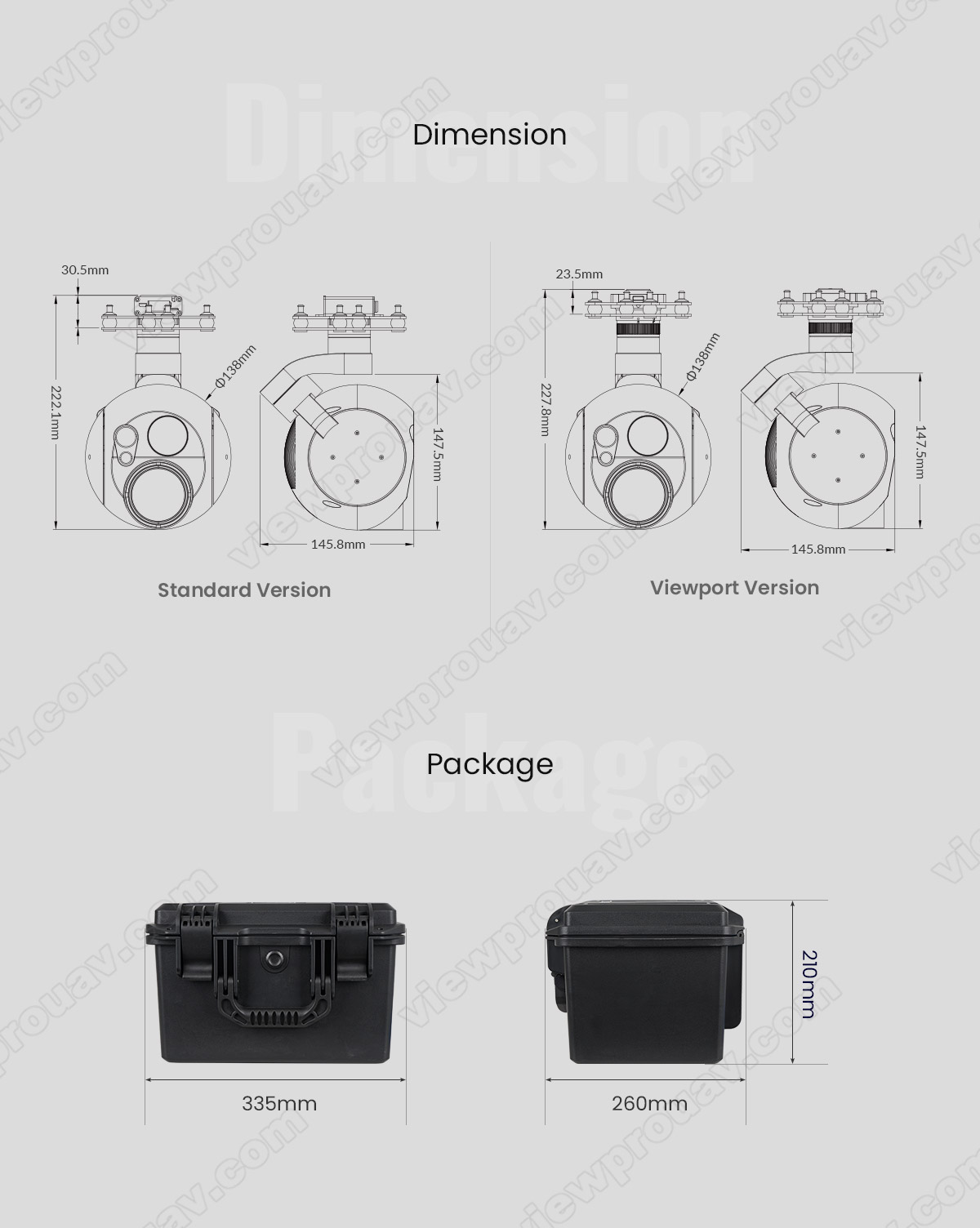

Product meas.	139.5*128*218.1mm (Standard version) / 139.5*128*223.8mm (Viewport version)

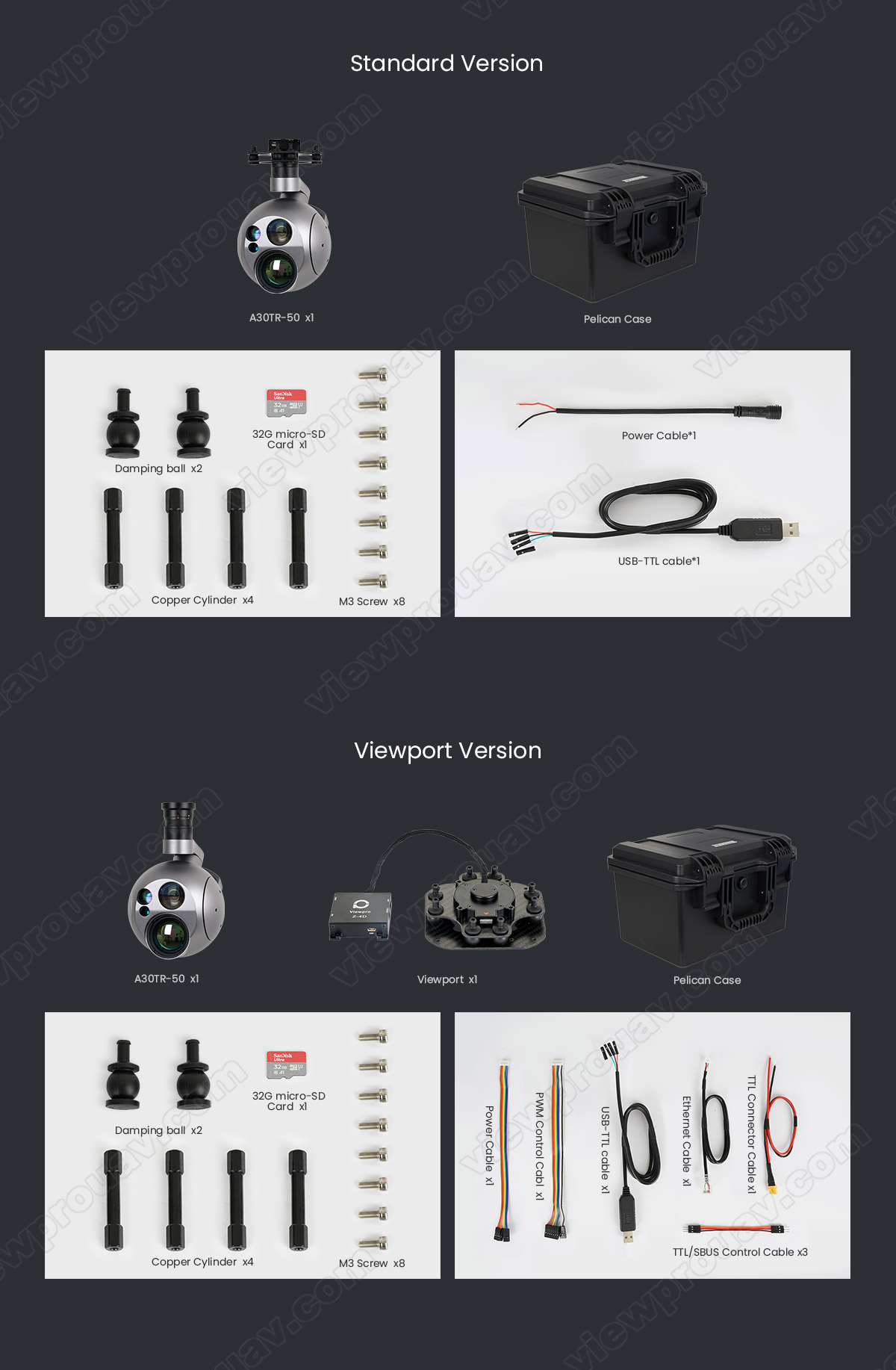

Accessories	1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion
G.W.	3321g
Package meas.	350*300*250mm

Videos

VIEWPRO A30T-50 30X EO/IR Gimbal Camera with AI Overview

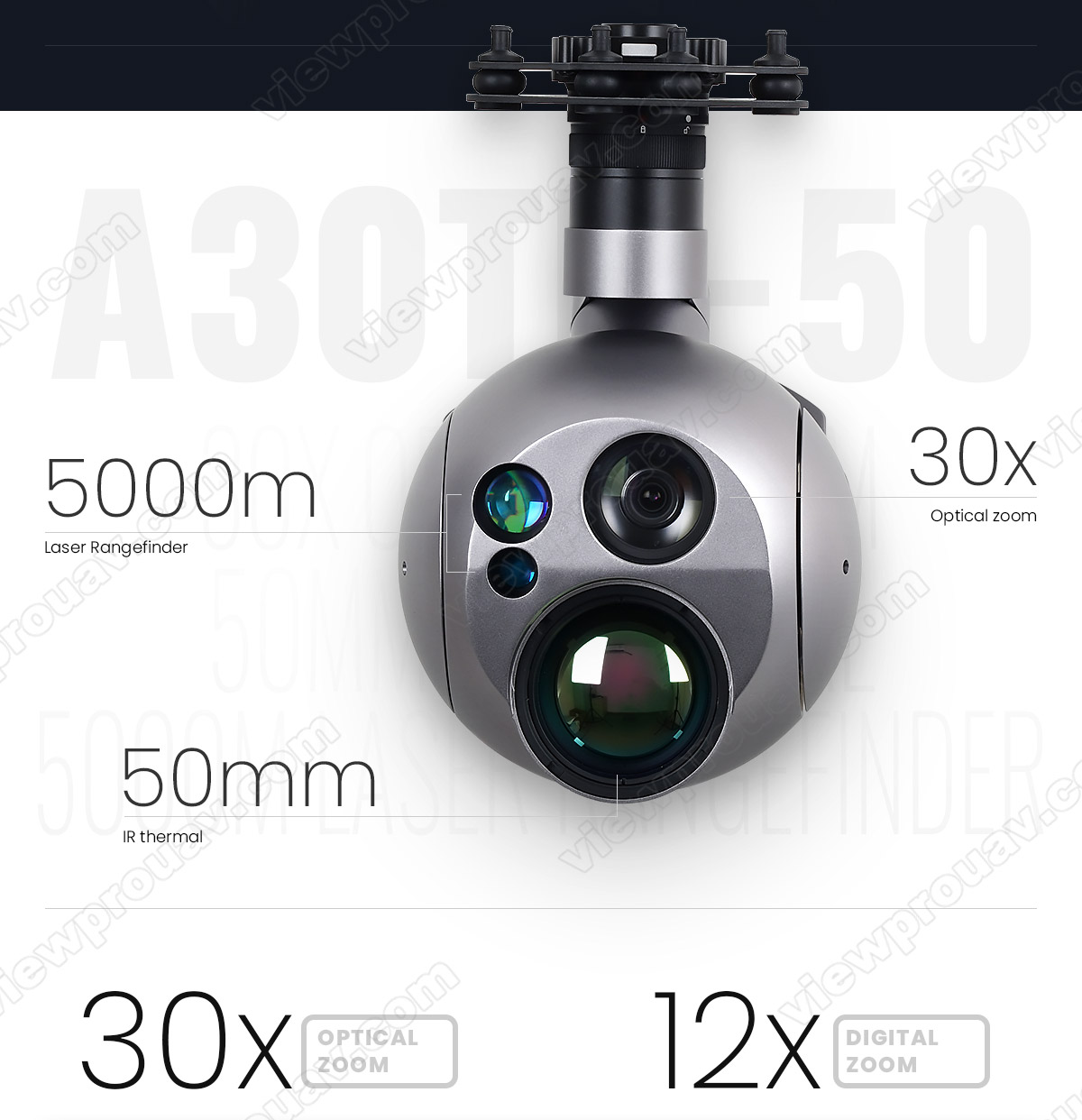

The VIEWPRO A30T-50 is a 3-axis high-precision gimbal camera designed for advanced aerial surveillance and inspection. It combines a 30× optical zoom EO SONY camera, a 50 mm 640×512 @ 12 µm IR thermal sensor, a 5 km laser rangefinder, and onboard AI auto­identification for humans and vehicles. Ideal for integration on professional drones tackling public safety, search & rescue, disaster response, and industrial inspections.

Key Features of VIEWPRO A30T-50 30X EO/IR Gimbal Camera with AI

• 30× optical zoom EO SONY camera for detailed long-range imaging
• 50 mm IR thermal sensor (640×512 @ 12 µm) for heat signature detection

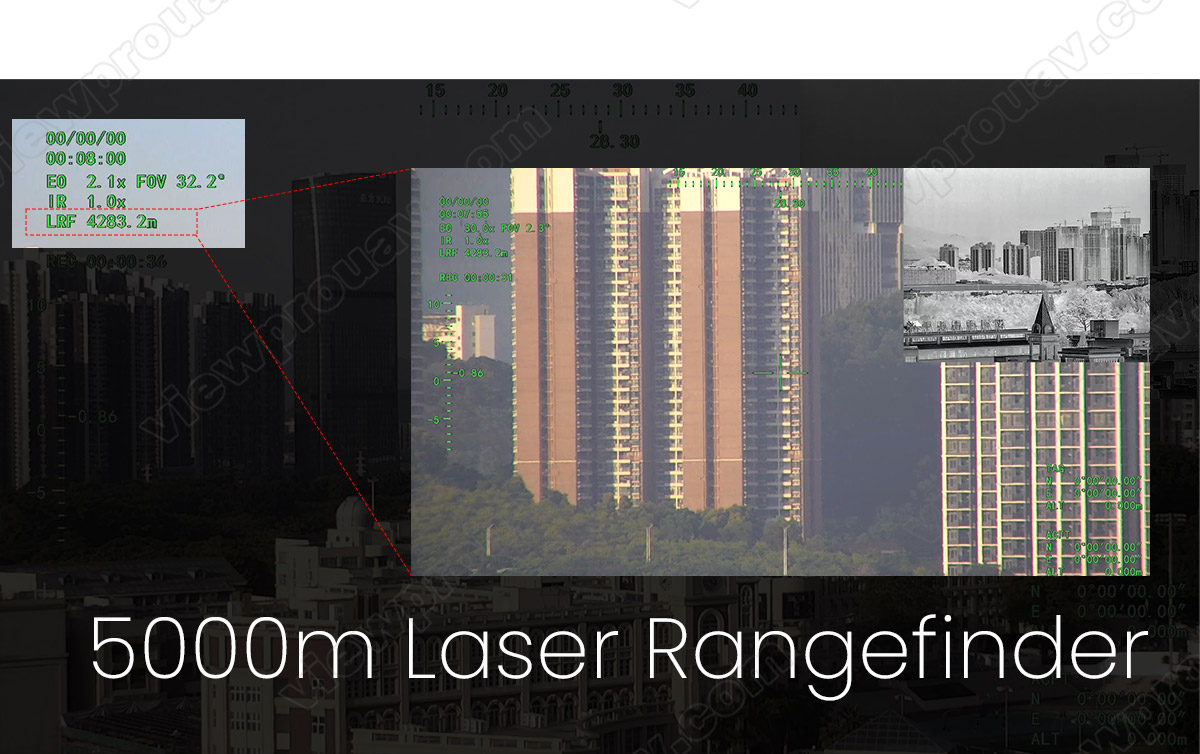

• Integrated 5 km laser rangefinder for precise distance measurements

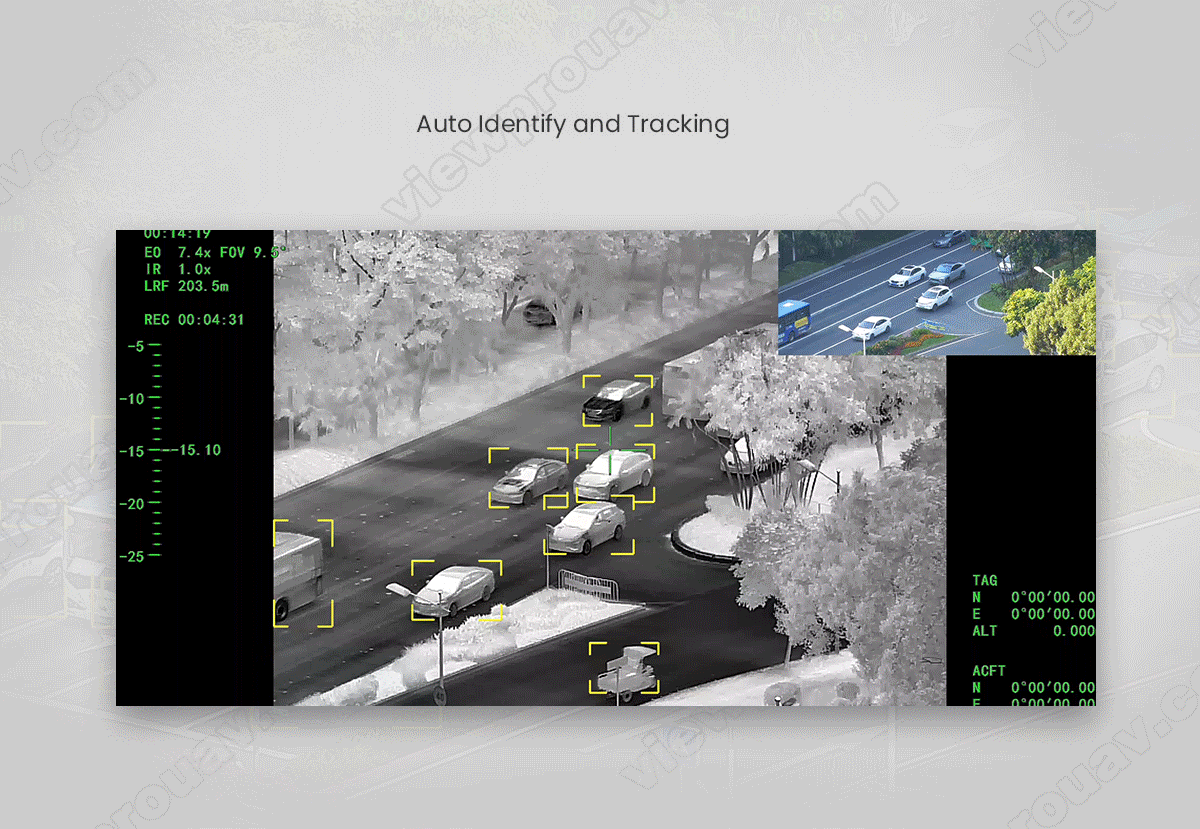

• AI-based auto­identification and stable tracking of humans and vehicles

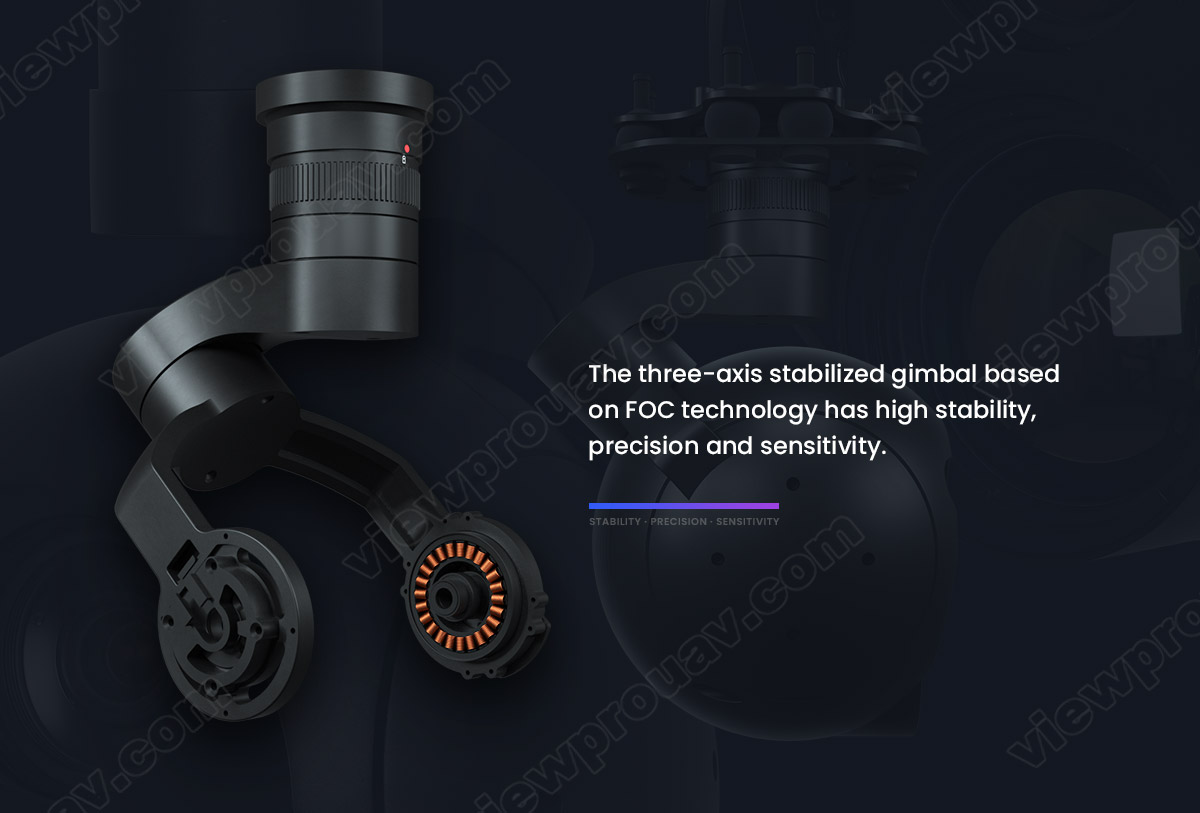

• Three-axis high-precision stabilization for smooth video in flight
• Fast shipping from Zbotic.in with order processing in 24 hours

Applications and Use Cases

• Public safety monitoring and perimeter patrol by law enforcement drones
• First response and disaster assessment in fire zones or flood areas
• Industrial facility inspections for heat leaks, equipment faults, and hot spots
• Search and rescue operations in low-visibility, night, or smoke conditions
• Emergency monitoring of crowd movement and vehicle traffic patterns
• Wildlife surveys and anti-poaching patrol with thermal detection

How to Use VIEWPRO A30T-50 30X EO/IR Gimbal Camera with AI

Mount the A30T-50 onto your compatible drone gimbal bracket, connect to a 16–24 V power source (4S–6S LiPo), and link video/data outputs to your flight controller or ground station. Use the onboard control interface to initialize stabilization, calibrate the EO/IR sensors, and activate AI detection modes. Swap between optical zoom, thermal imaging, and laser ranging via your controller software for live tracking and analysis.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which drones are compatible with the A30T-50 gimbal?

The A30T-50 uses a standard 3-axis mounting bracket and operates on 16–24 V, making it compatible with most professional multi-rotor and VTOL platforms that support a 4S–6S power bus and offer adequate payload capacity.

What is the effective detection range of the thermal sensor?

The 50 mm IR thermal module (640×512 @ 12 µm) can detect human-sized heat signatures up to 800 m under clear conditions and identify hot spots in structures or equipment at greater distances when optimized for focal length and environmental factors.

How does the AI auto-identification feature work?

Onboard AI algorithms analyze live EO and IR imagery to recognize and classify humans and vehicles in real time. Once detected, the gimbal locks onto the target and maintains stable tracking, even during complex maneuvers or low-light scenarios.
