PRODUCT DESCRIPTION

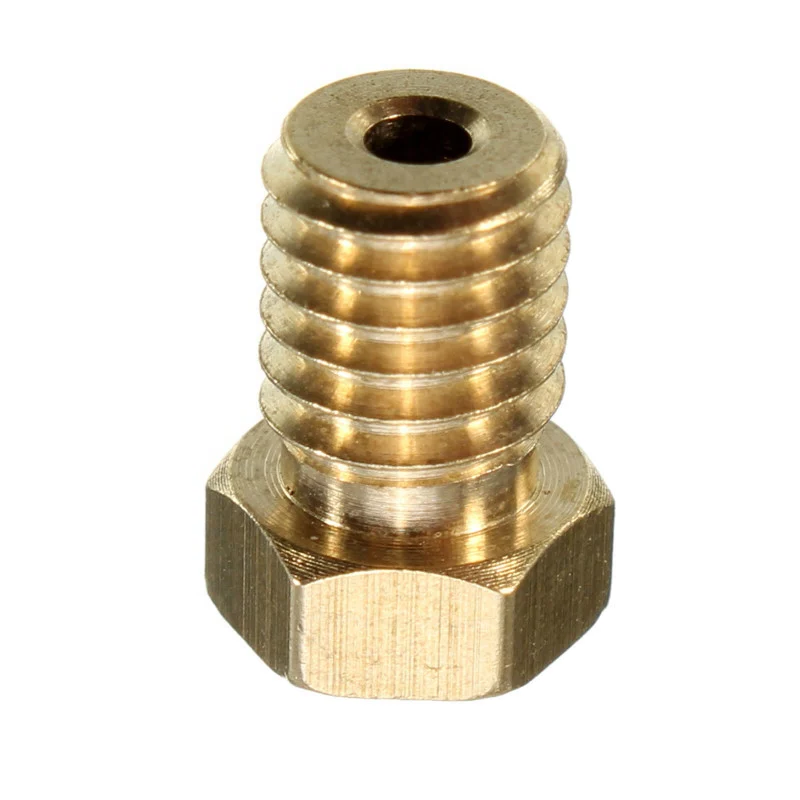

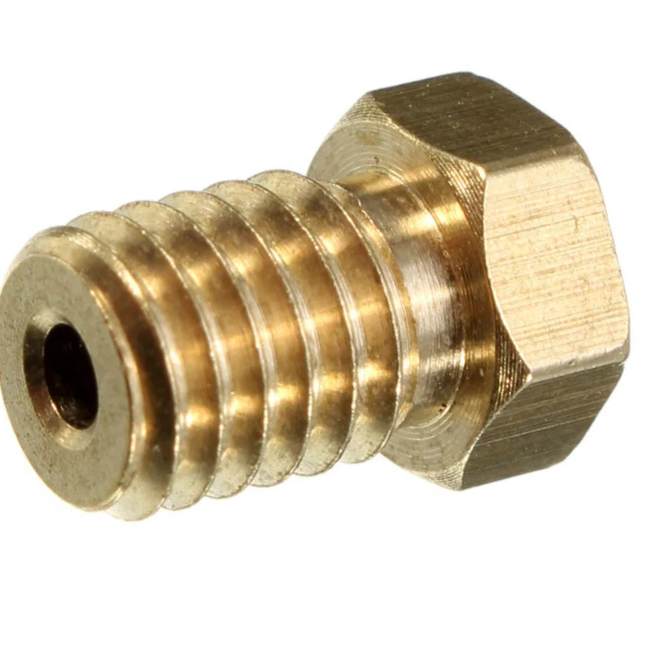

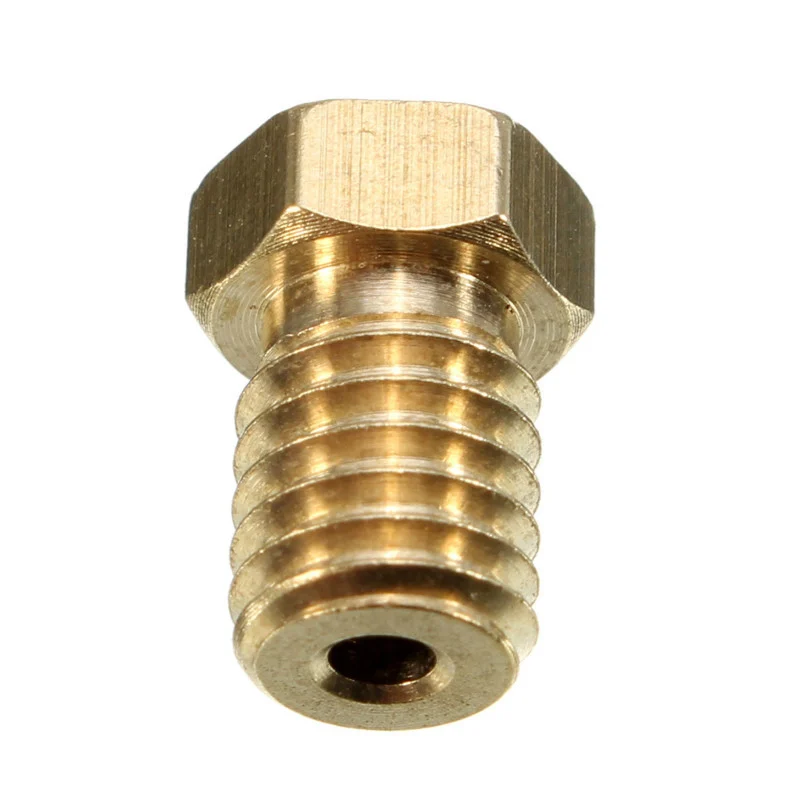

V5 V6 Nozzle 1.75 0.8 for 3D Printer
A 3D printer nozzle is the part that lays down the melted filament on the build area. You can choose from various kinds of 3D printer nozzles, depending on your needs. Brass nozzles are good for general 3D printing, but you need a high-performance nozzle for abrasive filaments like NylonX. Copper-plated and CleanTip nozzles are designed to prevent filament from sticking to them.
0.6 mm 3D Printer Extruder Brass Nozzle is a high-quality and reliable nozzle for DIY and professional systems. You can make your own dual-head extrusion by adding a holder.
Features:
- Light Weight
- high-quality Brass
- Small in size
- Easy to install.
- Easy to use.
Specification:
| Material | High-quality Brass |
|---|---|
| Filament Support | 1.75mm |
| Color | Brass color |
| Nozzle Accuracy | 0.8mm |
| Screw Outer Diameter | M6 |
| 3D Printer Extruder Brass Nozzle | 0.6 mm |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 3 × 2 × 1 cm |
Package Includes:
1 x V5 V6 Nozzle 1.75 0.8 for 3D Printer
V5 V6 Nozzle 1.75+0.8 for 3D Printer Overview
The V5 V6 Nozzle 1.75+0.8 is a precision brass nozzle designed for E3D-style V5 and V6 hotends. It supports 1.75 mm filament and features a 0.8 mm orifice for higher flow rates, making it ideal for faster, stronger prints at larger layer heights.
Key Features of V5 V6 Nozzle 1.75+0.8 for 3D Printer
- High-quality brass construction for excellent thermal conductivity
- 0.8 mm nozzle diameter for increased extrusion volume and faster print times
- M6 screw thread ensures compatibility with V5 and V6 hotend assemblies
- Optimized for 1.75 mm filament, including PLA, PETG and ABS
- Lightweight, compact design for easy installation and minimal added mass
- Fast shipping from Zbotic — get it dispatched within 24 hours*
Applications and Use Cases
- Rapid prototyping of large-scale parts with layer heights up to 0.6 mm
- Structural components requiring thick, robust layer bonds
- Printing functional fixtures, jigs and tooling inserts
- Bulk fabrication of enclosures or casings where surface finish is secondary
- Multi-material or dual-extrusion setups using a separate high-flow nozzle
- Hobbyist models that benefit from quicker build times and reduced clog risk
How to Use V5 V6 Nozzle 1.75+0.8 for 3D Printer
To install, heat your V5/V6 hotend to printing temperature, remove the existing nozzle, then screw the 0.8 mm nozzle in by hand until snug. Use a suitable wrench to tighten to manufacturer-recommended torque. Update your slicer’s nozzle diameter to 0.8 mm and adjust extrusion width accordingly. After calibration, begin printing and monitor the first layer for optimal adhesion and flow.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the V5 V6 Nozzle 1.75+0.8 compatible with E3D V6 hotends?
Yes. The nozzle features an M6 thread and is a direct drop-in replacement for both V5 and V6 E3D-style hotends supporting 1.75 mm filament.
Which filaments work best with a 0.8 mm brass nozzle?
It excels with common materials like PLA, PETG and ABS. Avoid highly abrasive composites (carbon- or metal-filled) since brass erodes more quickly under abrasive wear.
How do I adjust slicer settings for a 0.8 mm nozzle?
In your slicer, set the nozzle diameter to 0.8 mm and increase the line width to match or slightly exceed this value. Print a calibration cube and fine-tune the extrusion multiplier until walls are well bonded and dimensions are accurate.
