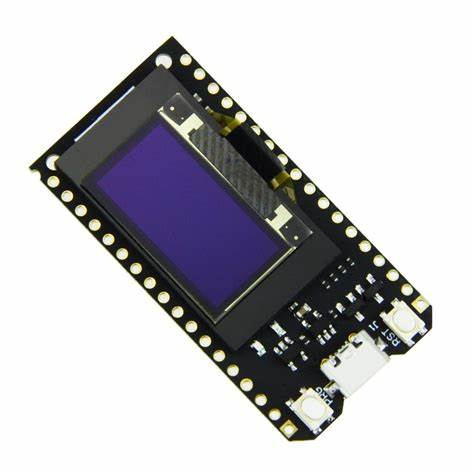

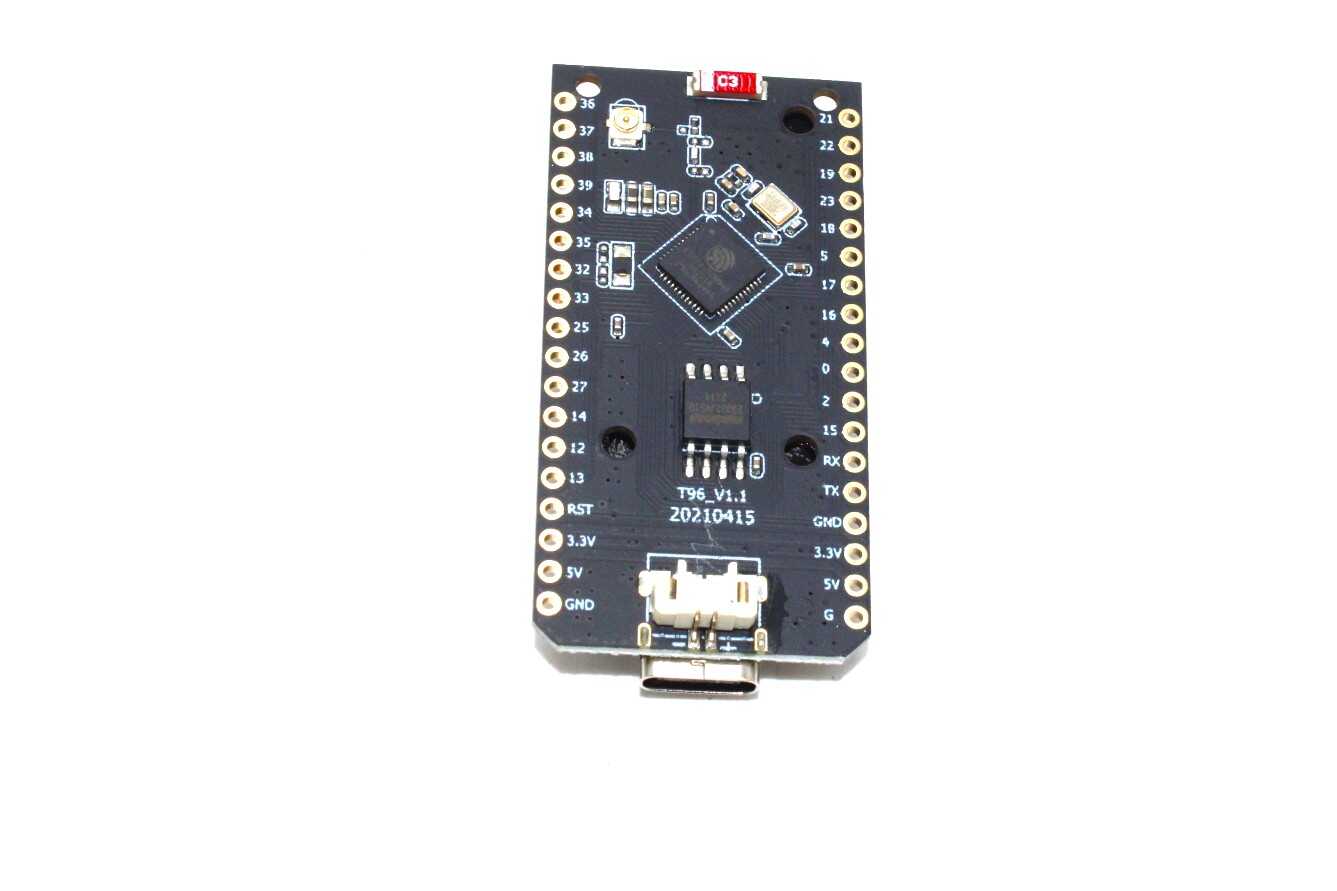

Unsoldered 4M Byte (32M bit )Pro ESP32 OLED V2.0 TTGO & ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED
The Unsoldered 4M Byte (32M bit) Pro ESP32 OLED V2.0 TTGO & ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED offers a versatile and powerful solution for wireless communication and display integration. Equipped with an ESP32 chipset, this module provides reliable Wi-Fi (802.11 b/g/n) and Bluetooth (BLE) connectivity, making it suitable for a wide range of IoT applications.
Featuring 4 Megabytes (32 Megabits) of flash memory, the module offers ample storage space for firmware and data. The built-in OLED (Organic Light-Emitting Diode) display, with a resolution of 128×64 pixels and SSD1306 type, provides clear and crisp visual output for displaying information and user interfaces.
With support for GPIO, UART, I2C, and SPI interfaces, as well as compatibility with popular development environments such as Arduino IDE and ESP-IDF, this module offers flexibility and ease of integration into various projects. Additionally, the module operates at a standard voltage of 3.3V, ensuring compatibility with common microcontroller systems.
The dual ESP32 modules further enhance the capabilities of this module, enabling concurrent operation and increased processing power for demanding applications. Whether used for wireless data transmission, sensor monitoring, or user interface display, the Unsoldered 4M Byte Pro ESP32 OLED V2.0 TTGO & ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED provides a reliable and feature-rich solution for IoT projects.
Features:
1.The main control chip using ESP32 of Espressif , Tensilica dual core processor, clocked at 240MHz, computing capacity of up to 600DMIPS, 520 SRAM, 802.11 KB chip b/g/n HT40 Wi-Fi transceiver, baseband, and LWIP protocol stack,Bluetooth (Bluetooth dual-mode integrated traditional and BLE low-power Bluetooth).
2.Onboard 4M Byte (32M bit) , Flash, and Wi-Fi antennas.
3.0.96-inch White OLED display.
4.Lithium battery charging circuit and interface.
5.CP2102 USB to serial chip, perfect support for Arduino development environment.
Specification:
| Specification | Details |
|---|---|
| Module Type | WiFi and Bluetooth module |
| Chipset | ESP32 |
| Flash Memory | 4 Megabytes (32 Megabits) |
| Display | OLED (Organic Light-Emitting Diode) |
| Display Type | SSD1306 |
| Display Resolution | 128×64 pixels |
| Communication Protocols | Wi-Fi (802.11 b/g/n), Bluetooth (BLE) |
| Operating Voltage | 3.3V |
| Microcontroller | ESP32 (Espressif Systems) |
| Interfaces | GPIO, UART, I2C, SPI |
| Supported IDEs | Arduino IDE, ESP-IDF (Espressif IoT Development Framework) |

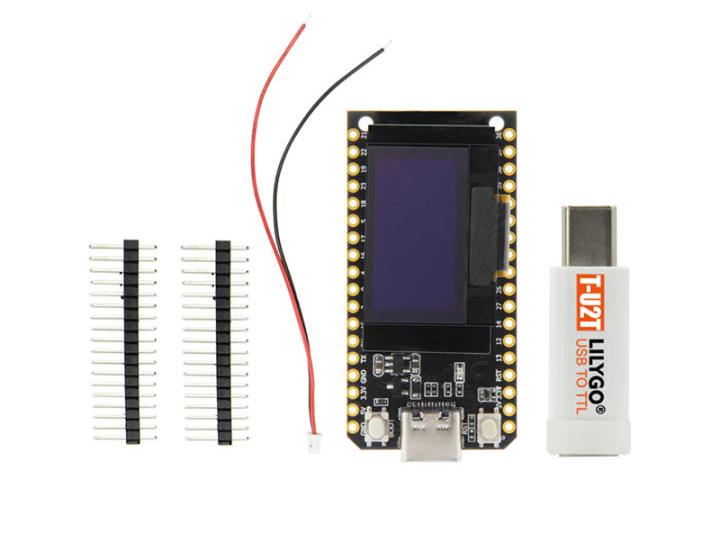

Package Include:
1 x Unsoldered 4M Byte (32M bit )Pro ESP32 OLED V2.0 TTGO & ESP32 OLED WiFi Modules+Bluetooth Double ESP-32 ESP8266 Et OLED
