Features:
- Ultra Big Sound 110 db BB Buzzer 14MM High BB Ring w/4 WS2812
- Programmable LED Light Lamp Bead For F3 F4 F7 FC FPV RC Drone Acc
Specification:
| Size | 27*14*11MM |
|---|---|
| Weight | 4.5 grams |
| Shipping Weight | 0.006 kg |
| Shipping Dimensions | 7 × 6 × 1 cm |
Package Includes :

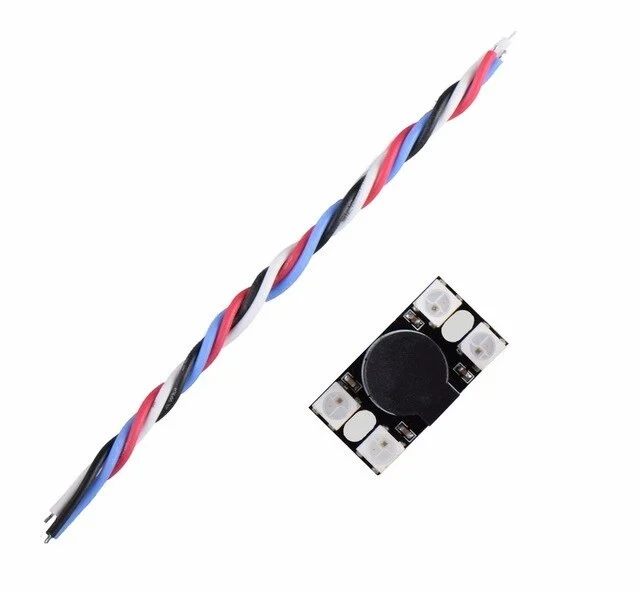

1 x Ultra Big Sound 110 db BB Buzzer
Ultra Big Sound 110 db BB Buzzer Overview

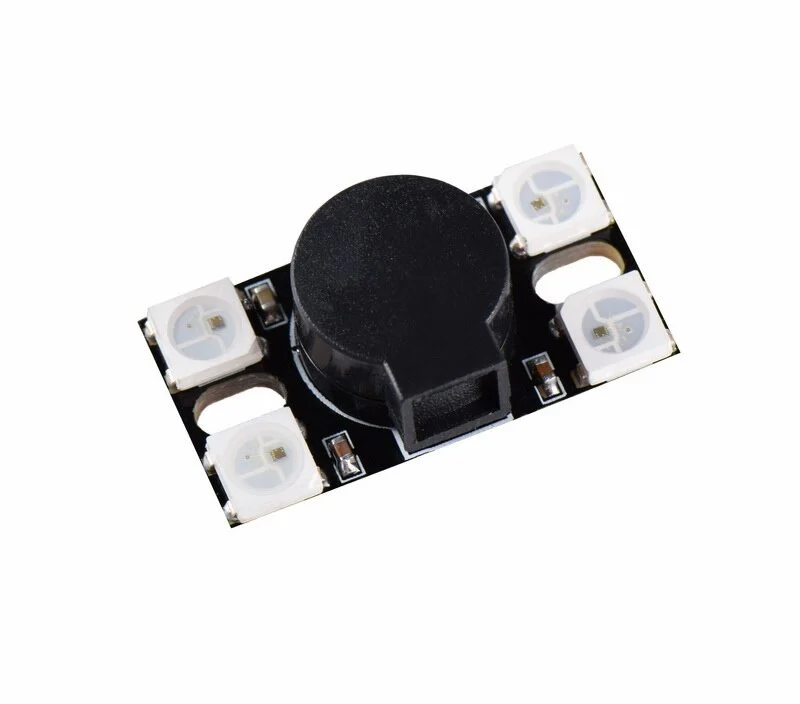

The Ultra Big Sound 110 db BB Buzzer is a high-power alarm module designed for FPV and racing drones. At just 27×14×11 mm and weighing 4.5 g, it fits low centre-of-gravity frames while delivering a 110 dB alert. It supports F3, F4 and F7 flight controllers and includes four programmable WS2812 LEDs.
Key Features of Ultra Big Sound 110 db BB Buzzer
- 110 dB built-in buzzer for loud crash alerts and beeps
- Compact 27×14×11 mm footprint with only 14 mm height—ideal for low-CG frames
- Lightweight 4.5 g design minimizes added mass on racing or freestyle quads
- Four onboard WS2812 LEDs programmable via F3, F4 or F7 flight controller
- Standard 5 V supply from flight controller B+/5 V pads
- Fast shipping from Zbotic—dispatch within 24 hours with full tracking
Applications and Use Cases
- FPV racing drones requiring a loud buzzer for quick location after crashes
- Freestyle quads where low-profile buzzer integration maintains aerodynamics
- Long-range builds needing programmable LED status indicators
- Emergency alarm systems on DIY robotics projects powered by 5 V FC output
- Battery voltage or GPS failsafe alerts configured in Betaflight or INAV
How to Use Ultra Big Sound 110 db BB Buzzer

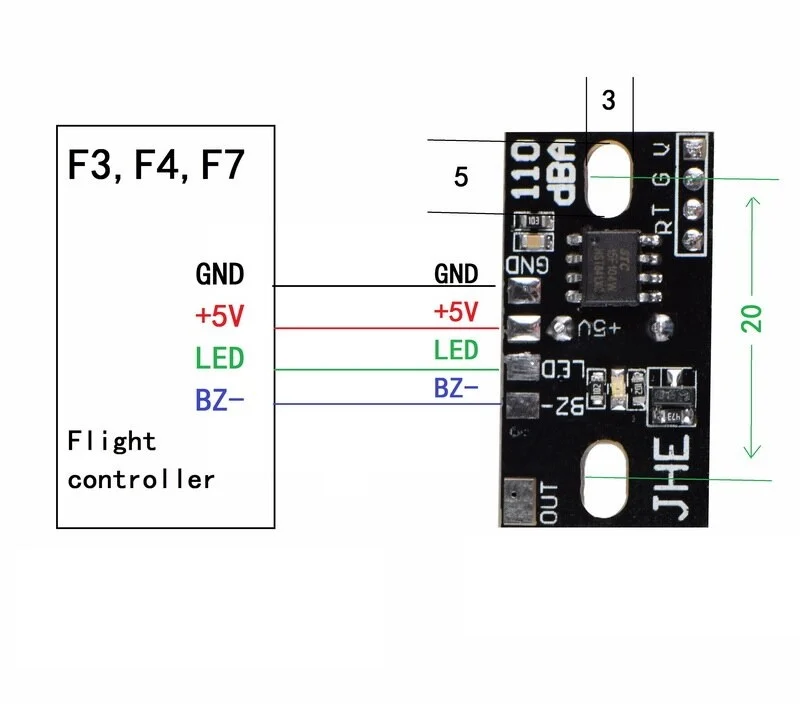

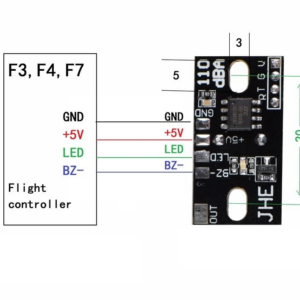

Mount the buzzer on your frame’s low-CG rack, solder the positive (5 V), ground and beeper signal wires to the corresponding flight controller pads. Configure the buzzer beeps and WS2812 LED patterns in your flight controller firmware (for example Betaflight), then test by triggering failsafe or tone signals to verify sound output and LED illumination.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the Ultra Big Sound 110 db BB Buzzer compatible with my F4 flight controller?
Yes. This buzzer module is fully compatible with F3, F4 and F7 flight controllers that provide a 5 V B+ pad and a buzzer output pad.
How do I program the onboard WS2812 LEDs?
In your flight controller firmware (Betaflight/INAV), assign the LED strip port to the buzzer device, select WS2812, and configure LED patterns under the LED Strip tab. The four onboard LEDs will respond to mode changes or alerts as configured.
Will the 110 dB buzzer drain my battery quickly?
No. The buzzer draws power only when active—typically under 50 mA at 5 V—so its impact on overall flight time is negligible when used for short beeps or failsafe alerts.
