TS5823 200mw 40CH Mini Transmitter

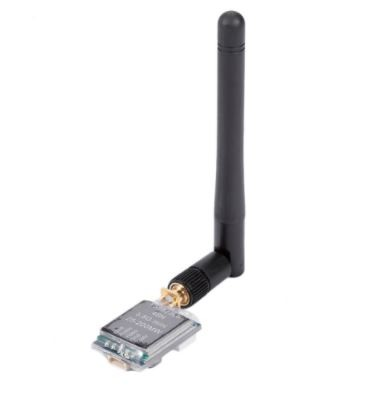

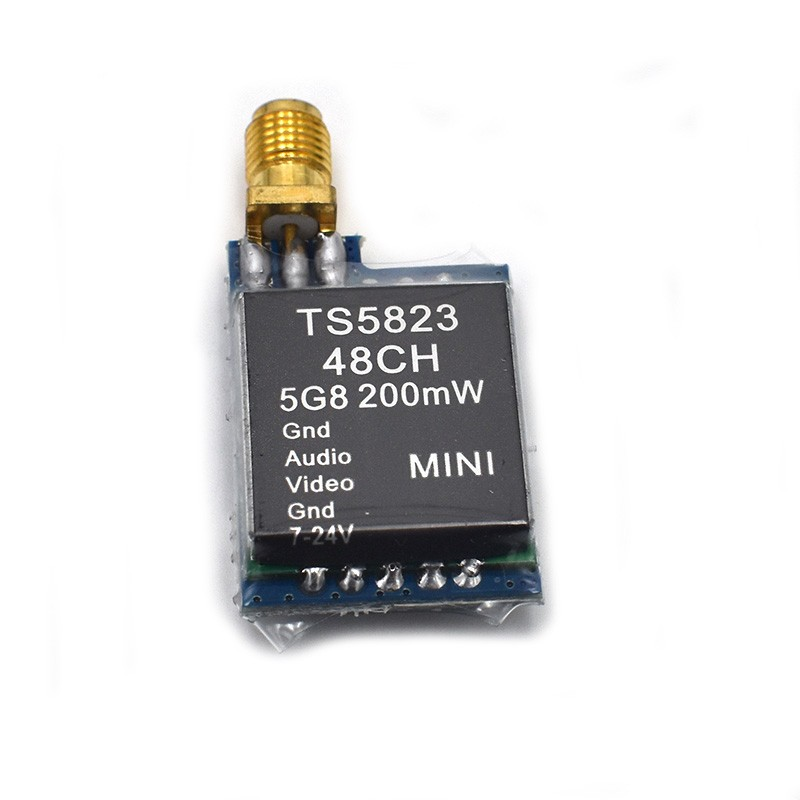

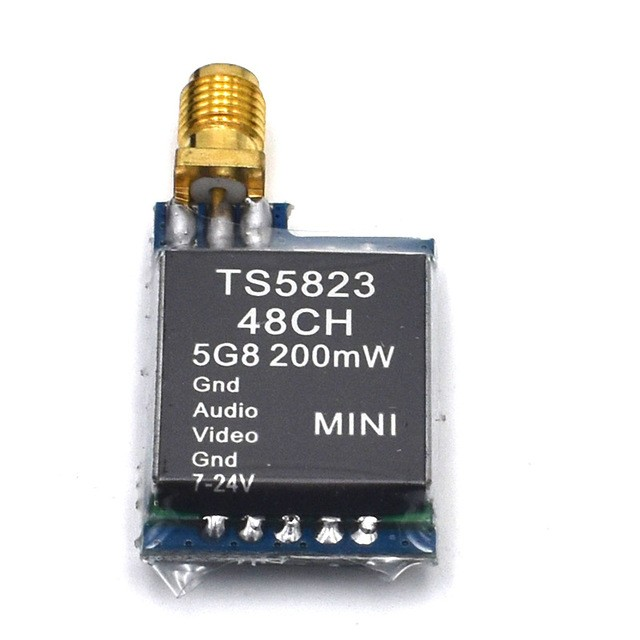

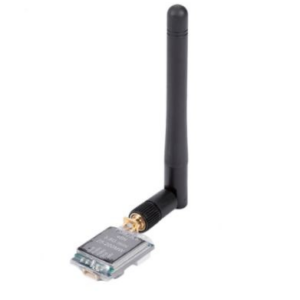

TS5823 200mw 40CH Mini Transmitter packs 200mW of ultra-clean 5.8GHz power in a micro-sized video/audio transmitter! A must-have for those looking to save size and weight while still getting good performance. The TS5823 is transmitting a full range of 48 channels and only weighs 10g.
It’s perfect for a wide range of aircraft, especially small models and 350 size multi-rotors such as Quantum Nova, DJI Phantom, QR X350 and more!
Features:
- Micro-sized and lightweight.
- Perfect for use with small models
- It has transmitter frequency of 5645-5945MHz with 200mW power output
- It features transmitting distance of 1500m in open area.
Specification:
| Operating Current (A): | 0.19 |
|---|---|
| Voltage(V) | 7 to 24 |
| Antenna Type | RP-SMA, SMA |
| Video Bandwidth | 8M |
| Audio Bandwidth | 6.5M |
| Operating Temperature (°C) | -10 to 85 |
| Module Size (LxWxH) mm | 40 x 20 x 8 |
| Antenna Diameter(mm) | 8 |
| Antenna Length(mm) | 106 |
| Weight (g): | 15 |
Package includes:

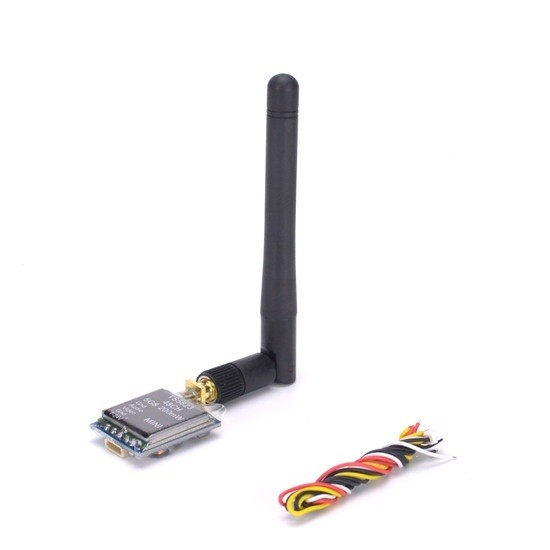

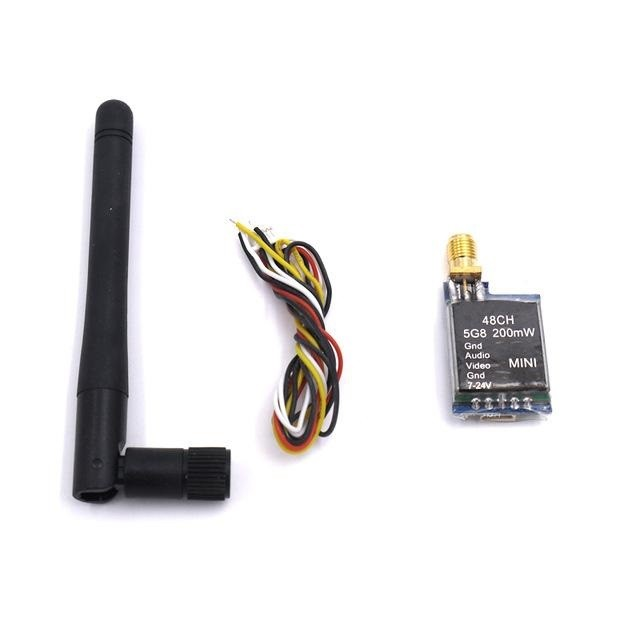

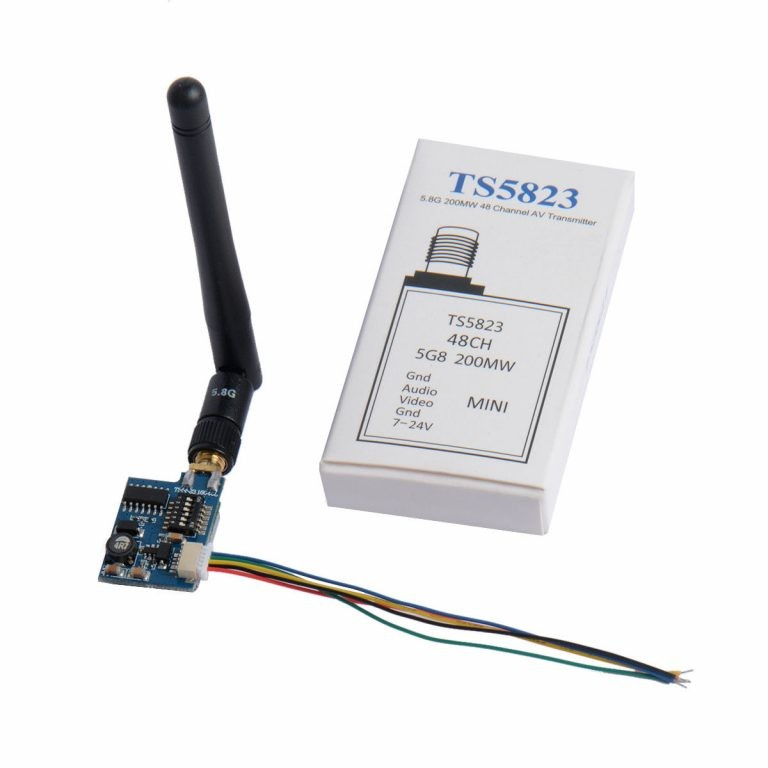

1 x TS5823 Mini 40CH 200MW Transmitter module
1 x Threaded Detachable Antenna
1 x AV Cable
TS5823 200mw 40CH Mini Transmitter Overview
The TS5823 200mw 40CH Mini Transmitter is a compact FPV video/audio transmitter designed to deliver a clean 5.8 GHz feed at 200 mW output. Weighing just 10 g, it’s ideal for small multirotors and micro aerial platforms that require a lightweight, high-performance transmitter.
Key Features of TS5823 200mw 40CH Mini Transmitter
- 200 mW RF output power ensures a stable mid-range FPV link
- 40 selectable channels to minimize interference and optimize your video band
- Ultra-compact, 10 g form factor preserves your model’s agility
- Dual RP-SMA and SMA connectors let you choose the best antenna for each flight
- Wide video and audio bandwidth for low-latency, clear image and sound
- Genuine unit shipped fast across India—order today for next-day dispatch from Zbotic
Applications and Use Cases
- FPV racing quads in the 250–350 mm class
- Micro drone builds where weight savings are critical
- DIY fixed-wing FPV airplane projects
- Lightweight aerial photography rigs on small frames
- Indoor/outdoor training flights for beginner pilots
- Integration into custom UAVs and research prototypes
How to Use TS5823 200mw 40CH Mini Transmitter
Connect your FPV camera’s video and audio outputs to the TS5823’s input pads, supply it with 5–12 V power, then set your desired channel using the on-board DIP switches. Attach a compatible RP-SMA or SMA antenna, secure the unit inside your airframe using double-sided tape or zip ties, and pair it with your 5.8 GHz receiver for immediate live video streaming.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I select channels on the TS5823?

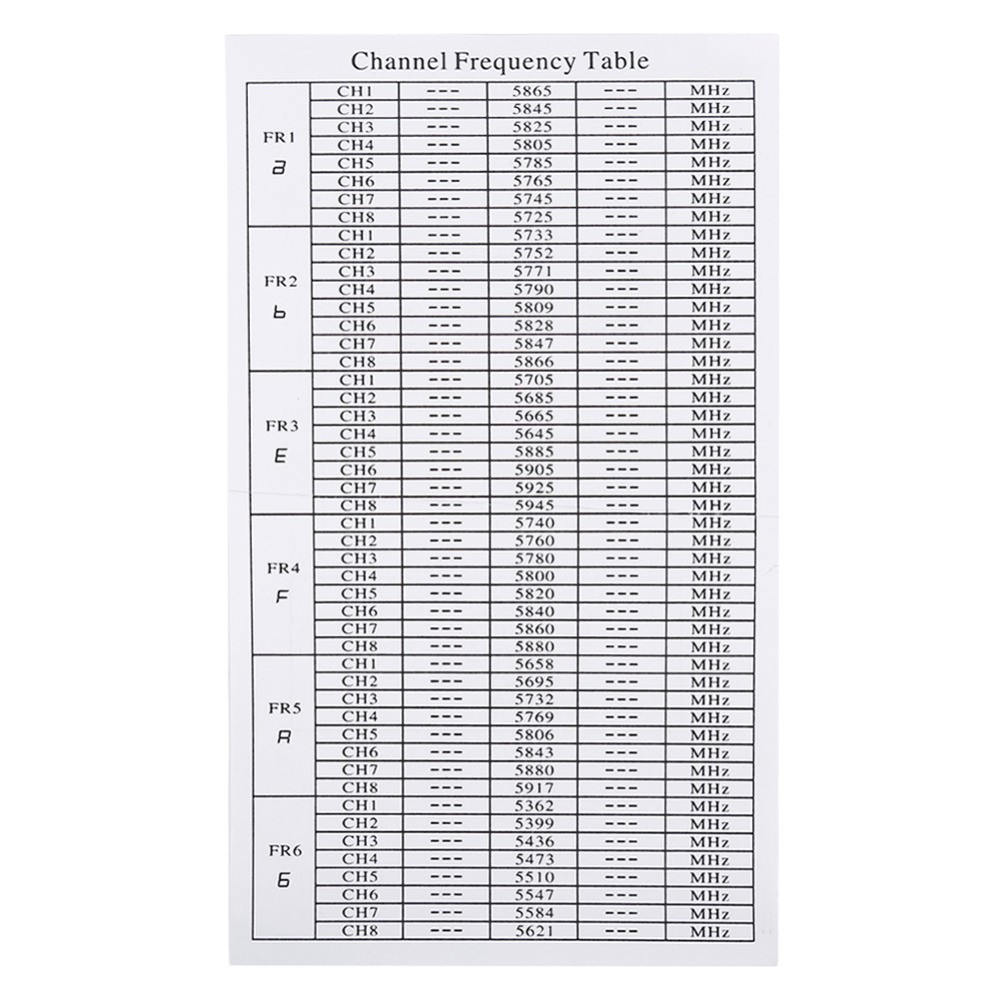

The TS5823 uses four DIP switches to choose among its 40 channels. Consult the channel map printed on the unit, flip the switches to the matching pattern, and power-cycle to activate your selection.
Which antenna connector should I use?
This transmitter offers both RP-SMA and SMA ports. Use the RP-SMA side if your antenna has an RP-SMA male plug, or switch to SMA if you have a standard SMA antenna—no modifications needed.
Is the TS5823 suitable for micro drone frames?
Absolutely. At just 10 g and with a tiny footprint, the TS5823 fits easily into 250 mm and 350 mm class quads, as well as smaller models that demand minimal payload weight.
Technical Specifications
| Model | TS5823 |
|---|---|
| Channels | 40-channel |
| SKU | AI5829 |
| Availability | Out of Stock |
Applications & Use Cases
The TS5823 200mw 40CH Mini Transmitter is a versatile fpv antennas and trans-receivers used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
