Product Description

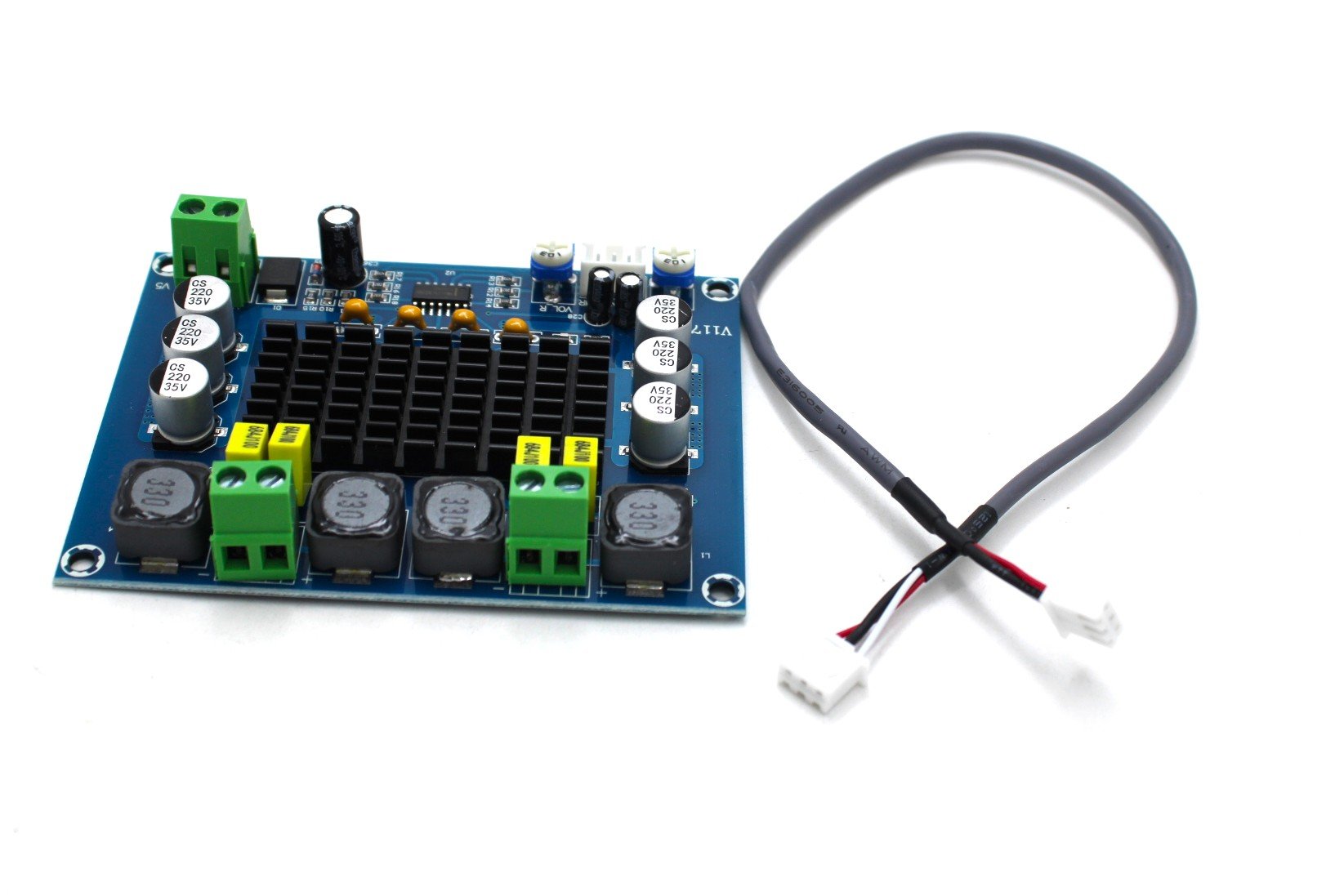

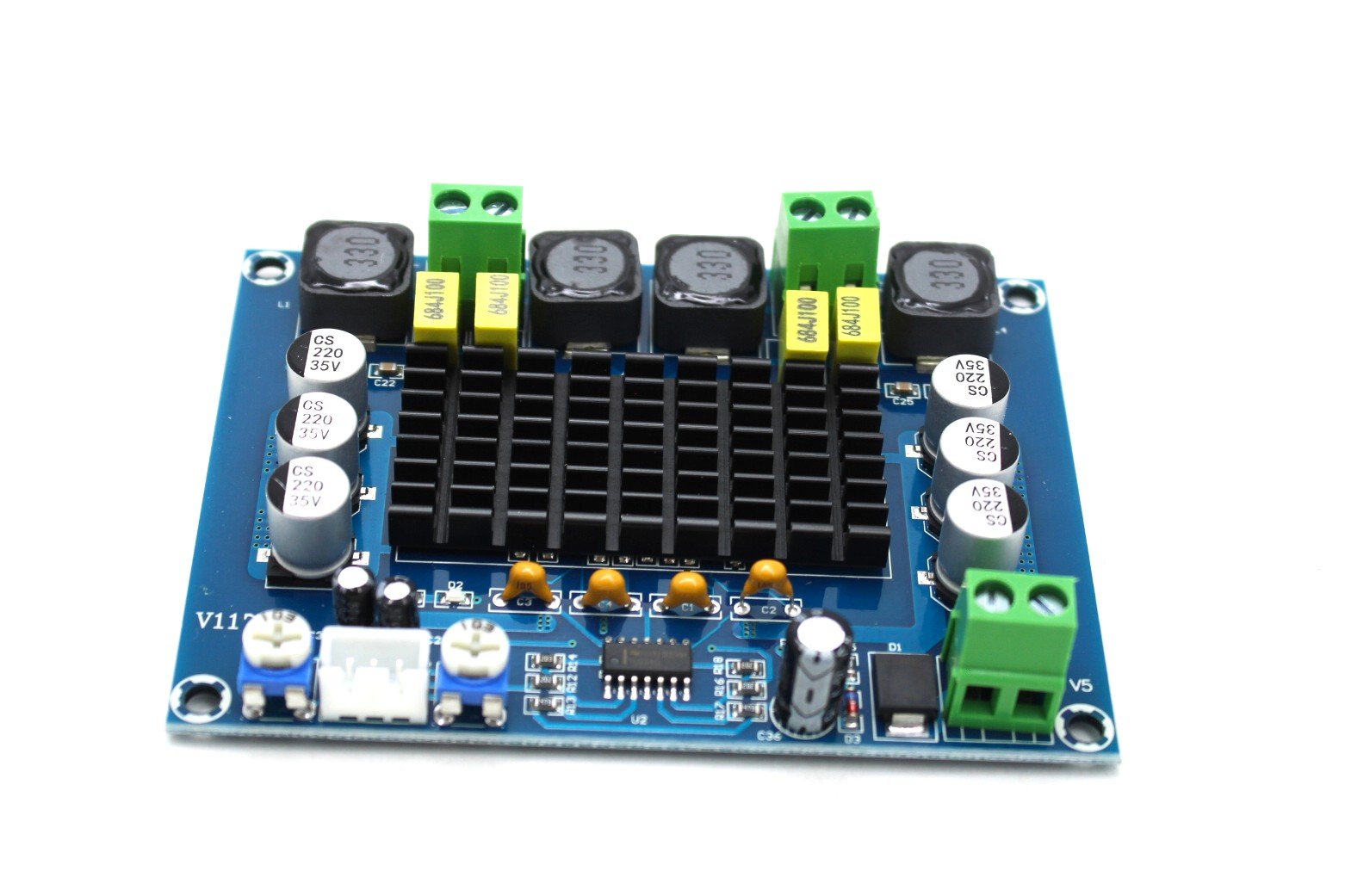

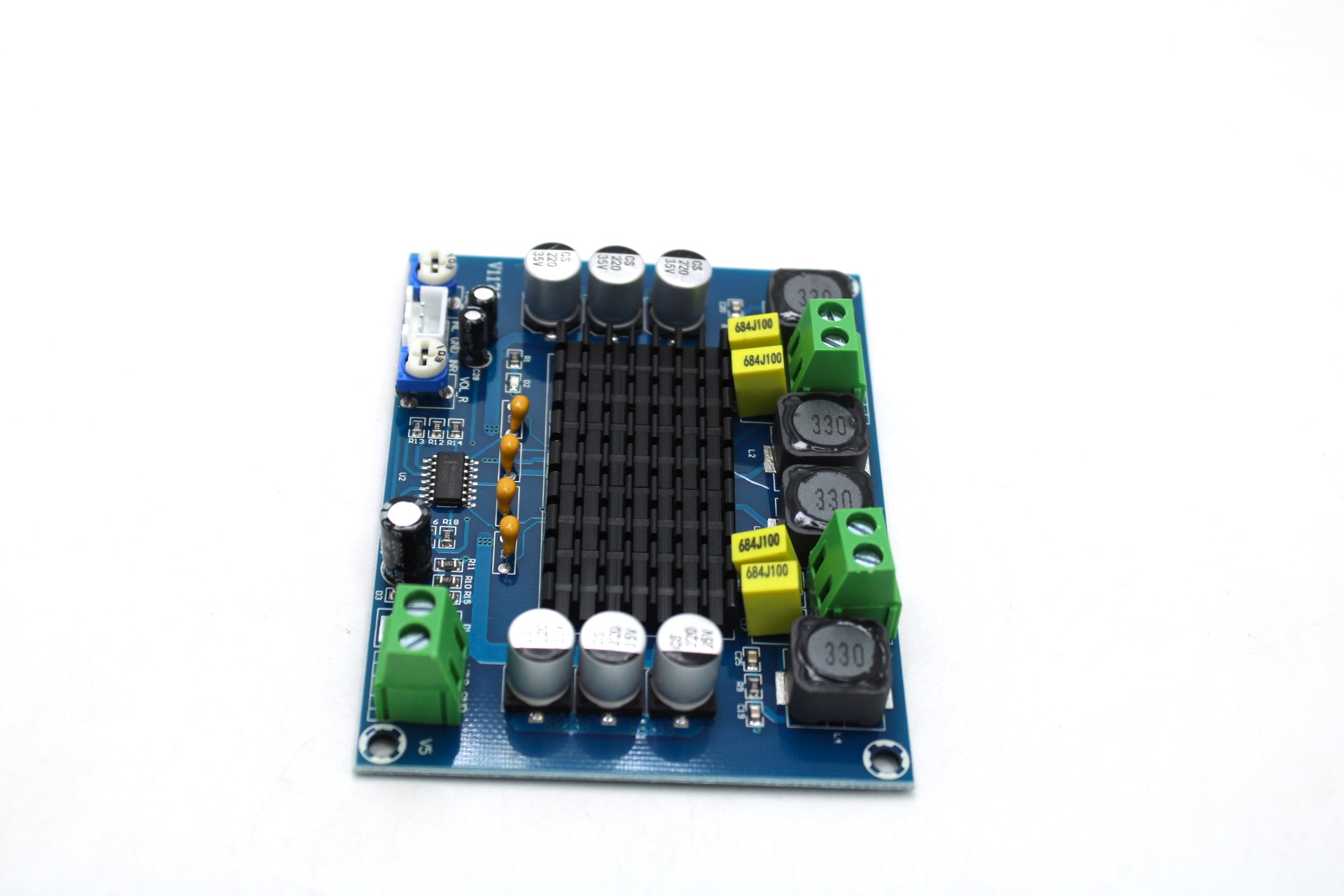

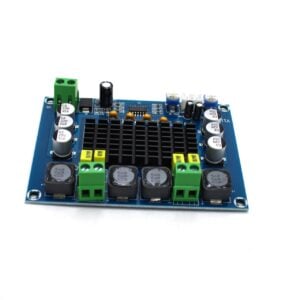

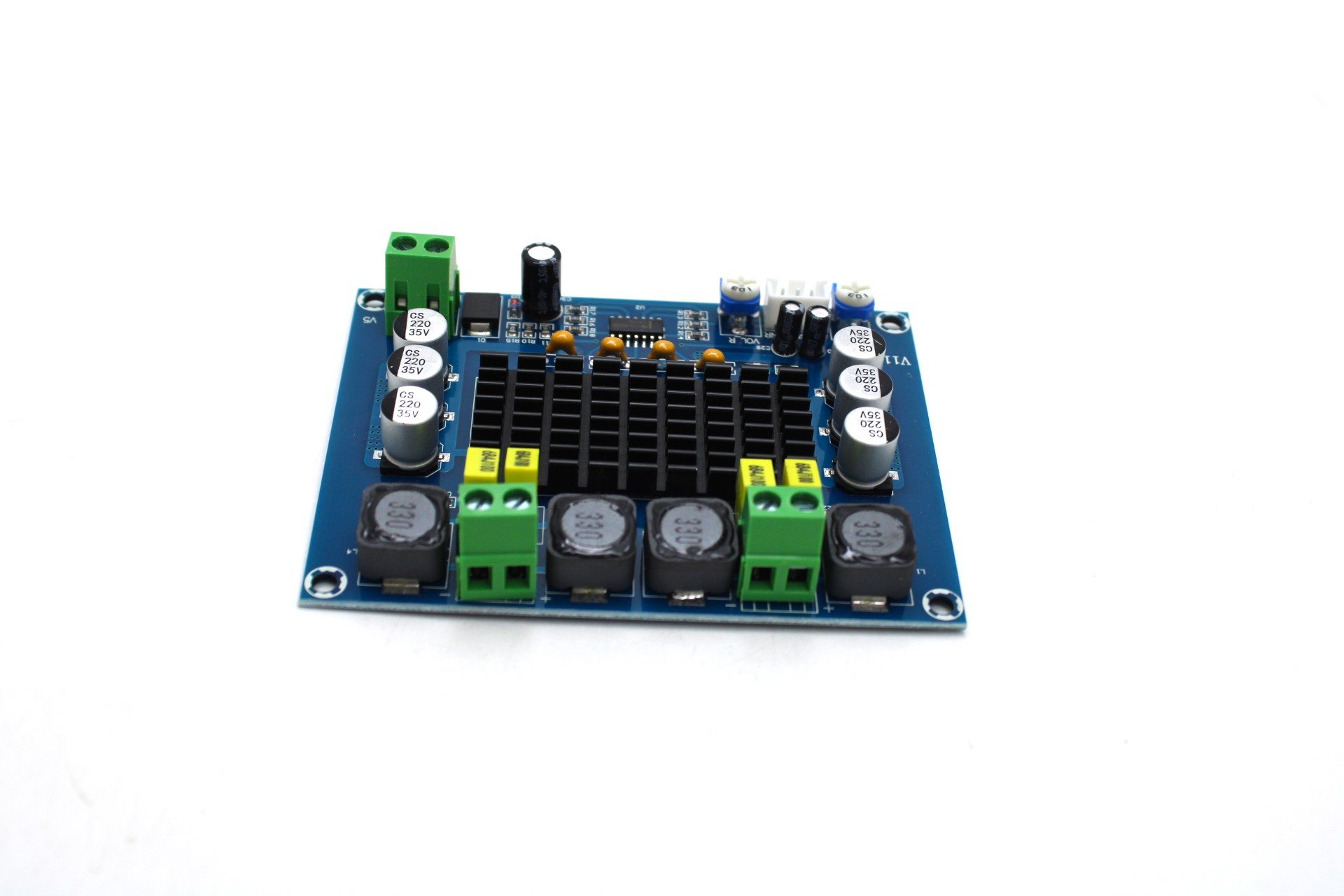

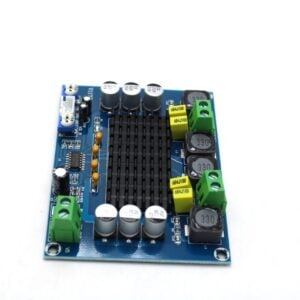

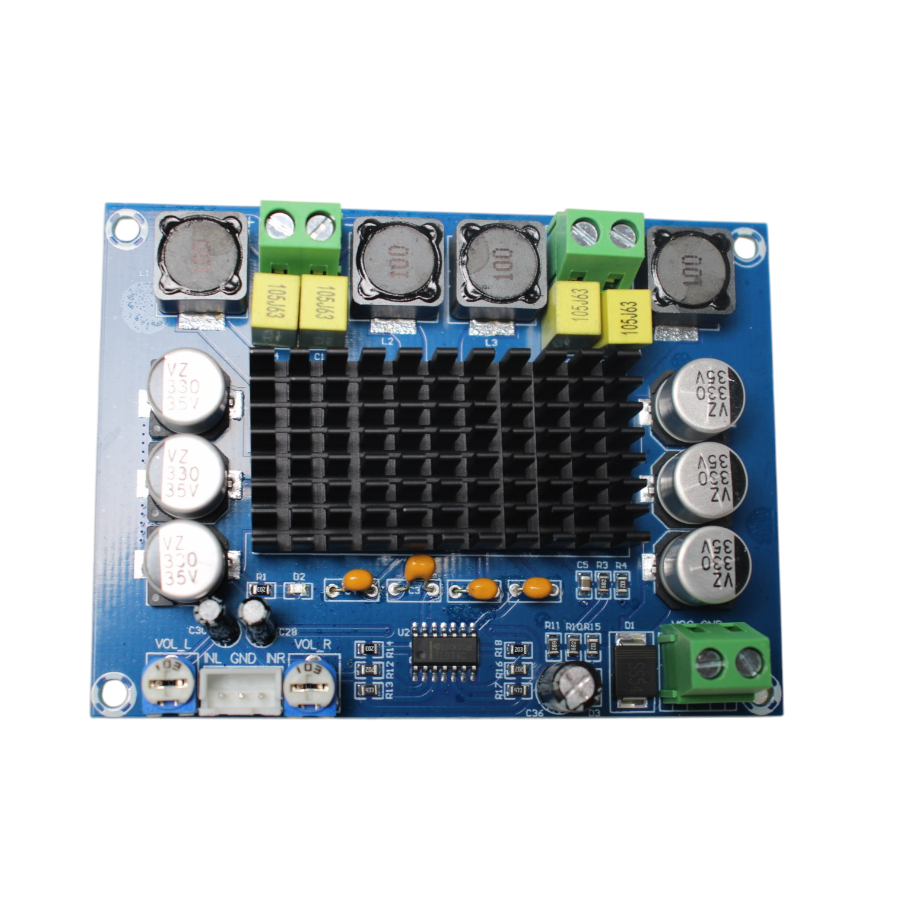

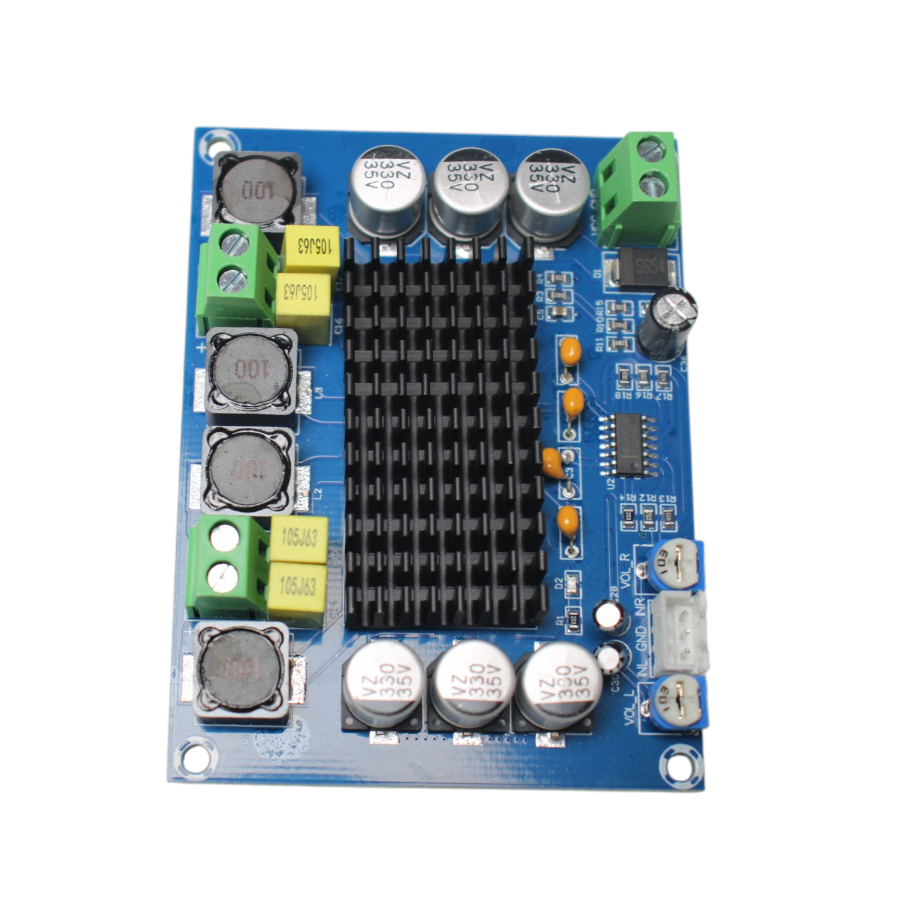

Build your own music system with 120 watts of stereo output. TPA3116D2 XH-M548 Dual Channel 120W Digital Power Amplifier Board is newly designed digital audio amplifier board with fine quality is practical to install and use also has good performance. It features high-efficiency class D audio power amplifier with the latest and original TPA3116D2 core technology the BTL bridge circuit is more efficient than before.
This product uses the double power supply transformer with a dynamic power supply range from 12V to 24V with high efficiency small quiescent current. Additionally, it is equipped with Perfect protection functions like overvoltage protection and output current limit.
Features:
- A strong TPA3116D2 chip is a digital power amplifier chip, with low idle loss characteristics, makes it work well and quickly.
- Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
- It can be used for car vehicle computer speaker, family audio and video, and empty square.
- This product has the characteristics of loud sound, the capacitance is large, excellent sound quality.

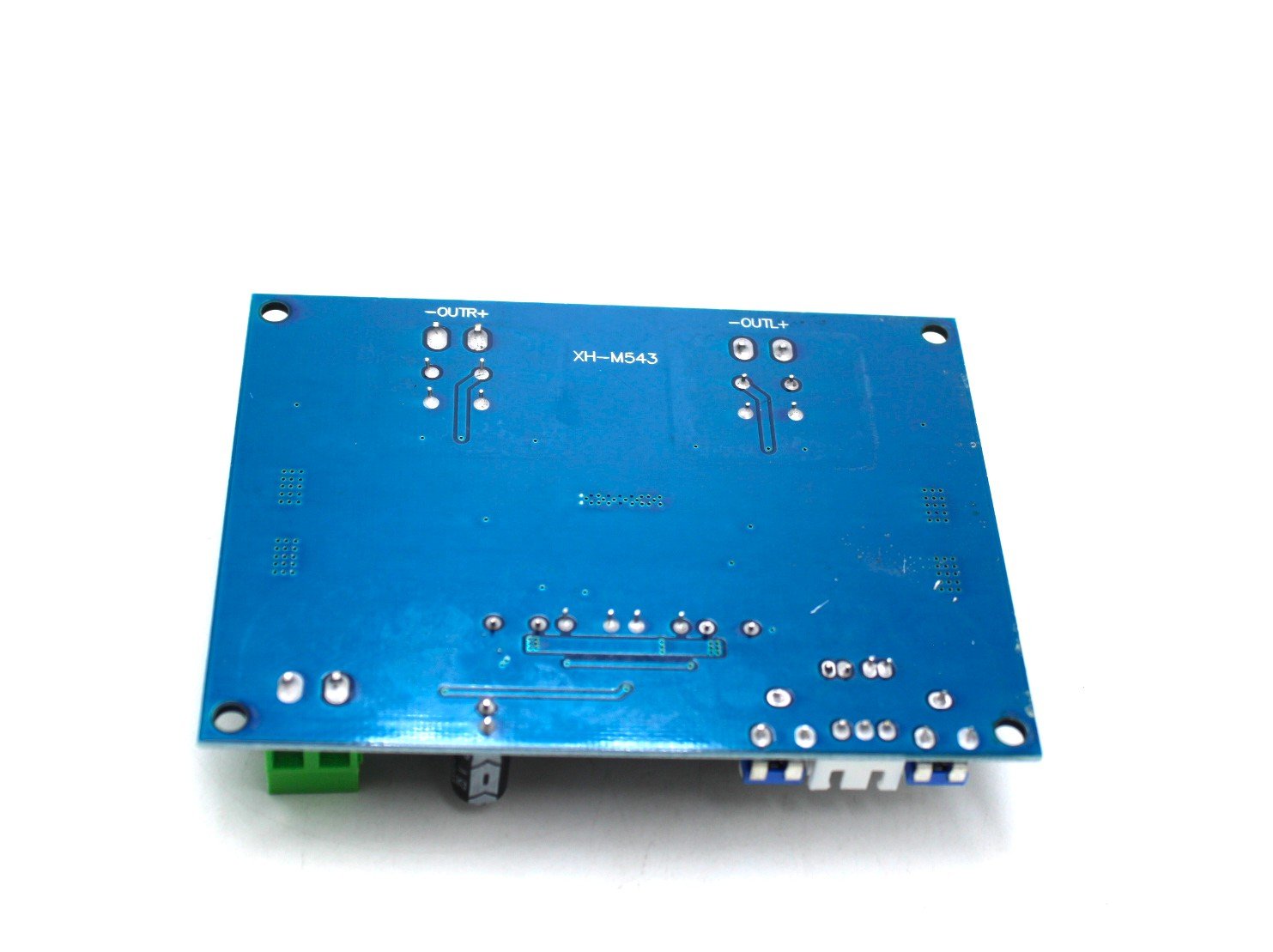

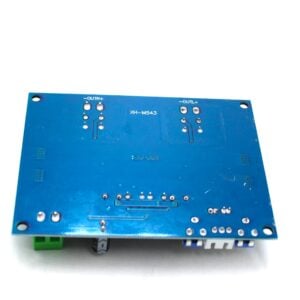

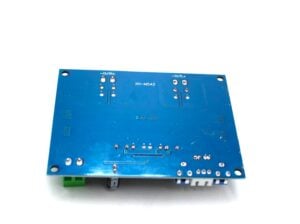

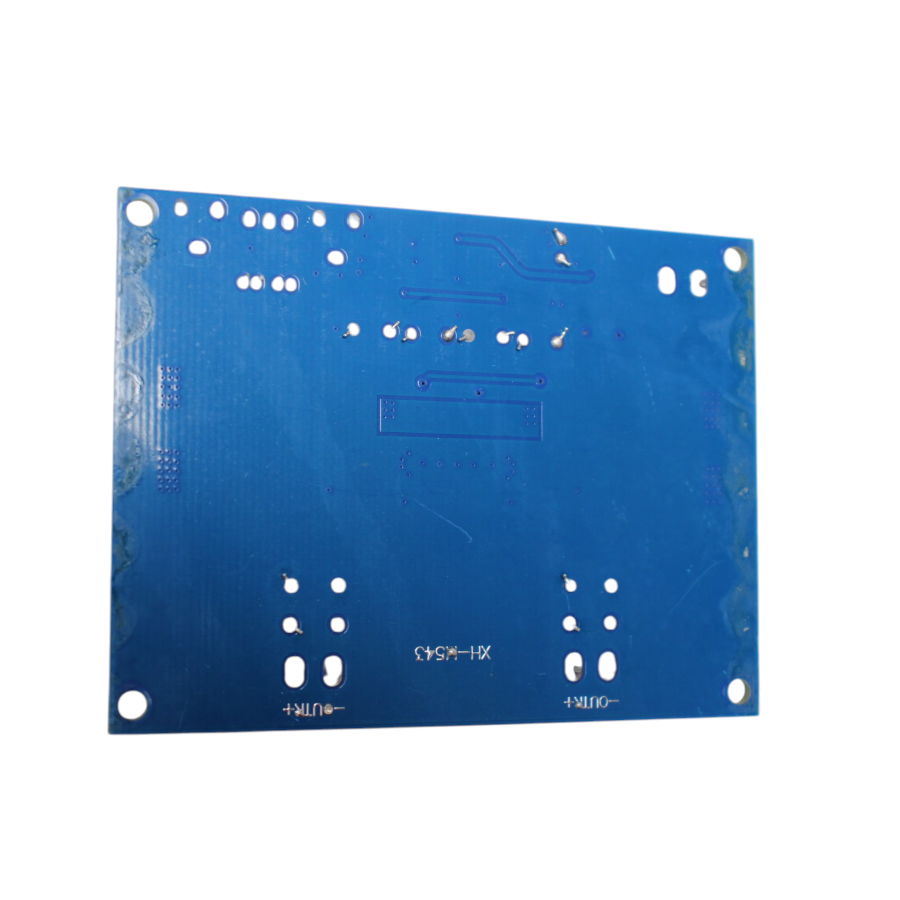

- There is no solder joint on the back of the circuit board, the chip capacitors, and the solder board together, so there is no possibility of short circuit.
Specification:
| Signal to Noise Ratio | 100db |
|---|---|
| Length (mm): | 92.5 |
| Width (mm) | 69 |
| Height (mm) | 15 |
| Weight (g): | 70 |
| Shipping Weight | 0.075 kg |
| Shipping Dimensions | 7 × 5 × 2 cm |

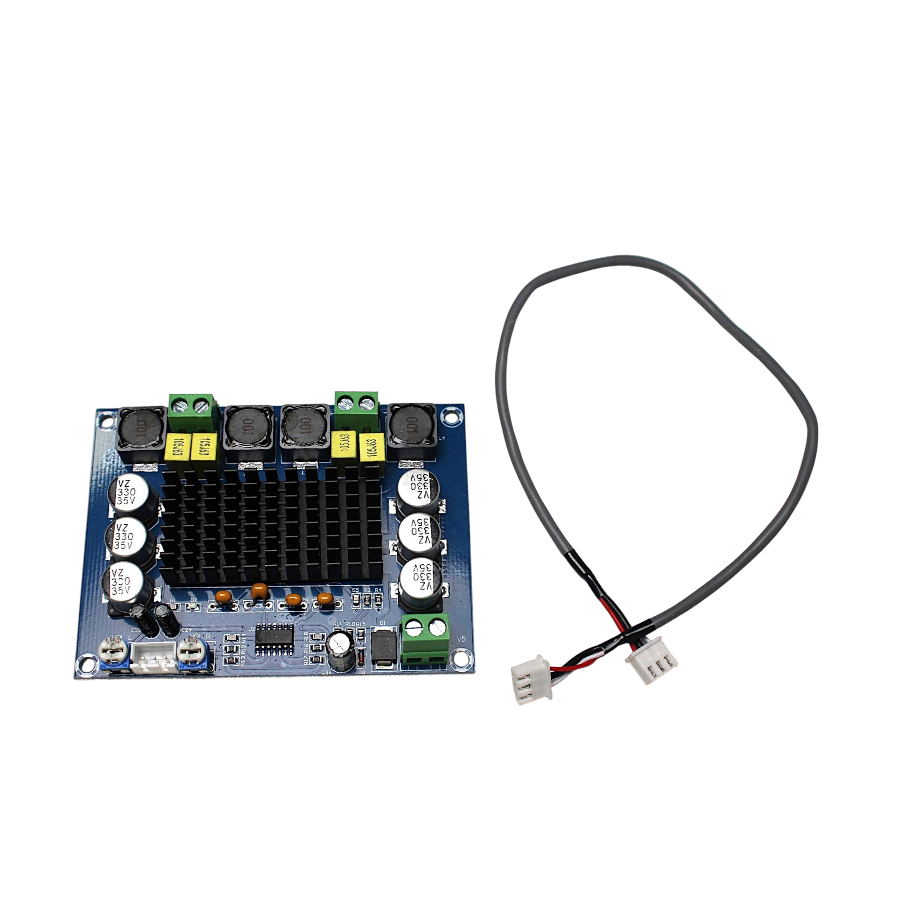

Package Includes:
1 x TPA3116D2 XH-M543 120W Dual Channel High Power Digital Power Amplifier Board
Technical Specifications
| Model | TPA3116D2 |
|---|---|
| Power Rating | 120W |
| SKU | AI2780 |
| Weight | 0.1 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TPA3116D2 XH-M543 120W Dual Channel High Power Digital Power Amplifier Board is a versatile audio amplifier module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
