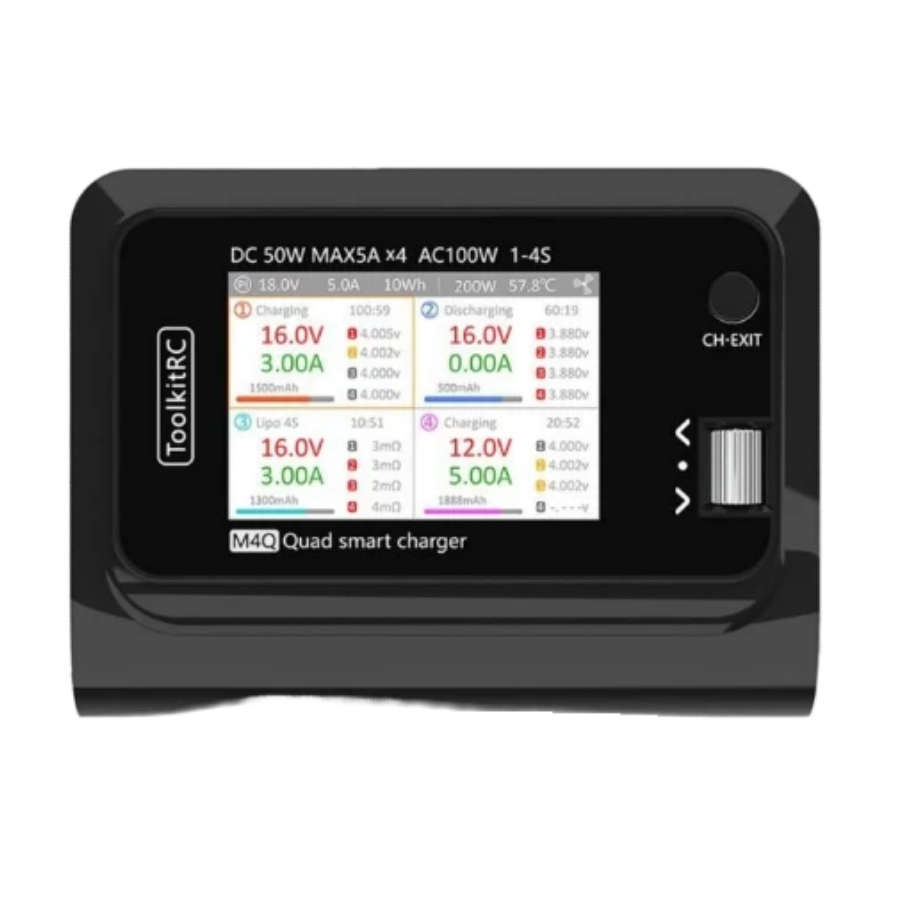

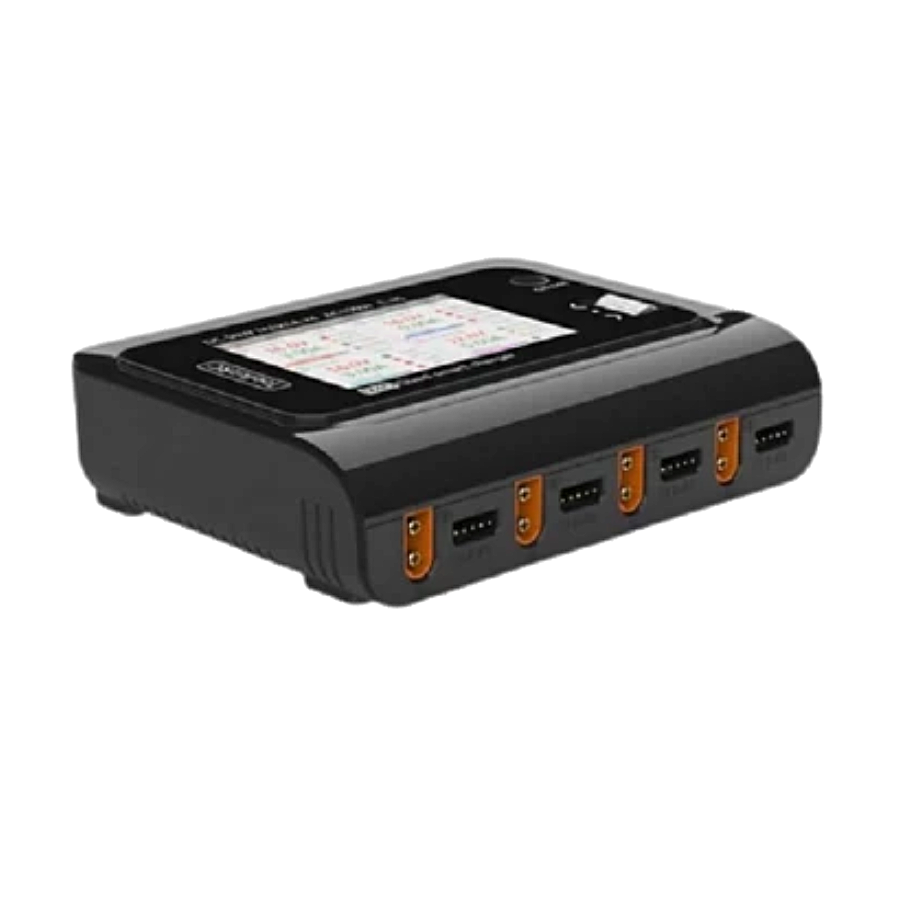

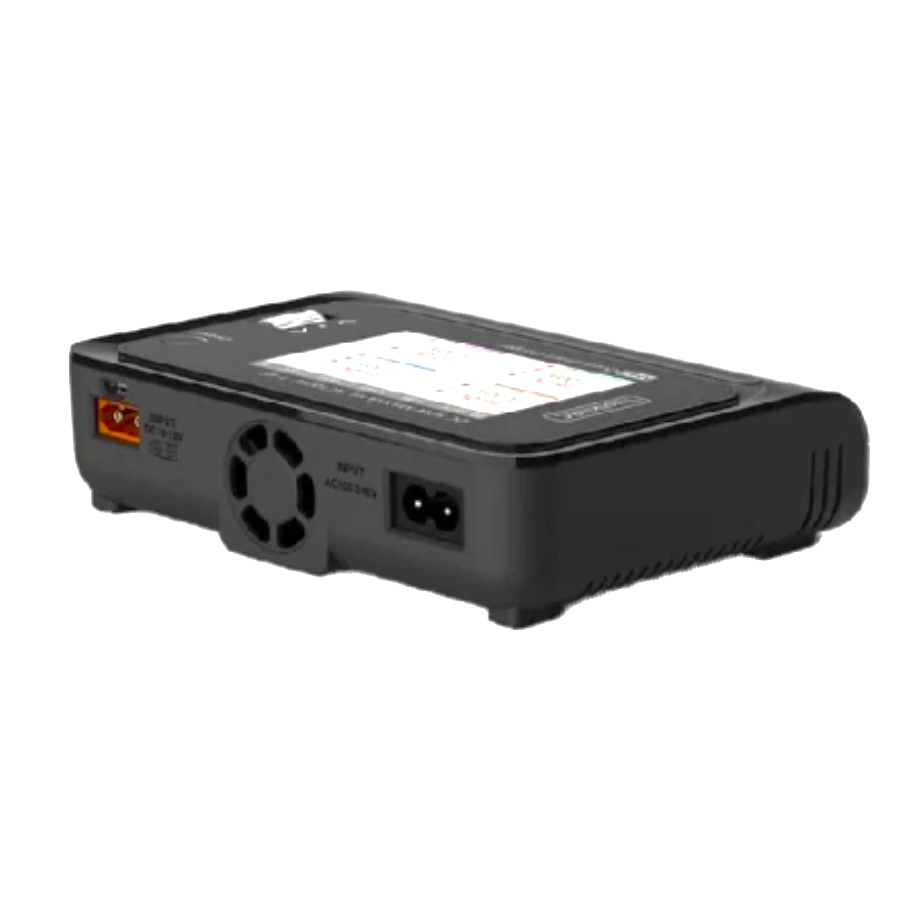

ToolkitRC Q4AC 1-4S 100W AC / 200W DC 4CH Smart Charger
Description:
The ToolkitRC Q4AC is an updated version of the M4Q with a faster processor, upgraded charging power, and a new casing. This is a Quad Channel AC/DC smart charger featuring four independently operated charging outputs. This charger comes with a 32-bit ARM Processor, IPS wide-angle display, XT60 ports, and 10 language options.
Features:
- AC/DC Charging – Power Supply Modes: AC100-240Vmax 100W; DC 10-18V max 200W
- Record 3 Groups of Commonly Used Power
- Update Firmware by Connecting to PC
- Max 5A @MAX50W Charging Current
- Record 5 Commonly Used Batteries
- 3.5″ IPS 480x320p LCD Screen
- USB2.0 MicroUSB Upgrade
- 240mA Balancing Current
- IPS Wide-Angle Display
- 32-bit ARM Processor
- 10 Language Options
- 4 Output Channels
- Internal resistance: 1-100mR @1-4S
- MicroUSB: [email protected]
- Balance Accuracy: < 0.005V
- Charge Power:
0.1-5A@50W*4 DC
0.1-5A@50W*2 AC
Specification:
| Model Series: | Q4 |
|---|---|
| Battery Type | LiPo LiHV LiFe Lion@1-4S, NiMh @1-10S Pb @1-8S |
| Voltage Range (V) | 0.2-5.0 |
| Input Voltage (VAC): | 100-240 |
| Input Voltage (VDC): | 43374 |
| Balance Current(mA) | 240 |
| LCD | IPS 3.5inch 480x320pixel |
| Dimensions (L x W x H) mm | 150x112x36.5 |
Package Includes:
1 x ToolkitRC Q4AC 1-4S 100W AC 200W DC 4CH Smart Charger.
