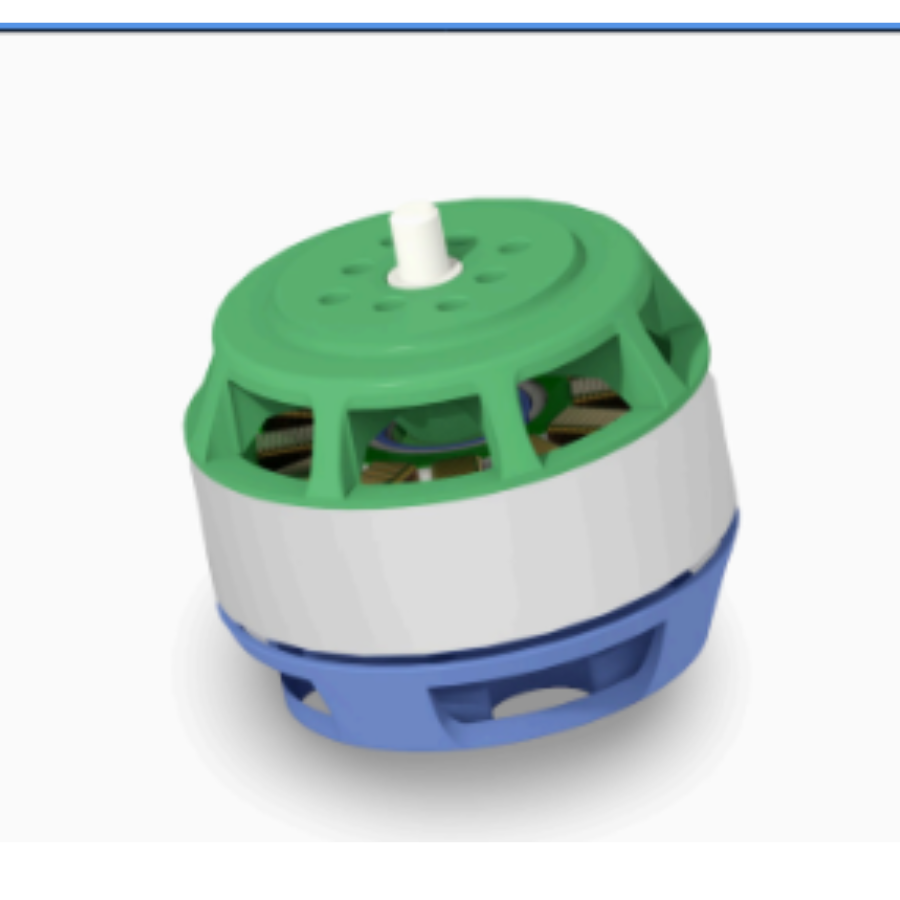

TOBITEK BWC1(3510)-Drone Motor
Description:
The TOBITEK BWC1 (3510) Drone Motor is designed to deliver reliable and efficient propulsion for compatible drone applications. Its robust construction supports stable operation and consistent performance, making it suitable for custom UAV builds and other applications requiring dependable motor power. For optimal performance, use a compatible ESC, propeller, and battery based on the manufacturer’s specifications.
Specification:
Motor Technical Parameters
| Parameter | Specification |
|---|---|
| Model | BWC1 (3510) |
| KV Rating | 700 KV |
| Maximum Thrust | 2.5 kgf |
| Recommended Battery | 6S |
| Maximum Power | 500 W |
| Peak Current | 25 A |
| Motor Weight | 128 g |

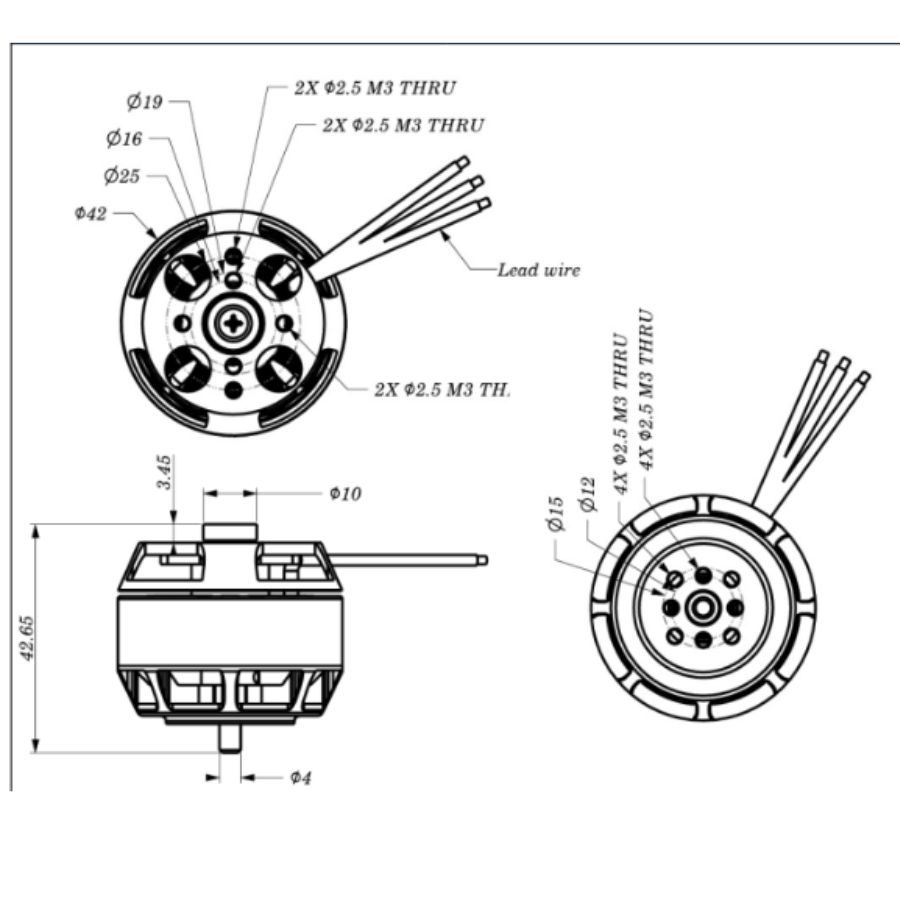

| Stator Dimensions | Ø35 × 10 mm |
| Motor Dimensions | Ø42.00 × 36.70 mm |
| Shaft Diameter | 4 mm |
| Motor Configuration | 12N14P |
| Bearing Type | Imported 685ZZ |
| Lead Wire Length | 600 mm |
| Coil Insulation Test Voltage | 500 V |
| Copper Wire Temperature Class | 220 |
| Magnet Temperature Rating | 120°C |
Features:
- High Thrust Output: Delivers up to 2.5 kgf of thrust.
-
Efficient Performance: 700 KV rating for compatible drone propulsion systems.
-
High Power Capacity: Supports up to 500 W maximum power.
-
6S Battery Compatibility: Designed for use with a recommended 6S battery.
-
Durable Construction: Features imported 685ZZ bearings for smooth operation.
-
Reliable Wiring: 600 mm lead wires for flexible installation.
-
Temperature Resistance: Class 220 copper wire insulation and magnets rated to 120°C.
-
Compact Design: 4 mm shaft diameter for compatible propeller mounting.
-
Stable Motor Configuration: 12N14P design for consistent brushless motor operation.
Package Include:
1x TOBITEK BWC1(3510)-Drone Motor
Stepper Motor Power Supply: Choosing Voltage & Amperage
Table of ContentsIntroductionStepper Motor Electrical BasicsUnderstanding Rated Voltage vs Operating VoltageCurrent Rating and Why It MattersThe Driver's Role...
Read More →
NEMA 23 Stepper Motor: Torque, Wiring & CNC Applications
The NEMA 23 stepper motor is the backbone of desktop CNC machines, laser cutters, plasma tables, and larger...
Read More →
Drone Insurance Requirements in India 2026
Understanding drone insurance requirements in India for 2026 is essential for every commercial drone operator. With DGCA mandating...
Read More →Technical Specifications
| Brand | TOBITEK |
|---|---|
| SKU | AI5333 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TOBITEK BWC1(3510)-Drone Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine TOBITEK product sourced from authorized channels
