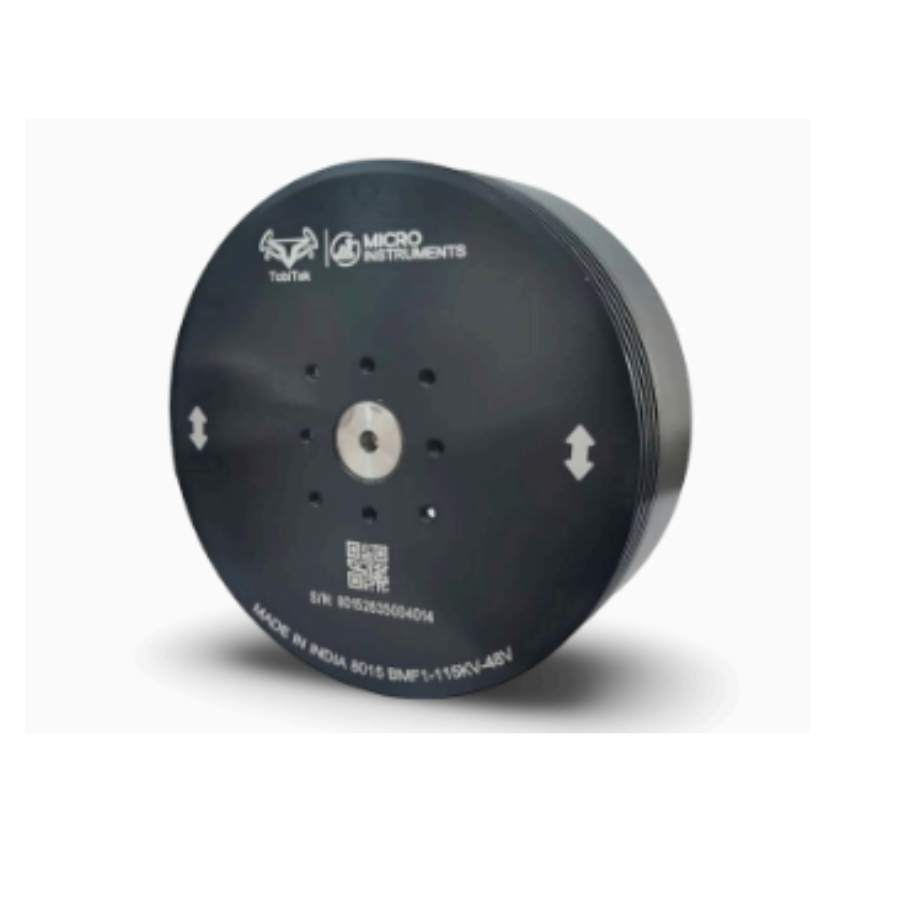

TOBITEK BMF1(8015) BLDC Motor
Description:
The TOBITEK 115KV Drone Motor is designed for UAV and multirotor propulsion applications requiring high thrust and reliable performance. It delivers up to 13 kgf of maximum thrust and supports a recommended 12S battery system. With a maximum power rating of 2640W, a 36N42P configuration, and imported 6901 2RS bearings, it is suitable for compatible drone builds with a recommended take-off weight of 10 kg.
Specifications :
| Parameter | Specification |
|---|---|
| Brand | TOBITEK |
| KV Rating | 115 KV |
| Maximum Thrust | 13 kgf |
| Recommended Battery | 12S |
| Recommended Take-off Weight | 10 kg |
| Maximum Power | 2640 W |
| Peak Current | 55 A |
| Motor Weight | 488 g |
| Stator Dimensions | Ø80 × 15 mm |
| Motor Dimensions | Ø89.50 × 38.80 mm |
| Shaft Diameter | 12 mm |
| Configuration | 36N42P |
| Bearing Type | Imported 6901 2RS |
| Lead Wire Length | 100 mm |
| Coil Insulation Test Voltage | 500 V |
| Copper Wire Temperature Class | 220 |
Features:
-
115KV Rating: Designed for compatible UAV propulsion systems.
-
High Thrust Output: Delivers up to 13 kgf of maximum thrust.
-
12S Battery Compatibility: Recommended for 12S battery systems.
-
Powerful Performance: Supports up to 2640W maximum power.
-
10 kg Take-off Weight: Recommended for compatible drone configurations with a 10 kg take-off weight.
-
Durable Bearings: Equipped with imported 6901 2RS bearings.
-
Robust Construction: Features a 36N42P motor configuration.
-
Reliable Operation: Includes a 12 mm shaft and 100 mm lead wires.
Model: BMF1 115KV (8015)
High-performance brushless DC motor designed for agriculture drone applications. Features precision-balanced construction and optimized magnetic design for maximum efficiency and minimal vibration.
- Equivalent to T-Motor U8 Lite
- Precision CNC machined aluminum construction
- Optimized cooling fins design
- Balanced rotor for smooth operation
- Weather-resistant coating

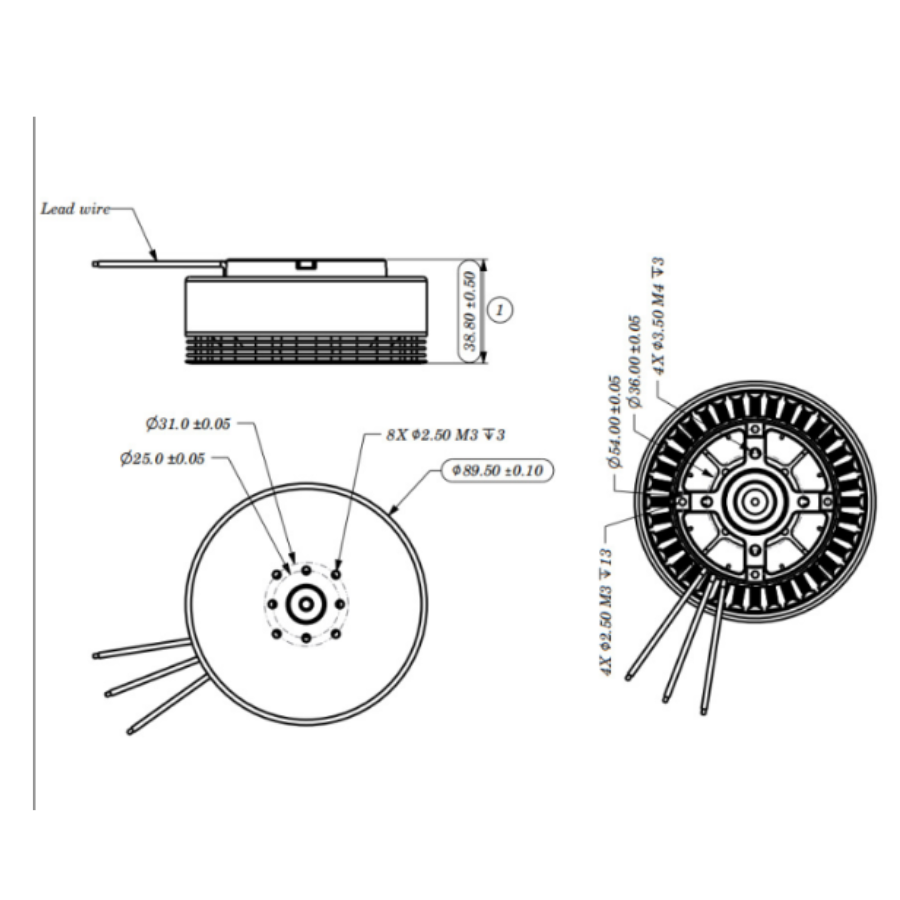

Datasheet:
Package Include:
1x TOBITEK BMF1(8015) BLDC Motor
