If you are want to Measure the distance from the sensor. So, presenting to you the brand new TFMini Plus LiDAR Distance Sensor for Drones Robots IoT ITS Smart Detection from Benawake. From this Sensor, you can easily measure distance by increasing the measurement frequency, reducing blind zone, and improving accuracy.
TFMini Plus LiDAR Distance Sensor for Drones Robots IoT ITS Smart Detection (12m) is a milestone of Benewake in the process of promoting the cost-effective -LiDAR. Apart from low-cost, small-size, and low-power consumption, TFmini Plus also improves the frame rate, introduces IP65 enclosures, and optimizes various compensation algorithms. These new characters greatly expand the application fields and scenarios of TFmini Plus.

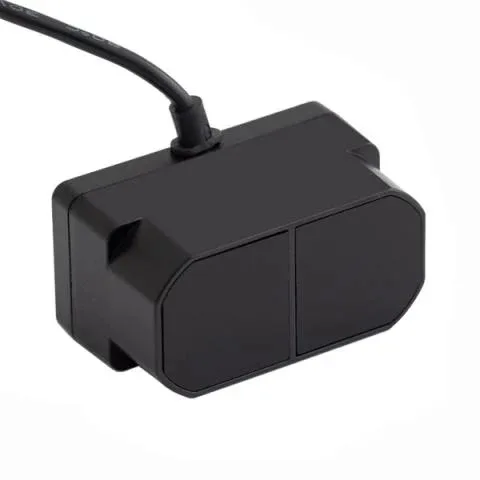

The TFmini Plus, based on TFmini, is a single-point short-range LiDAR. Inheriting its low cost, small size, and low power consumption from TFmini, TFmini Plus has greatly improved upon its performance — increasing the measurement frequency, reducing blind zone, and improving accuracy. Meanwhile, the TFmini Plus introduces IP65 enclosures and optimizes various compensation algorithms, which will greatly expand its application fields and scenarios.
Wiring Guide:
SN
Color
Pin
Function
1
Red
+5V
Power
2
Blue
TXD
Transmit
3
White
RND
Receive
4
Black
GND
Ground

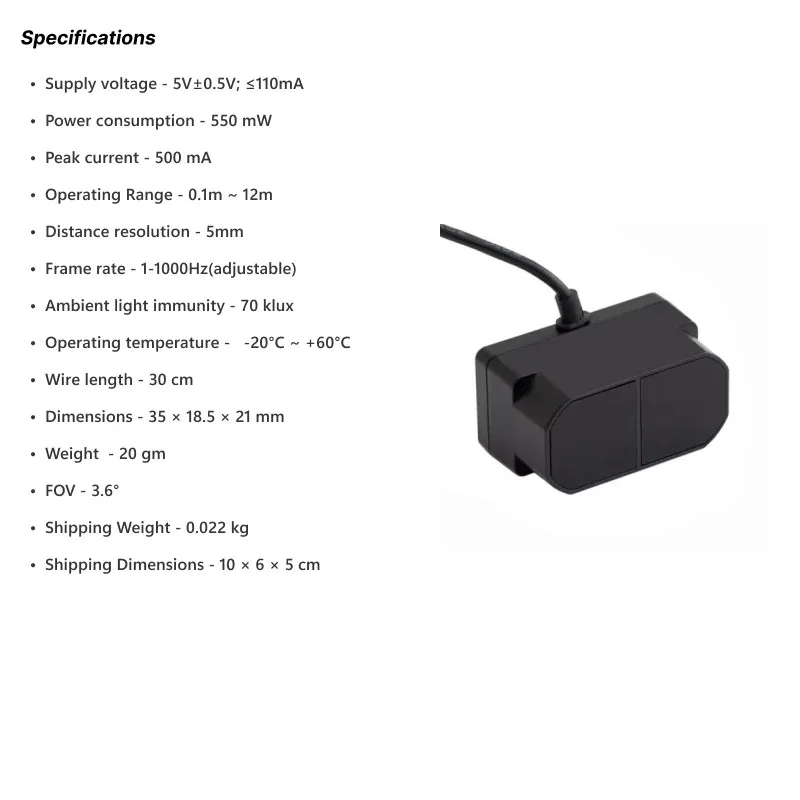

Specification-
Supply voltage
5V±0.5V; ≤110mA
Power consumption
550mW
Peak current
500mA
Operating Range
0.1m ~ 12m
Distance resolution
5mm
Frame rate
1-1000Hz(adjustable)
Ambient light immunity
70klux
Operating temperature
-20°C ~ +60°C
Wire length
30cm
Communication port
UART
Length (mm):
35
Width (mm):
18.5
Height (mm):
21
Weight (g):
20
FOV
3.6°
Shipping Weight
0.022 kg
Shipping Dimensions
10 × 6 × 5 cm
Package Includes:
1 x TFMini Plus LiDAR Distance Sensor for Drones Robots IoT ITS Smart Detection (12m)
Benewake TFMini Plus LiDAR Distance Sensor for Drones Overview
The Benewake TFMini Plus is a compact LiDAR distance sensor designed for drones, robots, IoT and smart transportation systems. It delivers precise ranging from 0.1 to 12 metres with low power consumption, high measurement frequency and IP65-rated protection for robust field performance.
Key Features of Benewake TFMini Plus LiDAR Distance Sensor for Drones
Operating range of 0.1 – 12 m delivers versatile distance measurement for aerial and ground platforms
Low power consumption optimizes battery life on drones and mobile robots
Improved frame rate reduces blind zones and supports dynamic obstacle detection
IP65 enclosure shields the sensor from dust and water splashes for outdoor use
Advanced compensation algorithms enhance accuracy across diverse environments
Genuine product with fast shipping from Zbotic ensures reliable delivery and authenticity
Applications and Use Cases
Altitude hold and obstacle avoidance in commercial and hobby drones
Real-time distance measurement for autonomous mobile robots and AGVs
Integration in Intelligent Transportation Systems for traffic monitoring and safety
Proximity sensing in warehouse automation and inventory management
Smart IoT deployments requiring compact, low-power range sensing
How to Use Benewake TFMini Plus LiDAR Distance Sensor for Drones
Mount the TFMini Plus securely on your drone or robot chassis, connect the power and serial communication lines to your flight controller or microcontroller, then configure the measurement parameters via UART commands. Ensure the sensor’s field of view is unobstructed and calibrate any mounting angles before flight or deployment to achieve optimal ranging performance.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the measurement range and precision of the TFMini Plus sensor?
The TFMini Plus provides a sensing range from 0.1 m up to 12 m and uses optimized compensation algorithms to maintain consistent accuracy across varying distances and target reflectivities.
Is the TFMini Plus suitable for outdoor applications?
Yes, the IP65-rated enclosure protects against dust ingress and water splashes, making it ideal for outdoor drone missions and robotic deployments under light rain or dusty conditions.
Can the TFMini Plus handle high-speed measurements on drones?
Absolutely. With its improved frame rate, the TFMini Plus rapidly captures distance data to minimize blind zones and support real-time obstacle detection at typical drone flight speeds.
The Benewake TFMini Plus LiDAR Distance Sensor for Drones Robots IoT ITS Smart Detection (12m) is a versatile lidar sensor used across a wide range of applications including robot navigation, obstacle detection, indoor mapping, autonomous vehicles, and distance measurement.
Common use cases:
Adding obstacle avoidance to a mobile robot
Building a 2D/3D indoor map
Measuring distances for surveying
This product is ideal for robotics developers, autonomous vehicle engineers, and surveying professionals.
Technical Tip: LiDAR sensors use laser pulses to measure distance. Check scan rate (Hz), range (meters), and angular resolution for your application.
