This is the Green variant of the Test Hooks Clip for Logic Analyzers (Green) in Other Measuring Instrument. Available at ₹13.81 (₹11.70 + GST) with free shipping across India.
Looking for Test Hooks Clip Logic? Test Hooks Clip for Logic Analyzers (Green) is available at Zbotic with fast shipping across India.

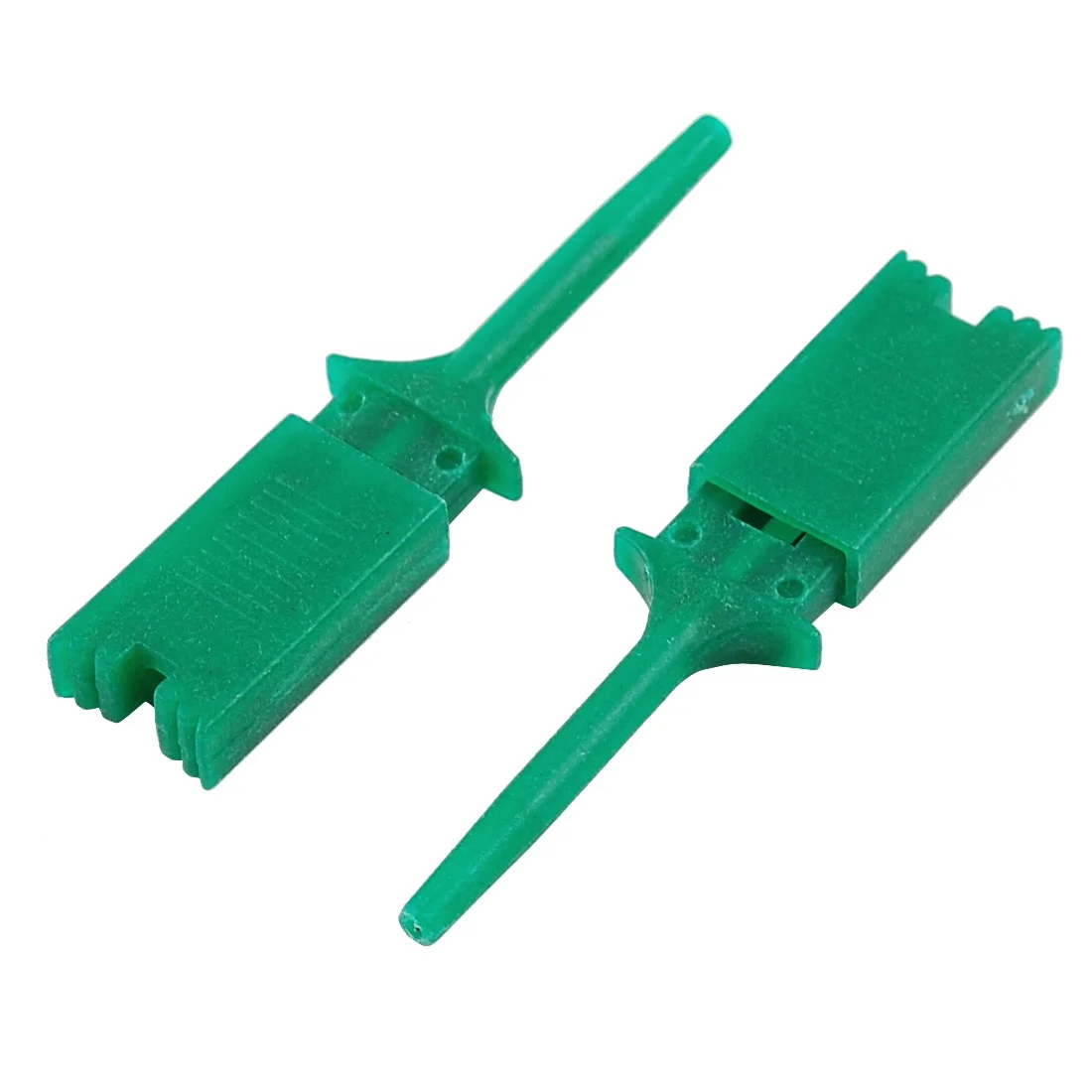

Test Hooks Clip for Logic Analyzers test Hook Clip Logic Analyzer Test Folder for USB Dupont folder cable with Hook Clip for connecting and locking. It has a simple press and lock Clip fitted to each wire for easy and safe to clip and Unclip the test points on your board whereas another end comes with female type connector to connect it with your Logic Analyzer different channels. This product is known as Hook Clips For Logic Analyzer, Hooks Clip Grabbers Probes for Logic Analyzer IC Chip Test.
Features:
- Material : ABS plastic outer shell
- Color : Green
- Lightweight and good performance, free your hands for repairing
- Spring pulling the min hooks to grasp tiny components firmly And avoid any short-circuit
- The rear cap can be removed easily for the cable threaded through and soldered
- Perfect to use in testing IC or repairing cell phones and other mini electronic products.
Specifications:
- Material: ABS plastic outer shell
- Color : Green
- Dimensions : 2m x 1m x 0.5m
- weight : 2g
Package Includes:
1 x NC114 Test Hooks Clip for Logic Analyzers Green
Test Hooks Clip for Logic Analyzers Overview
Test Hooks Clip for Logic Analyzers is a green ABS plastic grabber designed to connect test points on electronic boards to your logic analyzer channels. Its press-and-lock mechanism allows safe and reliable attachment to IC pins, wires, or headers during digital signal debugging.
Key Features of Test Hooks Clip for Logic Analyzers
- ABS Plastic Outer Shell: Durable and lightweight housing.
- Green Color Coding: Easy channel identification during multi-channel tests.
- Compact & Lightweight: Weighs just 2g for minimal load on test sites.
- Spring-Loaded Hook: Securely grips wires, header pins, and test pads.
- Female Dupont Connector: Directly plugs into standard 0.1″ logic analyzer cables.
- Fast Shipping from Zbotic: Ready stock ships within 24 hours across India.
Applications and Use Cases
- Capturing digital bus signals like SPI, I2C, UART on microcontroller boards.
- Debugging logic levels on FPGA or CPLD development kits.
- Testing individual IC pins during functional verification.
- Prototyping and troubleshooting circuits on breadboards and PCBs.
- Field maintenance and repair of embedded systems.
- Educational labs for teaching digital electronics signal analysis.
How to Use Test Hooks Clip for Logic Analyzers
To use the Test Hooks Clip for Logic Analyzers, plug its female Dupont connector into the logic analyzer channel cable, then press the clip to open the spring-loaded hook and attach it onto the target wire, header pin, or test pad. Release to lock it in place, then begin your digital signal capture for reliable data logging.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What logic analyzer connectors are compatible with these clips?
The Test Hooks Clip uses a standard 2.54 mm female Dupont connector, making it compatible with most logic analyzer channel cables and ribbon wires.
How secure is the spring-loaded hook on small test points?
The internal metal spring provides firm tension on wires, 0.1″ header pins, and small PCB test pads, ensuring a stable grip during signal capture without slipping.
Can I use the hook clip on both bare wires and PCB headers?
Yes. The clip’s hook design adapts to insulated wires and 2 mm max width header pins or pads. Always confirm the test point size fits within the hook opening before attaching.
Technical Specifications
| Color | Green |
|---|---|
| SKU | AI3636 |
| Weight | 0.0026 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Test Hooks Clip for Logic Analyzers (Green) is a versatile other measuring instrument used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
