Looking for Tbs 500 Pcb Frame? TBS 500 PCB Vesion Quadcopter Frame is available at Zbotic with fast shipping across India.

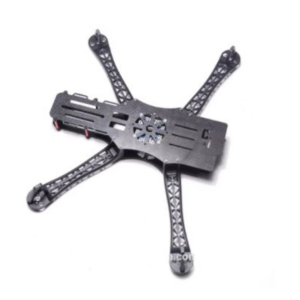

This is a TBS 500 PCB Version frame KIT .
This quadcopter frame with a wheelbase of 500mm is specially intended to provide lots of mounting space. It is well known for aerial video shooting and photography as it has a special Gimbal housing provision at the front. The TBS quadcopter frames outperform similar quads in terms of FPV range and video link quality.
It features a battery plate in the tail position. These large-sized quadcopter frames equip larger motors and batteries increasing the power capabilities of your multirotor This advantage results in longer flight time, hence they are perfect for your aerial videography.
It comes with a PDB(power distribuition board) to power up the Quadcopter. And is also designed to fit standard flight controllers/PDB, Fpv camerasand also FPV transmitters and antennas
The frame has a wheelbase of 500mm and weighs around 400gm. It features a mounting tab at the rear end on the bottom plate of the mainframe for mounting Batteries.
The added lift capacity makes this frame ideal for carrying larger payloads such as camera systems and Gimbal
The frame comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within a few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient. This feature of TBS Quadcopter Frames makes them so easy to assemble and disassemble.
Features :
- Made by advanced engineering material, super strong & smooth
- The arm equips support ridges for better and faster forward flight.
- Features pre-threaded brass sleeves.
- The large mounting tab for camera mounting.
Specification :
| Wheelbase (mm) | 500 |
|---|---|
| Weight (gm) | 400 |
| Arm Size (L x W) mm | 220 x 40 |
| Motor Mounting Hole Dia. (mm) | 3 |
| Shipping Weight | 0.43 kg |
| Shipping Dimensions | 22 × 9 × 4 cm |

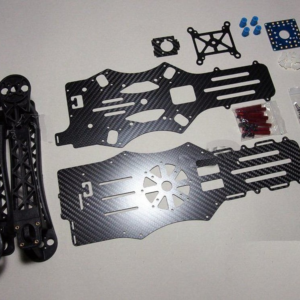

Package Includes :
TBS 500 PCB Vesion Quadcopter Frame Overview
The TBS 500 PCB Version Quadcopter Frame is a 500 mm wheelbase airframe kit built from glass fiber and polyamide-nylon. Designed for serious aerial videography and FPV flights, it features a dedicated gimbal housing and integrated PDB to streamline your build.
Key Features of TBS 500 PCB Vesion Quadcopter Frame
- 500 mm wheelbase for stable flight and ample mounting space
- Lightweight construction at 400 g using glass fiber and polyamide-nylon
- Front gimbal housing provision for DSLR or mirrorless gimbals
- Integrated power distribution board (PDB) simplifies wiring
- Tail-position battery plate supports large LiPo packs for extended flight time
- Arm dimensions 220 × 40 mm with 3 mm motor mounting holes
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Professional aerial cinematography and photography
- FPV exploration flights with high-quality video link
- Surveying and mapping of agricultural fields or construction sites
- Real estate promotional shoots and roof inspections
- Wildlife monitoring in remote areas
- Search and rescue reconnaissance missions
How to Use TBS 500 PCB Vesion Quadcopter Frame
Begin by bolting the four arms to the central body plates using the supplied hardware, ensuring the 3 mm motor holes align. Solder your ESCs and power leads onto the integrated PDB, then mount your flight controller above it. Secure your chosen brushless motors on each arm, attach the front gimbal to its dedicated housing, and strap your LiPo battery onto the tail plate. Finally, balance the assembled quad before flight testing.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which motor sizes fit this frame?
The TBS 500 PCB Version supports standard brushless motors up to the 2204–2212 series, using 3 mm mounting holes on the 220 × 40 mm arms.
Can I install a 3-axis gimbal?
Yes, the front section features a dedicated gimbal housing that accommodates most 3-axis DSLR or mirrorless gimbals up to standard industry dimensions.
What battery types are compatible?
The integrated tail battery plate is designed for 4S–6S LiPo packs common in 500 mm-class drones. Use straps to secure batteries within the plate area for optimal balance.
