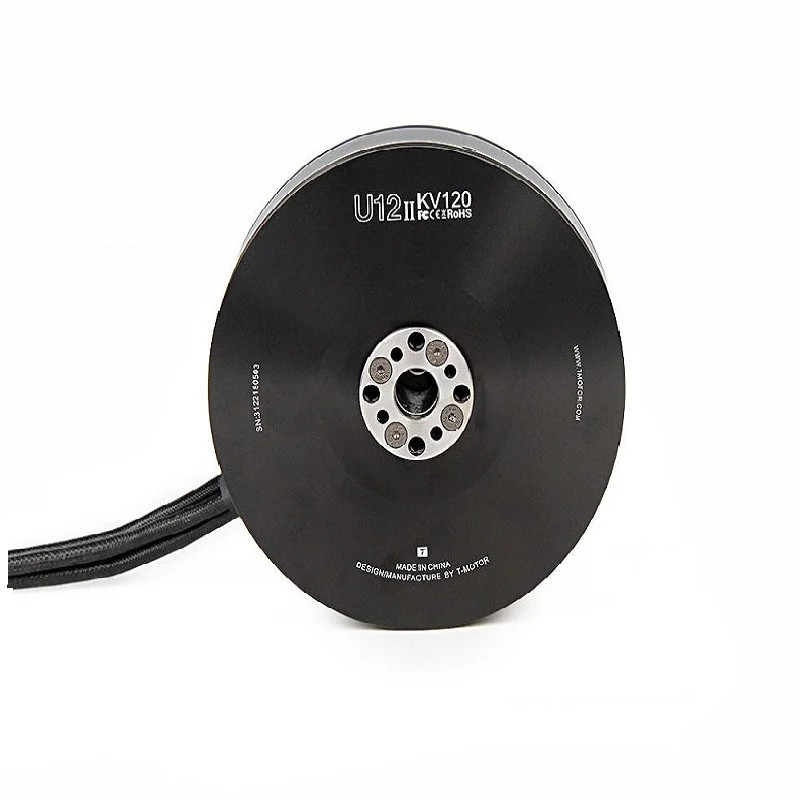

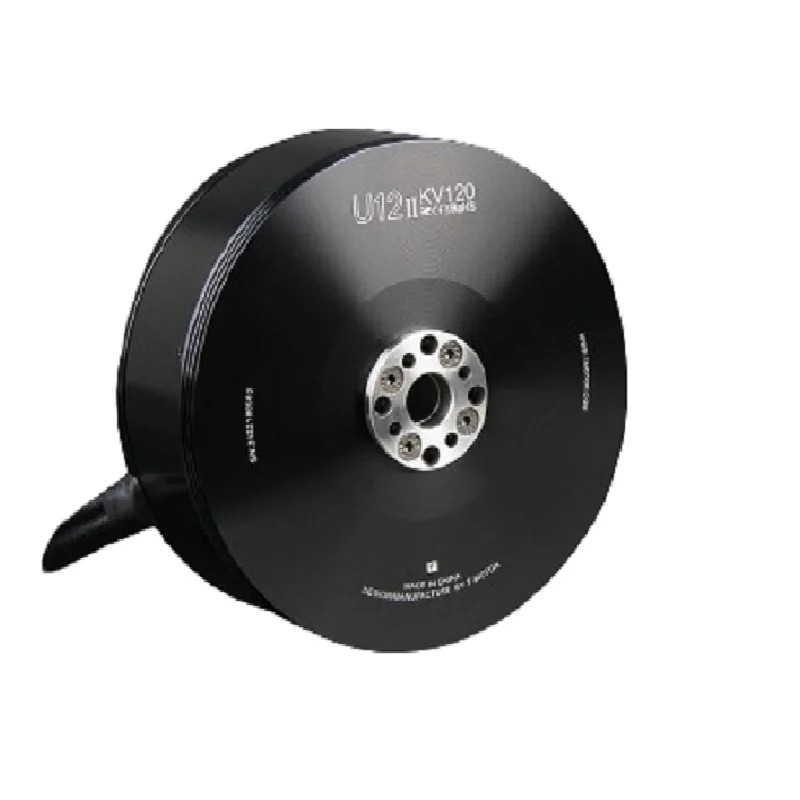

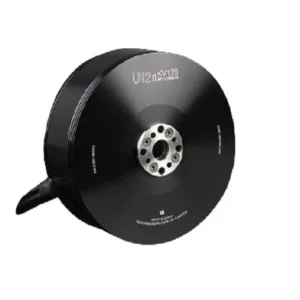

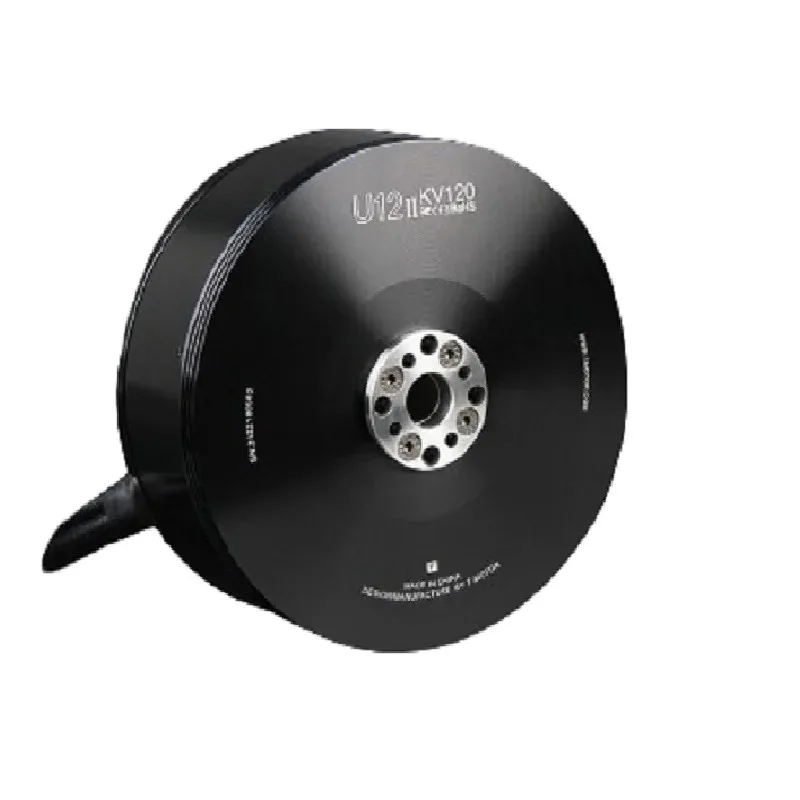

T Motor U12 ll KV 120
The T-Motor U12 II KV120 is a high-performance brushless motor designed specifically for heavy-lift drones and professional-grade aerial platforms. With a well-balanced KV rating of 120, it delivers efficient power and precise control, making it ideal for carrying heavy payloads or high-end camera equipment.
Part of T-Motor’s renowned U12 II series, this motor showcases exceptional construction quality, ensuring durability and reliability in demanding flight conditions. Its low KV rating provides a high rotational speed, allowing for impressive lifting capability while maintaining smooth and stable flight performance.
Built for efficiency, the U12 II KV120 strikes an excellent balance between power output and energy consumption, enabling longer flight times without compromising on performance. It’s compatible with a wide range of drone configurations and propeller setups, offering versatility for various professional applications, from industrial inspections to cinematography.
Whether navigating complex environments or performing precise aerial maneuvers, the T-Motor U12 II KV120 stands as a dependable and high-quality choice for professionals demanding reliable and powerful aerial performance.
Features:
- New iron core design.
- max thrust 20.4 kg.
- Motor work at easy in high temperature.
- Motor protection for safe flight.
- New dust protection network.
Specification:
| Motor Dimensions | Ф106.8*47.6 mm |
|---|---|
| Lead Enameled Wire | 90mm |
| Shaft Diameter (mm) | 15mm |
| Idle Current(18V) | 1.5A |
| Max. Power | 4560W |
| Weight (g): | 778 |
| Internal Resistance(mΩ) | 22 |
| Configuration | 36N42P |
| Rated Voltage(Lipo) | 10-14s |
| Peak Current(180s) | 95A |
Package Includes:
1 x T Motor U12 ll KV 120
T Motor U12 ll KV 120 Overview
The T Motor U12 II KV120 is a professional-grade brushless drone motor built for heavy-lift aerial platforms. With a low KV of 120 and a new iron core design, it delivers precise control and reliable performance for drones carrying large cameras, LiDAR units, or industrial payloads.
Key Features of T Motor U12 ll KV 120
- KV Rating: 120 RPM/V for efficient low-speed torque and stable hover
- Max Thrust: Up to 20.4 kg per motor, enabling heavy-lift capability
- 62% Payload Increase over previous generation for enhanced lift
- Service Life: Rated for 1,500 flights (40 minutes per flight) under normal conditions
- New Iron Core Design: Improved heat dissipation and structural rigidity
- High-Temperature Operation: Stable performance in demanding environments
- Fast Shipping from Zbotic: Delivered across India with tracking
Applications and Use Cases
- Professional cinematography drones carrying large gimbals and cameras
- Industrial inspection UAVs for powerlines, pipelines, and infrastructure surveys
- Agricultural sprayers and mapping platforms requiring high thrust
- Search and rescue drones lifting thermal cameras or medical payloads
- Survey and mapping systems with LiDAR or multispectral sensors
How to Use T Motor U12 ll KV 120
Mount the U12 II KV120 securely to your drone’s motor arms using the supplied screws, then solder or connect the three-phase wires to a compatible electronic speed controller rated above the motor’s current draw. Attach propellers sized to your frame and balanced for heavy-lift operation, calibrate the ESC per manufacturer guidelines, perform a bench test to verify spin direction and responsiveness, then carry out a full pre-flight check before your first lift-off.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum thrust this motor can generate?
The T Motor U12 II KV120 can deliver up to 20.4 kg of thrust, making it suitable for heavy-lift and professional UAV setups.
How long can I expect the motor to last?
This motor is rated for approximately 1,500 flights of 40 minutes each under normal operating conditions, thanks to its robust iron core design.
Why choose a KV 120 rating?
A KV rating of 120 RPM/V provides strong low-speed torque and precise RPM control, ideal for lifting heavy payloads smoothly and efficiently.
