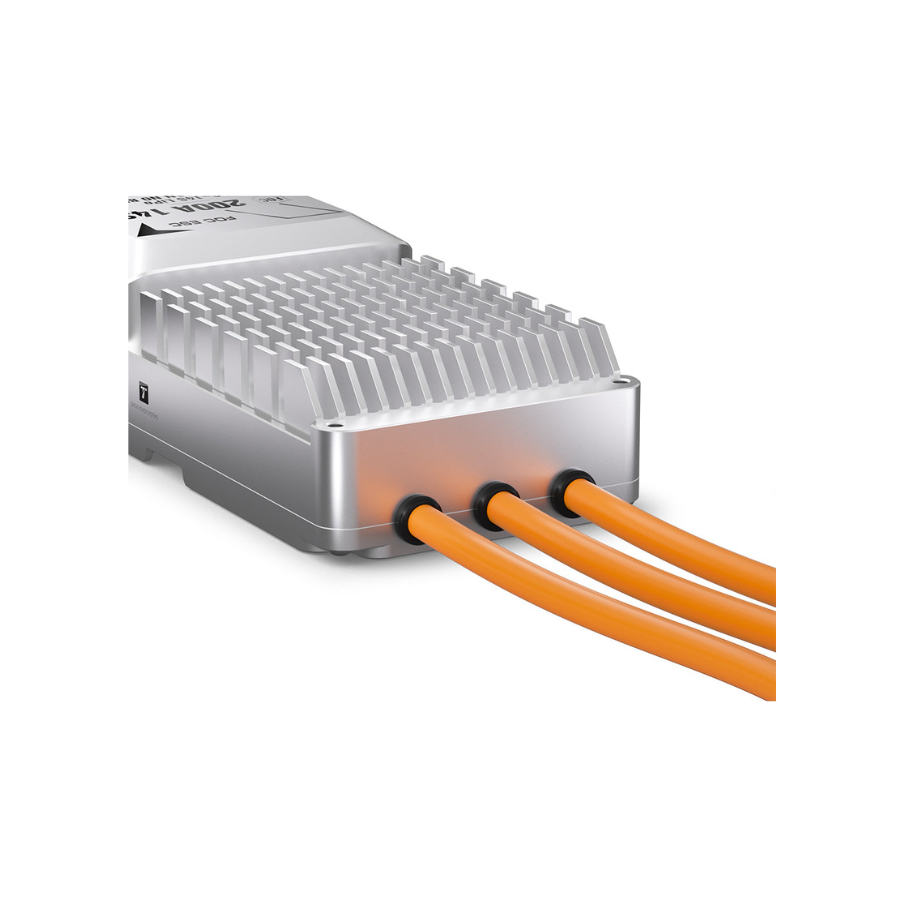

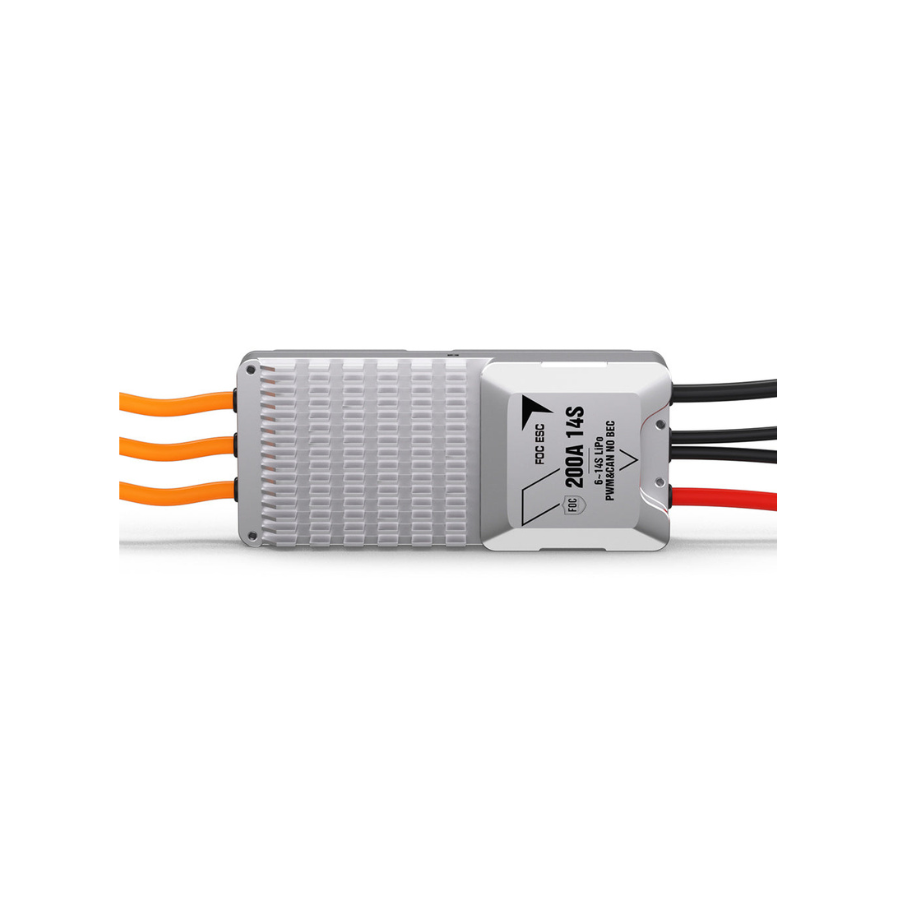

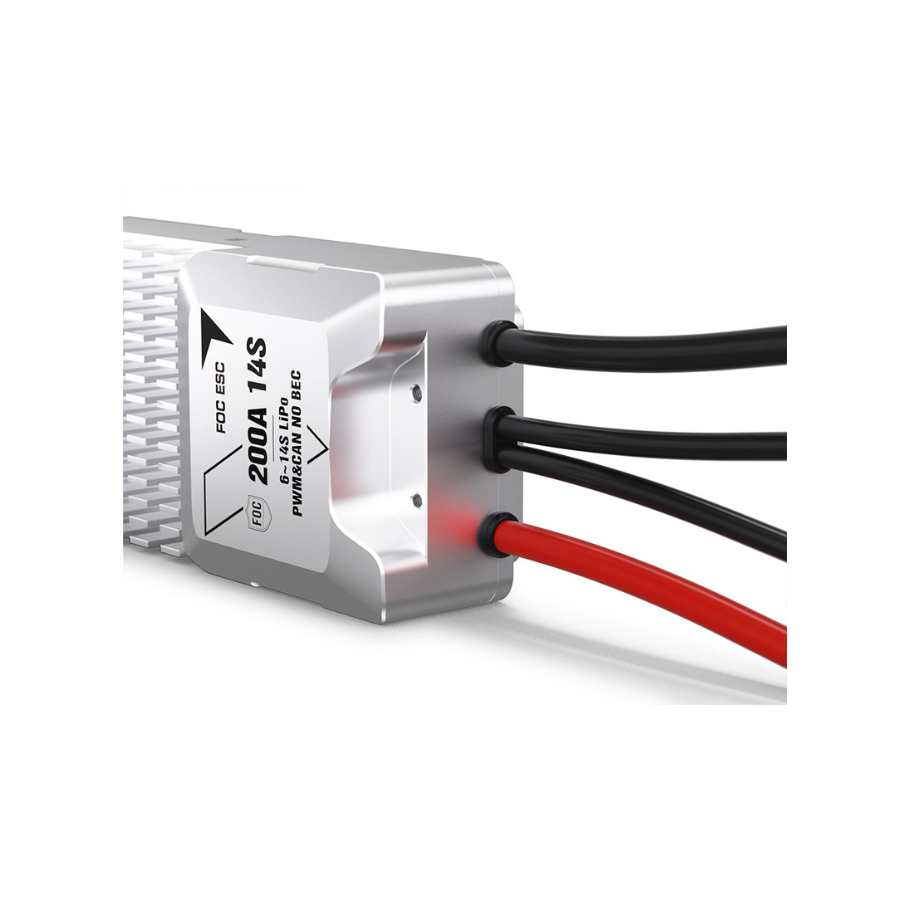

T-MOTOR V200A 14S VTOL UAV Drone ESC
Description:
T-MOTOR V200A 14S UAV ESC is a high-performance FOC (Field-Oriented Control) electronic speed controller designed for industrial UAVs, heavy-lift drones, and VTOL platforms. It supports 6–14S battery systems, delivers 100A continuous current and up to 200A peak current, and provides precise, efficient, and low-noise motor control through PWM and CAN communication.
Key Features:
- Supports 6S–14S LiPo batteries (18–60 V)
- Delivers 100 A continuous current
- Handles 200 A peak current (3 seconds)
- Advanced FOC (Field-Oriented Control) technology
- Supports PWM and CAN communication
- Fast throttle response and precise motor control
- Low-noise and smooth operation
- Optimized energy efficiency
Specifications:
| Parameter | Specification |
|---|---|
| Model | V200A 14S |
| ESC Type | Industrial BLDC FOC (Field-Oriented Control) UAV ESC |
| Support Voltage | 6S–14S LiPo (18–60 V) |
| Continuous Current | 100 A |
| Peak Current | 200 A (3 seconds) |
| Control Protocol | PWM / CAN |
| Throttle Range | 1040–1940 μs |
| Throttle Refresh Frequency | 50–500 Hz |
| BEC | No |
| Weight (Without Cables) | 243 g |
| Weight (With Cables) | 470 g |
| Dimensions | 127 × 56 × 33 mm |
| Input Cable | 10 AWG Silicone Wire (1140 mm) |
| Output Cable | 10 AWG Silicone Wire (210 mm) |
| Encoder Interface | M6 Aviation Connector |
| Operating Temperature | -20°C to +65°C |
| Application Type | Heavy-Lift UAVs, VTOL Aircraft, Industrial Drones |
Packing List Includes:
- 1 x T-Motor V200A 14S UAV ESC
- 1 x Accessories pack
Drone Photogrammetry: 3D Model from Aerial Photos
Table of Contents Understanding Drone Photogrammetry Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
Drone Cell Tower Inspection: Build and Business Guide
Table of Contents Understanding Drone Cell Tower Inspection Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Companion Computer on Drone: Using Raspberry Pi for Vision Tasks
Modern drones have evolved far beyond simple remote-controlled flying machines. With the integration of a companion computer —...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| SKU | AI4940 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The T-MOTOR V200A 14S VTOL UAV Drone ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
