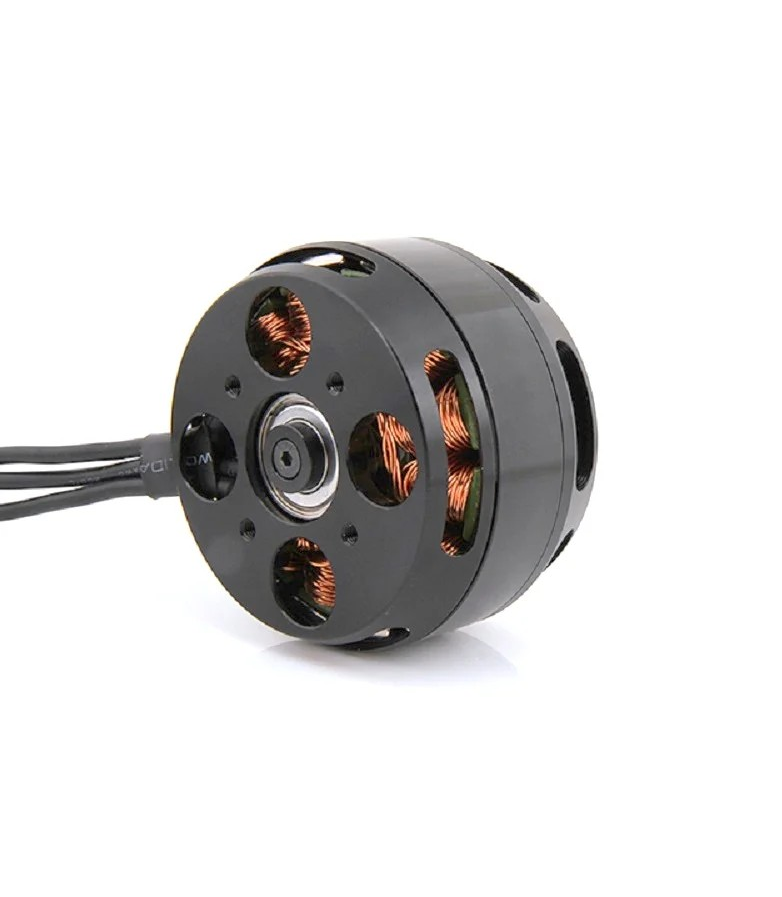

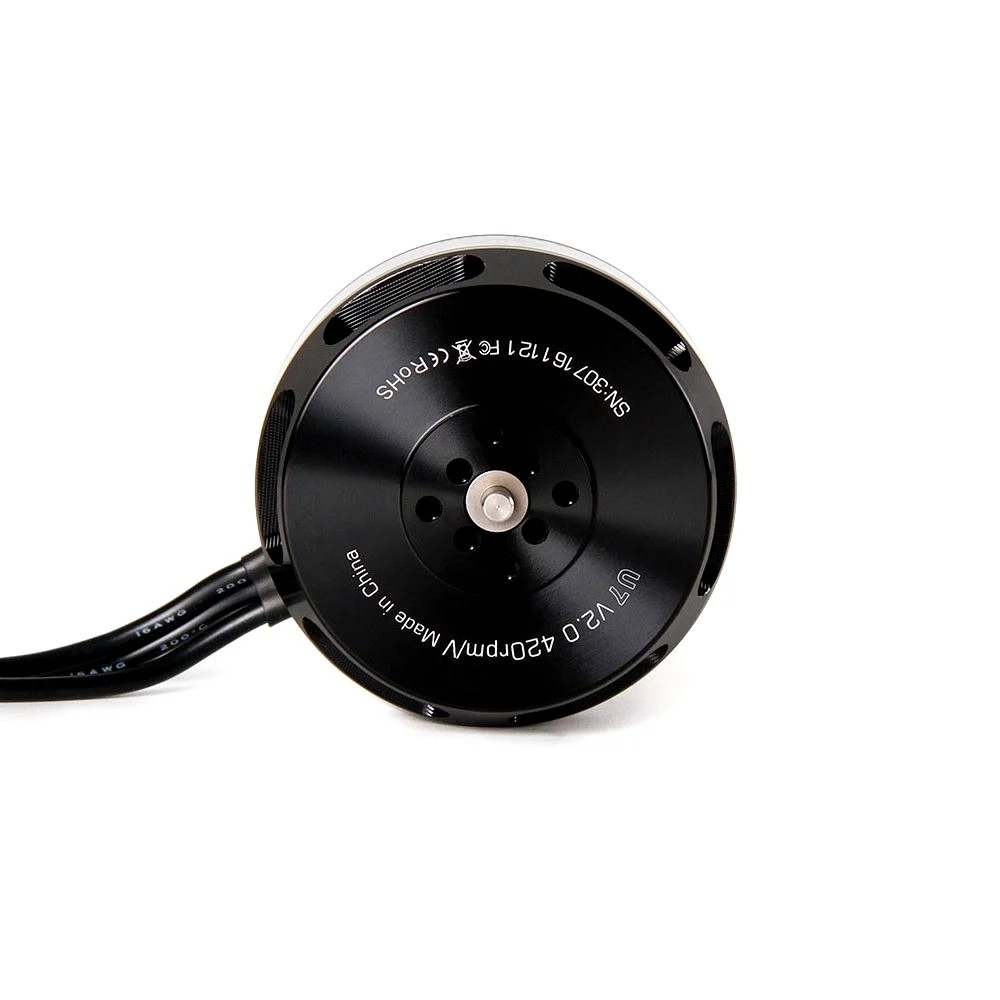

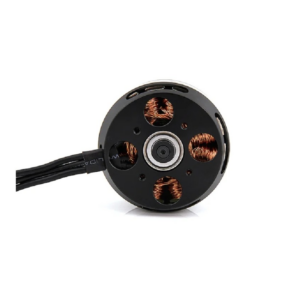

T Motor U7-V2.0 490KV Drone Motor

T Motor U7-V2.0 490KV Drone Motor

Introducing the T-Motor U7-V2.0 490KV drone motor, engineered for exceptional performance in demanding environments. This motor is built to withstand the elements, with waterproof and dustproof capabilities, making it the perfect choice for multi-copters with an all-up weight (AUW) ranging from 10 to 24 kg.

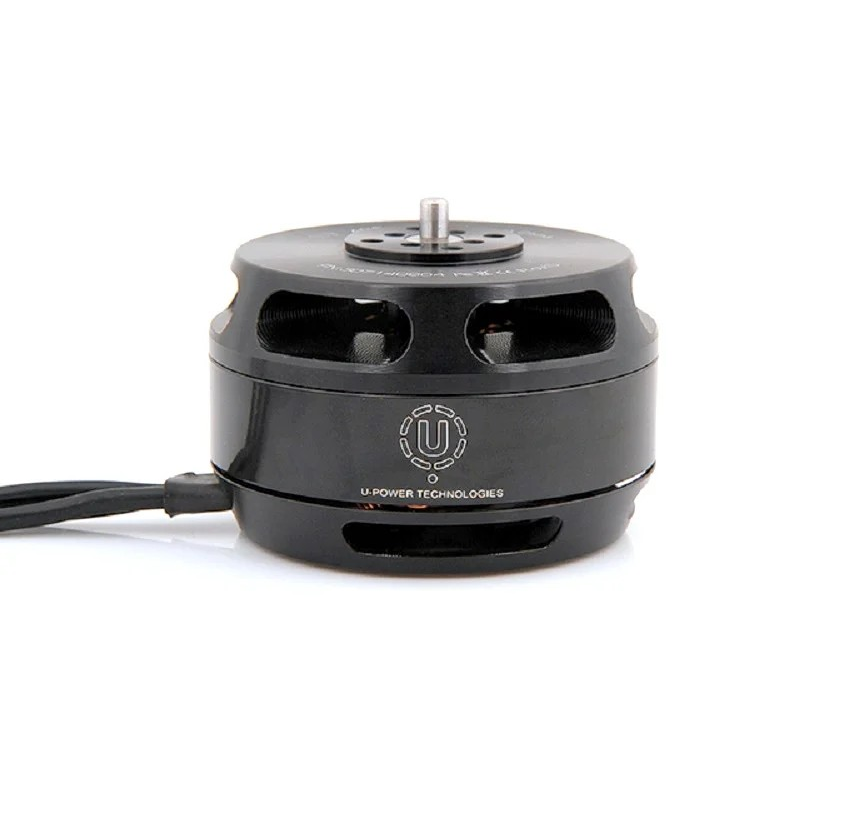

The T-Motor U7-V2.0 features a unique side-hole design, optimizing airflow and cooling the motor 2.5 times faster than traditional motors. Its high-quality, oxygen-free copper coil can endure temperatures up to 180°C, offering superior short-circuit resistance and reliability.

With precision-wound 0.2mm silicon steel sheets, the motor minimizes heat generation and reduces eddy currents, enhancing overall efficiency. The U7-V2.0 is equipped with imported German bearings, ensuring a long service life of over 1600 hours of smooth, trouble-free operation. These premium bearings also contribute to quieter and more stable performance, even during extended use.

Features:

1. KV Rating: 490
2. Configuration: 12Nl4P
3. Shaft   Diameter: 4mm
4. Motor Dimension(Dia.*Len): 60.7×39.5mm
5. Weight: 258g
6. Idle current @10V:  1.1 A
7. No.of  Cells(Lipo): 3~8S
8. Max Continuous  current(A)l 80S: 44A
9. Max Continuous Power (W)180S: 1300W
10. Max. efficiency current: (10-25A)>81%
11. internal   resistance: 21 mΩ

Specification:

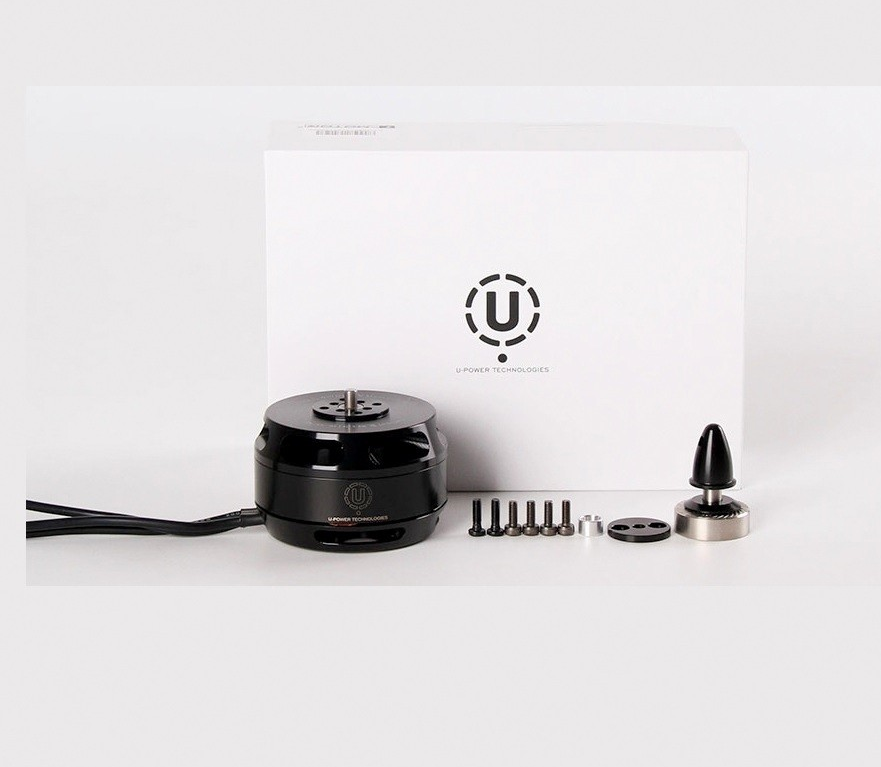

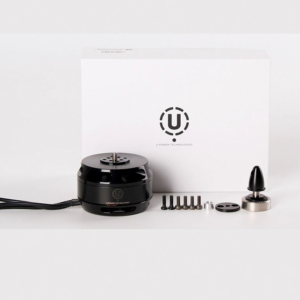

Package Includes:

1 x T motor U7-V2.0 490KV Motor

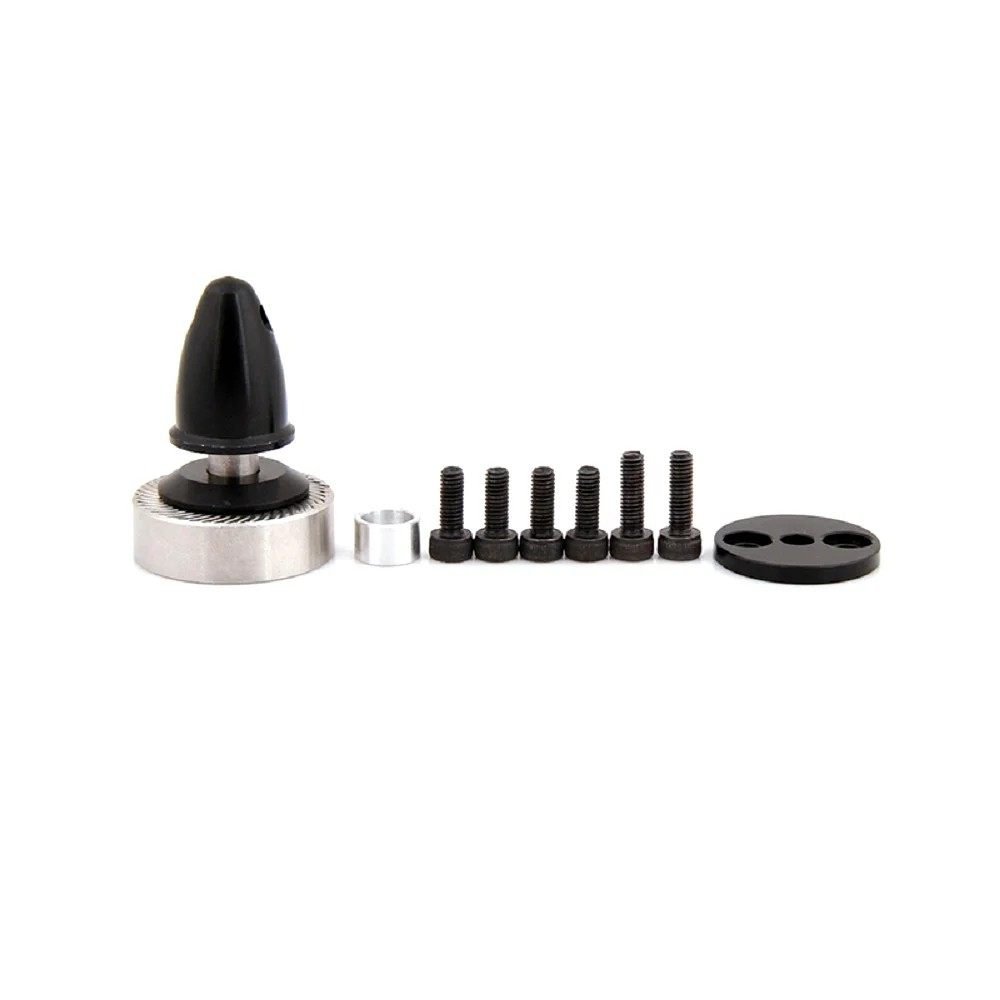

1 x Accessories Set
