Looking for U10ii Motor? T Motor U10II 100Kv Motor is available at Zbotic with fast shipping across India.

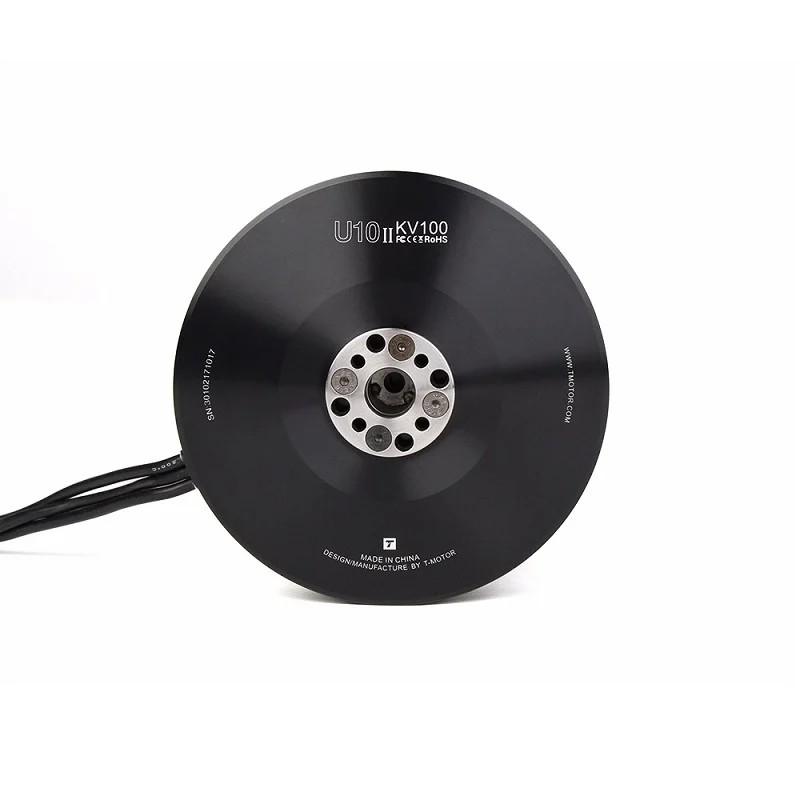

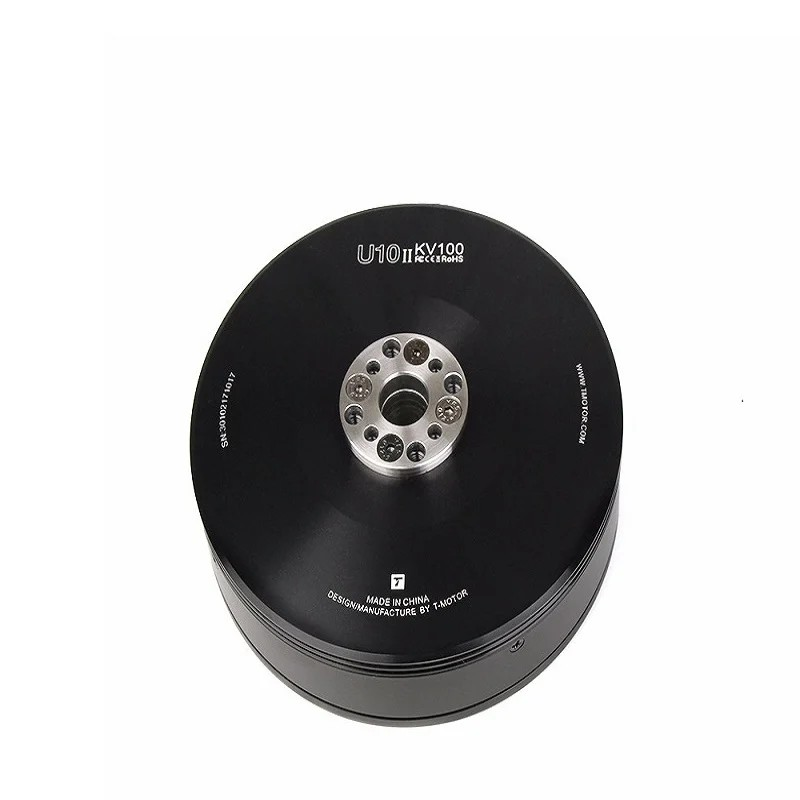

T Motor U10II 100Kv Motor
Designed for high-performance applications, the T-Motor U10 II 100Kv motor delivers a perfect balance of speed and torque with its 100 KV rating. Part of the U10 II series, it reflects T-Motor’s commitment to superior craftsmanship and precision engineering. Compatible with a wide variety of drone configurations, this motor is built for efficiency, reliability, and versatility, making it an ideal choice for demanding aerial tasks.
Features:
- Efficiency increased by 20%
- Flight time 5% longer
- New Iron core design
- Max. thrust 10.6 kg
- New dust prevention network
Specification:
| Motor Weight(gm) | 415 |
|---|---|
| Idle Current (18V) | 1A |
| Internal Resistance(mΩ) | 101+51, 101-51 |
| Peak Current(180s) | 32.4 |
| Max. Power (180s) | 1600w |
| Rated Voltage(Lipo) | 12 |
| Propeller Recommendation | 28-30″ |
| Quadcopter (28CF) | 16kg |
| Hexacopter (28CF) | 24g |
| Octocopter (28CF) | 32kg |
Package Includes:
1 x T Motor U10II 100Kv Motor
T Motor U10II 100Kv Motor Overview
The T Motor U10II 100Kv Motor is a high-performance brushless drone motor engineered for heavy-lift and long-endurance aerial platforms. With a 100 Kv rating, this motor provides an optimal blend of torque and RPM, making it ideal for demanding applications such as professional cinematography, industrial inspection, and agricultural drones.
Key Features of T Motor U10II 100Kv Motor
- Efficiency increased by 20% over previous models for reduced power loss
- Flight time extended by approximately 5% thanks to optimized winding and core design

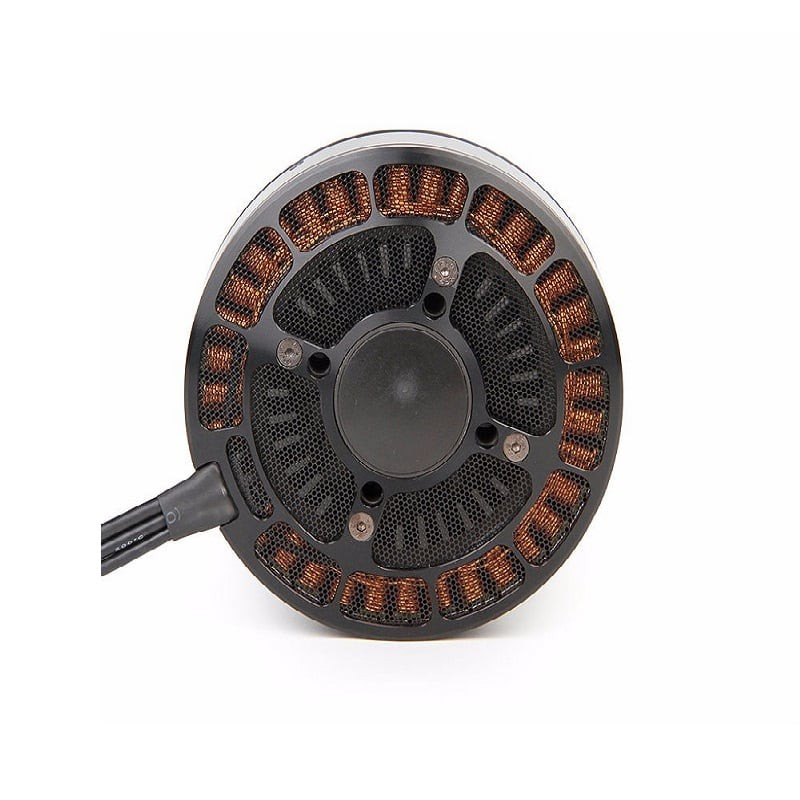

- New iron core design enhances magnetic flux and thermal performance
- Maximum thrust up to 10.6 kg for heavy-lift capabilities
- Integrated dust prevention network to protect internal components
- Fast shipping across India and genuine T-Motor parts available at Zbotic
Applications and Use Cases
- Professional aerial cinematography platforms carrying large camera gimbals
- Industrial inspection drones for power lines, wind turbines, and pipelines
- Agricultural spraying and mapping UAVs requiring stable lift
- Survey and mapping drones with long-endurance flight requirements
- Heavy-lift multirotor UAVs transporting payloads or sensors
How to Use T Motor U10II 100Kv Motor
Mount the U10II motor securely on your drone’s motor mount using M5 screws, then connect the three-phase wires to a compatible high-current ESC. Calibrate the ESC for a battery voltage up to 18 V and select propellers that match the motor’s thrust curve. Ensure the motor is fixed in place, perform a test run at low throttle to verify smooth rotation, then proceed with full-power checks in a safe environment.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum thrust of the T Motor U10II 100Kv?
The T Motor U10II 100Kv delivers up to 10.6 kg of thrust when paired with the recommended propeller and power setup.
What is the idle current draw at 18 V?
The idle current for this motor is 1 A when powered with an 18 V input, ensuring minimal standby consumption.
How much does the motor weigh including cables?
This motor weighs 415 g including its cables, making it suitable for medium to large drone frames.
Your First Drone Build: Complete Assembly Guide India
Building your first drone from scratch is one of the most rewarding experiences in the maker world. This...
Read More →
test
test
Read More →
GPS Return to Home: Setup on Betaflight and iNav
Table of Contents Understanding GPS Return to Home Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| Model | U10II |
| KV Rating | 100KV |
| SKU | AI5601 |
| Availability | In Stock |
Applications & Use Cases
The T Motor U10II 100Kv Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
