This is the XT60 connector variant of the SwiftWing XT60 Connector PCB Mount Welding Board in Drone Accessories. Available at ₹93.45 (₹89.00 + GST) with free shipping across India.

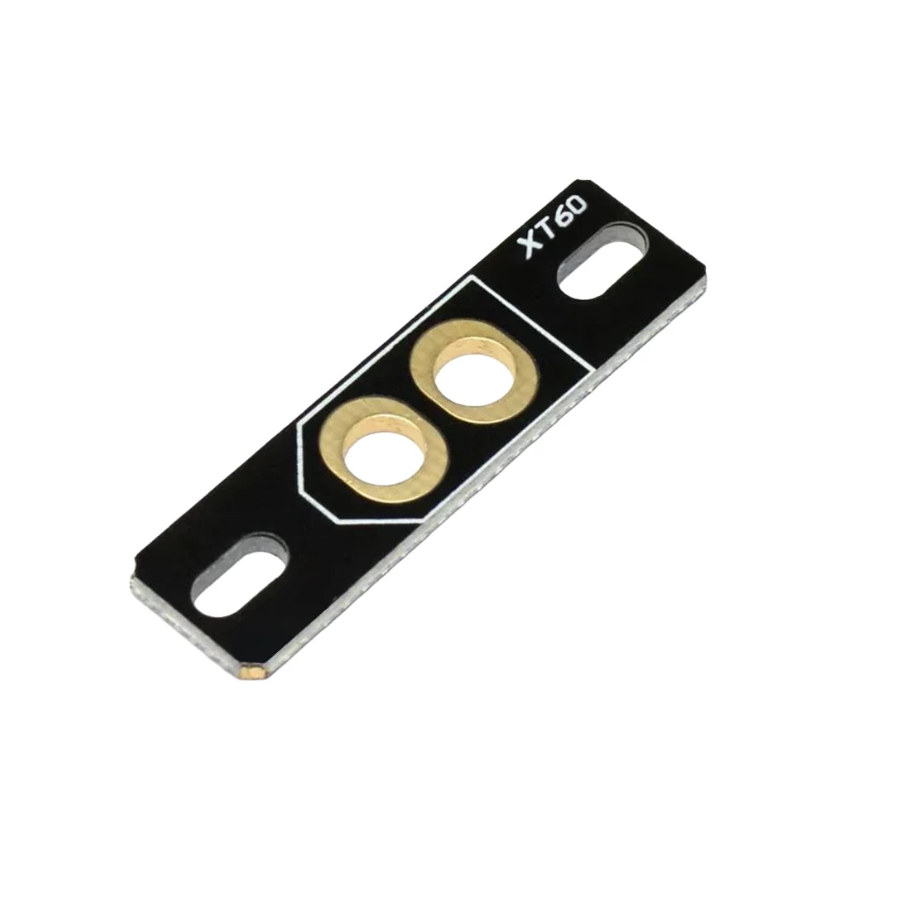

SwiftWing XT60 Connector PCB Mount Welding Board
Description:
The SwiftWing XT60 Connector PCB Mount Welding Board is a robust solution designed to convert standard XT connectors into a secure, panel-mountable power interface.
Ideal for drones, robotics, and high-current systems, it ensures stable and reliable connections by eliminating strain on wires. Built with heavy-duty PCB construction and large copper pads, it allows strong soldering and improved durability under vibration and load. With dedicated mounting holes, it enables clean and professional installations in enclosures or frames.
This board enhances safety, reduces connector fatigue, and is perfect for organized, production-ready builds.
Features:
- XT60 PCB Mount Design: Converts standard XT60 connectors into a secure, panel-mountable power interface for stable installations.
- Heavy Copper PCB Construction: Built with strong copper layers to handle high current and improve thermal and electrical performance.
- Large Solder Pads: Provides strong and reliable solder joints for better conductivity and easy assembly.
- M3 Screw Mount Support: Includes mounting holes for rigid installation on frames, panels, or enclosures.
- High Current Compatibility: Designed for demanding power applications in drones, robotics, and battery systems.
- Reduces Wire Stress: Eliminates direct wire strain on connectors, improving durability and lifespan.
- Clean Wiring Layout: Helps achieve neat, organized, and professional-grade system builds.
- DIY & Industrial Friendly: Suitable for both hobby projects and commercial embedded applications.
Applications:
- UAVs and FPV drones
- Battery mounting systems
- Power distribution setups
- Ground control stations (GCS)
- Robotics and automation systems
- High-current DC power systems
Specifications:
- PCB Type: 2-layer heavy copper
- Connector Support: XT60
- Mounting: M3 through-hole
- Pad Type: Large copper solder pads
- Voltage Support: Up to 14S LiPo (application dependent)

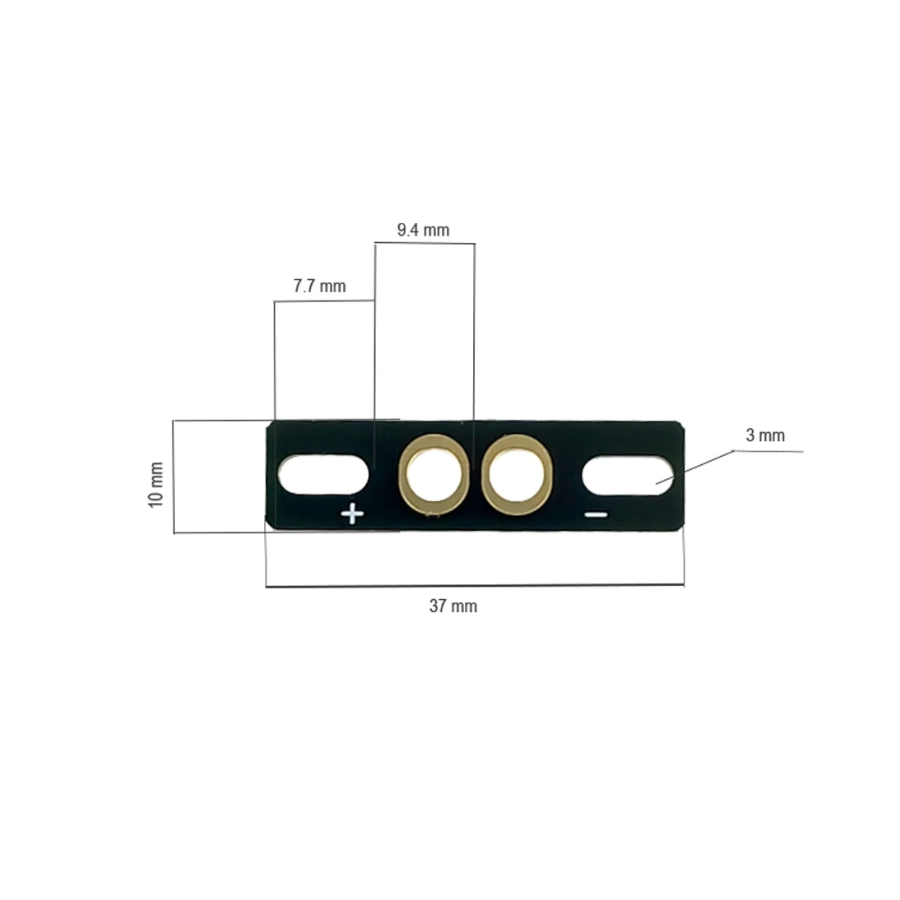

- Diamensions: 37*10 mm
Why Use a PCB Mount for XT Connectors?
Traditional setups leave connectors hanging on wires, leading to:
- Mechanical stress on solder joints
- Reduced durability over time
- Poor mounting and cable management
This board solves these issues by providing a rigid, mountable interface, improving both longevity and safety.
Attachements:
Package Includes:
1 x SwiftWing XT60 Connector PCB Mount Welding Board

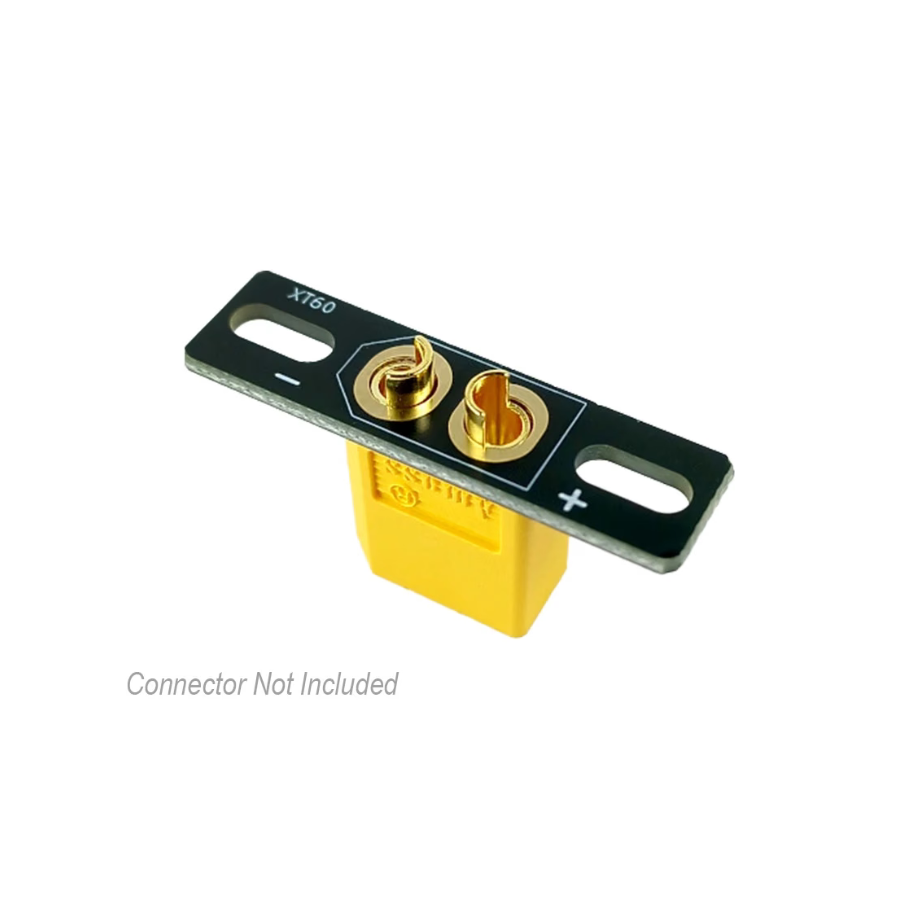

Note: XT60 Connector is not included in Package
