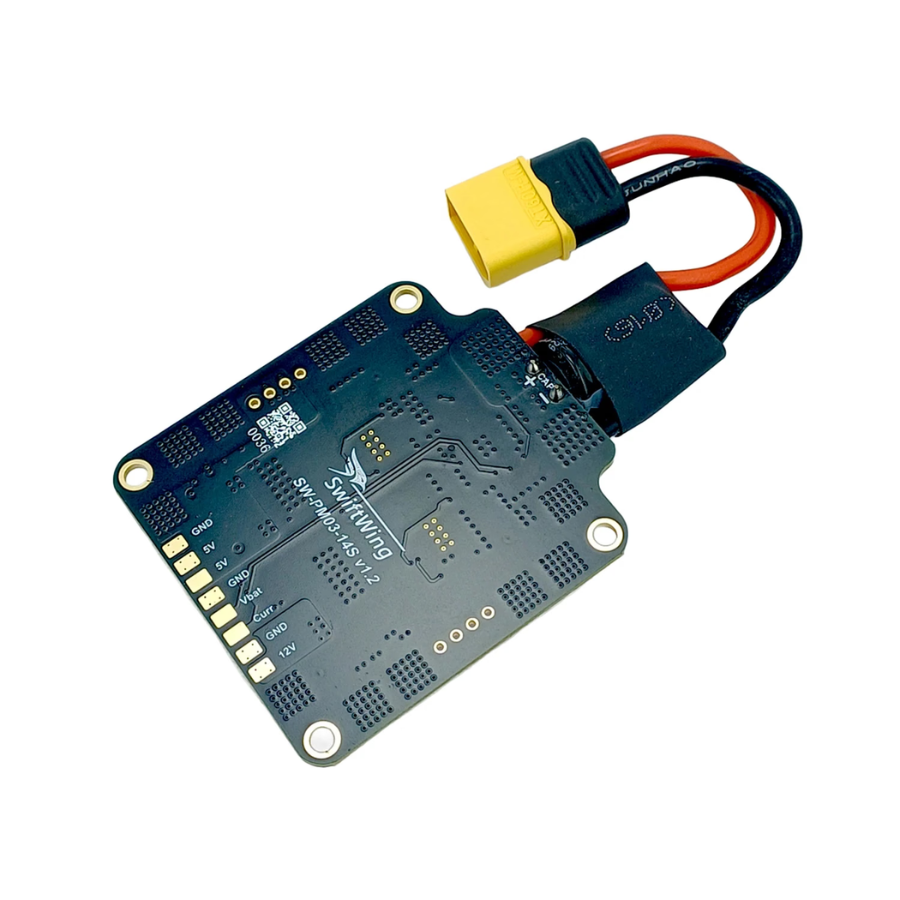

SwiftWing PM03-14S Integrated Power Module & Power Distribution Board (3S–14S, 120A)

SwiftWing PM03-14S Integrated Power Module & Power Distribution Board (3S–14S, 120A)

Description:

The SwiftWing PM03-14S Integrated Power Module & Power Distribution Board is a compact, high-performance solution designed for UAV platforms using ArduPilot and PX4 systems. Supporting 3S–14S LiPo batteries, it efficiently distributes power to up to six ESCs while providing regulated 5V and 12V outputs. With precision shunt-based current sensing and accurate voltage monitoring, it ensures reliable power management in demanding environments. Built with a 4-layer PCB and 2 oz copper, the board delivers high current handling up to 120A. The pre-installed Rubycon low-ESR capacitor enhances stability and reduces noise. Ideal for industrial drones, VTOL aircraft, and robotics, this module combines power regulation, monitoring, and distribution in one robust and compact unit.

Features:

1. Supports 3S–14S LiPo (9V–60V)
2. High current capacity up to 120A
3. Integrated analog power module

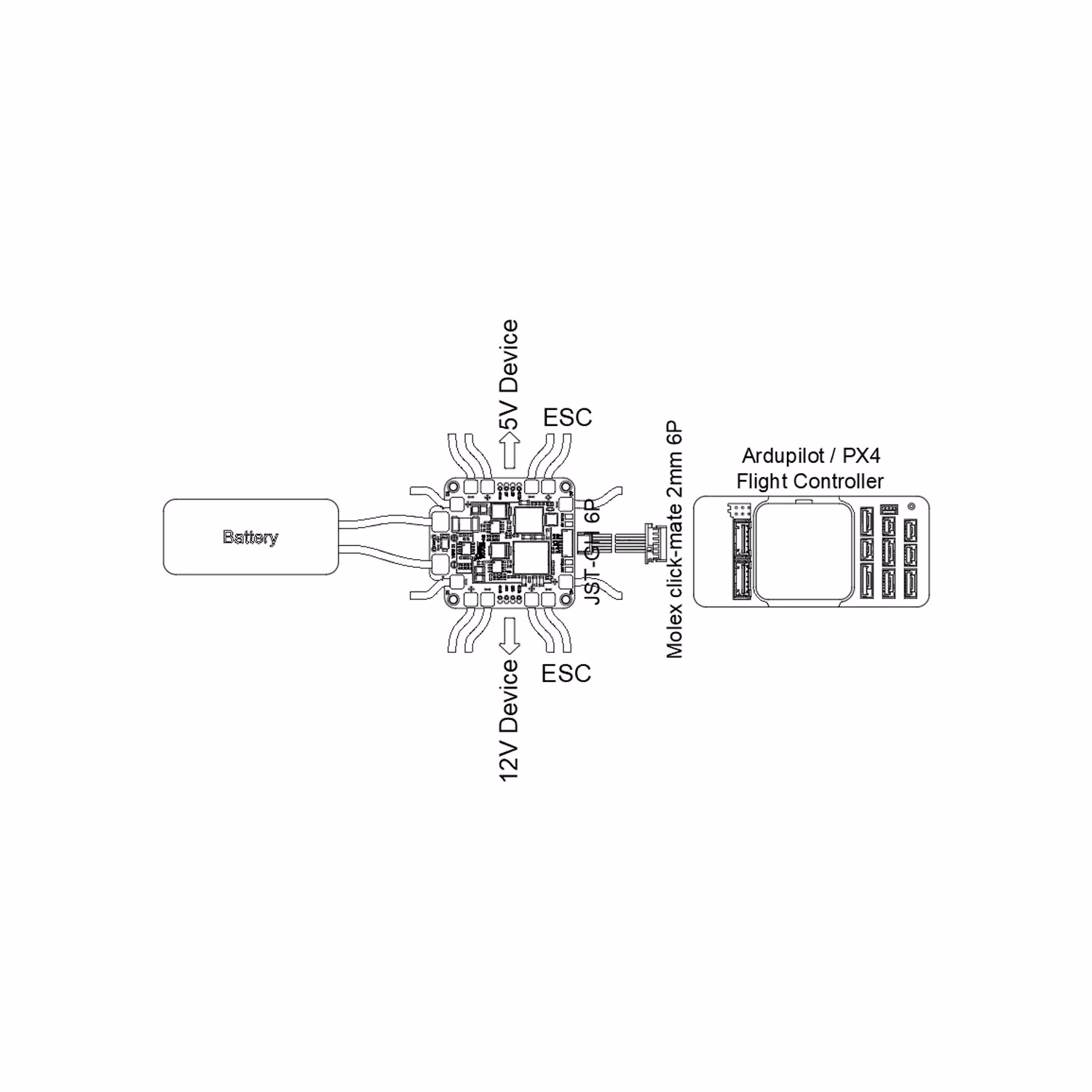

4. Six ESC output distribution
5. Precision shunt-based current sensing
6. Regulated 5V & 12V outputs
7. Low-ESR Rubycon capacitor installed
8. Pixhawk-compatible JST-GH interface

Specifications:

1. Supported Battery: 3S–14S LiPo
2. Maximum Input Voltage: 60V DC
3. Continuous Current: 120A
4. Burst Current: 150A
5. Voltage Divider Ratio: 20.66
6. ESC Outputs: 6
7. FC Output Type: Filtered buck output
8. Interface: JST-GH 6-pin
9. Protection: TVS transient protection
10. PCB: 4-layer, 2 oz copper, ENIG finish
11. Capacitor: 330µF, 63V Rubycon low-ESR
12. Operating Temperature: -10°C to +60°C
13. Storage Temperature: -20°C to +85°C

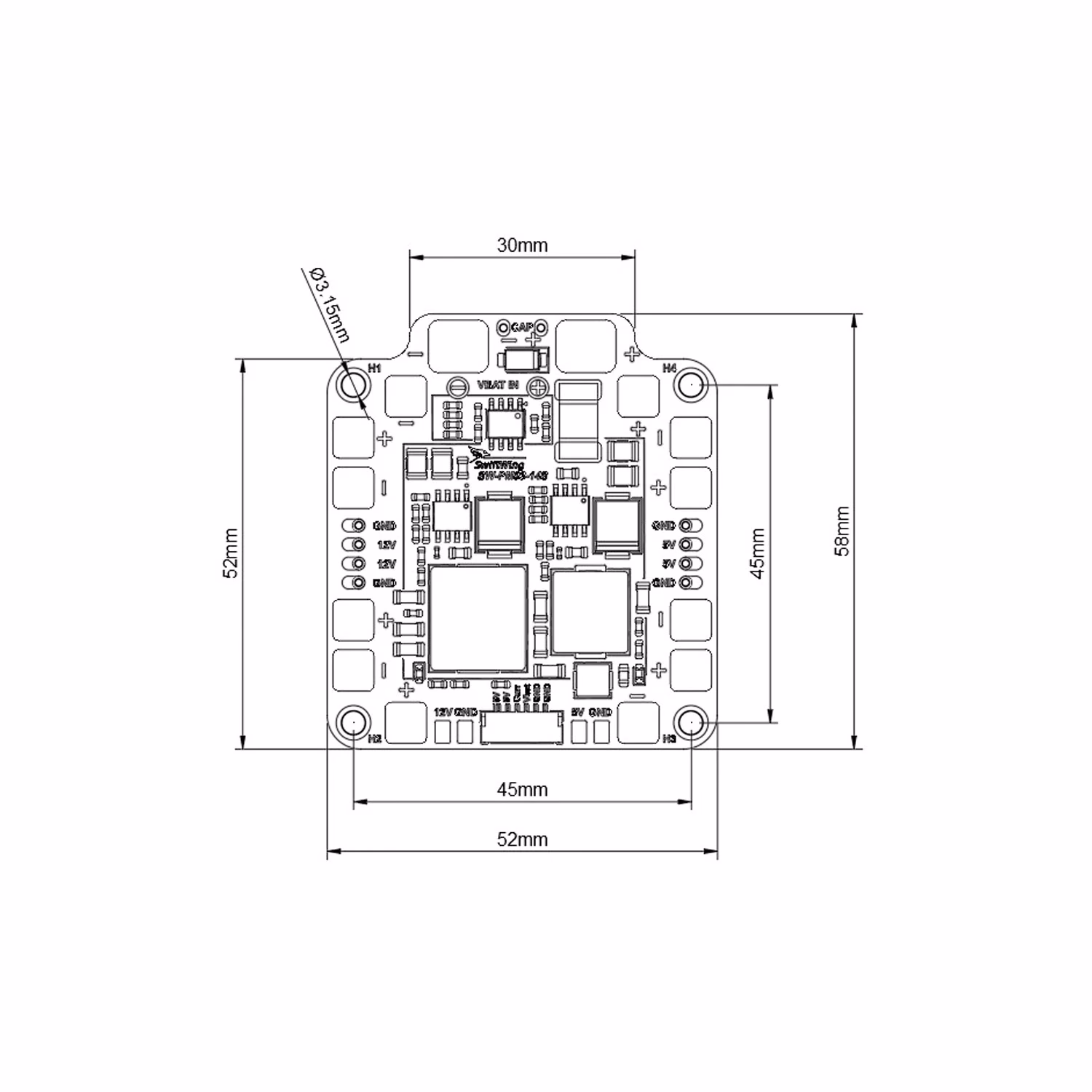

14. Mounting Holes: 4 × M3
15. PCB Thickness: 1.6 mm ±0.15 mm
16. Dimensions: 58 × 52 × 5 mm
17. Weight: 36g

Datasheet:

Package Includes:

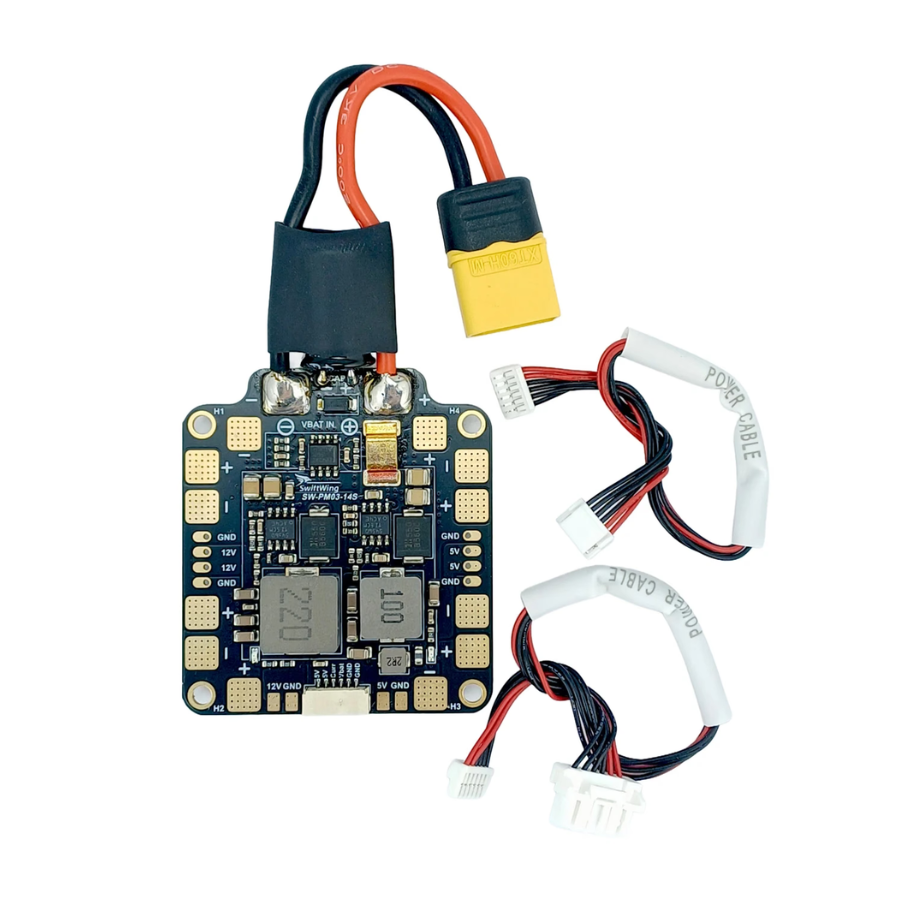

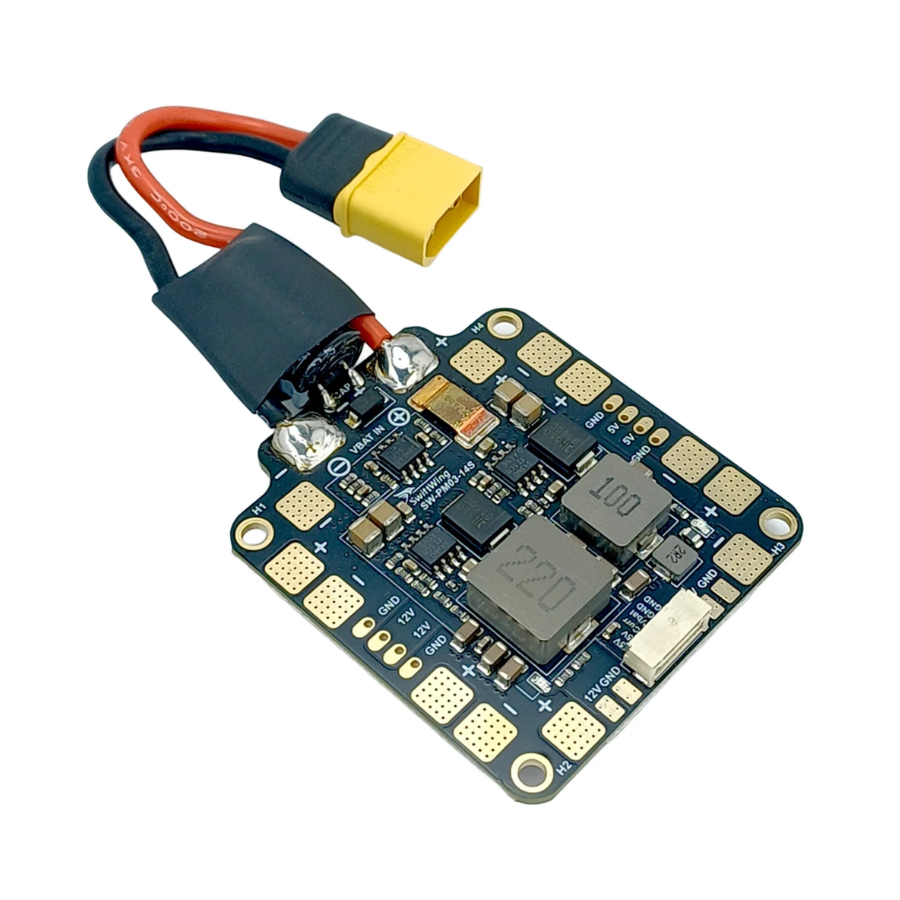

1 x SwiftWing PM03-14S Integrated Power Module & Power Distribution Board (3S–14S, 120A)

2 x JST power cable
