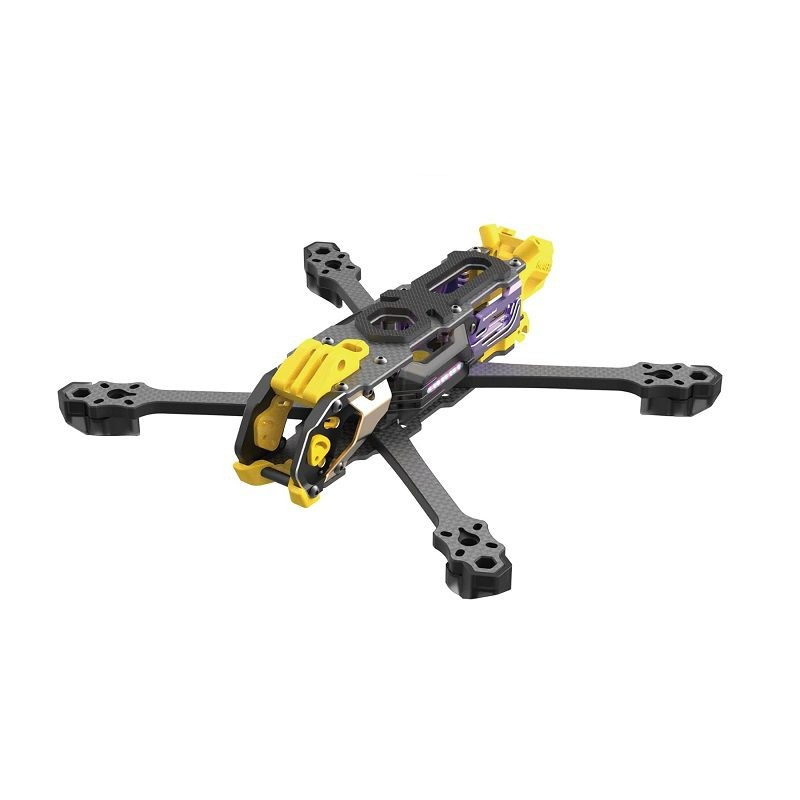

The SpeedyBee Mario 5 XH O4 PRO Version is engineered for performance and versatility, featuring a high-strength aviation aluminum alloy head that not only protects the lens but also optimizes the DJI O3 VTX ultra-wide-angle view, minimizing the “jello effect” for a consistently steady image. Its unique carbon plate arm support structure significantly enhances body stability and reduces twisting, while also providing space for capacitor installation.
The frame offers a power dual-input method for easy center of gravity adjustment, along with integrated sockets and antennas for a clean build. A dedicated receiver installation space at the rear simplifies frequency binding. Furthermore, the SpeedyBee Mario 5 XH O4 PRO Version encourages personalization with diverse open-source 3D models and includes protective armor that shields the FC and enhances DJI O3 heat dissipation, ensuring optimal cooling
Features:
- High-Strength Alloy Head: Protects the lens, Optimizes DJI O3 VTX ultra-wide-angle view, Minimizes “jello effect.”
- Unique Carbon Plate Arm Support: Enhances body stability, Minimizes twisting, Accommodates capacitor installation.
- Power Dual-Input Method: Selectable dual main power input, Easy center of gravity adjustment, Integrated socket and antenna.
- Receiver Installation Space: Dedicated rear bottom area, Easy frequency binding.
- Diverse Open-Source 3D Models: Customizable with various 3D models.
- Frame Protection Armor: Protects the FC (Flight Controller), Enhances DJI O3 heat dissipation, Recessed Gopro Mount, lowers the center of gravity.
Specification:
| Item Type: | Accessory |
|---|---|
| Model Type: | Drone Frame |
| Material: | Aluminium Alloy ( Head) |
| Thickness of Arms | 6mm |
| Thickness (mm): | Bottom Plate Thickness:2.5mm(T300 3K), Middle Plate Thickness:2.0mm(T300 3K), Top Plate Thickness:2.5mm(T300 3K) |
| Additional Specs.: | Battery Anti-Slip Pad: Silicone 3mm, Compatible Propeller Size : Max 5.1 Inch, FC Mounting Hole:30.5×30.5(M3), GPS Installation Size : 18*18*7, Internal Mounting Height : 23-31mm, Motor Mounting Hole Distance : 16-19mm, Motor Spring Hole Position: Φ8mm, Receiver Installation Space :25*13*6mm, Suitable Capacitor Size : Φ10mm*20mm |
| VTX Mounting Holes | 20×20(M2) |
| Wheelbase | 226 mm |
Package Includes:
1 x DJI 04 Cooling Side Plate L
1 x DJI 04 Cooling Side Plate R
1 x Mario 5 250mm strap
1 x Mario 5 Stack side plate (PC) L
1 x Mario 5 Stack side plate (PC) R
2 x Mario 5 RGB light strip
4 x Motor line protection tube 40mm
1 x Stack side plate LR
4 x M2*10 Hex Socket Cap Screws
4 x M2’4 Screw
2 x M2*7 Screw
1 x DJI Antenna Mount
Drone LiDAR Sensor Guide: Obstacle Avoidance & Mapping
Drone LiDAR Sensor Guide: Obstacle Avoidance and Precision Mapping LiDAR — Light Detection and Ranging — is one...
Read More →
Drone FPV Camera: CMOS vs CCD, Latency, and FOV
Table of Contents Understanding Drone FPV Camera Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
FPV Freestyle vs Racing Drone: Which Build Is Right for You?
Table of ContentsIntroduction: Two Worlds Under One HobbyWhat Is FPV Freestyle?What Is FPV Racing?Frame DifferencesMotor and Prop ChoicesESC...
Read More →Technical Specifications
| Brand | SpeedyBee |
|---|---|
| SKU | AI7158 |
| Weight | 0.46 kg |
| Availability | In Stock |
Applications & Use Cases
The SpeedyBee Mario 5 XH O4 PRO Version is a versatile drone frame and accessories used across a wide range of applications including FPV racing builds, freestyle drones, cinematic drones, and agricultural spraying platforms.
Common use cases:
- Building a new racing quad
- Replacing a broken frame arm after a crash
- Mounting a camera gimbal on a custom platform
This product is ideal for FPV builders, drone racing enthusiasts, and commercial drone operators.
Technical Tip: Carbon fiber frames offer the best strength-to-weight ratio. Ensure motor-to-motor distance matches your propeller size.
