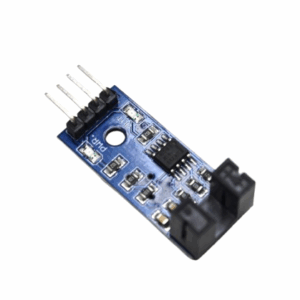

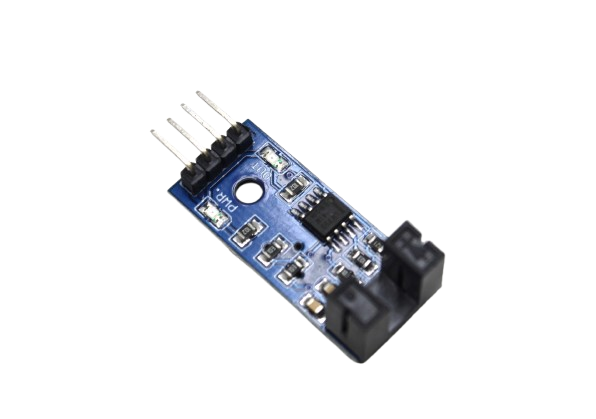

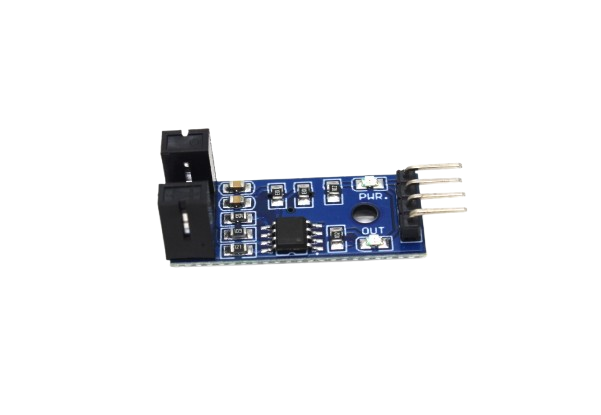

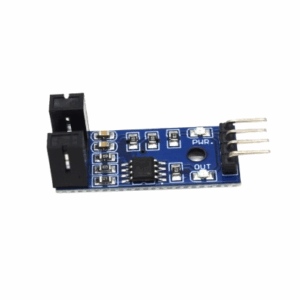

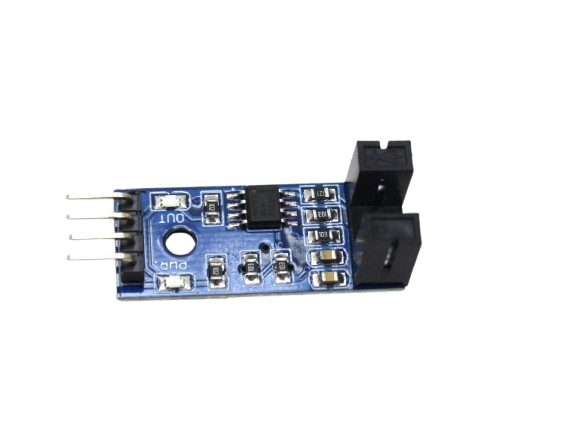

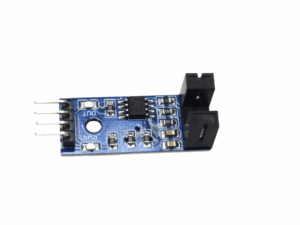

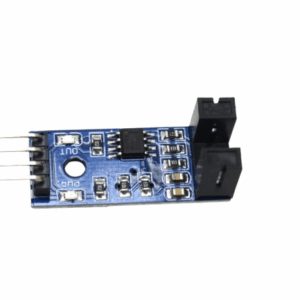

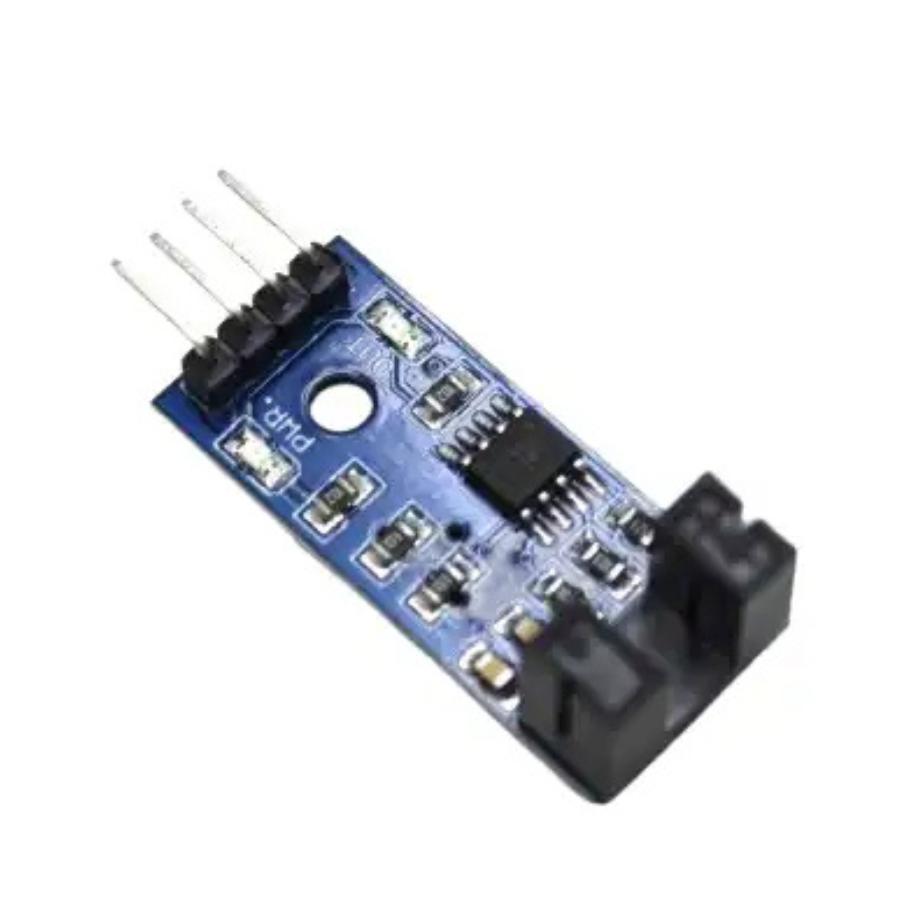

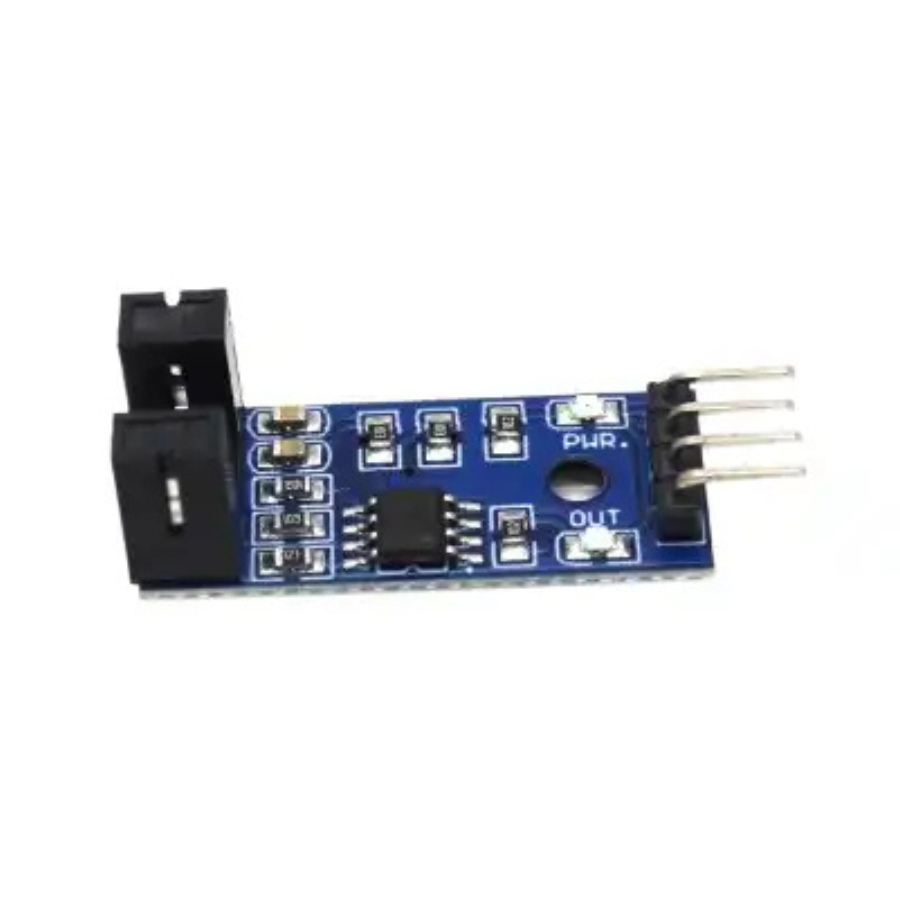

Speed Measuring Sensor Groove Coupler Module For Arduino
Introducing the Speed Measuring Sensor Groove Coupler Module, specifically designed for Arduino applications. This module includes a DO output interface that easily connects to a microcontroller’s IO port, making it perfect for detecting blockages and measuring motor speed with sensors like motor encoders.
The DO module supports multiple functions, including connections to relays and limit switches, and can be paired with active buzzer modules to create alarm systems. Commonly used for motor speed detection, pulse counting, and position limiting, this module provides versatile functionality for a variety of projects.
Feature:
- Using imported groove optical coupling sensor, width 5mm.
- It has the output state light, if output high level, the lights are off. if output low level, it on.
- If it covered, it will output high level; otherwise, its output low level.
- Good signal and waveform, with a strong driving ability for more than 15mA.
- Equipped with a fixed bolt hole, easy install.
- Use the LM393 wide voltage comparer.
- The DO output interface can be directly connected to a micro-controller IO port if there is a block detection sensor, such as the speed of the motor encoder can detect.
- DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm.
Specification:

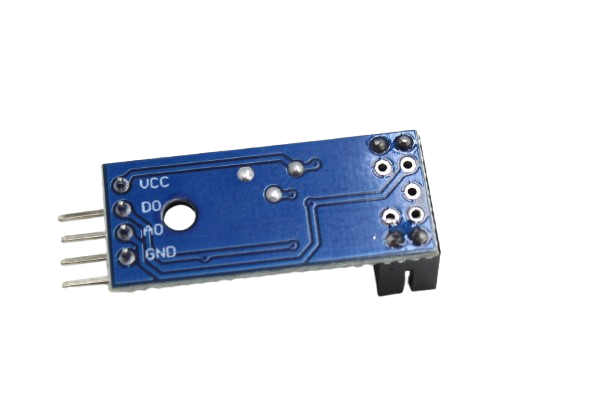

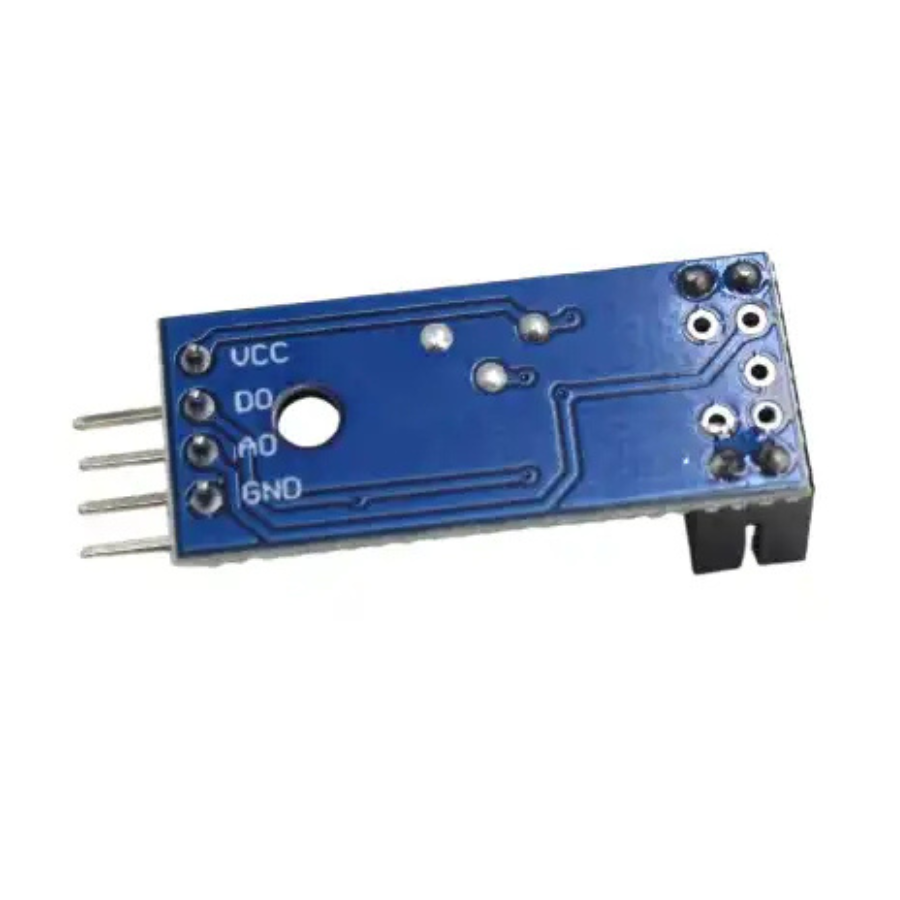

Wiring Specification:
- VCC: The positive 3.3-5 v power supply.
- GND: Connect power negative.
- DO: TTL switch signal output.
- AO: This is analog output.
Package Includes
- 1 x Speed Measuring Sensor Groove Coupler Module For Arduino.
Technical Specifications
| Brand | Arduino |
|---|---|
| SKU | AI0144 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Speed Measuring Sensor Groove Coupler Module For Arduino is a versatile rotary encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
