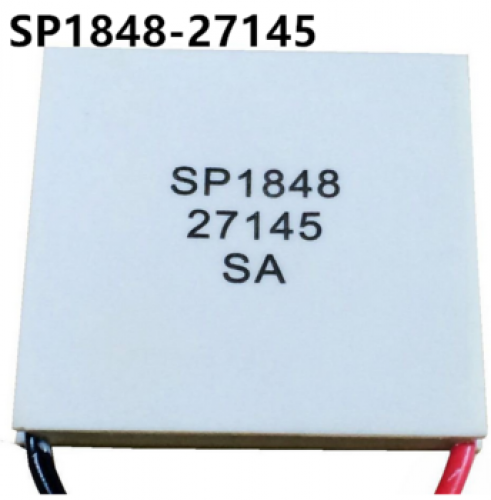

This is the 40mm variant of the SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150°C Peltier Module in Thermoelectric Peltier Elements. Available at ₹253.70 (₹215.00 + GST) with free shipping across India.
Product Description:
Looking to cool down your DIY project or any electronic device then you are at the right product. The TSP1848-27145 40×40 mm Thermoelectric Cooler 10A Peltier Module is the simple application of the Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40 x 40mm which very effectively cools and heats up to 150°C.
These magical cells based on the Peltier effect are capable of generating electric power. The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150?C Peltier Module operates a maximum of up to 150°C which will give you different voltage and current outputs at different values of temperature.
Thermoelectric Power Generators also are known as TEG or Peltier Module create a detects temperature differential on each side. You can take the advantage of this temperature differential detection to generate electricity.
After applying the heat on one side and cold on another side the device will start generating the voltage which depends upon the value of applied heat. The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150?C Peltier Module will generate a moderate amount of voltage with mA of current.
A Thermoelectric Generator (TEG) module is a semiconductor-based electronic component that functions like a small generator.
Temperature (°C) 20 40 60 80 100 Open circuit voltage (V) 0.97 1.8 2.4 3.6 4.8 Current (mA) 225 368 469 558 669
Operating Tips:
Do not exceed the maximum operating temperature of the module.
Life expectancy: 200,000 hours.
Failure rate based on longtime testings: 0.2%.

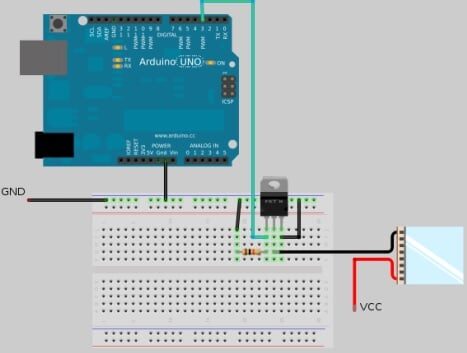

Connection Diagram of SP1848-27145 with Arduino
Important Note!!
MODEL NUMBER SIDE IS EXPOSED TO “HEAT-SINK or ICE” AND OPPOSITE SIDE TO “HEAT“.
Place 2-3 drops of grease compound on both sides of TEG Module
Features :
Small and lightweight, convenient for use.
Designed specifically for power generation.
Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
High-temperature 150°C, with NM static protection.
Quality tested cooling cells.
Simple to install and operate.
with a 5v Booster board, you can charge the cell phone
Package Includes :

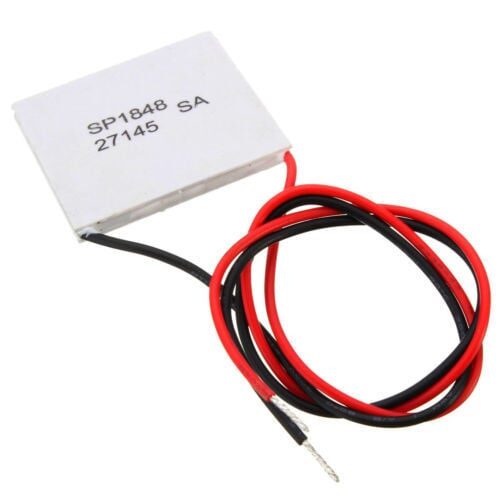

1 x SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150°C Peltier Module
The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150°C Peltier Module is a versatile thermoelectric peltier elements used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
