Looking for Tf30 Frame? SKYRATH TF30 4 Axis Agricultural Drone Frame With 30 L Tank is available at Zbotic with fast shipping across India.
Tf30 Frame – Description:

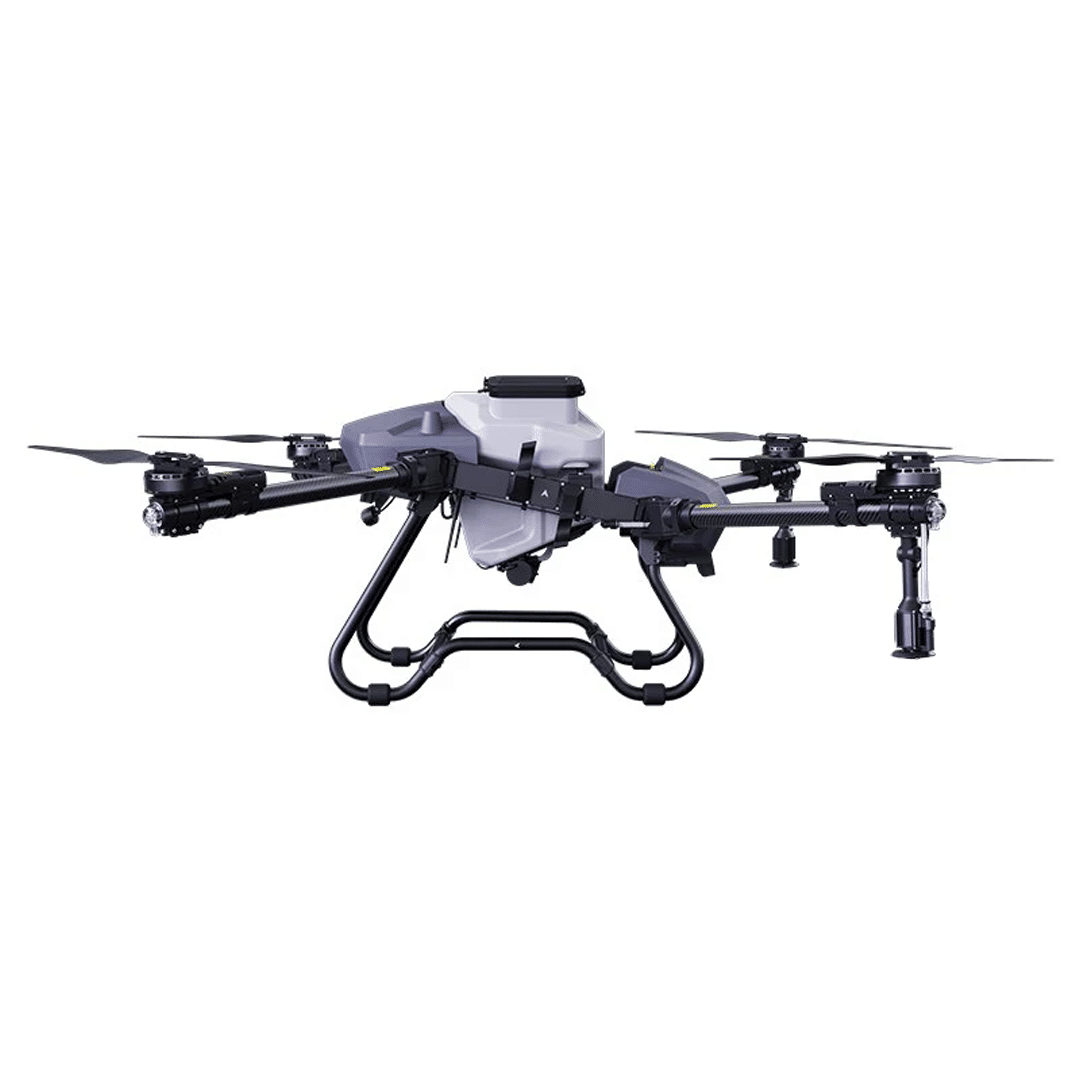

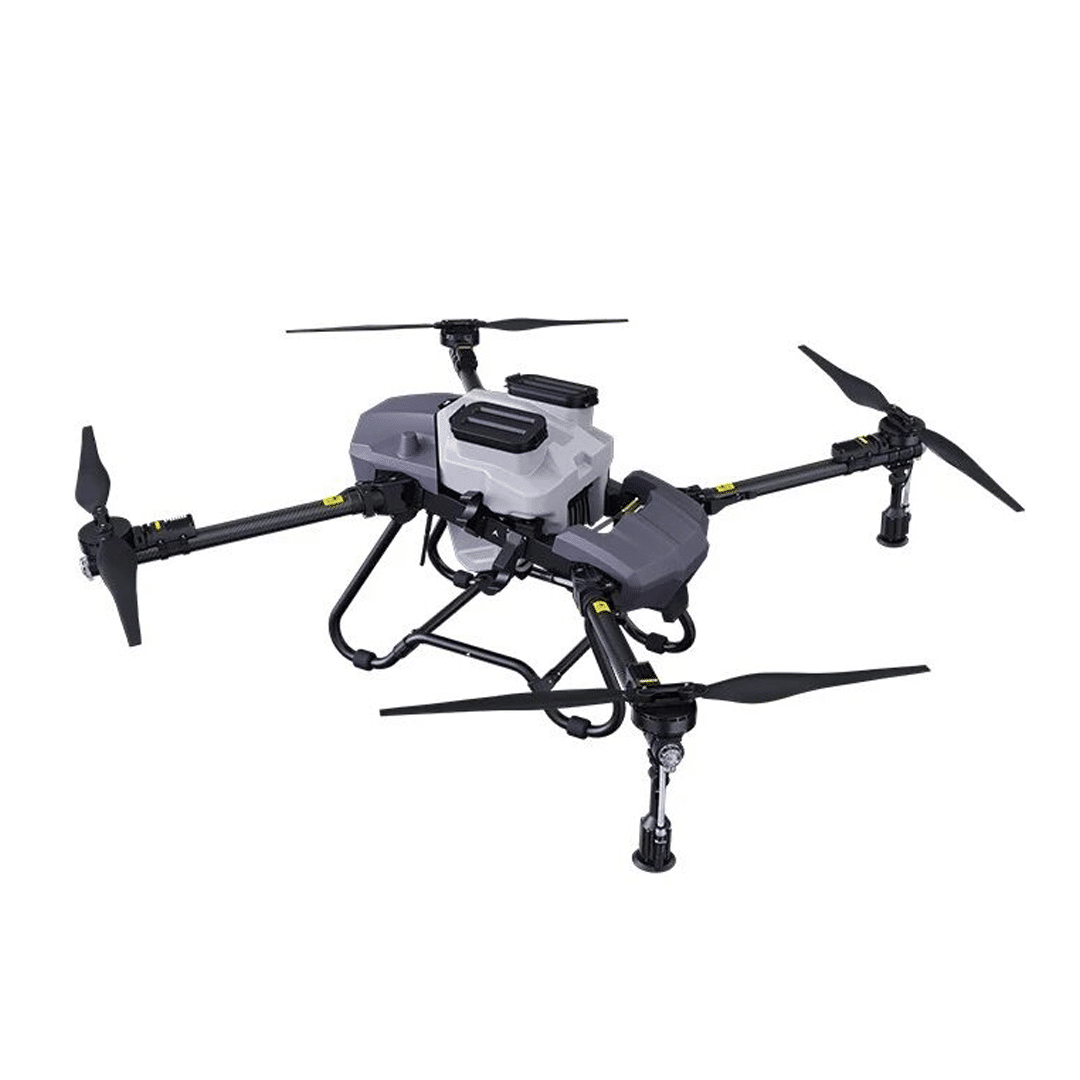

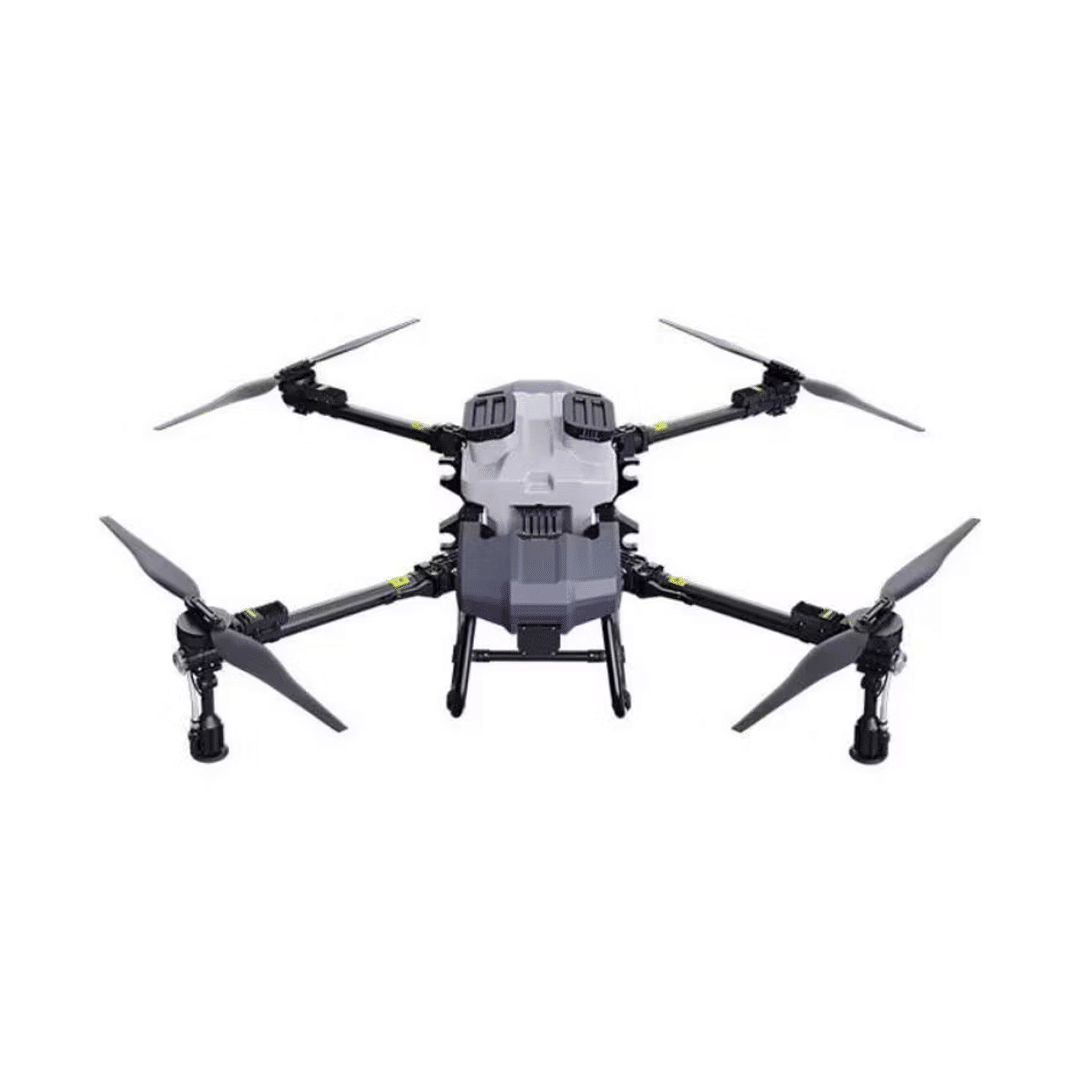

The SKYRATH TF30 4 Axis Agricultural Drone Frame With 30L Tank is designed for efficient and powerful agricultural operations. It features a wheelbase of 2025 mm and a sturdy structure with an unfolded size of 2432 × 2576 × 820 mm and a folded size of 960 × 750 × 820 mm.
Equipped with a 30L tank capacity, the drone ensures large-area spraying capability. The frame weight is 14 kg, while the drone weight (without battery) is 28 kg, and the takeoff weight is ≤ 69.1 kg. It offers a flight altitude of ≤ 20 m, a flight radius of ≤ 5000 m, and a flight speed range of 1–12 m/s, delivering optimal performance in various field conditions.
The flow rate ranges from 12–24 L/min, providing flexibility and control during spraying tasks.
Note: Battery is not included, but the best compatible battery for this drone is 14S 30000mAh.
it only contain frame.
Specifications:
| Wheelbase | 2025 mm |
|---|---|
| Unfolded Size | 2432 × 2576 × 820 mm |
| Folded Size | 960 × 750 × 820 mm |
| Tank Capacity | 30L |
| Frame Weight | 14 kg |
| Drone Weight (Without Battery) | 28 kg |
| Takeoff Weight | ≤ 69.1 kg |
| Flight Altitude | ≤ 20 m |
| Flight Radius | ≤ 5000 m |
| Flight Speed | 1–12 m/s |
| Flow Rate | 12–24 L/min |
| Best compatible battery | 14S 30000mAh |
Product Includes:
- 1x SKYRATH TF30 4 Axis Agricultural Drone Frame With 30 L Tank
SKYRATH TF30 4 Axis Agricultural Drone Frame With 30 L Tank Overview
The SKYRATH TF30 is a 4-axis agricultural drone frame equipped with a 30 L spraying tank, engineered for efficient field operations. Its robust yet lightweight design provides stable flight performance for precise pesticide, herbicide, or fertilizer application across large agricultural areas.
Key Features of SKYRATH TF30 4 Axis Agricultural Drone Frame With 30 L Tank
- 30 L high-capacity spray tank for extended coverage
- 2025 mm wheelbase and unfolded dimensions of 2432 × 2576 × 820 mm for in-flight stability
- Lightweight 14 kg frame construction with folded size of 960 × 750 × 820 mm for easy transport
- Flight performance up to 20 m altitude, 5000 m radius and speeds between 1–12 m/s
- Adjustable flow rate of 12–24 L/min for customized spraying needs
- Compatible with a 14S 30000 mAh battery (not included) for long mission times
- Genuine SKYRATH TF30 frame with fast shipping across India from Zbotic
Applications and Use Cases
- Pesticide and herbicide spraying over expansive crop fields
- Fertilizer distribution in orchards, vineyards and vegetable plots
- Irrigation of greenhouse seedlings and nursery beds
- Aerial application in terrain inaccessible to ground vehicles
- Post-harvest pest control to protect stored produce
How to Use SKYRATH TF30 4 Axis Agricultural Drone Frame With 30 L Tank
Begin by unfolding the TF30 frame and securing the arms in place, then mount the 30 L tank and connect the spray lines to the outlet ports. Install motors, propellers, flight controller and the recommended 14S 30000 mAh battery. Calibrate the flow rate between 12–24 L/min, perform a pre-flight system check, load your spraying solution, and you’re ready to execute stable, low-altitude agricultural flights.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery does the TF30 frame support?
The TF30 frame is designed for a 14S 30000 mAh lithium-ion battery (not included), ensuring sufficient power for extended spraying missions.
Is the TF30 frame foldable for transport?

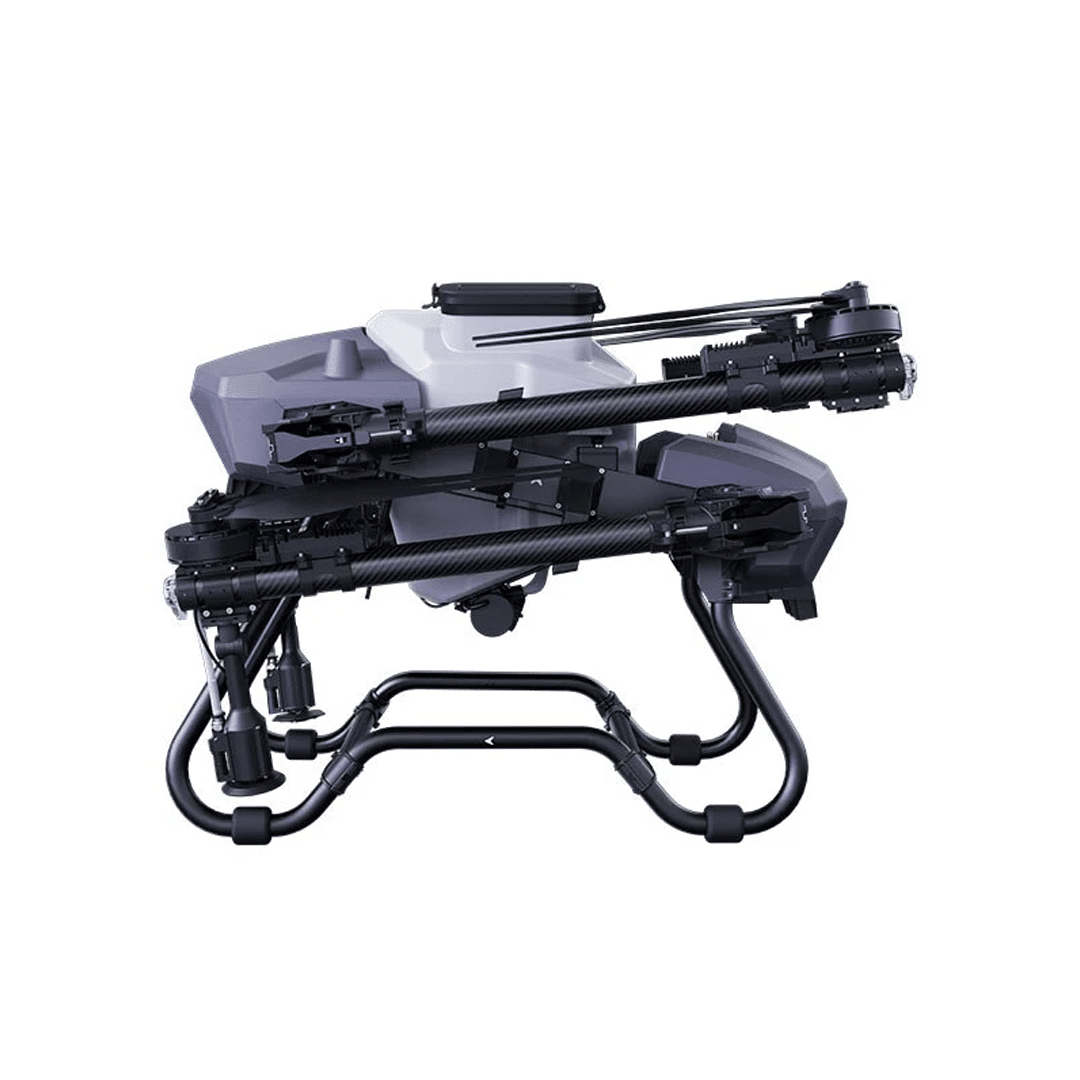

Yes. The frame folds down to 960 × 750 × 820 mm for compact storage and transport, then expands to 2432 × 2576 × 820 mm for operation.
How much area can the 30 L tank cover in one flight?
With a flow rate of 12–24 L/min and optimal flight speed, the 30 L tank can cover several hectares per flight, depending on application rate and field conditions.
