SKYRATH FPV – 10-Inch Flying Drone
Description:
The 10-Inch Flying Drone is a high-performance FPV drone designed for both recreational and professional aerial applications. Built on a durable and lightweight frame, it features powerful EM3115 900KV motors paired with 10X5X3 inch propellers, delivering exceptional thrust and stability during flight. Equipped with an F405 flight controller, 80A ESCs, and a 2.5W VTX system, it ensures smooth control and reliable video transmission, even in challenging environments. The onboard Caddx Ratel 2 FPV camera offers clear, wide-angle visuals, while the ELRS 915 MHz receiver and GEPRC M10 GPS module provide precise navigation and long-range control. Designed to carry payloads up to 4KG, the drone supports a flight time of up to 20 minutes without payload and around 7 minutes when fully loaded. Operating effectively at altitudes up to 5000 meters and in temperatures ranging from –10°C to 40°C, the drone is a versatile and robust choice for enthusiasts and professionals seeking a powerful, responsive, and customizable flying platform.
Features:
- New Frame design ensures reliable strength and makes flight more stable
- Efficient 3115 motor, takeoff load weight of about 3kg, Max 4KG
- The first visual flight experience, precision flight
- Nose rectification design to increase flight efficiency
- Larger battery compartment, convenient to put larger batteries
- Maximum flight altitude of 5000 meters
- Maximum flight speed 140 km/h
- Maximum payload flight time about 7 minutes
- Maximum flight time without payload about 20 minutes
Specifications:
- FRAME: LY10-A Frames
- Wheelbase: 435mm
- Flight Controller: F405 FC ESC: 80A ESC VTX: RAD 2.5W
- Antenna: MOMODA 5.8G

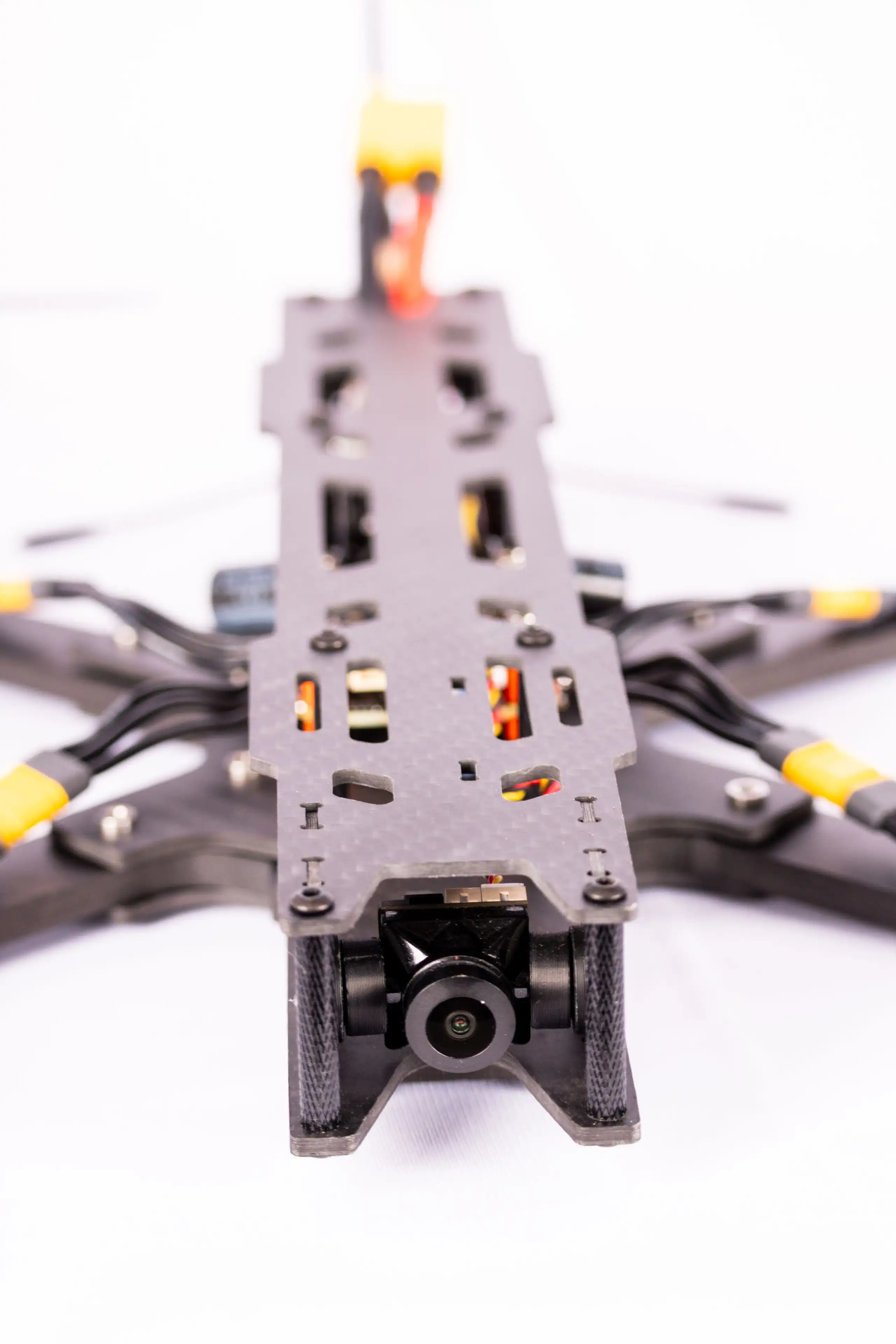

- Camera: Caddx Ratel 2 (Movable Angle camera)

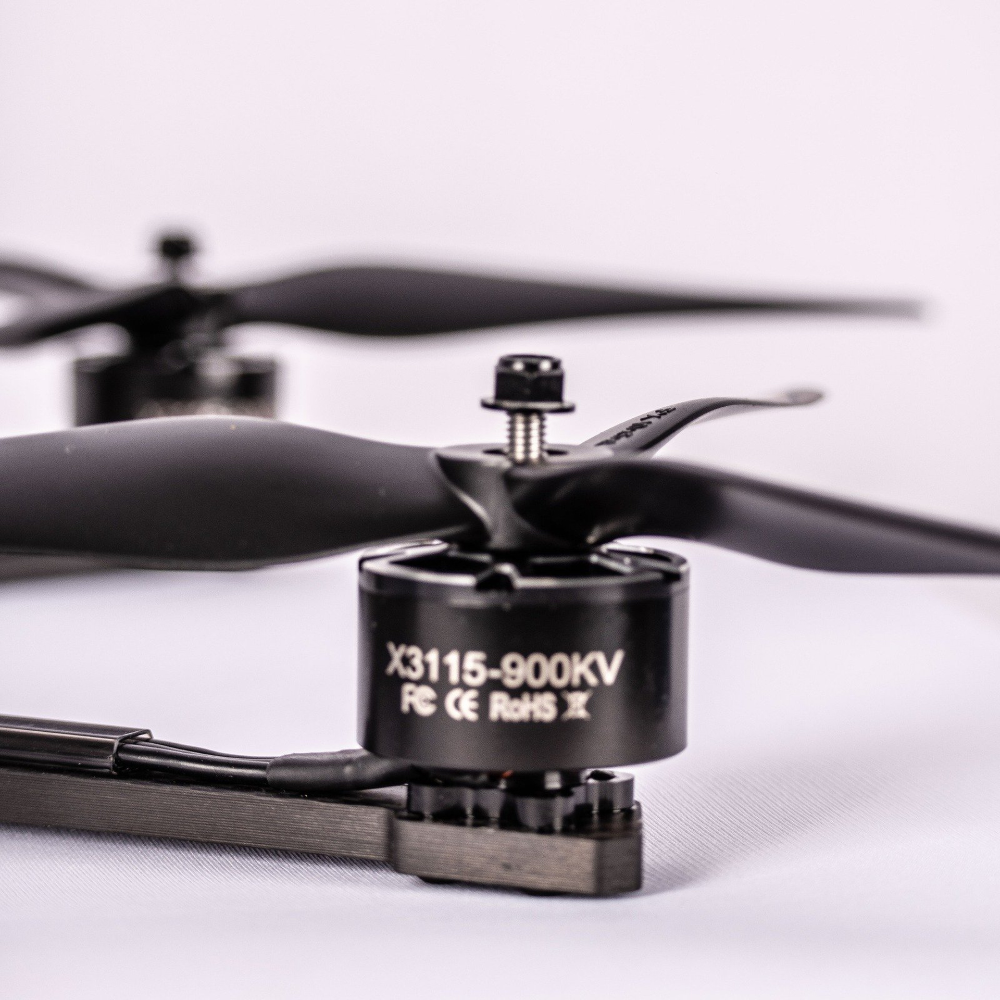

- Motors: EM3115 900KV
- Props: HQ1050
- Receiver: Elrs915
- GPS: M10
- Temperature: -10°C – 40°C
- Recommended batteries: Lipo 6S 5600mAh XT90
Package Includes:
- 1 × Drone Frame
- 2 × 10-Inch CW Propellers
- 2 × 10-Inch CCW Propellers
- 2 × CW Motors with Arms
- 2 × CCW Motors with Arms
- 1 × VTX Antenna
- 1 × Velcro Strip
- 1 × 3 mm Stick Pad
SKYRATH FPV – 10-Inch Flying Drone Overview
The SKYRATH FPV – 10-Inch Flying Drone is a high-performance quadcopter built for long-range flights and professional aerial cinematography. Featuring a robust yet lightweight 10-inch frame, it delivers stable, wind-resistant flight and live FPV transmission for precise piloting in challenging environments.
Key Features of SKYRATH FPV – 10-Inch Flying Drone
- Durable 10-Inch Frame: Lightweight carbon construction designed to withstand strong winds and rugged use.
- Powerful Propulsion: Four EM3115 900KV motors paired with 10×5×3″ propellers for exceptional thrust and stability.
- Advanced Flight Electronics: F405 flight controller with 80A ESCs ensures smooth control and fast response.
- FPV Video System: 2.5W VTX paired with Caddx Ratel 2 wide-angle camera for clear, low-latency live feed.
- Long-Range Navigation: ELRS 915 MHz receiver and GEPRC M10 GPS module for precise positioning and control over several kilometers.
- Heavy-Lift Capability: Supports up to 4 kg payload and delivers up to 20 minutes flight time; genuine product with fast shipping from Zbotic.
Applications and Use Cases
- Aerial cinematography for documentaries, weddings, and commercials.
- Long-range scouting and landscape photography in remote locations.
- Surveying and mapping of agricultural fields or infrastructure.
- FPV training sessions and freestyle flying for hobbyists and pros.
- Wildlife monitoring and environmental research missions.
How to Use SKYRATH FPV – 10-Inch Flying Drone
Begin by mounting the 10″ propellers and securing the ELRS 915 MHz receiver antenna. Charge the LiPo battery, plug into the power distribution board, then bind your RC transmitter to the flight controller. Calibrate the ESCs and GPS module through Betaflight or your chosen GUI, select your preferred flight modes, and conduct a motor spin test before takeoff. Always perform a preflight check on wind conditions and payload balance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltage does the drone support?
The SKYRATH FPV – 10-Inch Flying Drone is optimized for 4S or 6S LiPo batteries between 14.8 V and 22.2 V, delivering up to 20 minutes of flight time on a 6S 5000 mAh pack.
How far can I reliably control and view video?
With the ELRS 915 MHz receiver and 2.5 W VTX, you can expect reliable control and live video feed for distances up to 3–5 km in open line-of-sight conditions, depending on antenna setup.
Can I mount a DSLR or additional sensors?
Yes. The frame’s 4 kg payload capacity allows mounting lightweight DSLR cameras on a small gimbal or attaching custom sensors. Ensure proper balance and re-calibrate the flight controller after installation.
