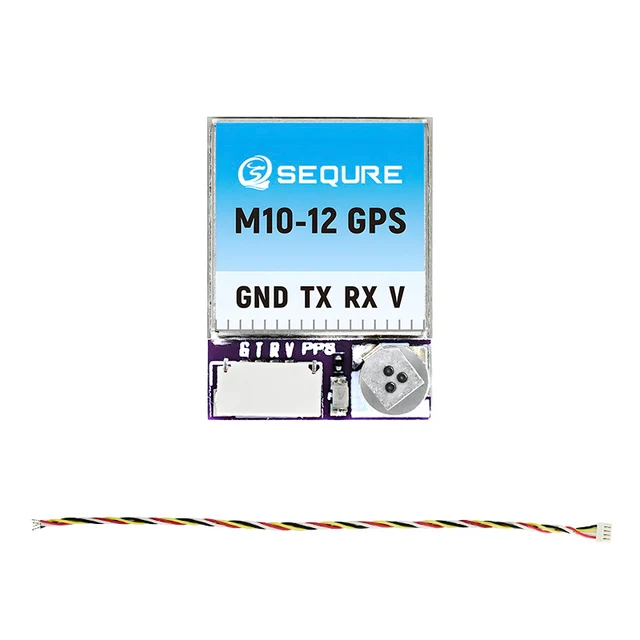

SEQURE M10-12 GPS Module
Description:
(1) Adopts 10th generation chip to design the u-blox output protocol and 10Hz output frequency, lower power consumption, and fast positioning.
(2) High-quality ceramic antenna with strong performance and effective reception of satellite signals.
(3) M10-25Q integrates QMC5883L compass for a wider range of applications
(4) Miniaturized and multi-specification design, easy to install, suitable for the installation of drones of various sizes on the market.

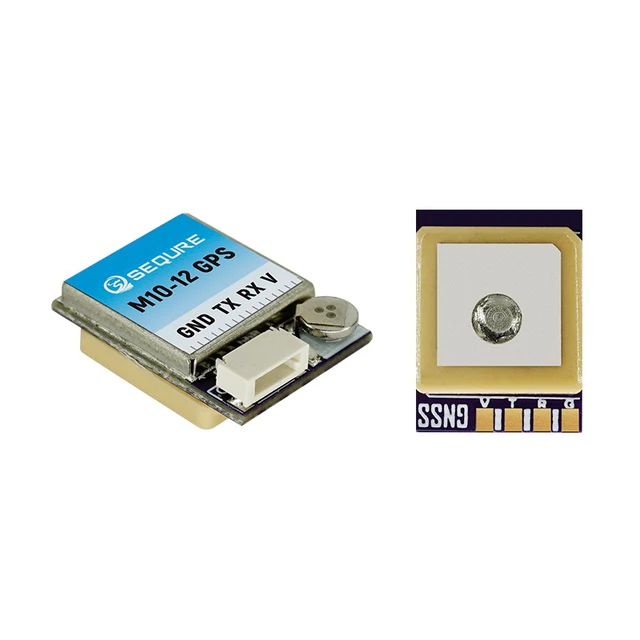

(5) Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.
Specification:
| Specification | Details |
|---|---|
| Model | M10-12 GPS |
| Chip | M10 |
| Frequency | GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
| Power Supply | 5V |
| Size | 12 × 16 × 4.5 mm |

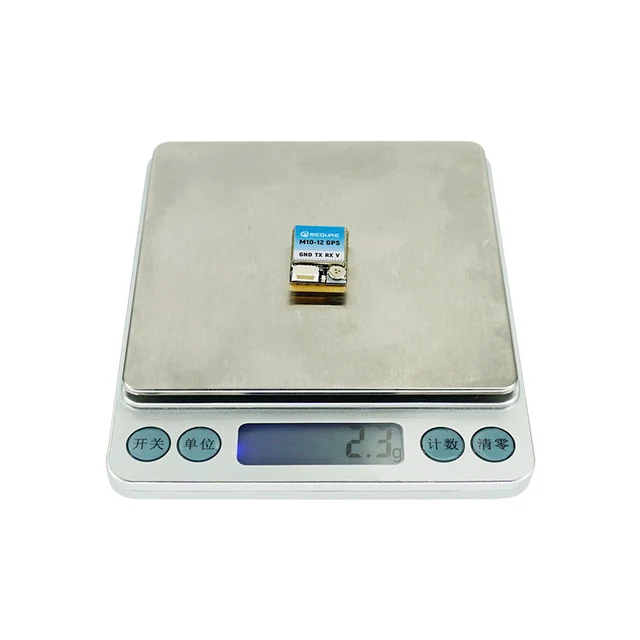

| Weight | 2.3 g |
| Interface | SH0.8-4P connector, PCB pad |
| Antenna | Ceramic Antenna |
| Receiving Channels | 72 search channels |
| Baud Rate | 115200 |
| Output Protocol | UBLOX |
| Compass | Not Available |
| Output Frequency | 1–10 Hz, default 10 Hz |
| Speed Accuracy | 0.05 m/s |
| Horizontal Positioning Accuracy | 2D ACC 1.5 m (open-air) |
| Receive Sensitivity | Tracking: −162 dBm; Capture: −160 dBm |
Package Included:
1x GPS
1x Cable
Drone Maintenance Checklist: Pre and Post Flight
Table of Contents Understanding Drone Maintenance Checklist Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Complete FPV Drone Build Under ₹5,000: Budget Build Guide India
Budget FPV drone India builds have become surprisingly achievable thanks to the availability of affordable components from Chinese...
Read More →
Drone Obstacle Avoidance: Sensors, Systems & Best Builds in India
Drone Obstacle Avoidance: Sensors, Systems & Best Builds in India Obstacle avoidance is one of the most sought-after...
Read More →Technical Specifications
| Brand | SEQURE |
|---|---|
| SKU | AI4961 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SEQURE M10-12 GPS Module is a versatile gps modules used across a wide range of applications including drone navigation, asset tracking, fleet management, precision agriculture, and hiking/outdoor gadgets.
Common use cases:
- Adding GPS waypoint navigation to a drone
- Building a vehicle tracker
- Precision positioning for surveying
This product is ideal for drone builders, fleet managers, and outdoor electronics developers.
Technical Tip: Multi-constellation receivers (GPS + GLONASS + BeiDou) provide faster and more accurate fixes. RTK modules offer centimeter-level precision.
