This is the Black variant of the S550 Hexa-copter Frame in Drone Frame and Accessories. Available at ₹6,108.90 (₹5,818.00 + GST) with free shipping across India.
This is Hexacopter frame which employs 6 arms to get into the air. There are several advantages of a hexacopter frame over a quadcopter one, justifying the extra price tag.
For 6 arms, of course, there are more motors with a hexacopter meaning more power, meaning bigger batteries This increase in batteries leads to an increase in flight time, which is also nice. Due to these extra motor a hexacopter is also more stable than your quadcopter equivalent.
Another great advantage of using hexacopters is if for any reason your quadcopter loses a motor, it goes down but with a hexacopter on the other hand, in the majority of cases you will be able to land safely with one or maybe even two motors down; an extra inbuilt guarantee on your beloved copter.
The S500 has strong, light, and have a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESCs to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribuition Board) and makes the mounting clean and neat. The S550 hexacopter frame is a highly flexible frame during the mounting of various components like flight controller,battery etc.

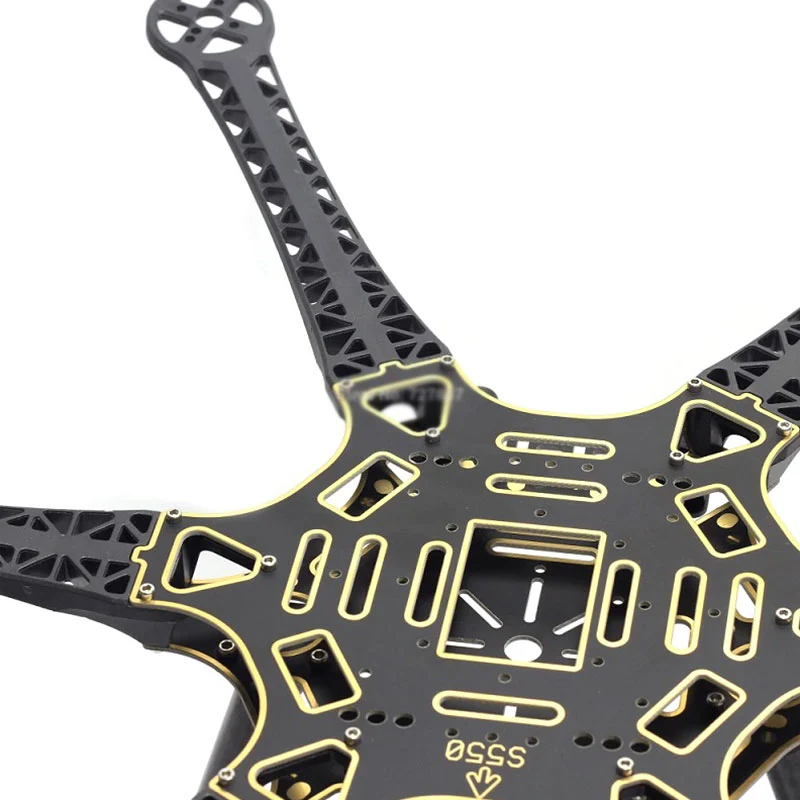

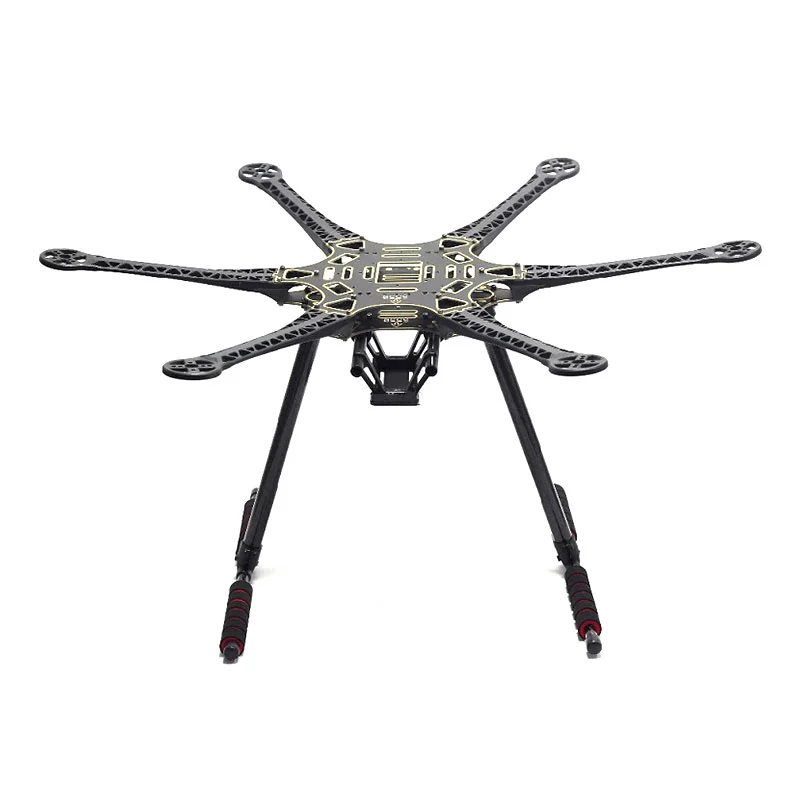

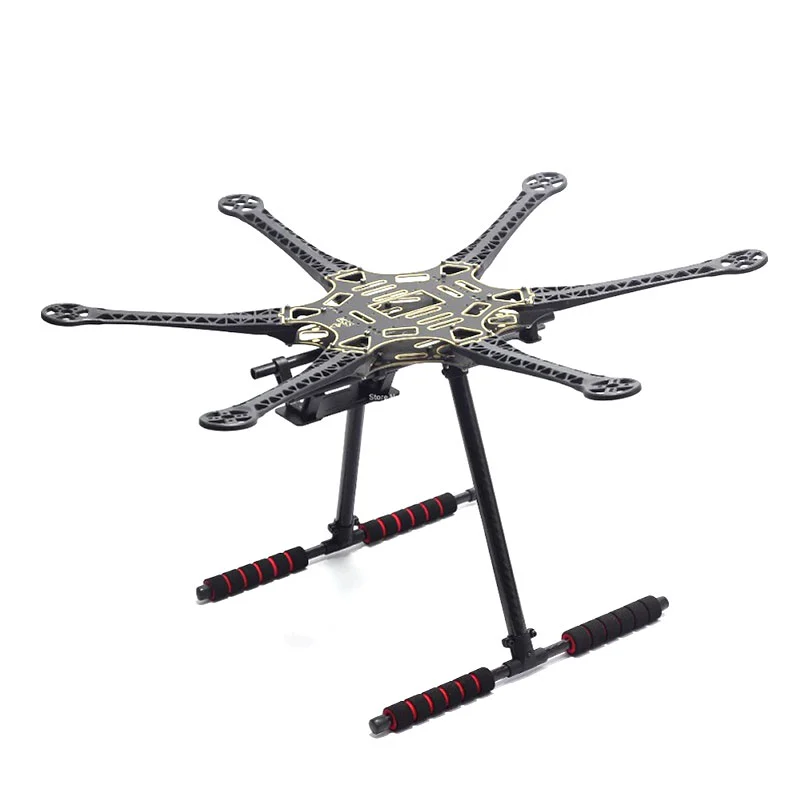

The S550 hexacopter frame kit is an excellent strong lightweight Hexacopter frame with carbon fiber landing gear and a bonus built-in the printed circuit board (PCB) for neat and easy wiring. It comes with integrated PCB for neat and easy wiring. The added lift capacity of a hex configuration makes this frame for carrying larger payloads such as camera systems and other electronic components. This makes for an exceptional camera rig or simply a very agile and powerful multi-rotor frame for aerobatics.
It comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the armsto the mainframe is done within few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient.
The assembly of this frame is super simple with pre-threaded sleeves for all the frame bolts so no lock-nuts are required. The motor mounts are ready to take a selection of motors with mounting hole centers of 16, 19 and 25 mm once again making this a very universal frame at a very affordable price.
Features:
-
Made by advanced engineering material, super strong & smooth
- Easy to assemble and disassemble.
- The frame is tough and durable.
- The main glass fiber frame has good strength.
- The arm equips support ridges for better and faster forward flight.
- Features pre-threaded brass sleeves.
- Large mounting tabs for camera mounting.
- PCB for easy and neat wiring
- Easy assembly
Specification :
| Model | S500 |
|---|---|
| Board | PCB version |
| Color | Black |
| Wheelbase (mm) | 550mm |
| Arm Size (mm) | 235×42 |
| Motor Mount Bolt Holes | 16, 19, and 25mm |
| Landing Gear | Carbon Fiber |
| Landing Gear Height (mm) | ~250 |
| Landing Gear Color | Black |
| Landing Gear Weight (gm) | 100 (both) |
| Total Weight (g) | 760 |
| Shipping Weight | 1.1 kg |
| Shipping Dimensions | 29 × 24 × 7 cm |
Package Includes:
1 x S550 quadcopter Frame(Top and Bottom) with PCB soldered centerboard
6 x S550 arms
Landing gear setup & Accessories set (as shown in the image)
Best Budget FPV Goggles in India: Skyzone vs BetaFPV vs Eachine (2025 Buying Guide)
If you are stepping into the world of FPV (First Person View) drone flying, one of the most...
Read More →
DGCA Drone Rules India 2026: Registration & License Guide
Table of ContentsOverview of India's Drone Regulatory FrameworkDrone Categories by WeightHow to Register Your Drone on DigiSkyRemote Pilot...
Read More →
Best FPV Goggles in India 2026: Budget to Pro Picks
Table of ContentsWhy FPV Goggles Are the Most Important Part of Your SetupAnalog vs Digital FPV: Which Should...
Read More →Technical Specifications
| Model | S550 |
|---|---|
| SKU | AI4432 |
| Weight | 0.8 kg |
| Availability | In Stock |
Applications & Use Cases
The S550 Hexa-copter Frame is a versatile drone frame and accessories used across a wide range of applications including FPV racing builds, freestyle drones, cinematic drones, and agricultural spraying platforms.
Common use cases:
- Building a new racing quad
- Replacing a broken frame arm after a crash
- Mounting a camera gimbal on a custom platform
This product is ideal for FPV builders, drone racing enthusiasts, and commercial drone operators.
Technical Tip: Carbon fiber frames offer the best strength-to-weight ratio. Ensure motor-to-motor distance matches your propeller size.
