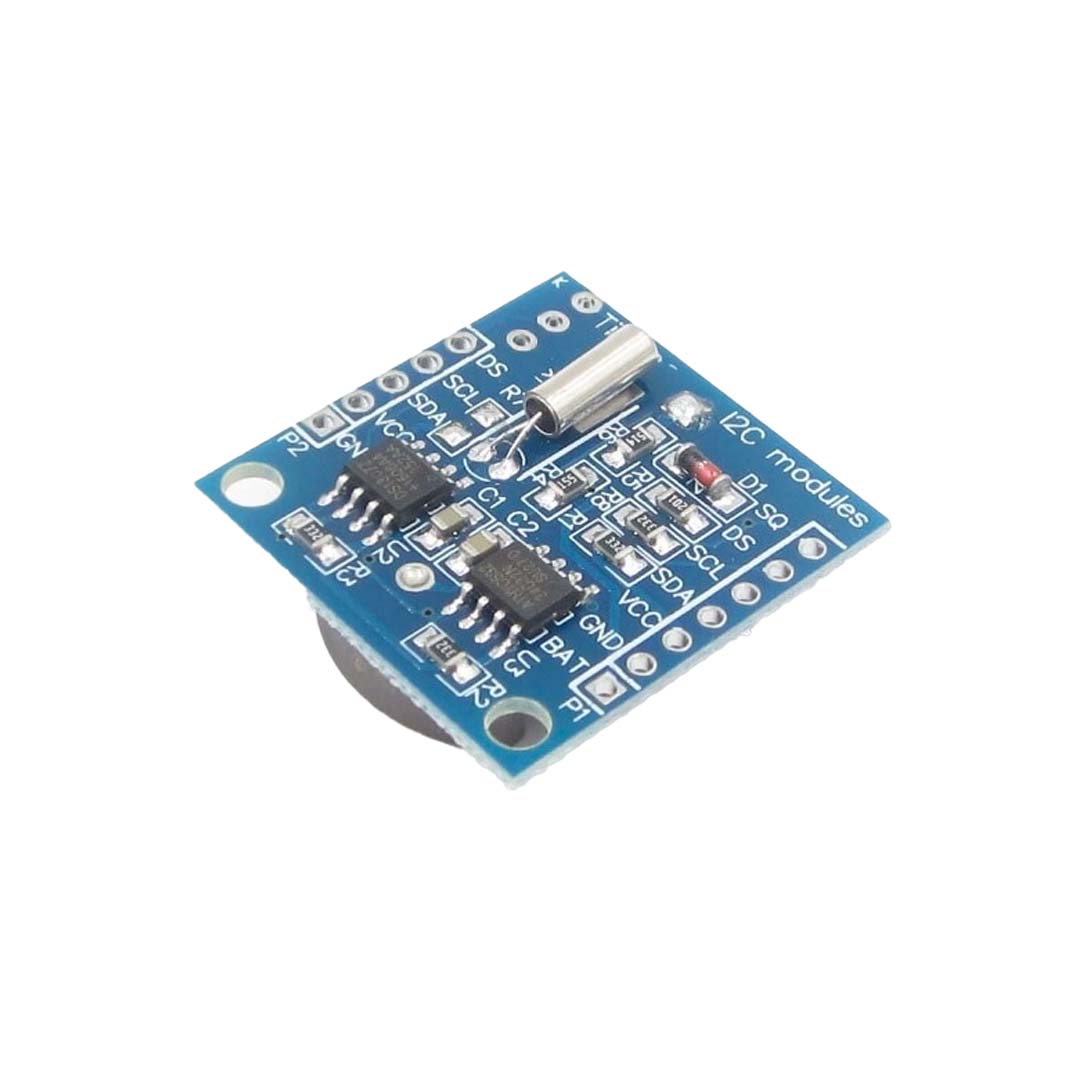

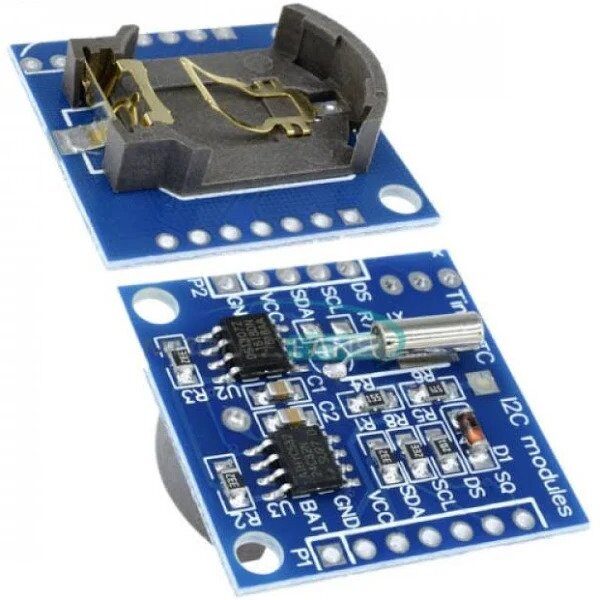

DS1307 RTC I2C Module AT24C32 without Battery
Introducing the DS1307 RTC I2C Module AT24C32, a reliable solution for accurate timekeeping and calendar functions. Designed for precision and durability, this module features the renowned DS1307 real-time clock (RTC) IC, ensuring excellent performance across a wide range of applications.
Key Features:
- Accurate Timekeeping: The DS1307 RTC IC ensures precise tracking of seconds, minutes, hours, day, date, month, and year, with leap-year compensation valid up to 2100.
- Battery Backup: Equipped with a battery input for standard 3V lithium cells or other energy sources, ensuring uninterrupted operation even during power outages. The module includes a long-lasting LIR2032 battery for reliable backup.
- Low Power Consumption: Consumes less than 500nA in battery backup mode while the oscillator is running, ensuring efficient power management and extended battery life.
- Versatile Interface: Features a two-wire I2C interface for seamless communication and integration with other devices and systems.
- Compact and Durable: Available in 8-pin DIP or SOIC package options, providing flexibility for various installation requirements. The module is also UL recognized for added safety and reliability.
- Data Storage: Includes 56 bytes of non-volatile RAM for storing essential data, ensuring data integrity even during power loss.
- 1Hz Output Pin: Offers a 1Hz output pin for additional functionality and synchronization purposes.
Specifications:
| Specification | Details |
|---|---|
| RTC IC | DS1307 |
| Interface | I2C (Two-wire) |
| Battery | Included LIR2032 battery |
| Operating Voltage | Standard 3V lithium cell (2V to 3.5V) |
| Memory | 56 bytes non-volatile RAM |
| Output Pin | 1Hz square wave |
| Accuracy | Hour: Minutes: Seconds AM/PM, Day Month, Date – Year |
| Power Consumption | < 500nA in battery backup mode with oscillator running |
| Package Options | 8-pin DIP or SOIC |
Applications:
- Embedded Systems
- Computer Motherboards
- Timing Applications
- Data Logging
- Industrial Automation
The DS1307 RTC I2C Module AT24C32 comes fully assembled and pre-programmed with the current time, ensuring quick and hassle-free setup. Upgrade your timekeeping solution with this reliable and feature-packed RTC module. Order yours today!
Package IncludesÂ
- 1 x RTC DS1307 24C32 Real-Time Clock Module
