Looking for Rc522 Module? RC522 RFID Card Reader Module 13.56MHz is available at Zbotic with fast shipping across India.

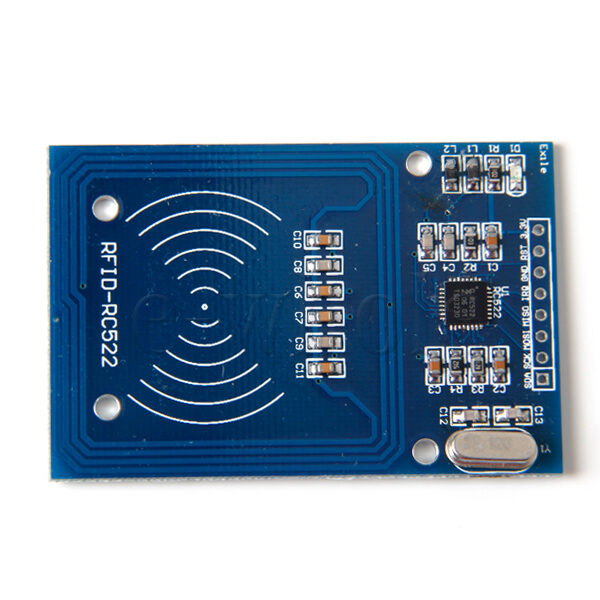

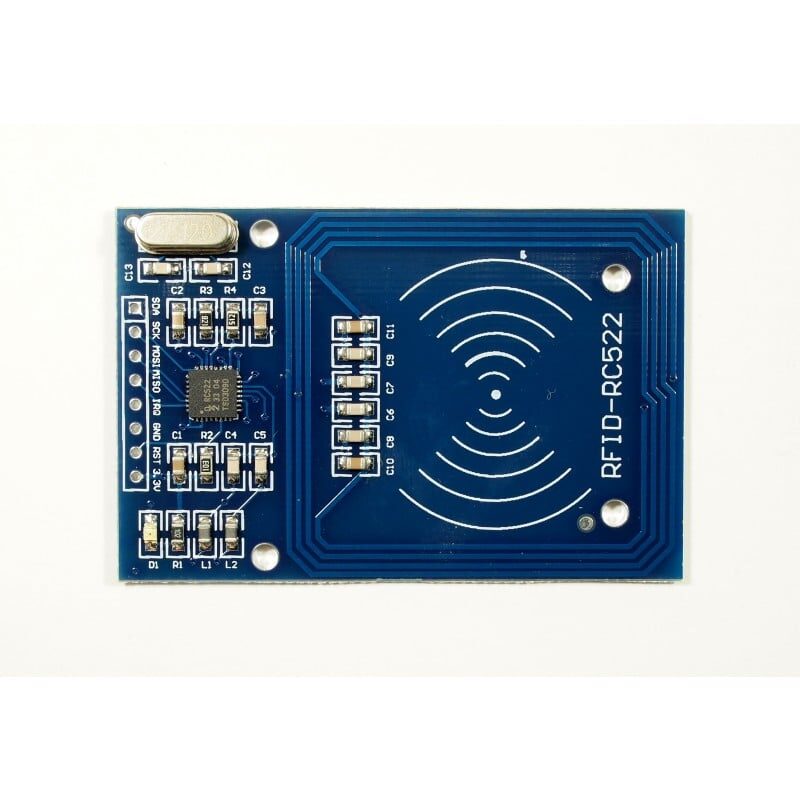

This RC522 RFID Card Reader Module 13.56MHz is a low-cost MFRC522 based RFID Reader Module is easy to use and can be used in a wide range of applications.
The MFRC522 is a highly integrated reader/writer IC for contactless communication at 13.56 MHz.
RC522 is the highly integrated RFID card reader which works on non-contact 13.56mhz communication, is designed by NXP as low power consumption, low cost and compact size read and write chip, is the best choice in the development of smart meters and portable hand-held devices.
MF RC522 use the advanced modulation system, fully integrated at 13.56MHz with all kinds of positive non-contact communication protocols. Support 14443A compatible answer signal. DSP deal with ISO14443A frames and error correction. Furthermore, it also supports rapid CRYPTO1 encryption to validate Mifare series products. MFRC522 support Mifare series higher speed non-contact communication, duplex communication speed up to 424 kb/s. As a new family member in 13.56MHz RFID family, MF RC522 has many similarities to MF RC5200 and MF RC530 and also has more new features.
This module can fit directly in handheld devices for mass production. The module uses the 3.3V power supply and can communicate directly with any CPU board by connecting through SPI protocol, which ensures reliable work, high reading distance.
Features :
- Integrated MF RC522
- 13.56MHz contactless communication card chip.
- The low-voltage, low-cost, small size of the non-contact card chip to read and write.
- Suitable for Smart meters and portable handheld devices.
- Advanced modulation and demodulation concept completely integrated into all types of 13.56MHz passive contactless communication methods and protocols.
- 14443A compatible transponder signals.
- ISO14443A frames and error detection.
- Supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.
- MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
- Low cost, and ideal for user equipment development.
- The reader and RF card terminal design meet advanced applications development and production needs.
- Can be directly loaded into the various reader molds, very convenient.
Package Includes :
1 x RC522 RFID Card Reader Module 13.56MHz
Tutorial:
About Rc522 Module
RC522 RFID Card Reader Module 13.56MHz is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI2117
- Category: RFID card, Tags & Reader
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Rc522 Module and other products.
Applications
Rc522 Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Rc522 Module today and start building.
RC522 RFID Card Reader Module 13.56MHz Overview
The RC522 RFID Card Reader Module 13.56MHz is a compact, low-cost reader/writer based on the NXP MFRC522 IC for contactless communication at 13.56 MHz. It enables fast and reliable reading and writing of compatible ISO14443A tags and cards, making it ideal for embedded projects and smart devices.
Key Features of RC522 RFID Card Reader Module 13.56MHz
- Integrated MFRC522 IC supporting ISO14443A protocol at 13.56 MHz
- Low operating current of 13–26 mA at DC 3.3 V for energy-efficient operation
- Standby current 10–13 mA and sleep current <80 µA for minimal power drain
- Card reading distance up to 60 mm with MIFARE1 cards
- Compact PCB footprint for easy integration into handheld and desktop devices
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Access control systems for offices, labs and secure areas
- Attendance tracking in schools, workplaces and events
- Point-of-sale (POS) terminals and cashless payment solutions
- Library book management and lending kiosks
- Inventory and asset tracking in warehouses
- DIY Arduino, Raspberry Pi and microcontroller projects
How to Use RC522 RFID Card Reader Module 13.56MHz

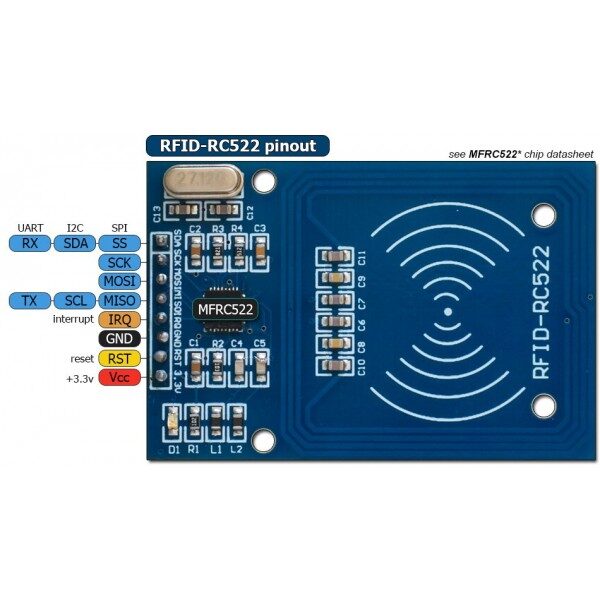

Connect the module’s VCC pin to a stable DC 3.3 V supply and GND to ground. Interface the RC522 via its SPI pins (SDA/SS, SCK, MOSI, MISO and optionally IRQ) to your microcontroller. Install an MFRC522 library for Arduino or your platform of choice, upload example code, and bring a compatible 13.56 MHz card close to the reader to begin detection and data exchange.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage does the RC522 module require?
The RC522 RFID Card Reader Module operates at DC 3.3 V. Supplying higher voltage can damage the MFRC522 IC, so ensure you use a regulated 3.3 V source.
Which communication interface does the RC522 use?
This module communicates with host devices via the SPI interface. It exposes SDA (SS), SCK, MOSI and MISO pins for seamless integration with microcontrollers like Arduino and Raspberry Pi.
Which RFID cards are compatible with this reader?
The RC522 supports ISO14443A standard tags and cards, including MIFARE Classic (MIFARE1) series. It reliably reads cards within a 0–60 mm range depending on antenna alignment.
Technical Specifications
| Model | RC522 |
|---|---|
| Frequency | 13.56MHz |
| SKU | AI2117 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The RC522 RFID Card Reader Module 13.56MHz is a versatile rfid card, tags & reader used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
