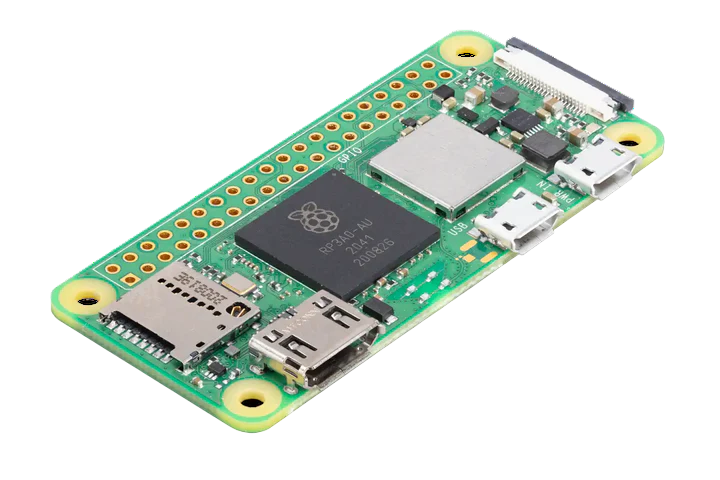

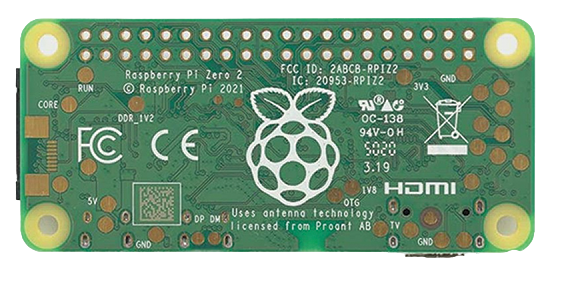

Raspberry Pi Zero 2W
the Raspberry Pi Zero 2 W, the newest member of Raspberry Pi’s affordable range of single-board computers. This amazing device is the successor of the popular Raspberry Pi Zero W, and it has the same form factor, making it easy to replace the original board.
The main attraction of the Raspberry Pi Zero 2 W is its powerful performance. It has a quad-core 64-bit Arm Cortex-A53 CPU, with a clock speed of 1GHz. It uses the Raspberry Pi RP3A0 system-in-package (SiP), which contains a Broadcom BCM2710A1 die and 512MB of LPDDR2 SDRAM. This upgraded processor means a 40% increase in single-threaded performance and a stunning five times improvement in multi-threaded performance compared to the original single-core Raspberry Pi Zero.
Furthermore, the Raspberry Pi Zero 2 W has excellent connectivity options, such as 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2 support. It also has Bluetooth Low Energy (BLE) capability and modular compliance certification, which enable smooth communication with other devices.
As for features, the board has a microSD card slot, a CSI-2 camera connector, and a USB On-The-Go (OTG) port, which add to its versatility and usability. It also has an empty space for a HAT-compatible 40-pin GPIO header. The device can be powered easily via a micro-USB socket. For video output, users can use the mini-HDMI port, or access composite video output through test points if needed. Another great feature is that the Raspberry Pi Zero 2 W fits in most existing Raspberry Pi Zero cases, thanks to its identical form factor.
To sum up, the Raspberry Pi Zero 2 W is an impressive device that offers enhanced performance, robust connectivity, and compatibility in a small and affordable package.
Features and Specification:
– Form factor: 65mm × 30mm
– Processor: Broadcom BCM2710A1, a quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
– Memory: 512MB LPDDR2
Connectivity:
– 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE, with an onboard antenna
– A USB 2.0 interface with OTG

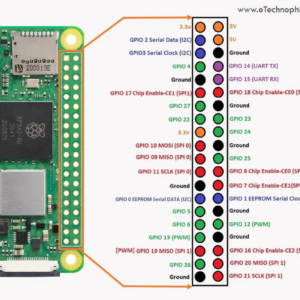

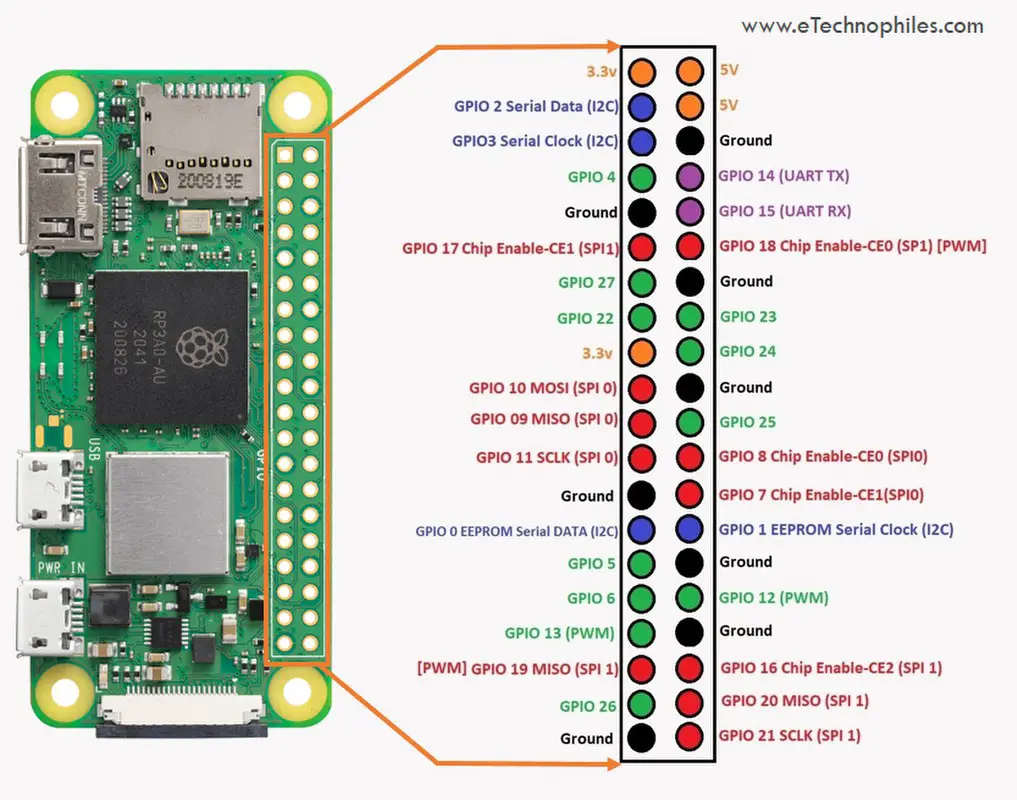

– A HAT-compatible 40-pin I/O header footprint
– A microSD card slot
– A mini HDMI port
– A CSI-2 camera connector
– Video: HDMI and composite video interfaces
Multimedia:
– H.264 and MPEG-4 decoding (1080p30)
– H.264 encoding (1080p30)
– OpenGL ES 1.1 and 2.0 graphics
– Input power: 5V DC 2.5A
– Operating temperature: -20°C to +70°C
– Product dimensions: 65.0mm x 30.0mm x 5.3mm / 2.6″ x 1.2″ x 0.2″
– Product weight: 10.0g / 0.4oz
Datasheet:
Package Include:
1 x Raspberry Pi Zero 2W
Raspberry Pi Zero 2W Overview
The Raspberry Pi Zero 2W is a compact single-board computer measuring just 65mm × 30mm, designed for embedded projects, education and lightweight desktop tasks. Equipped with a quad-core 1GHz Arm Cortex-A53 CPU and 512MB LPDDR2 memory, it delivers a significant performance boost over its predecessor while maintaining the same form factor.
Key Features of Raspberry Pi Zero 2W
- Broadcom BCM2710A1 quad-core 64-bit SoC @ 1GHz for enhanced single- and multi-threaded performance
- 512MB LPDDR2 SDRAM to run lightweight applications, scripts and services
- 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2 and BLE with onboard antenna
- Mini HDMI port, micro USB OTG port and CSI-2 camera connector for video and camera projects
- HAT-compatible 40-pin I/O header footprint and microSD card slot for expandability
- Genuine product guaranteed and fast shipping from Zbotic with tracking
Applications and Use Cases
- DIY home automation hub with wireless sensors and Bluetooth peripherals
- Portable media player or retro gaming console using mini HDMI output
- Compact CCTV or time-lapse camera with the CSI-2 camera connector
- Educational coding platform for Python, Scratch or GPIO experiments
- Robotics controller for small drones, rovers and motorized projects
How to Use Raspberry Pi Zero 2W
To get started, insert a microSD card pre-loaded with Raspberry Pi OS, connect a 5V DC 2.5A power supply via the micro USB port, and attach peripherals—display via mini HDMI, keyboard via USB OTG adapter and optional HATs on the 40-pin header. Power on the board, complete the initial software setup, and begin deploying projects or running lightweight desktop tasks.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I run Raspberry Pi OS on the Zero 2W?
Yes, Raspberry Pi OS is fully compatible with the Raspberry Pi Zero 2W. Simply flash the latest image to a microSD card and follow the on-screen setup after booting.
What power supply do I need?
The Zero 2W requires a 5V DC, 2.5A micro USB supply to ensure stable operation, especially when using USB peripherals or HAT add-ons.
How do I attach a camera module?
Connect any official Raspberry Pi camera via the CSI-2 ribbon cable into the dedicated camera connector, enable the camera interface in raspi-config, and restart to start capturing images or video.
Technical Specifications
| Brand | Raspberry Pi |
|---|---|
| Power Rating | 2W |
| SKU | AI5307 |
| Weight | 0.01625 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Raspberry Pi Zero 2W is a versatile official boards and hats used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
