Looking for Radiomaster Nomad Dual Module? Radiomaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module is available at Zbotic with fast shipping across India.
Radiomaster Nomad Dual Module – Description:
Radiomaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module redefines long-range control with dual 1-watt Semtech LR1121 transceivers operating across 2.4GHz and 868/900MHz frequencies using Gemini Xrossband technology. This advanced module delivers unmatched reliability, enhanced packet rates, and robust interference rejection, ideal for FPV pilots in demanding environments. With built-in cooling, RGB lighting, dual-band compatibility, and micro/nano adapter support, the Nomad is ready for the future of ExpressLRS performance and innovation.
Features:
- Gemini Xrossband: Sends simultaneous packets on 2.4GHz & 900MHz
- Compatible with all ELRS receivers (single & dual-band)
- Twin Semtech LR1121 1W transceivers
- Supports new packet rates up to 500Hz (1000Hz coming)
- Built-in XT30 power port (6V–16.8V input)
- ESP32 + ESP32c3 MCU architecture
- RGB light strip for status indication
- WiFi and Bluetooth functionality
- Enhanced cooling for high performance
Specifications:
| Item Type: | Dual-Band ExpressLRS Transmitter Module |
|---|---|
| No. of Channels: | 16 |
| Modulation Type: | FSK , FLRC, LoRa, K-Mode |
| Color: | Black with RGB Light Strip |
| Band-Range (GHz) | 2.400–2.479 GHz |
| Bandwidth (KHz) | Custom ExpressLRS bandwidth |
| Charging Port (Y/N) | N |
| Code Type | ExpressLRS Gemini Protocol |
| Operating Voltage (VDC): | 6 – 16.8 |
| RF Power | 2 × 1 Watt |
| Sensitivity (dBm): | -111 to -112 |

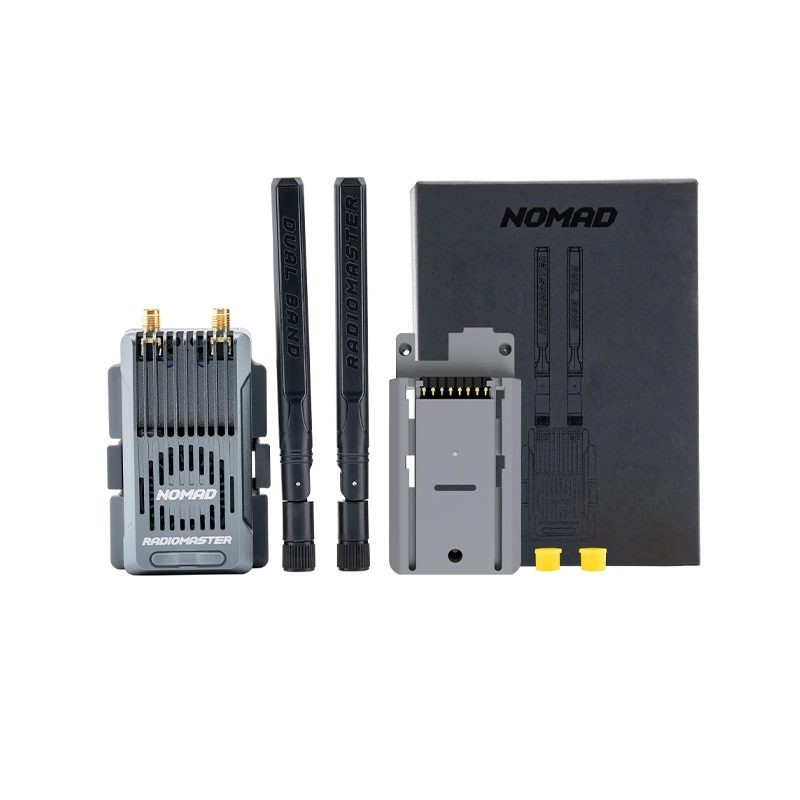

Package Includes:
- 1 x Nomad Dual Band Module with Micro Adapter
- 2 x Dual Band 2.4GHz / 900 MHz Antennas
- 1 x Nano Adapter
- 1 x Manual card
Radiomaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Overview
The Radiomaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module is a high-performance RF upgrade for compatible RC transmitters, offering simultaneous 2.4 GHz and 868/900 MHz operation. Designed for FPV pilots and RC enthusiasts, it delivers long-range telemetry and low-latency control on two bands at once.
Key Features of Radiomaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS
- Dual 1 W Semtech LR1121 transceivers across 2.4 GHz and 868/900 MHz for extended range and reliable penetration
- Gemini Xrossband technology for seamless cross-frequency packet switching without signal loss
- Micro & Nano module bay adapters included for compatibility with JR and ELRS transmitter bays
- Built-in advanced cooling system and programmable RGB lighting for thermal management and status indication
- WiFi and Bluetooth connectivity for over-the-air firmware updates and remote configuration
- Compatible with all ExpressLRS receivers, backed by fast shipping from Zbotic
Applications and Use Cases
- Long-range FPV drone flights where dual-band link stability is critical
- Fixed-wing models conducting beyond-visual-line-of-sight (BVLOS) missions
- Aerial mapping and surveying in challenging terrain with heavy RF interference
- Telemetry data logging for research and development projects
- Drone racing sessions demanding low latency and consistent packet rates
- Industrial inspection drones operating under dense foliage or urban canyons
How to Use Radiomaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS
Insert the Nomad Dual module into your transmitter using the correct micro or nano adapter, power on and access the ExpressLRS Lua script to bind to your receiver. Configure frequencies, packet rate and LED indicators via the built-in WiFi or Bluetooth interface, then begin flying with real-time telemetry and robust dual-band performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I bind the Nomad Dual module to my ExpressLRS receiver?
Install the module into your transmitter, power on, open the ExpressLRS Lua binding page on your radio, press the module’s bind button or activate bind over WiFi, then power up the receiver in bind mode to complete pairing.
What benefits does Gemini Xrossband technology offer?
Gemini Xrossband uses both 2.4 GHz for low-latency control and 868/900 MHz for superior range and penetration, automatically managing packet streams to maintain a continuous, interference-resistant link.
Can I update the firmware without connecting to a PC?
Yes, the Nomad Dual supports over-the-air updates via its built-in WiFi and Bluetooth, allowing you to flash the latest ExpressLRS firmware directly from your phone or tablet using the Configurator app.
