Looking for Er6gv Receiver? Radiomaster ER6GV 2.4GHz ELRS PWM Receiver is available at Zbotic with fast shipping across India.
Radiomaster ER6GV 2.4GHz ELRS PWM Receiver
Er6gv Receiver – Description:
The Radiomaster ER6GV 2.4GHz ELRS PWM Receiver are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.
The Radiomaster ER6GV 2.4GHz ELRS PWM Receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.
Features:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 6 PWM Channels

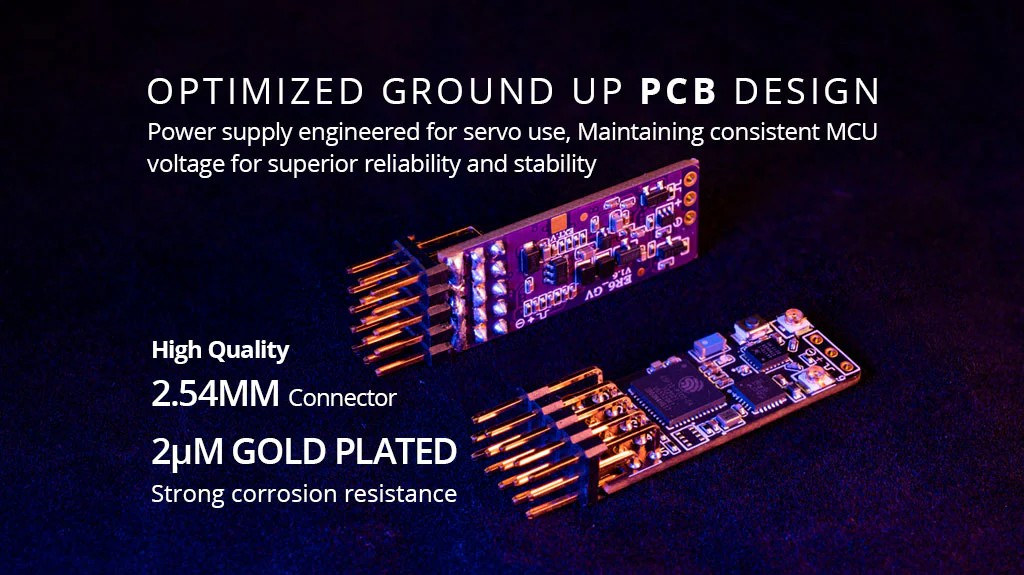

- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
- Supports Wi-Fi updates and WEBUI configuration

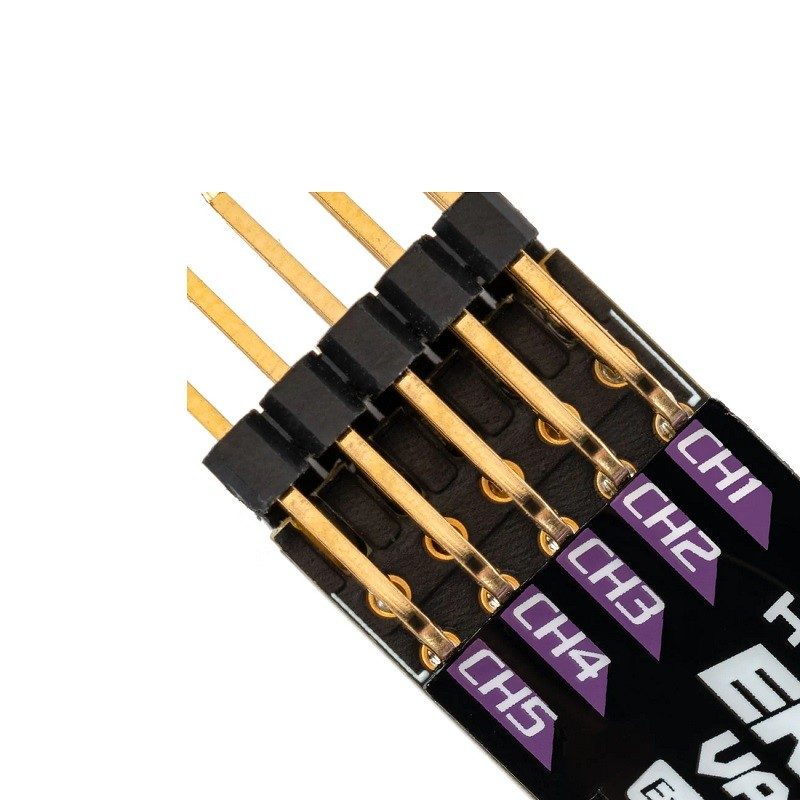

- High quality 2.54 mm connector

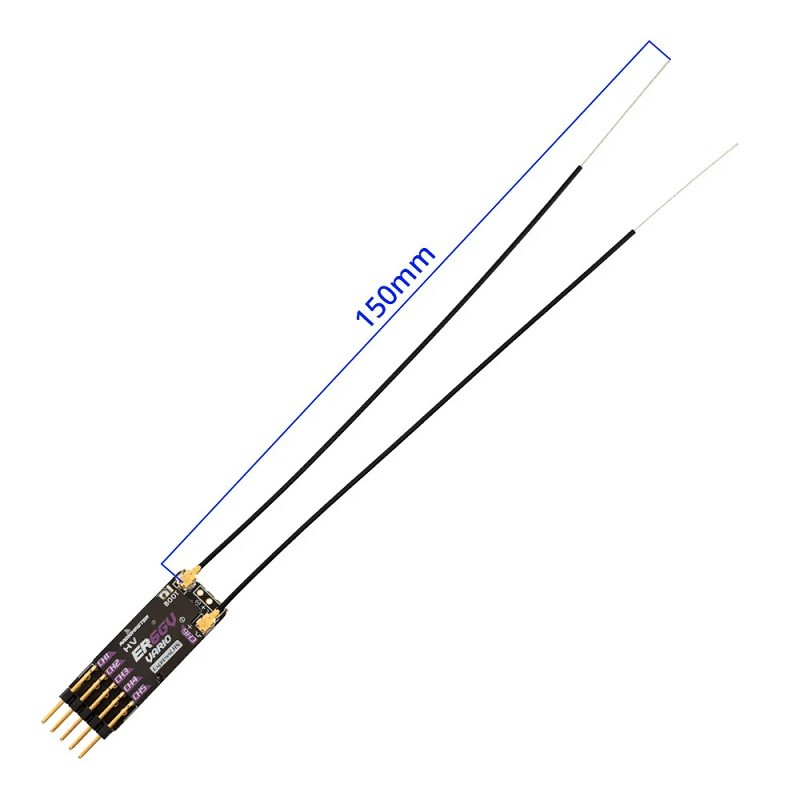

- Standard 15 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specifications:
| Item Type: | ELRS PWM Receiver |
|---|---|
| Power Supply | DC 3.5 – 8.4V |
| Antenna Type: | 15cm high sensitivity antenna |
| Output channel | 6CH PWM |
| Power Rating: | maximum 50mw (it’s a returm power) |
| Detection range | DC 3.0 – 26V |

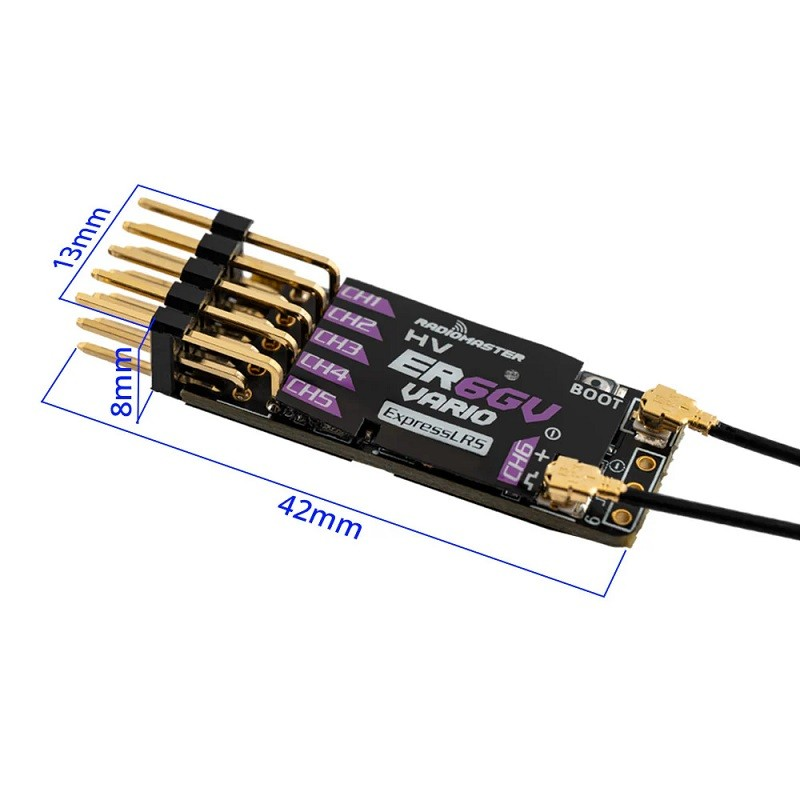

| Length (mm): | 42 |
| Width (mm): | 13 |
| Height (mm): | 08 |
Radiomaster ER6GV 2.4GHz ELRS PWM Receiver Overview
The Radiomaster ER6GV 2.4GHz ELRS PWM Receiver is a compact, slim-line receiver designed for fixed-wing aircraft and gliders. Based on the high-performance ExpressLRS system, it delivers ultra-long range, lightning-fast response, and built-in telemetry for a seamless flying experience.
Key Features of Radiomaster ER6GV 2.4GHz ELRS PWM Receiver
- ExpressLRS protocol for reliable 2.4 GHz control with minimal latency
- 6 PWM channels to drive servos directly via 2.54 mm connectors
- Integrated vario sensor plus voltage telemetry for both receiver and flight battery
- Onboard Wi-Fi and WEBUI interface for easy configuration and firmware updates
- Dual-antenna design with up to 50 mW telemetry power for extended range
- Includes 15 cm antenna; optimized for fixed-wing models and gliders
- Fast shipping across India from Zbotic
Applications and Use Cases
- Installing in RC gliders to monitor climb rate and battery health via vario and voltage telemetry
- Equipping sport or scale fixed-wing models requiring up to six servo channels
- Long-range FPV cross-country and thermal hunting flights with ExpressLRS reliability
- On-field receiver setup and tuning using the built-in Wi-Fi WEBUI interface
- Compact installations where slim profile is critical, such as electric gliders or sailplanes
How to Use Radiomaster ER6GV 2.4GHz ELRS PWM Receiver
Mount the ER6GV receiver in your aircraft, ensuring both antennas are oriented for optimal signal reception. Plug servos into the six 2.54 mm PWM ports, then bind to your ExpressLRS-capable transmitter following standard binding procedures. Power the unit, connect to its Wi-Fi network, open the WEBUI in your browser to configure RF settings, failsafe and telemetry. Finally, test servo movement and telemetry feedback on the ground before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many servos can the ER6GV receiver support?
The ER6GV features six PWM output ports, allowing you to connect and drive up to six standard servos directly.
Does the ER6GV provide voltage telemetry for both receiver and flight battery?
Yes, it includes built-in telemetry that automatically detects and reports both the receiver supply voltage and the main flight battery voltage over ExpressLRS.
How do I configure RF power and failsafe settings?
Simply connect to the ER6GV’s onboard Wi-Fi access point, open the WEBUI at 192.168.4.1 in your browser, and adjust RF output power, failsafe behavior, channel mapping, and other parameters in the intuitive interface.
Datasheet:
Package Includes:
- 1 x 1 ER6GV 2.4GHz ELRS PWM Receiver
- 1 x Voltage telemetry wire (Type-A)
- 2 x Heat-shrink tube
- 1 x User Card
OpenPilot vs ArduCopter: Legacy and Modern Flight Controller Stacks Compared
If you've been building drones for more than a few years, you've likely encountered both OpenPilot and ArduCopter....
Read More →
Drone Magnetometer Calibration: Fix Compass Errors Fast
Drone Magnetometer Calibration: Fix Compass Errors Fast Nothing is more frustrating than watching your drone drift sideways, spin...
Read More →
Drone FPV Camera: CMOS vs CCD, Latency, and FOV
Table of Contents Understanding Drone FPV Camera Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | Radiomaster |
|---|---|
| Model | ER6GV |
| Interface / Protocol | ELRS, 4G |
| Frequency | 2.4GHz |
| SKU | AI7288 |
| Availability | Out of Stock |
Applications & Use Cases
The Radiomaster ER6GV 2.4GHz ELRS PWM Receiver is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
