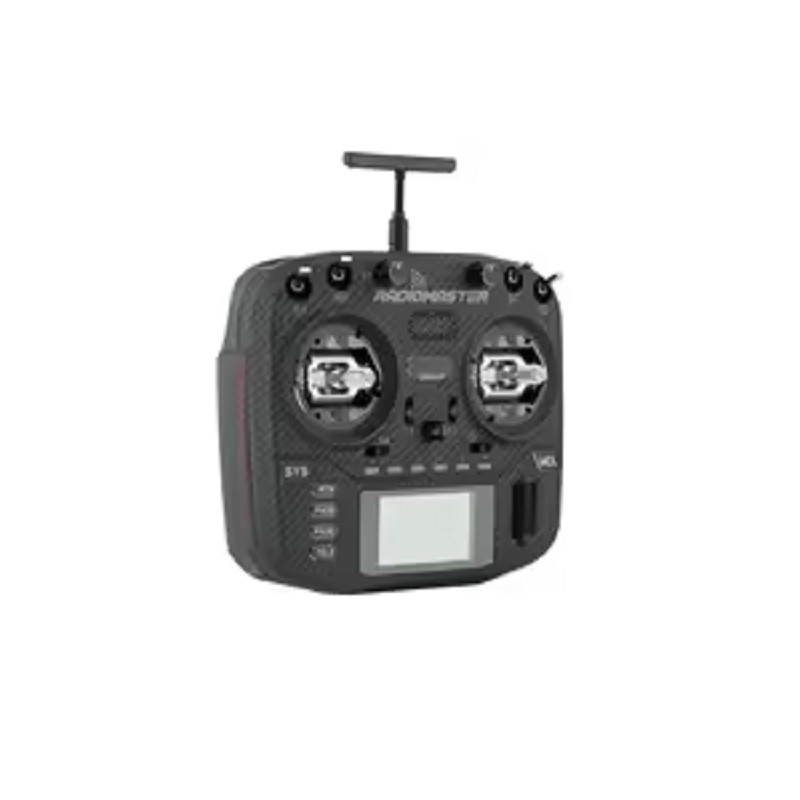

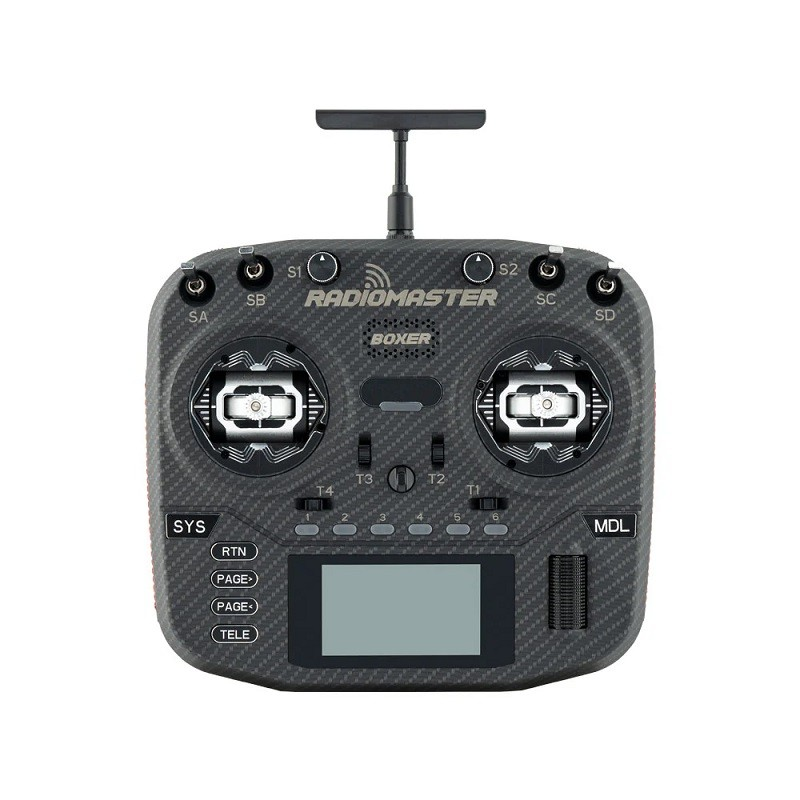

This is the Black variant of the Radiomaster Boxer Max Radio Controller (M2) – ELRS Version – Black in Drone Transmitter and Receiver. Available at ₹32,499.56 (₹27,542.00 + GST) with free shipping across India.
Looking for Radiomaster Boxer Max Controller Black? Radiomaster Boxer Max Radio Controller (M2) – ELRS Version – Black is available at Zbotic with fast shipping across India.
Radiomaster Boxer Max Controller Black – Description:
Introducing the Radiomaster Boxer Max Radio Controller (M2) – ELRS Version – Black – a high-performance remote control with a sleek carbon fiber-patterned case. The Boxer Max comes standard with upgraded billet aluminum AG01 hall effect gimbals and CNC buttons and roller, ensuring a high-quality feel. The adjustable-length CNC metal folding handle and upgraded leather grips provide a comfortable grip for extended use. With all these features, the Boxer Max Radio is the perfect choice for those seeking superior performance, comfort, and a premium feel.

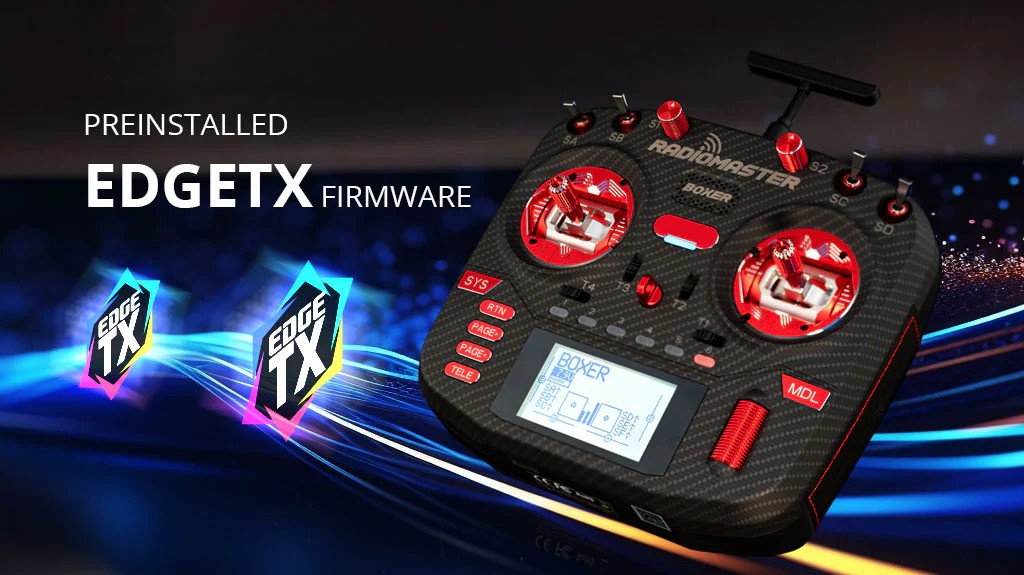

Preinstalled with EdgeTX and ExpressLRS, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.
Features:
- Optional 3 colors – Black/Red/Gold
- CNC Aluminum AG01 Hall-effect Gimbal
- Carbon fiber pattern case
- CNC buttons and roller as standard
- Adjustable length CNC metal folding stand
- Upgraded black leather grips
- Available with built-in ExpressLRS Backpack
- Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
- Preinstalled EdgeTX firmware
- Internal ELRS module capable of 1,000Hz refresh rate
- Adjustable ELRS RF output
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics
- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
- Standard JR module compartment
- Internal module cooling fan built in (ELRS version)
- RadioMaster standardized button layout
- Versatile 6-position switch for flight mode access
- Adjustable and Removable T-shape Antenna
- Changeable, ergonomic grips
- Redesigned SD card slot with new and improved 512mb pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Specifications:
| Item Type: | Radio Controller |
|---|---|
| Color: | Black |
| Frequency | 2.400GHz-2.480GHz |
| Internal RF | ELRS 2.4GHz |
| Cooling Fan | Built in (ELRS version) |
| Voltage Range (V) | 6.6-8.4V DC |
| Radio firmware | EdgeTX (Transmitter) / ELRS (RF module) |
| Channels | Max 16 channels (Receiver dependent) |
| Battery | 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included) |
| Display: | 128*64 Monochrome LCD display |
| Gimbal | AG01 CNC Hall Gimbal |
| External module | JR / FrSKY / Crossfire compatible |
| Upgrade Method | USB / SD card & EdgeTX Companion PC software |

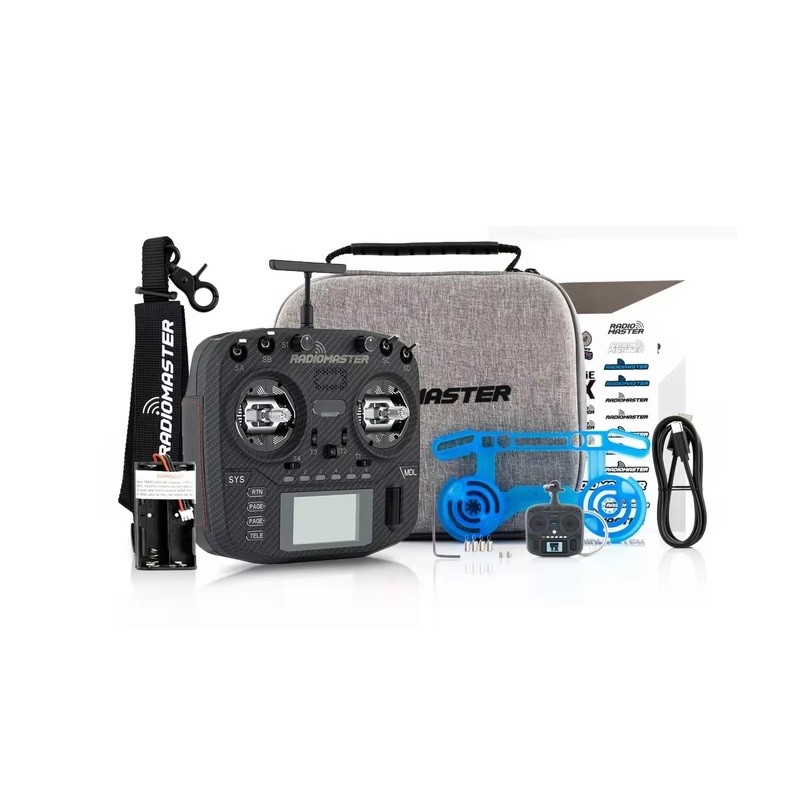

Package Includes:
- 1 x BOXER Max Radio
- 1 x Signature Carry Case
- 1 x T Antenna
- 1 x USB-C Cable
- 1 x Gimbal Protector
- 1 x 1.5mm Allen Key
- 2 x M4*4 Screws
- 4 x Low Tension Springs
- 1 x Stickers
- 1 x Manual
- 1 x 18650 Battery tray (Batteries not included)
- 1 x RadioMaster Neck Strap
- 1 x Boxer KeyChain
- 1 x Screen Protector
Radiomaster Boxer Max Radio Controller (M2) – ELRS Overview
The Radiomaster Boxer Max Radio Controller (M2) – ELRS Version – Black is a high-performance remote transmitter designed for FPV drones and multirotor aircraft. Featuring a carbon fiber-patterned shell and hall effect gimbals, it delivers precise control and long-lasting comfort during intensive flight sessions.
Key Features of Radiomaster Boxer Max Radio Controller (M2) – ELRS
- 1,000Hz ELRS Module: Ultra-low latency control for fast response and stable link.
- STM32F407VGT6 Processor: High-speed MCU ensures smooth menu navigation and reliable performance.
- Upgraded Leather Grips: Ergonomic design with premium leather for extended flight comfort.
- Billet Aluminum AG01 Hall Effect Gimbals: Precision sensing gimbals and CNC buttons for accurate input.
- QC3.0 Fast Charging & 20-Hour Battery: Rapid recharging and long runtime for marathon flying sessions.
- Adjustable CNC Folding Handle: Customize the length and angle for the ideal grip.
- Fast Shipping from Zbotic: Dispatch within 24 hours to anywhere in India.
Applications and Use Cases
- FPV drone racing events requiring low-latency control.
- Long-range RC flights with ExpressLRS telemetry link.
- Aerial videography and photography with smooth stick response.
- Hobbyist multirotor tuning and testing sessions.
- Training new pilots on a premium, ergonomic transmitter.
- Freestyle flying where rapid input and comfort matter.
How to Use Radiomaster Boxer Max Radio Controller (M2) – ELRS
Charge the controller via the QC3.0 USB-C port, then power on and access the ExpressLRS binding menu under MODEL SETUP. Install the ELRS Lua script on your microSD card, bind the ELRS module to your receiver, calibrate the AG01 hall effect gimbals in the calibration menu, and configure channel assignments before taking off.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I bind the ELRS module?
Install the ExpressLRS Lua binding script on the controller’s microSD card, power on the ELRS module in bind mode, select BIND in the controller menu, and wait for the LED to turn solid to confirm binding.
What is the typical charging time and battery life?
Using a QC3.0 charger, the Boxer Max refuels in about 2 hours and provides up to 20 hours of continuous operation under standard flying conditions.
Can I adjust the gimbal tension and handle length?
Yes, the CNC folding handle is length-adjustable for ergonomic comfort, and gimbal tension can be fine-tuned in the system settings to suit your personal preference.
Fixed Wing Drone for Beginners: Parts, Build & First Flight
Fixed Wing Drone for Beginners: Parts, Build & First Flight When most people think of drones, they picture...
Read More →
Betaflight Blackbox: Analyze Drone Flight Data for Tuning
Betaflight Blackbox: Analyse Drone Flight Data for Precise Tuning If you have ever wondered why your FPV quad...
Read More →
ExpressLRS (ELRS) Setup Guide: From Flashing to First Bind
ExpressLRS (ELRS) Setup Guide: From Flashing to First Bind ExpressLRS has taken the FPV drone community by storm...
Read More →Technical Specifications
| Brand | Radiomaster |
|---|---|
| Interface / Protocol | ELRS |
| Color | Black |
| SKU | AI7321 |
| Availability | Out of Stock |
Applications & Use Cases
The Radiomaster Boxer Max Radio Controller (M2) – ELRS Version – Black is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
