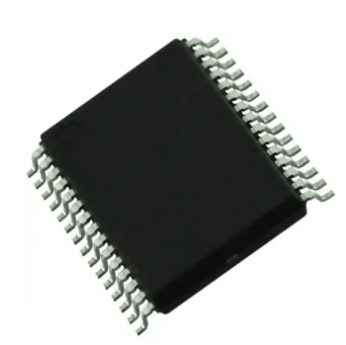

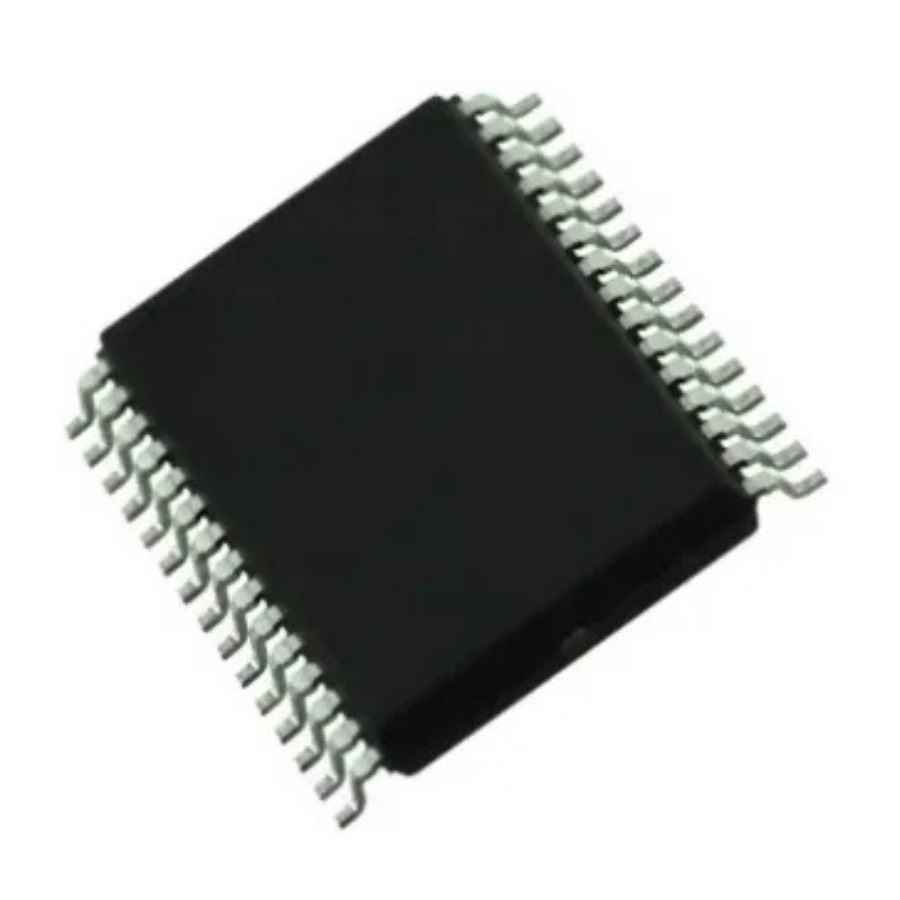

R5F102AAASP#30
The R5F102AAASP#30 is a 16-bit microcontroller (MCU) from Renesas Electronics, part of the RL78/G12 series. This MCU offers an affordable, energy-efficient solution for a wide range of embedded system applications.
Built around a highly efficient 16-bit CPU core, the R5F102AAASP#30 is optimized for low power consumption, making it an ideal choice for battery-operated devices and energy-sensitive projects. With a 16KB flash memory and operating temperature range of -40°C to +85°C, this MCU is well-suited for both industrial and consumer applications requiring reliable performance and extended battery life.
Features
-
16-bit RL78 CPU: Provides efficient processing capabilities for embedded applications.
-
Low Power Consumption: Designed to minimize power consumption, extending battery life in portable devices.
-
Peripheral Functions: Integrated with a variety of peripheral functions such as timers, serial interfaces, analog-to-digital converters (ADC), and more, facilitating versatile application development.
-
Compact Package: Available in a small, space-saving package, making it suitable for designs with limited board space.
-
Highly Reliable: Renesas Electronics is known for producing high-quality and reliable semiconductor products, ensuring dependable performance in various environments.
Specification
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas Electronics |
| Product Category | 16-bit Microcontrollers – MCU |
| RoHS | Details |
| Series | RL78/G13 |
| Mounting Style | SMD/SMT |
| Package/Case | LSSOP-30 |
| Core | RL78 |
| Program Memory Size | 2 kB |
| Data Bus Width | 16 bit |
| ADC Resolution | 8 bit, 10 bit |
| Maximum Clock Frequency | 24 MHz |
| Number of I/Os | 26 I/O |
| Data RAM Size | 2 kB |
| Operating Supply Voltage | 1.8 V to 5.5 V |
| Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | +85 C |
| Packaging | Tray |
| Brand | Renesas Electronics |
| Data RAM Type | RAM |
| Data ROM Size | 16 kB |
| Data ROM Type | ROM |
| Height | 1.4 mm |
| Interface Type | CSI, I2C, UART |
| Length | 9.85 mm |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 8 Channel |
| Processor Series | RL78/G12 |
| Product | MCU |
| Product Type | 16-bit Microcontrollers – MCU |
| Program Memory Type | Flash |
Package Include
-
1 x R5F102AAASP#30
Datasheet:
R5F102AAASP#30 Overview
The R5F102AAASP#30 is a 16-bit microcontroller from Renesas Electronics’ RL78/G12 series, designed for low-power embedded systems. With its energy-efficient CPU core and 16KB of on-chip flash memory, it provides a cost-effective solution for battery-operated and industrial applications requiring reliable performance across a wide temperature range.
Key Features of R5F102AAASP#30
- 16-bit RL78 CPU core: Delivers efficient processing and fast execution.
- 16KB on-chip Flash memory: Ample storage for program code in compact applications.
- Low-power operation: Optimized for extended battery life in portable devices.
- Wide temperature range: Operates from –40°C to +85°C for industrial reliability.
- Cost-effective design: Affordable MCU choice for budget-sensitive projects.
- Fast shipping from Zbotic: Get genuine stock delivered quickly anywhere in India.
Applications and Use Cases
- Portable medical monitoring and diagnostic instruments
- Battery-powered environmental sensors and data loggers
- Home automation controllers and smart switches
- Industrial control units in harsh temperature environments
- Wearable electronics and fitness trackers
How to Use R5F102AAASP#30
Integrate the R5F102AAASP#30 onto your PCB following Renesas’ recommended layout guidelines, connect power and ground rails, then attach a compatible debug/programming tool to the device’s debug interface. Use Renesas’ development environment to write, compile, and flash your firmware into the 16KB on-chip memory, and configure power modes to optimize energy consumption for your application.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How much flash memory does the R5F102AAASP#30 provide?
The R5F102AAASP#30 provides 16KB of on-chip Flash memory for storing application code.
What temperature range can this MCU operate in?
This microcontroller supports a wide industrial temperature range from –40°C to +85°C.
Is the R5F102AAASP#30 suitable for portable battery-powered applications?
Yes, its low-power 16-bit RL78 CPU core is specifically optimized for energy-sensitive and battery-operated devices.
Technical Specifications
| Model | R5F102AAASP |
|---|---|
| SKU | AI0505 |
| Weight | 0.001 kg |
| Availability | Out of Stock |
Applications & Use Cases
The R5F102AAASP#30 Microcontroller ICs is a versatile microcontroller ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
