PRODUCT DESCRIPTION

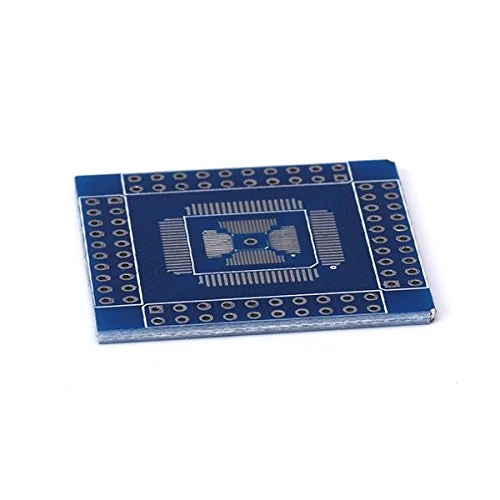

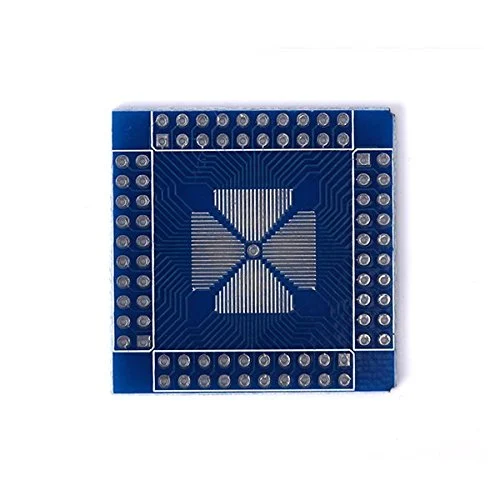

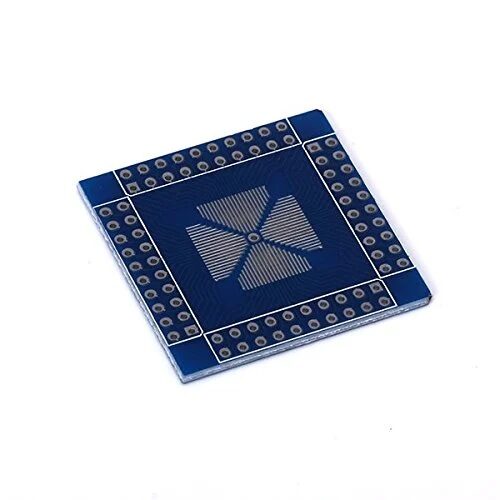

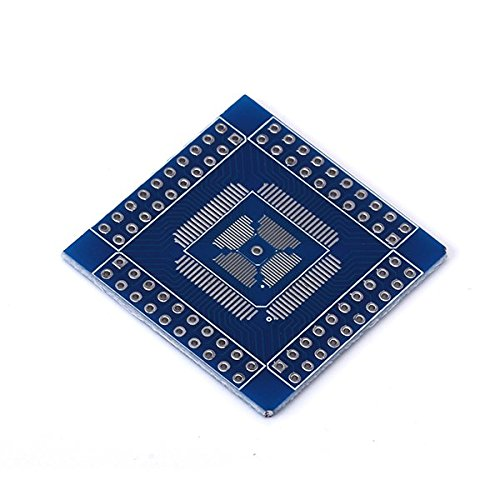

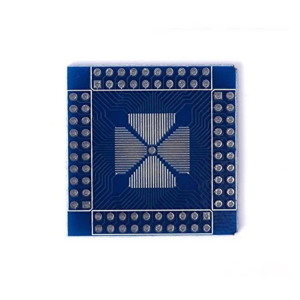

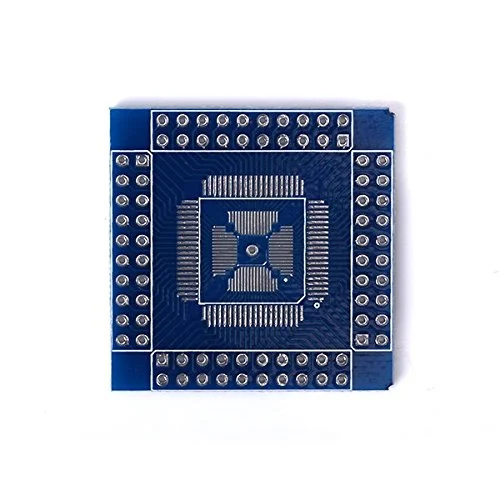

This double-sided pinboard features one side of the patch is 16 pin -80 pin turn DIP, 0.5mm spacing and the other side is 40 pin -64 pin, pitch 0.4mm pitch and 80 pins 0.65 spacing. QFN/ TQFN/ LQFP QFP 16-80 PIN Switch Over DIP Double-sided PCB Adapter has unique design makes the board compatible with more models of IC packages QFP Side of the patch 16 pin -80 pin turn DIP, 0.5mm spacing. The other side is 40 pin -64 pin, pitch 0.4mm pitch and 80 pins 0.65 spacing.
Features:
- Double-sided pinboard with versatile compatibility for various IC packages.
- One side features 16-pin to 80-pin turn DIP with 0.5mm spacing.
- The other side features 40-pin to 64-pin with 0.4mm pitch and 80 pins with 0.65mm spacing.
- Unique design ensures compatibility with a wide range of IC packages.
- Blue PCB color for easy identification.
Note: Actual compatibility may vary, and we cannot guarantee a perfect fit for every chip.
Specifications:
Feature | Specification |
---|---|
Product Name | QFN/TQFN/LQFP QFP 16-80 Pin Switch Over DIP Double-Sided PCB Adapter |
Compatibility | QFN, TQFN, LQFP, QFP |
Pin Configuration | One side: 16-pin to 80-pin turn DIP with 0.5mm spacing; Other side: 40-pin to 64-pin with 0.4mm pitch and 80 pins with 0.65mm spacing |
PCB Dimensions | 36 x 36 mm |
Pitch (Patch) | 0.4 mm |
Pin Header | 2.54 mm |
PCB Color | Blue |
Additional Note | Actual compatibility may vary, and perfect fit cannot be guaranteed for all chips. |
Package Includes:
- 1 X QFN/QFP/TQFP/LQFP 16-80 turn to DIP Double Sided Adapter Board, AD9854 Available QFP80
