This is the Red variant of the Foxeer PredatorV5_Micro in FPV Cameras. Available at ₹3,957.98 (₹3,354.22 + GST) with free shipping across India.
Foxeer PredatorV5_Micro
Description:
The Foxeer Predator 5 Micro 1000TVL M8 is a 19x19mm FPV camera by Foxeer. This camera features a 1/3″ CMOS sensor, 1000TVL resolution, 4ms latency, NTSC/PAL switchable, image flip, super WDR function, and many other cool features! Compare to the Predator 4, the Predator 5 has a more natural image, and it is also exclusive for LEDs.
Specification:
| Item Type: | FPV Camera |
| Resolution (TVL): | 1000 |
| Color | Black |
| Sensor Type | Sony 1/3″ CMOS Sensor |
| Scale | 4:3(Default)/16:9 Switchable |
| TV System | PAL(Default)/NTSC Switchable |
| Video Output | CVBS Analog Signal |
| Field of View (FOV): | FOV-H:125° FOV-D: 155° |
| Shutter Speed | Auto |
| Minimum Illumination | 0.01Lux |
| White Balance | Auto |
| DNR | 3DNR 2DNR |
| WDR | Super WDR |
| Modes | DAY/CLOUDY/Night/LED |
| Flip | Supported |

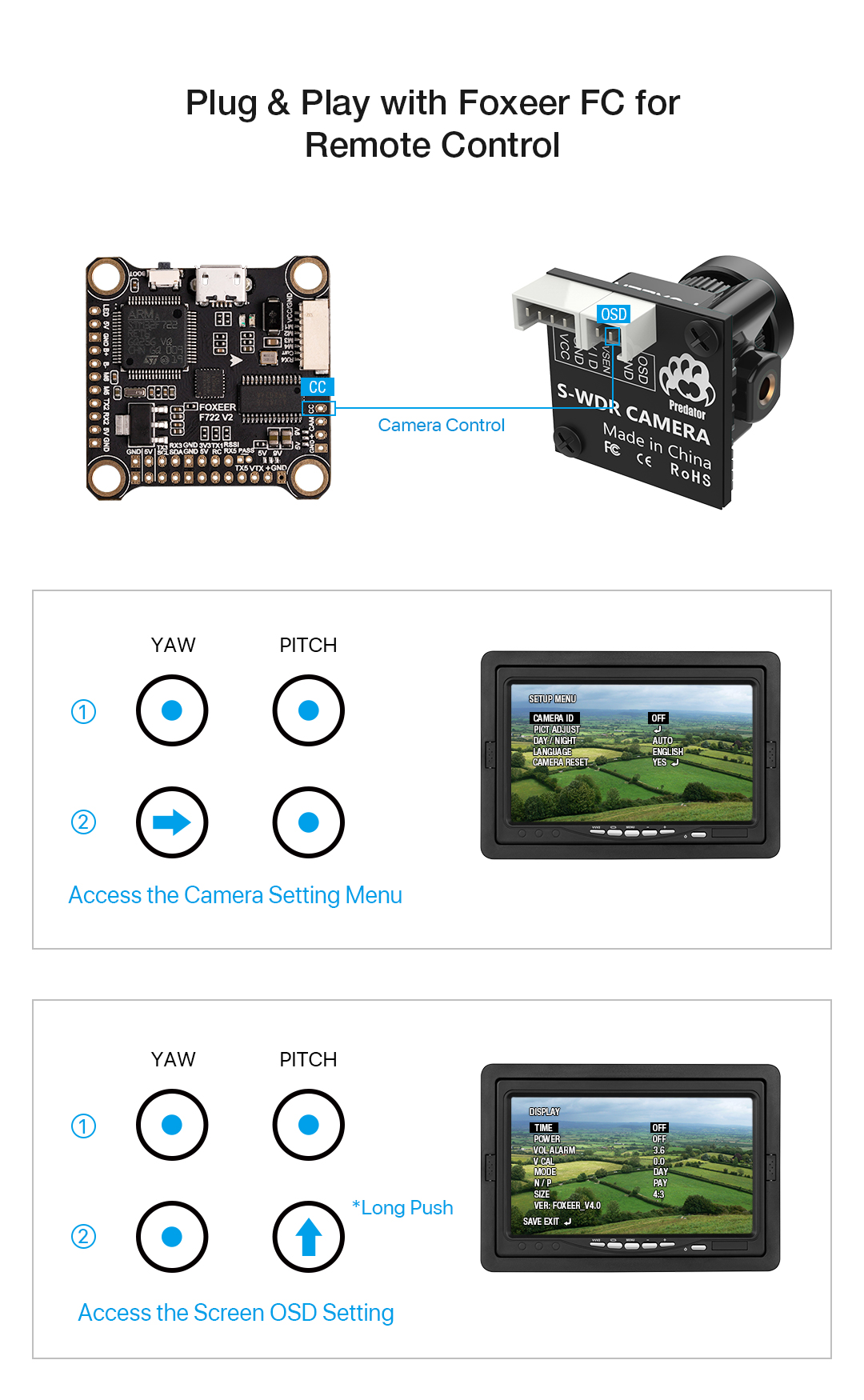

| Fast Mode Switch | Long Press Right Button to switch among DAY/CLOUDY/Night/LED |
| Flight OSD | Voltage/Cam Title/Time/Cross Hair |
| Input Voltage (V): | 4.5V~20V |
| Language | ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文 |
| Operating Temperature (°C): | -10°~50°C RH90% MAX |
| Operating humidity | 20~80% |
| Storage Temperature (°C): | -20°~70°C |
| Consumption | 50mA±15% @ DC12V 115mA±15% @ DC5V |

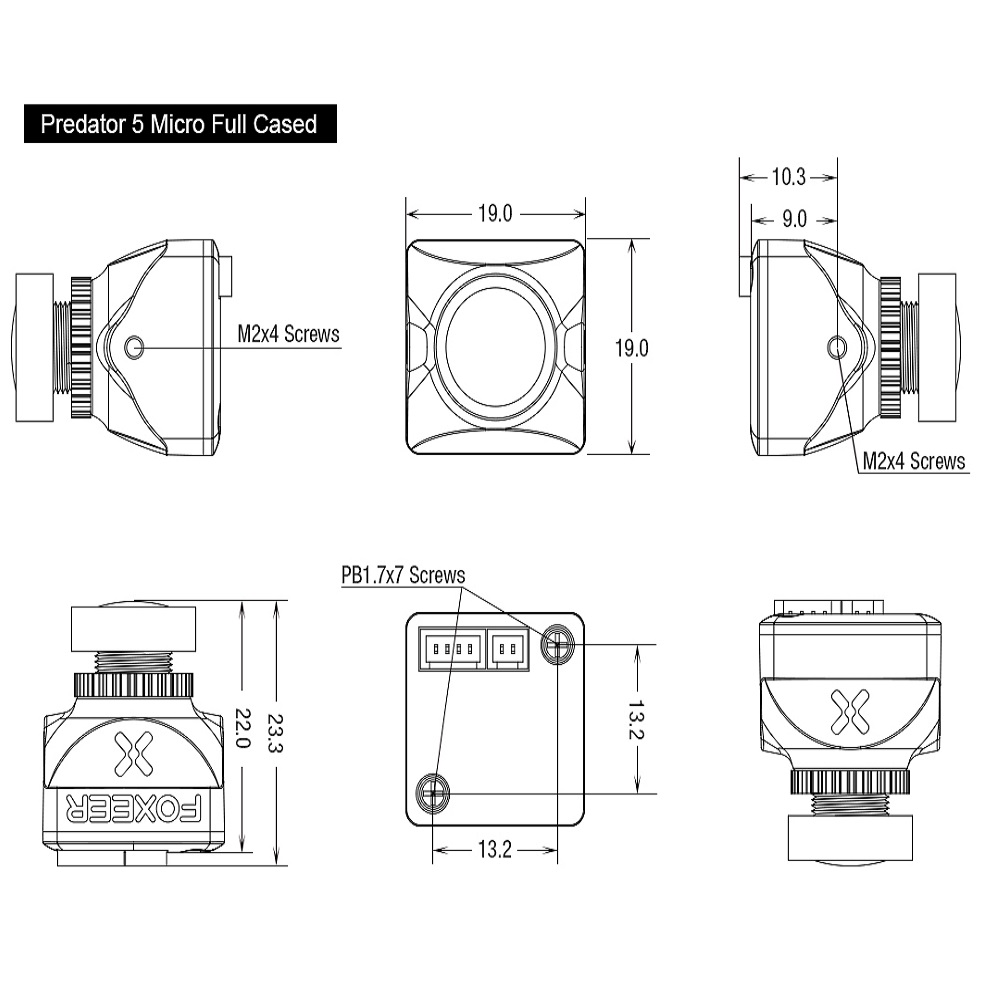

| Overall Dimension | 19*19mm |
Features:
- High-quality imaging: Delivers crisp and clear FPV footage with its advanced image sensor and lens technology.
- Low latency: Provides real-time video transmission with minimal delay for an immersive flying experience.
- Wide dynamic range (WDR): Captures details in both bright and dark areas, ensuring clear visibility in challenging lighting conditions.
- Compact design: Designed to fit into smaller FPV drones without sacrificing performance or durability.
- Integrated OSD: Allows you to customize and display important flight information, such as battery voltage and pilot name, directly on the screen.
- Wide voltage input range: Foxeer Predator 5 Micro FPV Camera Supports a wide range of power inputs, making it compatible with various FPV setups.
- Multiple mounting options: Offers flexibility in installation with its different mounting brackets, suitable for different drone configurations.
- Strong signal reception: Features a high-quality antenna for enhanced signal strength and stability during flight.
Package Includes:
1 x Foxeer Predator 5 Micro FPV Camera – Full Case 1 x OSD Board 4 x Bracket Screws 4 x Bracket Ring 1 x 2pin OSD Cable 1 x Servo Cable
Technical Specifications
| Brand | Foxeer |
|---|---|
| Color | Red |
| SKU | AI8210 |
| Weight | 6.3 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Foxeer PredatorV5_Micro is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Foxeer product sourced from authorized channels
Reviews
There are no reviews yet.
