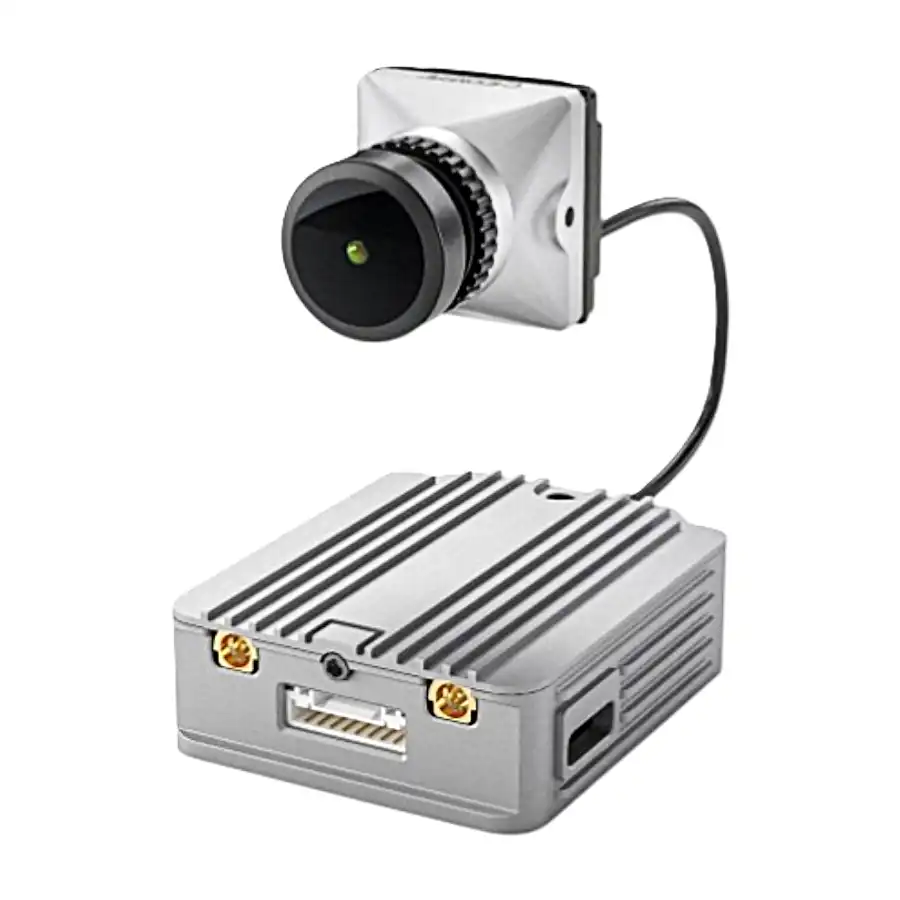

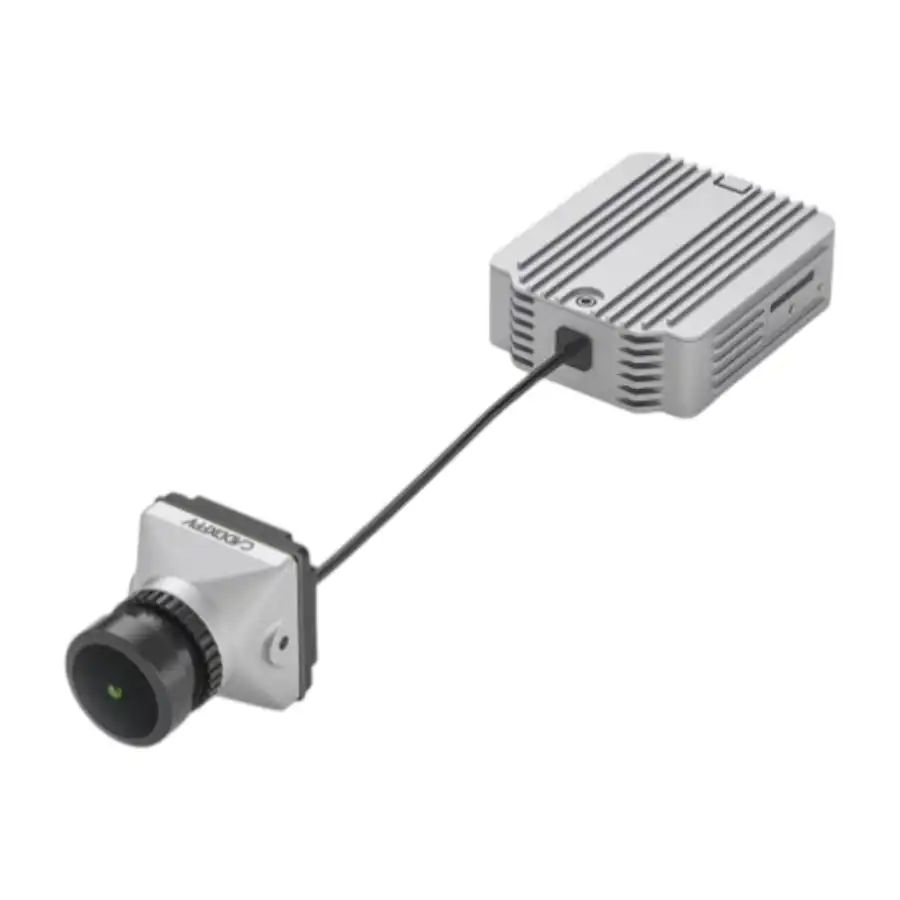

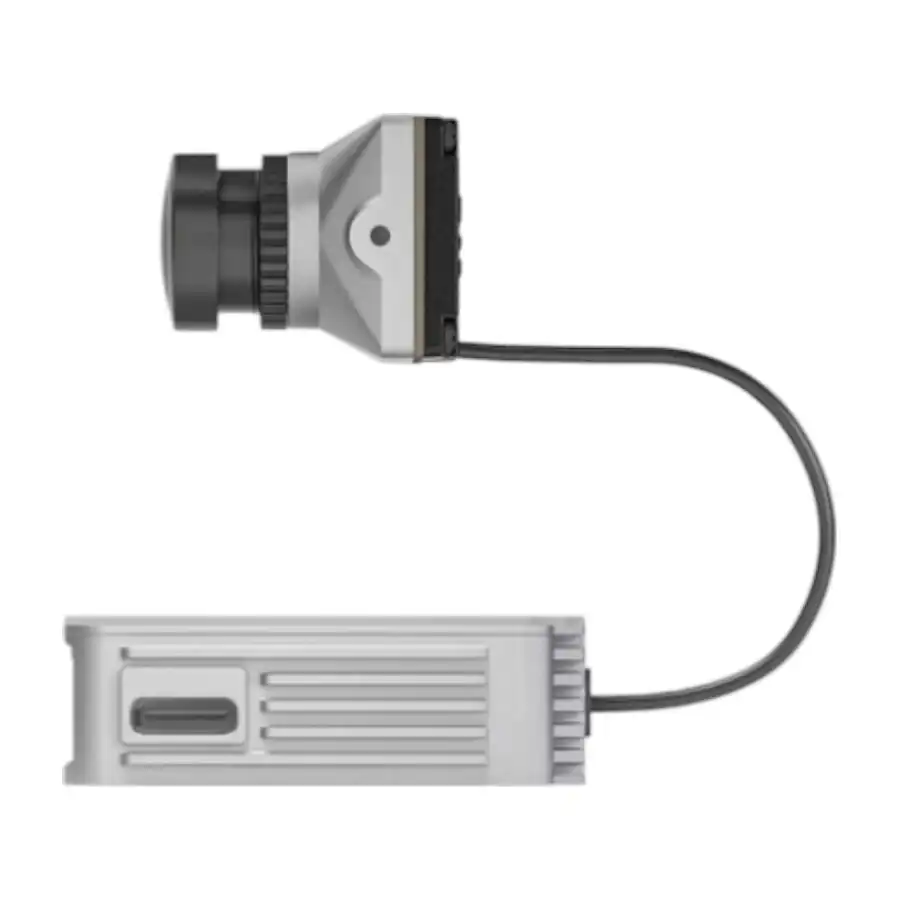

Caddx Air Unit Polar starlight Digital HD FPV system
Description:
The Caddx Polar Micro Air Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 120fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency of 28 ms. The air unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!
Features:
- Lightweight digital image transmission combination
- Stable and clear HD video
- 720p 120fps, 28ms/4km
- 8 channels, 8 drones
Specifications:
- Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
- I/O Interface: USB-C,MMCX,3-in-1 port, micro SD card slot
- Operating Temperature Range: 0°to 40°C（32°to 104°F）
- Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
- Image Sensor: 1/1.8″ Inch 2.3Mega starlight sensor
- Polar air unit (Include camera) Weight: 42.6g
- Supported Flight Control System: BetaFlight
- Min.Latency(end-to-end): 720p 60fps<32ms
- Video Format: MP4(Video format:H.264;
- Operating Frequency: 5.725-5.850GHz
- Antenna Weight: 3.9g(MMCX elbow)
- FOV: 162°(D); 138°(H); 75°(V)
- Min. Illumination: 0.00003Lux
- Air Unit: 44×37.8×14.4mm
- Polar cam: 24×19×19mm
- Input Power: 7.4-17.6V
- Audio format: AAC-LC)
- Coaxial Cable: 110mm
- LENS: F/1.6 & 8Mega
- Aspect Ratio: 16:9
- Antenna: 81mm
Specification:
| Item Type: | FPV System |
|---|---|
| Channel | 8 |
| Sensor Type | 1/3.2″ CMOS |
| Interface: | USB-C, MMCX, 3-in1 Port, MicroSD |

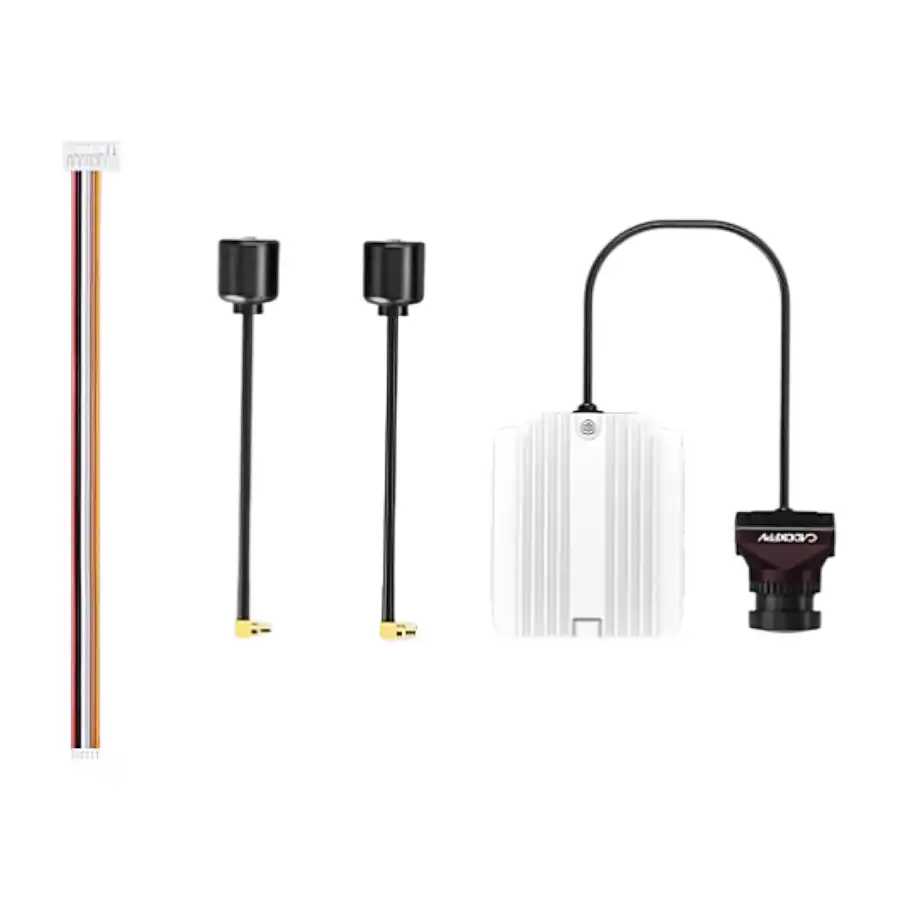

Package Includes:
1 x Caddx Air Unit Polar starlight Digital HD FPV system
6 x M2 Screws (3/4/5mm)
4 x Gasket Ring
1 x 3-in-1 Cable
Technical Specifications
| Brand | CADDXFPV |
|---|---|
| SKU | AI7995 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Caddx Air Unit Polar starlight Digital HD FPV system is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine CADDXFPV product sourced from authorized channels
