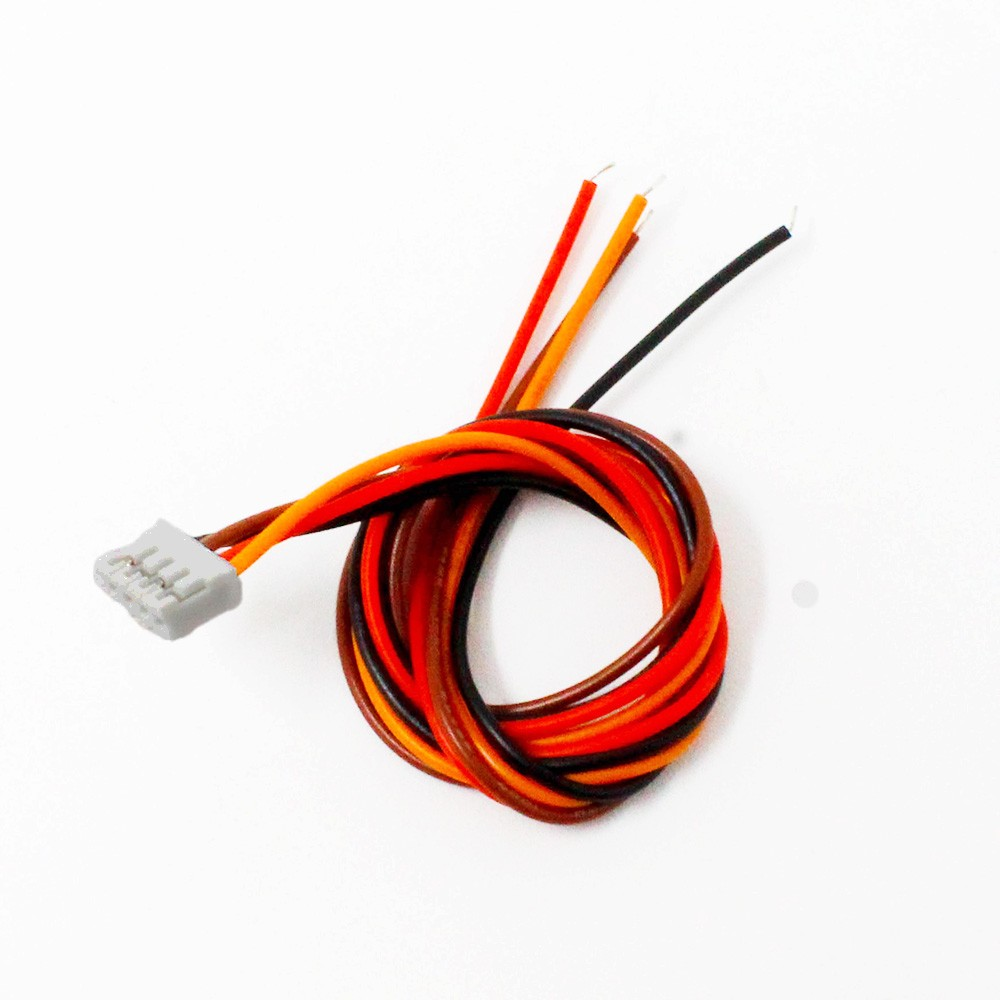

This is the 5mm variant of the PH-A/AW-2.5mm-4 pin Female Housing Connector with 300mm Wire(28 AWG) in Battery Connector. Available at ₹9.70 (₹8.22 + GST) with free shipping across India.
The PH-A/AW-2.5mm-4 pin Female Housing Connector with 300mm Wire(28 AWG) provides reliable electrical connections for a variety of applications. It is rated for 2A AC/DC current and 250V AC/DC voltage, ensuring efficient power transmission. With a low contact resistance of 10mΩ max and high insulation resistance of 1000MΩ min, this connector is built for durability. It operates within a wide temperature range of -25°C to +85°C and is compatible with AWG #30 to #24 wires, making it suitable for use in diverse environments.
Features:
- High Rated Current: Supports up to 2A AC/DC for efficient power delivery.
- Versatile Voltage Rating: Compatible with voltages up to 250V AC/DC for various applications.
- Low Contact Resistance: Ensures minimal resistance with a maximum of 10MQ.
- High Insulation Resistance: Offers excellent insulation with a minimum of 1000M.
- Wide Temperature Range: Operates reliably in temperatures ranging from -25°C to +85°C.
- Flexible Wire Compatibility: Supports AWG #30 to #24 wires, providing versatility in wire selection.
Specification
| Rated Current (A) | 2 |
|---|---|
| Rated Voltage (V): | 250 |
| Contact Resistance | 10MQ max |
| Operating Temperature (°C) | -25~85 |
| Wires | AWG #30 to #24 |
| No. of Pins | 4 |
Package includes:
1 x PH-A/AW-2.5mm-4 pin Female Housing Connector with 300mm Wire(28 AWG)
Thermoelectric Harvester: Power from Waste Heat
A thermoelectric harvester converts temperature differences into electrical energy using the Seebeck effect, enabling power generation from waste...
Read More →
21700 vs 18650: Which Lithium Cell to Choose
Table of ContentsIntroduction to 21700 Cells Size and Capacity Comparison Discharge Rate and Performance Cost Per Watt-Hour Analysis...
Read More →
Battery Swapping System: Quick-Change for E-Bikes
A battery swapping system enables quick battery changes for e-bikes and e-scooters in under 60 seconds, eliminating range...
Read More →Technical Specifications
| Size | 2.5mm |
|---|---|
| Pin Count | 4-pin |
| Wire Gauge | 28 AWG |
| SKU | AI6333 |
| Weight | 0.00507 kg |
| Availability | In Stock |
Applications & Use Cases
The PH-A/AW-2.5mm-4 pin Female Housing Connector with 300mm Wire(28 AWG) is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
