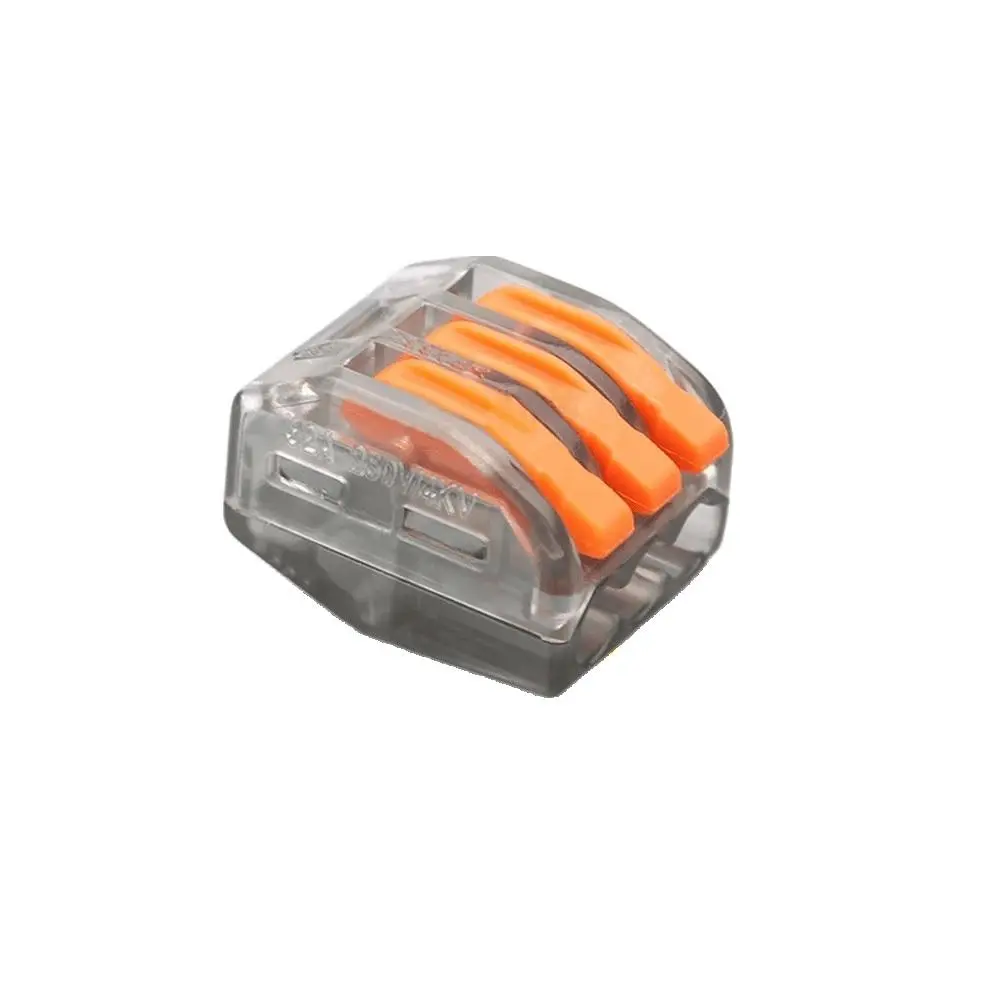

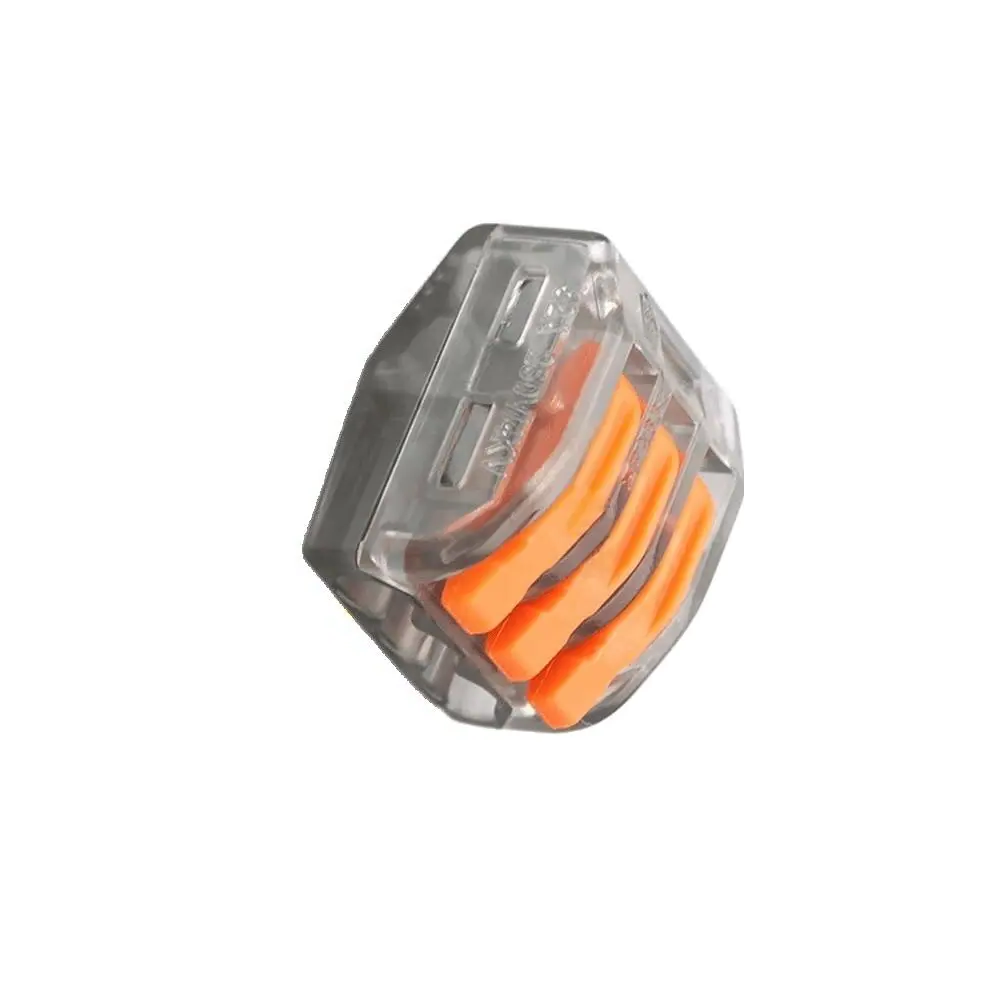

PCT-213T Transparent Quick Connection Terminal

This is a PCT-213 Universal Terminal, which is a type of electrical terminal for cable connection. It belongs to the PCT Spring Lever Connector series, which includes models such as PCT-212, 213, 215, 218, CH-812, 813, 2-4, and 2-6. These connectors have a spring lever that locks the wire securely. They can be used with single-strand hard wires ranging from 0.08mm to 2.5mm2 in cross-sectional area, or soft wires ranging from 0.08mm to 4.0mm2 in cross-sectional area (or AWG28 to AWG12). These connectors can withstand a rated voltage of up to 400V and a peak electric current of 32A, which corresponds to a maximum power of 7KW.

Features:

1. High-grade Insulative Nylon Material
2. Strong Spring Locking Lever
3. Nickel Plated Metal Point Inside
4. Good Temperature Resistance
5. Compact Splicing Connector
6. 4-Conductor Terminal Block
7. With Operating Levers
8. Max. Continuous Service Temperature 85°C
9. weight:3.21gm/unit

Specification:

Model Number:PCT-213T

Type:Quick Disconnect

Color:transparent with orange

Rated voltage:450V

Rated current:32A

Wire diameter:0.5-4mm²

Voltage resistance:4k V

Ambient temperature:-40-105℃

String length:10mm

The number of poles:3



PACKAGE INCLUDES

1 X PCT-213T Transparent Quick Connection Terminal
