Looking for Nx3224t028 Display? Nextion BASIC NX3224T028 2.8″HMI LCD Touch Display is available at Zbotic with fast shipping across India.
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion NX3224T028 – Generic 2.8″HMI LCD Touch Display includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

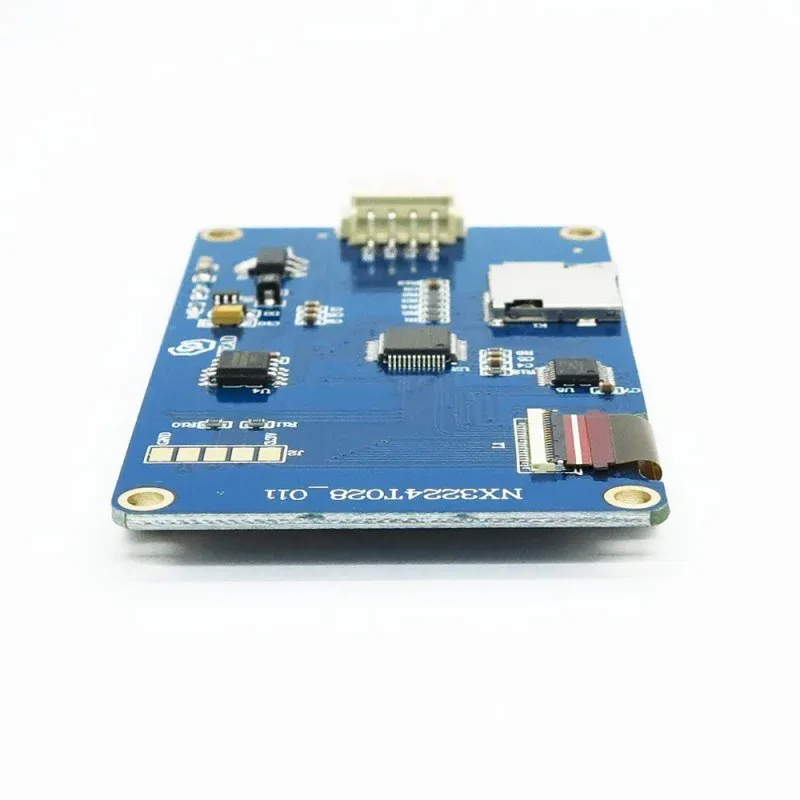

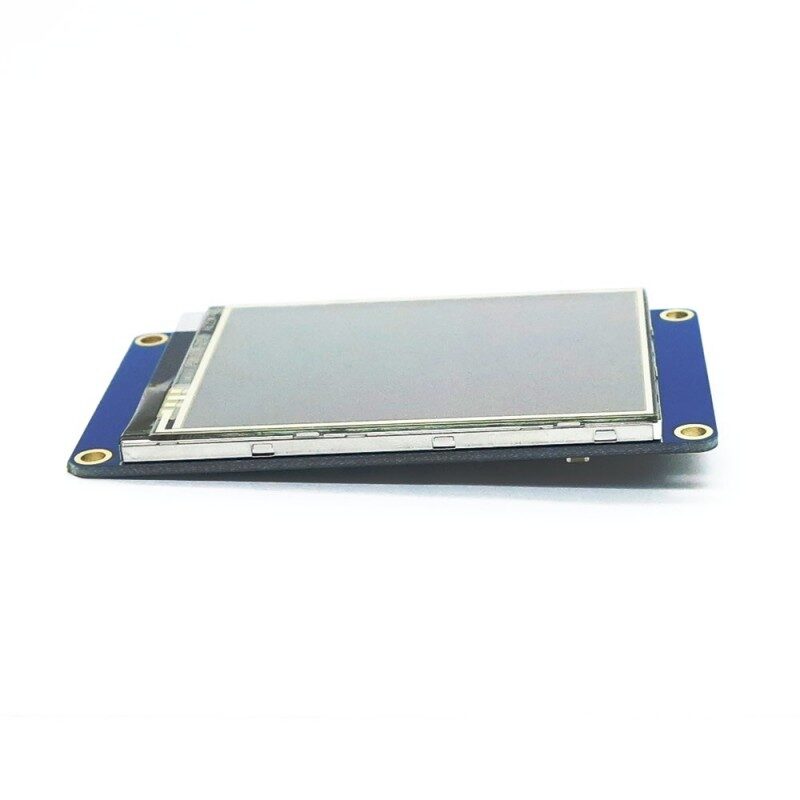

NX3224T028 is a powerful 2.8” HMI, which is member of Nextion family. Features include: a 2.8″ TFT 320×240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.
Software:
Features:
- 320 x 240 Resolution
- RGB 65K true to life colours
- TFT screen with integrated resistive touch panel
- 4 pin TTL serial interface
- 4M Flash memory for User Application Code and Data
- Onboard micro-SD card slot for firmware upgradation
- Visual Area: 57.6mm(L)×43.2mm(W)
- Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
- 5V65mA power consumption
- Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino.
- Certificates: CE/EMC, RoHS (certificates)

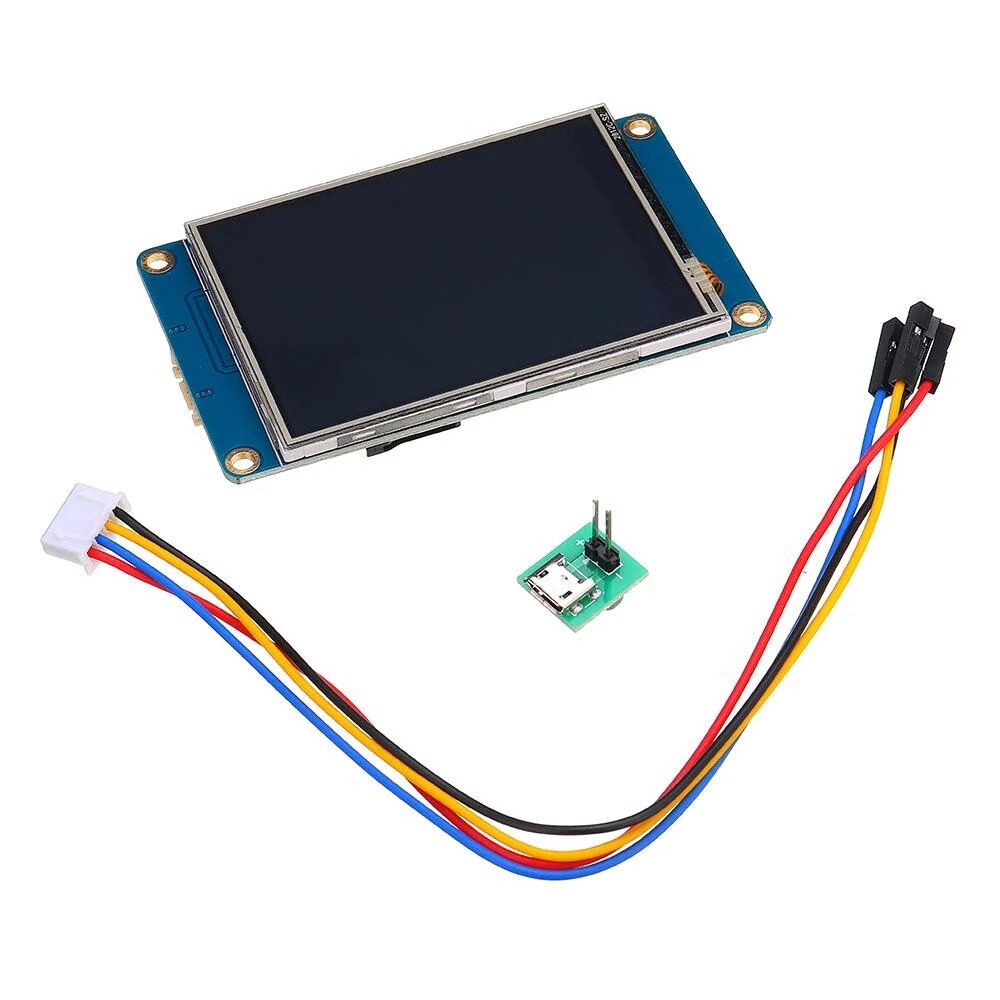

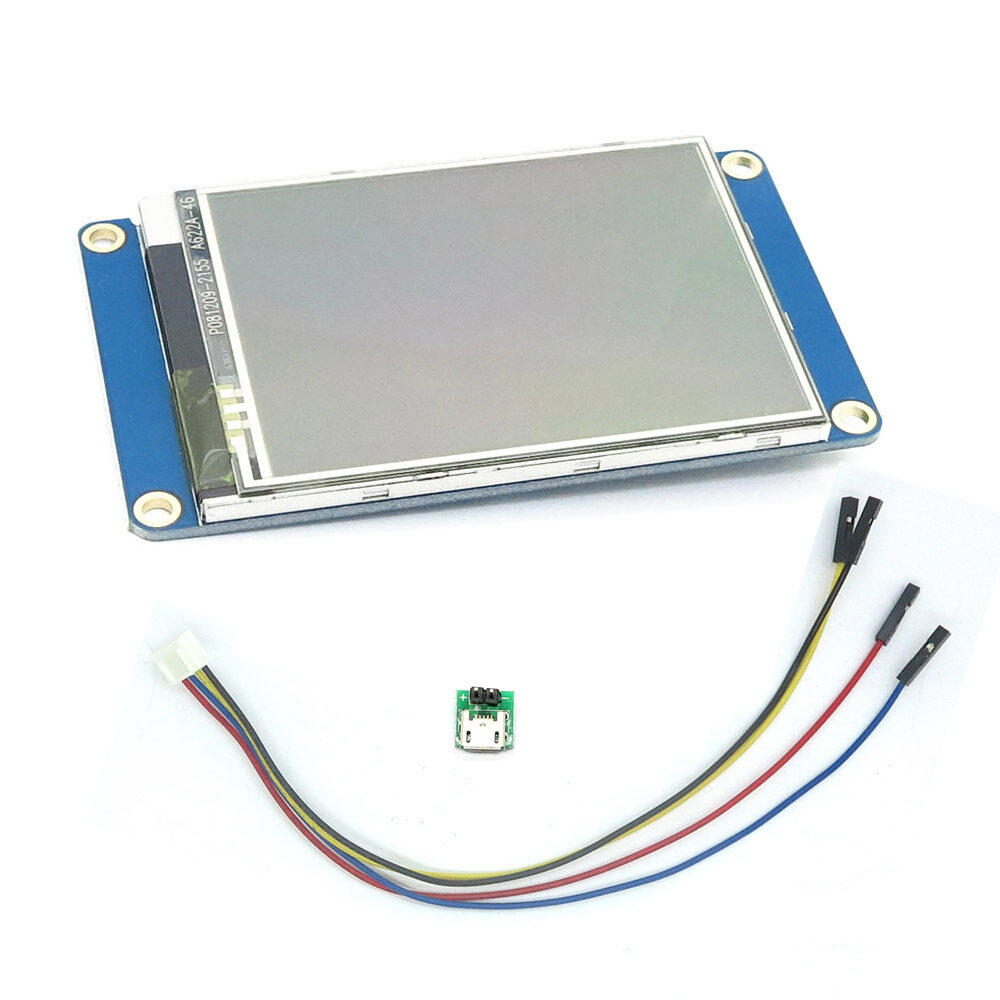

Package Includes:
1 x Nextion NX3224T028 – Generic 2.8″HMI LCD Touch Display
1× power supply test board
1× 4-pin grove cable
Tutorial:
About Nx3224t028 Display
Nextion BASIC NX3224T028 2.8″HMI LCD Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Nextion, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Nextion
- SKU: AI1842
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Nx3224t028 Display and other products.
Applications
Nx3224t028 Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Nx3224t028 Display today and start building.
Nextion BASIC NX3224T028 2.8″HMI LCD Touch Display Overview
The Nextion BASIC NX3224T028 is a 2.8-inch HMI (Human Machine Interface) LCD touchscreen module that provides a compact GUI solution for embedded projects. It integrates a resistive touch panel with a built-in processor, enabling seamless control and visualization via a single serial port connection.
Key Features of Nextion BASIC NX3224T028 2.8″HMI LCD Touch Display
- 2.8″ TFT display with resistive touch input for interactive control
- Single UART serial interface simplifies wiring and reduces I/O usage
- On-board flash storage to host custom GUI projects designed in Nextion Editor
- Compact 65×50 mm PCB form factor ideal for panel mounting
- Low-power operation suitable for battery-powered and portable devices
- Genuine Nextion module with fast shipping from Zbotic
Applications and Use Cases
- Home automation dashboards for lighting, HVAC, and security systems
- Control panels for 3D printers, CNC machines, and robotics projects
- Status displays on IoT devices such as smart appliances and weather stations
- Interactive interfaces for industrial equipment and data logging systems
- Custom kiosks, vending machines, or point-of-sale terminals
How to Use Nextion BASIC NX3224T028 2.8″HMI LCD Touch Display
Design your screens in the free Nextion Editor software, compile the project to a .HMI file, then transfer it to the module via microSD card or direct serial upload. Connect the display’s TX/RX pins to your host microcontroller’s UART, apply 5 V and ground, and start sending commands or receiving touch events over the single serial line.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What interface does the NX3224T028 use?
The module communicates over a single UART serial port (TTL-level), allowing simple TX/RX wiring to your microcontroller.
What type of touch panel is used on this display?
This BASIC series model features a resistive touch panel, which responds to pressure and works with stylus or gloved fingers.
How do I integrate the display with an Arduino?
Install the Nextion library on your Arduino IDE, connect TX/RX, 5 V and GND to the display, then use provided example sketches to send commands and handle touch events.
