Looking for Nano Io Expansion Shield? Nano IO Expansion Shield for Arduino NANO 328P is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION

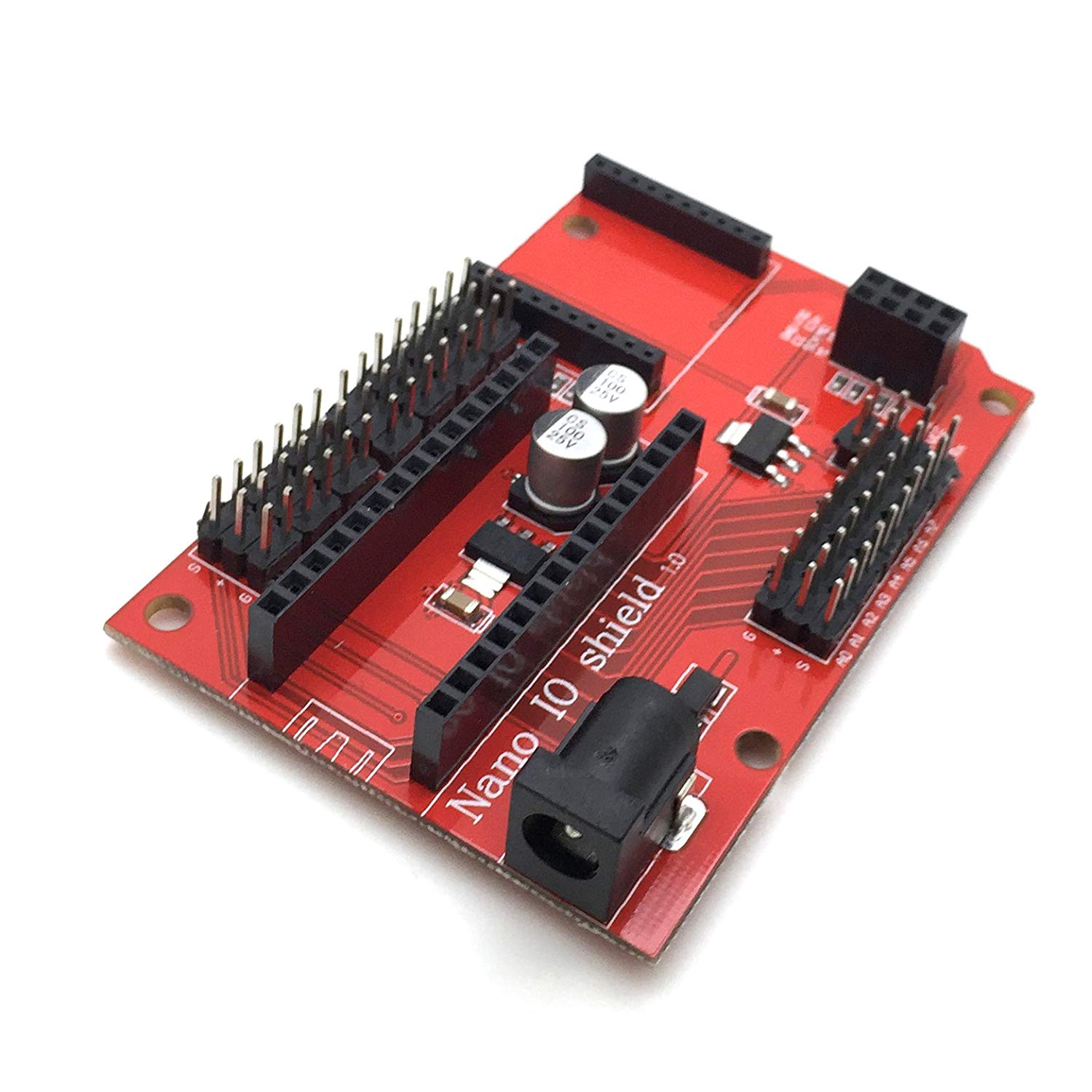

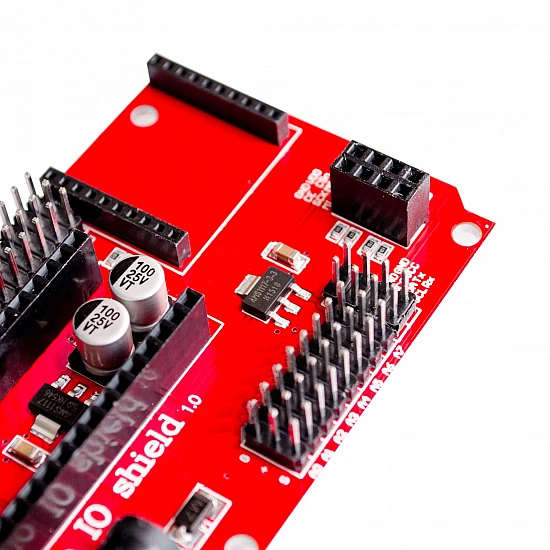

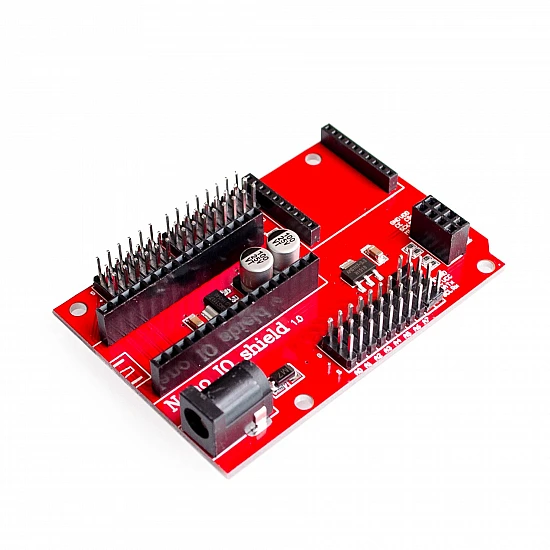

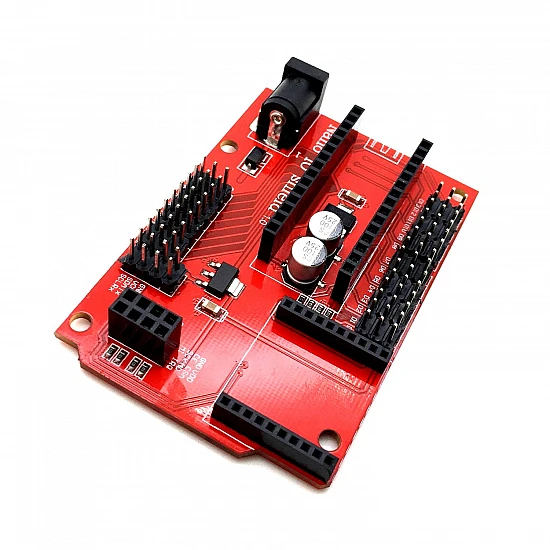

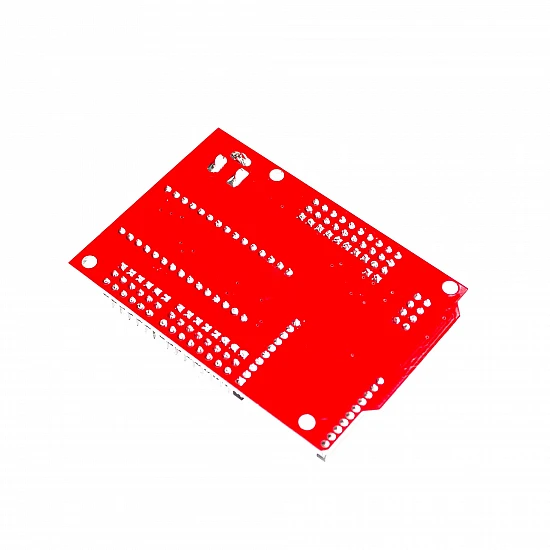

This Arduino Nano 328P Expansion Shield enhances the functionality of your Arduino Nano by providing easy access to all IO pins via 3-pin sensor interfaces and offering an nRF24L01 wireless interface for seamless wireless communication. It also supports an external power supply input range of 7-12V.
With this shield, all IO pins of the Arduino Nano 328P are exposed and available for connection to 3-pin interfaces, making it compatible with a wide range of electronic bricks and sensors. It also features external power input terminals, allowing you to power the system using 7-12V sources.
Additionally, the shield includes sockets and plugs for XBee modules and nRF24L01 wireless modules, enabling wireless connectivity for your Arduino projects.
The Nano IO Expansion Board is essentially a breakout board, giving you direct access to all the pins of the Arduino Nano, making it perfect for integrating with Zigbee XBee modules, nRF24L01 wireless modules, and other electronic components. The ability to convert external power between 7V and 12V adds flexibility for various applications.
Pins
- I/O Pin-14 I/O Pin (servo type with GND, power and signal)
- Analog Pin-8 Pins with power output and GND.
- PWM Pin-6 Pins
- Expansion Pin-5 I2C Expansion Pins
Features:
- All digital and analog pins breakout
- XBee and nRF24L01 module interface
- External power supply current support
- Compatible pin map for electronic brick
Specification:
| Operation Level | Analog, Digital 3.3V, Digital 5V |
| Output Voltage | 3.3V |
| Length | 74 mm |
| Height | 14 mm |
| Width | 50 mm |
Package Includes:
1 x Nano IO Expansion Shield for Arduino NANO 328P
Video
Nano IO Expansion Shield for Arduino NANO 328P Overview
The Nano IO Expansion Shield for Arduino NANO 328P is an add-on board that exposes all digital and analog I/O lines of the Arduino Nano 328P into 3-pin sensor interfaces. It also provides dedicated sockets for XBee and nRF24L01+ wireless modules and accepts an external 7–12 V power input for standalone projects.
Key Features of Nano IO Expansion Shield for Arduino NANO 328P
- Full breakout of Arduino Nano 328P digital (D0–D13) and analog (A0–A7) pins into standard 3-pin headers
- Built-in sockets for XBee and nRF24L01+ modules with 3.3 V regulated output
- External power terminal supporting 7–12 V input to drive higher-load sensors and actuators
- Compatible pin mapping for popular electronic brick and sensor modules
- Onboard 3.3 V regulator delivers stable voltage for wireless modules and low-power peripherals
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Rapid prototyping of sensor networks using 3-pin interfaces
- Wireless data transmission experiments with nRF24L01+ or XBee radios
- Home automation nodes requiring external power and multiple I/O connections
- Robotics control boards that integrate analog sensors and digital actuators
- Educational projects teaching students about Arduino I/O expansion and power management
How to Use Nano IO Expansion Shield for Arduino NANO 328P
To get started, align and insert your Arduino Nano 328P into the female headers on the shield, ensuring proper orientation. Plug in your XBee or nRF24L01+ module onto the designated socket, then connect sensors or actuators to the 3-pin headers. Finally, power the shield either via the Nano’s USB port or by supplying 7–12 V to the external terminal block, and upload your sketch to begin interfacing with all I/O lines effortlessly.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which Arduino Nano models work with this shield?
This expansion shield is specifically designed for the Arduino Nano 328P’s 2×15 header footprint. Third-party Nano boards must follow the same pin layout to be fully compatible.
Can I use an external power supply instead of USB?
Yes. The shield features a screw-terminal block for 7–12 V input, allowing you to power the Nano and connected modules without USB. The onboard regulator provides 3.3 V for wireless radios.
How do I mount an nRF24L01+ module on the shield?
Simply insert the nRF24L01+ board into the 8-pin header labeled for RF modules. Ensure the module’s pins align with the shield’s 3.3 V, GND, CE, CSN, SCK, MOSI, MISO, and IRQ lines before powering up.
