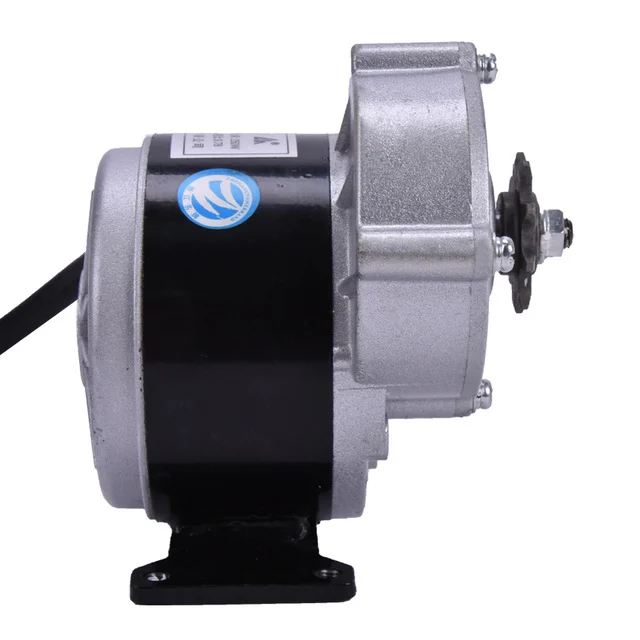

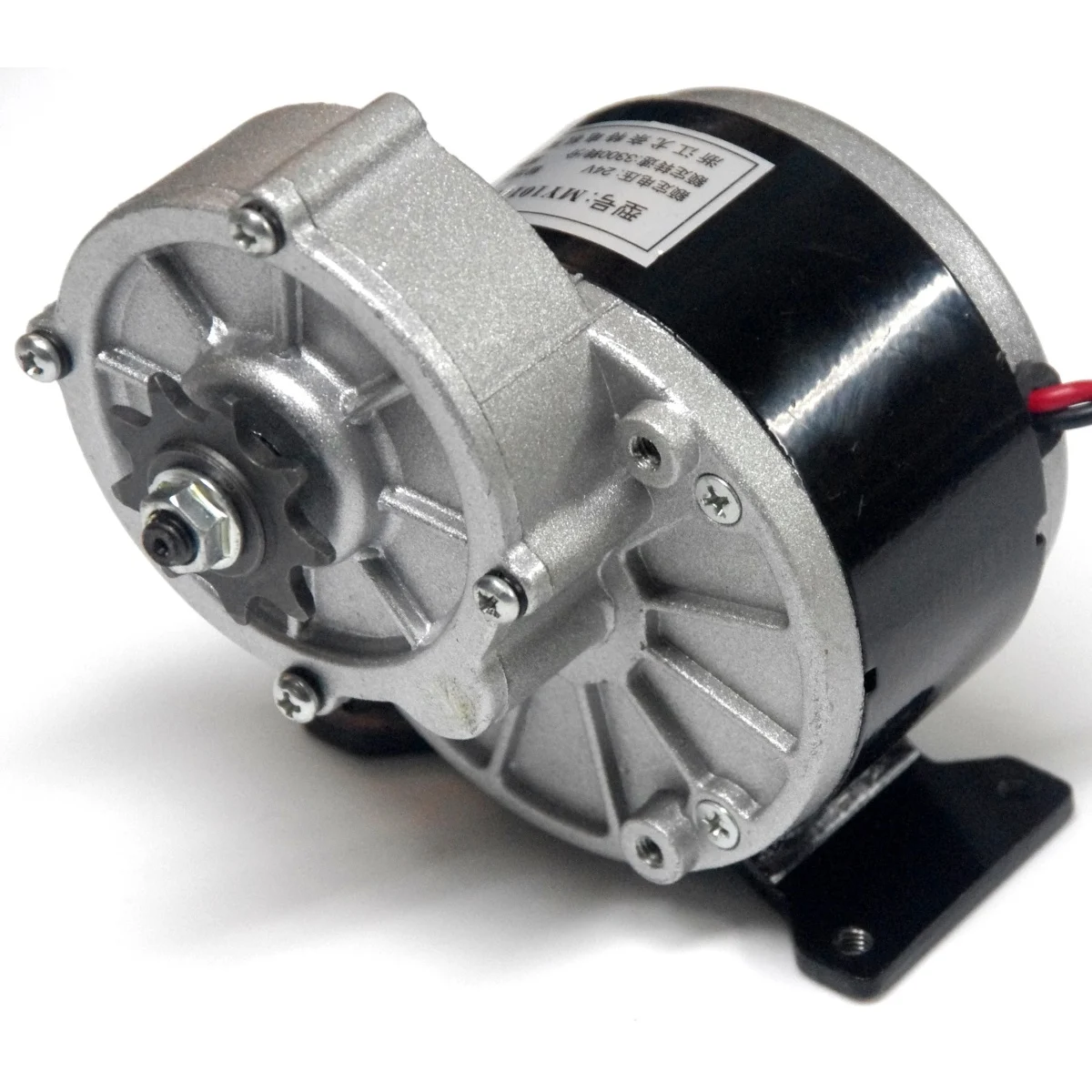

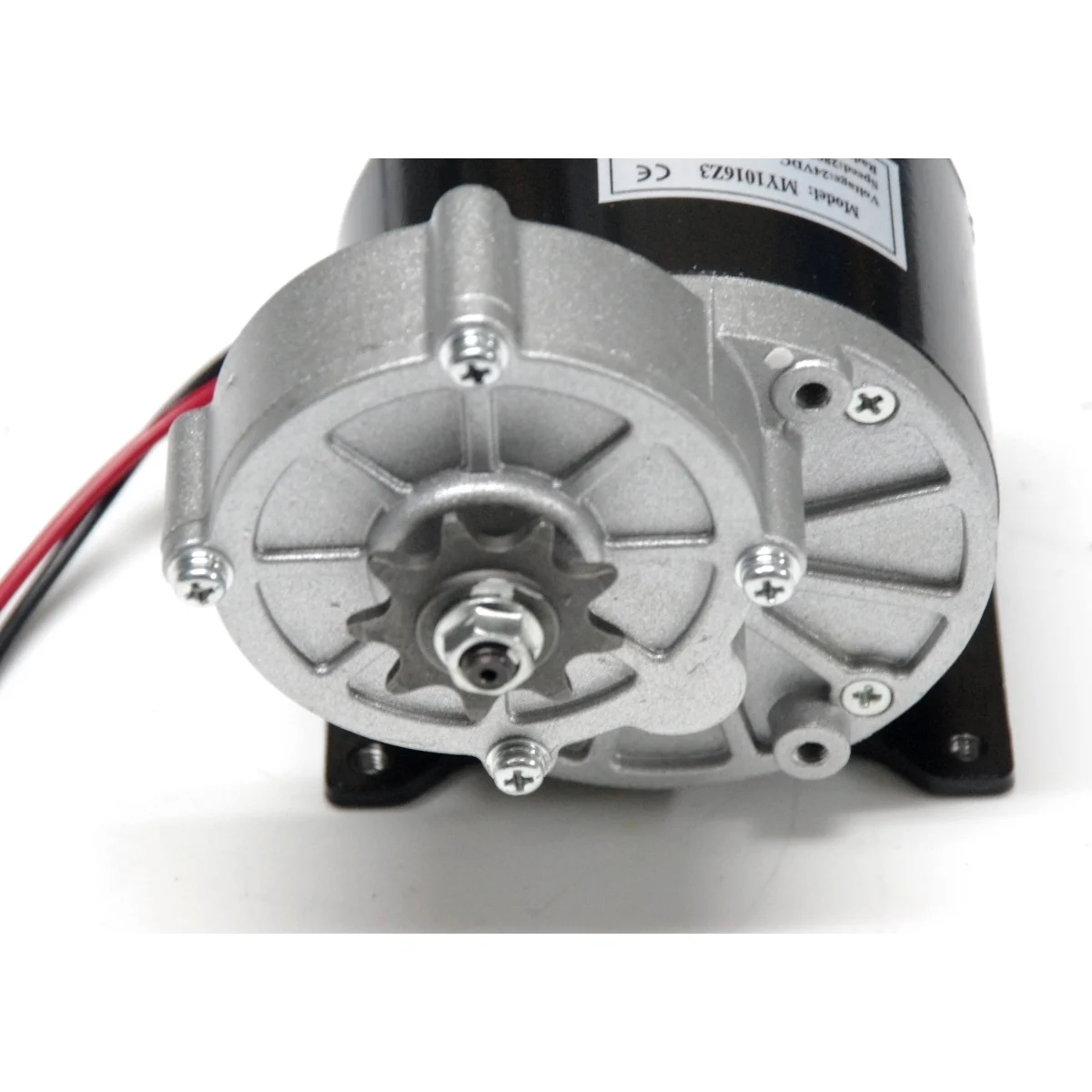

This is the 12V variant of the MY1016Z 250W 12V DC Gear Brushed Motor in Ebike Motors and Controllers. Available at ₹3,394.86 (₹2,877.00 + GST) with free shipping across India.
It is normally found in the better-quality quads and scooters on the market and is classed as a mid-range combination. The low range (usually in the cheap kiddie carts) unit is generally a Johnson or Mabuchi 550 motor hooked together to a plastic toy gearbox (pretty poor quality). Most people use this 250W motor as a starting block for building their own carts, warbot, Segways, etc. It’s suitable for kids up to about 5-7 years old (after that they may be getting a little heavy, and any younger and you won’t be able to catch the kids). These use a common mounting block which makes the replacement of a worn or broken motor a painless swap over. They are quite powerful for their small size and extremely reliable.
If you are wandering to build an E-bike and don’t know what the best Motor for you will be then worry no more, we have got your back. At Zbotic, we have everything for you to get started with your E-bike project.
Specification :
| Model | MY1016Z |
|---|---|
| Rated Current(A) | 23A |
| Voltage | 12V |
| Rated Speed | 330 RPM (speed of motor before geared) 360 RPM (after geared output speed) |
| Operating Power | 250 Watt. |
| Gear Ratio | 9.78:1 |
| Rated Torque (Kg-Cm) | 8.15 |
| Min. Reduction Ratio | 9.78 |
| Gearbox | Yes. |
| Cable Length (Meter) | 0.5 |
| Weight (Kg) | 2.35 |
| Shipping Weight | 2.4 kg |
| Shipping Dimensions | 22 × 15 × 12 cm |
Package Include:
1 x MY1016Z 250W 12V DC Gear Brushed Motor
Raspberry Pi Motor Control with L298N: Python Code Guide
Table of Contents Why L298N with Raspberry Pi? Hardware Requirements Wiring Diagram: Pi to L298N to Motor GPIO...
Read More →
Stepper Motor Driver EMI: Shielding & Noise Reduction Techniques
Stepper motor drivers are among the noisiest components in any electronics project. The fast-switching MOSFET H-bridges in drivers...
Read More →
Worm Gear Motor Applications: Self-Locking Mechanism Guide
The worm gear motor's self-locking property is one of the most underappreciated features in the robotics and automation...
Read More →Technical Specifications
| Model | MY1016Z |
|---|---|
| Operating Voltage | 12V |
| Power Rating | 250W |
| SKU | AI3740 |
| Weight | 3.19 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MY1016Z 250W 12V DC Gear Brushed Motor is a versatile ebike motors and controllers used across a wide range of applications including electric bicycle conversion, e-scooter builds, electric go-karts, motorized wheelchairs, and cargo bikes.
Common use cases:
- Converting a regular bicycle to electric
- Replacing a worn e-bike motor
- Building a custom e-scooter
This product is ideal for e-bike builders and electric vehicle enthusiasts.
Technical Tip: Match controller voltage and current to your motor specs. Hub motors offer simple installation; mid-drive motors provide better hill-climbing torque.
