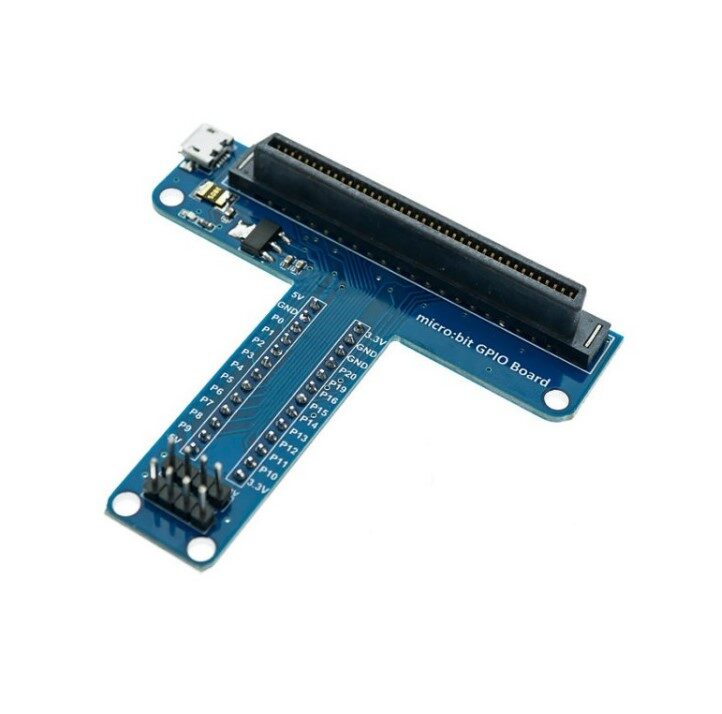

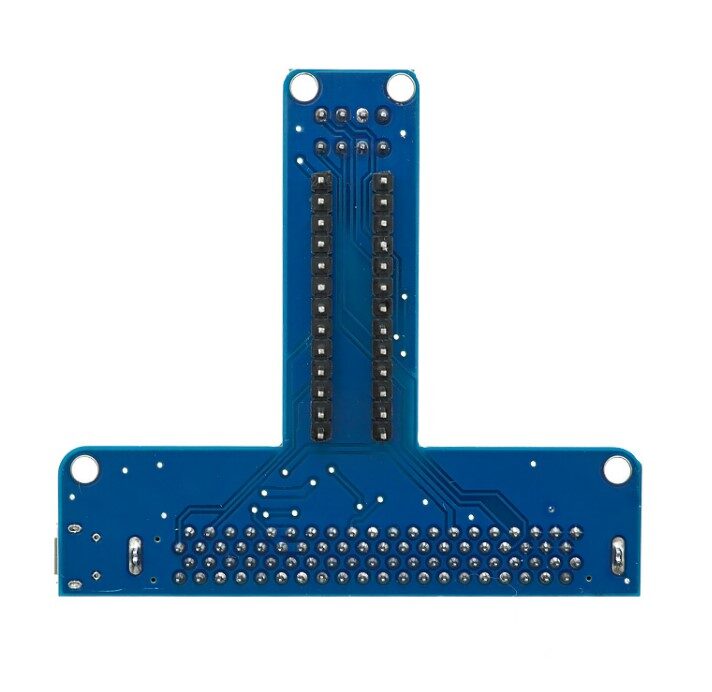

Micro:bit T-type GPIO Board
The micro: bit on its own has three digital/analog input/output rings available for you to use initially with alligator clips. With the micro: bit breakout we have broken out all 21 GPIO, power, and ground-to-pin outs in a 0.1″ formation. With this breakout, you will be able to unlock the full potential of your micro: bit!
Specifications
| Expansion Board Type | T-type GPIO Board |
| GPIO Pins | 21 GPIO Pins |
| Connection Type | 0.1-inch space headers |
| Mounting Holes Diameter (mm) | M3 |
| Length (mm) | 70 |
| Width (mm) | 15 |
| Height (mm) | 65 |
| Weight (gm) | 15 |
Features:
- Extend the functionality of the micro: bit beyond what is already on the board through breakout or General Purpose Input Output (GPIO) expansion board.
- A T-shaped expansion board gives you numerous options with the additional port for USB.
- 5v power supply port available.
- All pins are clearly labeled for expansion. Compatible with 420 points and 840 point breadboard.
Package Includes:
1 x Micro: bit T-type GPIO Board
Micro:bit T-type GPIO Board Overview
The Micro:bit T-type GPIO Board is an expansion module designed to break out all 21 GPIO pins of the BBC micro:bit into 0.1-inch headers. It lets makers, educators, and hobbyists connect sensors, actuators, and modules easily while providing mounting holes for secure installation.
Key Features of Micro:bit T-type GPIO Board
- Breaks out 21 digital and analog GPIO pins from the micro:bit edge connector
- Standard 0.1-inch space headers for compatibility with jumper wires and breadboards
- M3 mounting holes allow stable attachment to enclosures or project frames
- Compact footprint (70 × 15 × 65 mm) and lightweight (15 g) for portable builds
- Easy edge-connector plug-and-play design—no soldering required
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Prototyping temperature, light, or motion sensor projects using micro:bit GPIO
- Driving LEDs, buzzers, and small motors for robotics and interactive displays
- Building classroom STEM experiments with easy plug-in connections
- Integrating external I2C or SPI modules via breakout pins
- Creating portable handheld gadgets by mounting board and micro:bit together
- Connecting to breadboards for multi-component circuit demonstrations
How to Use Micro:bit T-type GPIO Board
First, align the micro:bit’s gold edge connector with the T-type header and gently press it into place. Secure the two M3 mounting holes using screws or standoffs. Plug standard 0.1-inch jumper wires from sensors or modules into the labeled GPIO, power, and ground headers. Finally, program your micro:bit via MakeCode or MicroPython to read inputs or drive outputs.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this board compatible with both micro:bit V1 and V2?
Yes, the T-type GPIO Board fits the edge connector on both BBC micro:bit V1 and V2 without modification.
What type of wires can I use with the headers?
You can use standard 0.1-inch male-to-female jumper wires or female-to-female leads to connect sensors, modules, or a breadboard.
How do I mount the micro:bit securely?
Use M3 screws or nylon standoffs through the board’s mounting holes to fasten the micro:bit and prevent it from shifting during operation.
Technical Specifications
| SKU | AI0989 |
|---|---|
| Weight | 0.04 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Micro:bit T-type GPIO Board is a versatile advance development boards used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
