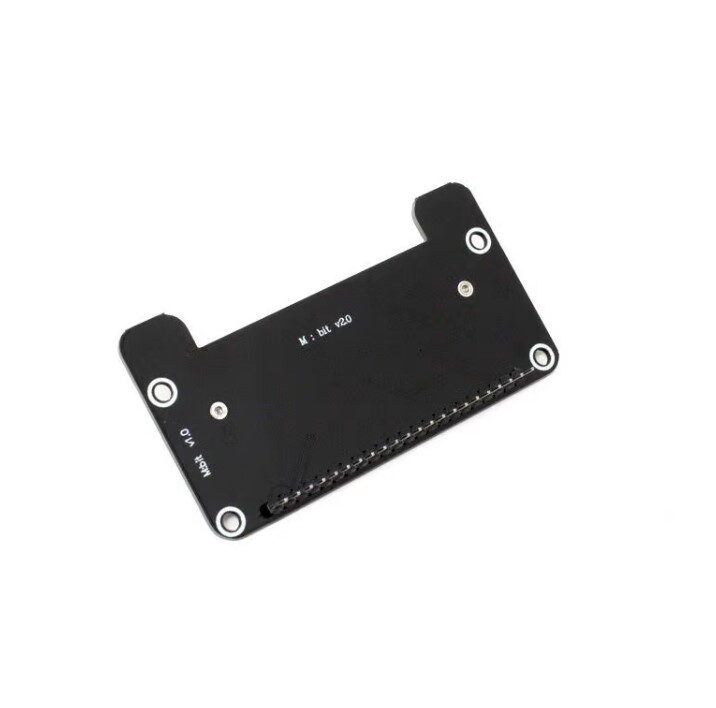

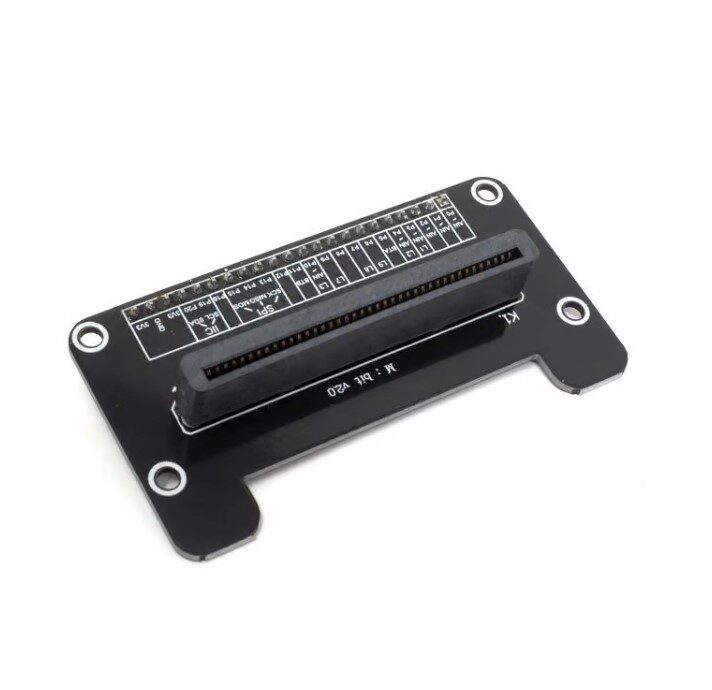

Micro: bit GPIO BreadBoard Expansion Board

Looking for Micro: Bit Gpio Board? Micro: bit GPIO BreadBoard Expansion Board is available at Zbotic with fast shipping across India.

Micro: bit GPIO BreadBoard Expansion Board

The micro: bit on its own has three digital/analog input/output rings available for you to use initially with alligator clips. With the micro: bit breakout we have broken out all 22 GPIO, power, and ground-to-pin outs in a 0.1″ formation. With this breakout, you will be able to unlock the full potential of your micro: bit!

Features

1. Extend the functionality of the micro: bit beyond what is already on the board through breakout or General Purpose Input Output (GPIO) expansion board.
2. Breadboard expansion board gives you numerous options with the additional port for USB.
3. 5v power supply port available.
4. All pins are clearly labeled for expansion. Compatible with 420 points and 840 point breadboard.

Specifications

Package Includes

1 x Micro: bit GPIO BreadBoard Expansion Board

Micro: bit GPIO BreadBoard Expansion Board Overview

The Micro:bit GPIO BreadBoard Expansion Board is a dedicated breakout adapter designed to extend all 22 general-purpose I/O pins of the BBC micro:bit into a standard 0.1″ header format. It allows makers, educators, and students to seamlessly connect sensors, actuators, and modules on a breadboard for rapid prototyping and learning.

Key Features of Micro: bit GPIO BreadBoard Expansion Board

• Breaks out all 22 micro:bit GPIO, power and ground pins into 0.1″ spaced headers
• Built-in 5 V power supply port to power external modules and sensors
• Additional USB port header for convenient power or data routing
• Two M3 mounting holes for secure attachment to chassis or enclosures
• Breadboard-compatible format for easy prototyping without soldering
• Genuine product with fast shipping across India from Zbotic

Applications and Use Cases

• Classroom STEM projects: connect LEDs, buzzers, and sensors directly on a breadboard
• Robotics control: wire motor drivers and servos to micro:bit GPIO pins for robot builds
• IoT experimentation: hook up temperature, light or moisture sensors on a breadboard
• Wearable prototypes: mount the expansion board inside custom enclosures for smart textiles
• Interactive art installations: route pushbuttons and light strips through the breakout
• Rapid circuit testing: quickly swap modules without rewiring the micro:bit directly

How to Use Micro: bit GPIO BreadBoard Expansion Board

Slide the edge connector of your BBC micro:bit into the dedicated slot on the expansion board, ensuring all pads align. Secure the board using the M3 mounting holes if needed. Plug standard 0.1″ jumper wires or modules into the headers and power your setup via the 5 V port or the micro:bit’s USB connection. Begin coding in MakeCode or Python to control peripherals directly from your micro:bit.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How do I connect my micro:bit to this expansion board?

Align the gold edge connector of the micro:bit with the slot on the expansion board and press gently until it clicks into place. Ensure the board’s 0.1″ header pins correspond to the micro:bit pin labels.

Can I use analog inputs on this breakout?

Yes. The board exposes the micro:bit’s P0, P1, and P2 pins, which support both analog and digital I/O. Simply wire your analog sensor to the corresponding header pin and reference it in your code.

What voltage should I supply to the 5 V power port?

Provide a regulated 5 V input (up to 500 mA) to the dedicated power header. This lets you power external modules without drawing additional current through the micro:bit’s USB port.
