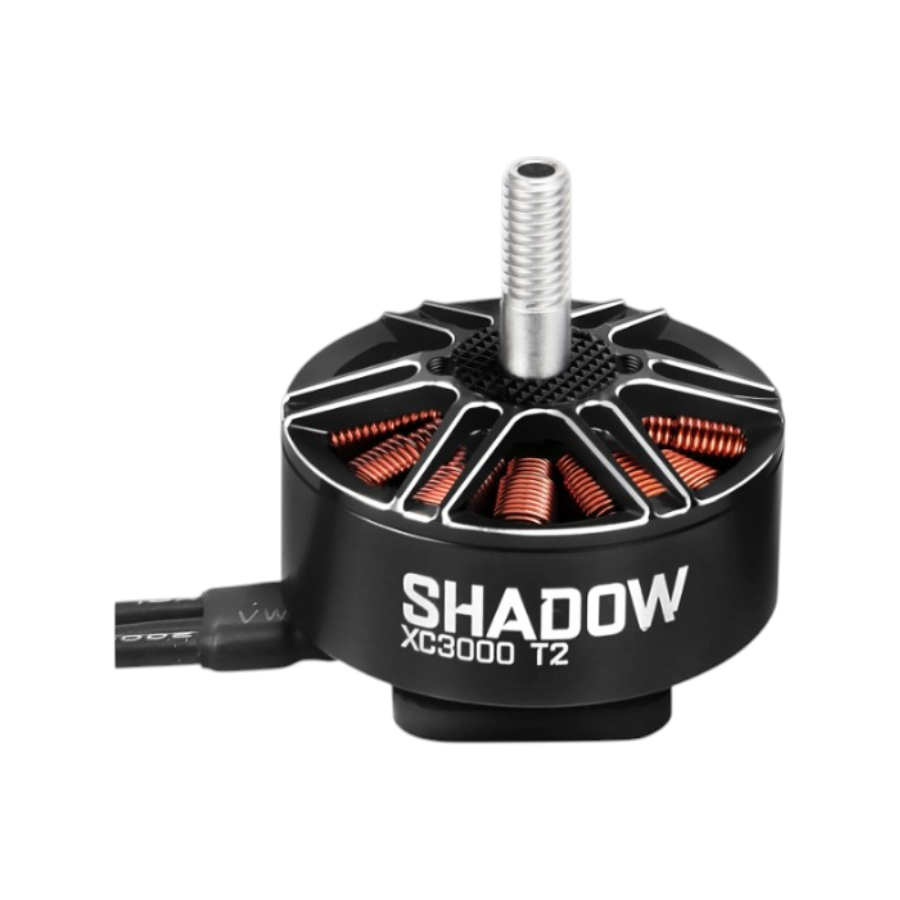

MAD – XC3000 T2 Shadow brushless drone motor 650KV (Pack Of 4)
Description:
The MAD Shadow XC3000 T2 650KV is a high-performance brushless drone motor engineered for extreme drone enthusiasts. Designed for efficiency and thrust, this 12N14P motor provides optimal power output with minimal heat. With a lightweight design of just 70g per motor, it’s perfect for high-thrust and endurance drone applications. The XC3000 T2 boasts superior balance, energy efficiency, and is built to handle high RPMs and voltages (up to 12S), making it ideal for heavy-lift drones, aerial cinematography, and industrial UAVs. This pack of 4 ensures consistency and reliability across your drone’s propulsion system. Perfectly balanced rotors and precise engineering make the XC3000 Shadow T2 a reliable motor for advanced drone builds.
Dimensional Diagram:
Features:
- Powerful 650KV rating for high thrust-to-weight ratio
- Supports up to 12S LiPo for high voltage performance
- Lightweight (70g) and compact design for efficient payload
- Optimized for minimal heat generation even at high RPMs
- Balanced rotor ≤5mg for smooth operation
- Durable construction for long operational life
- High-efficiency with low power loss
- Ideal for industrial, cinematic, and FPV drone use
Specifications:
| Motor KV (RPM/V): | 650 |
|---|---|
| Model No: | XC3000 |
| Motor Type: | Brushless Outrunner |
| Compatible LiPO Batteries: | 6S to 12S |
| Framework | 12N14P |
| Shaft Diameter (mm): | 5 |
| Motor Outer Diameter(mm) | 35.7 |
| Max. Efficiency Current (A) | ~13–18 |
| Max. Power (W) | 1330 |
| Maximum Thrust (gm) | 2800 |
| No-load current (A) | 0.6 |
| No-Load Current (mA) | 600 |
| No of poles | 14 |
| Operating Temperature (°C): | Up to 97°C (measured during high load) |
| Motor Size (mm): | D:35.7 × 40.55 |
| Weight (g): | 70(Each) |
Package Includes:

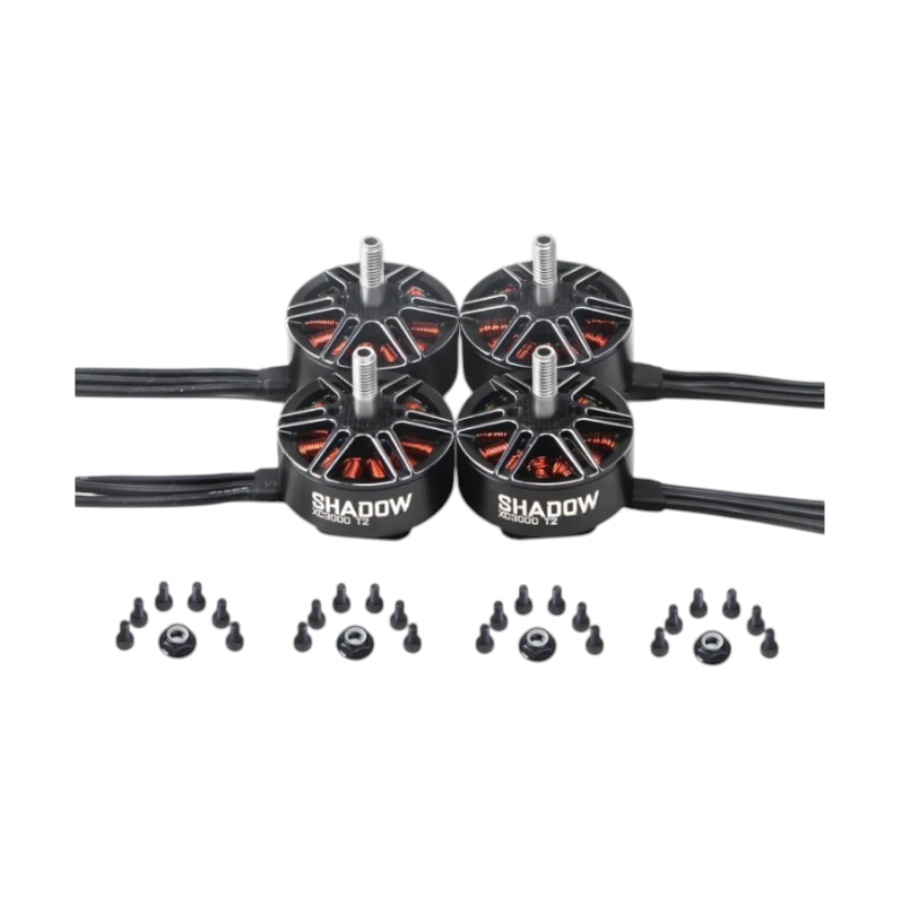

4 x MAD – XC3000 T2 Shadow brushless drone motor 650KV
1 x Accessory Set
Your First Drone Build: Complete Assembly Guide India
Building your first drone from scratch is one of the most rewarding experiences in the maker world. This...
Read More →
Fixed Wing RC Plane: Build and Fly Guide India
Table of Contents Understanding Fixed Wing RC Plane Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Stepper Motor Driver EMI: Shielding & Noise Reduction Techniques
Stepper motor drivers are among the noisiest components in any electronics project. The fast-switching MOSFET H-bridges in drivers...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 650KV |
| Package Quantity | 4 pcs |
| SKU | AI8109 |
| Weight | 0.545 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD – XC3000 T2 Shadow brushless drone motor 650KV (Pack Of 4) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
