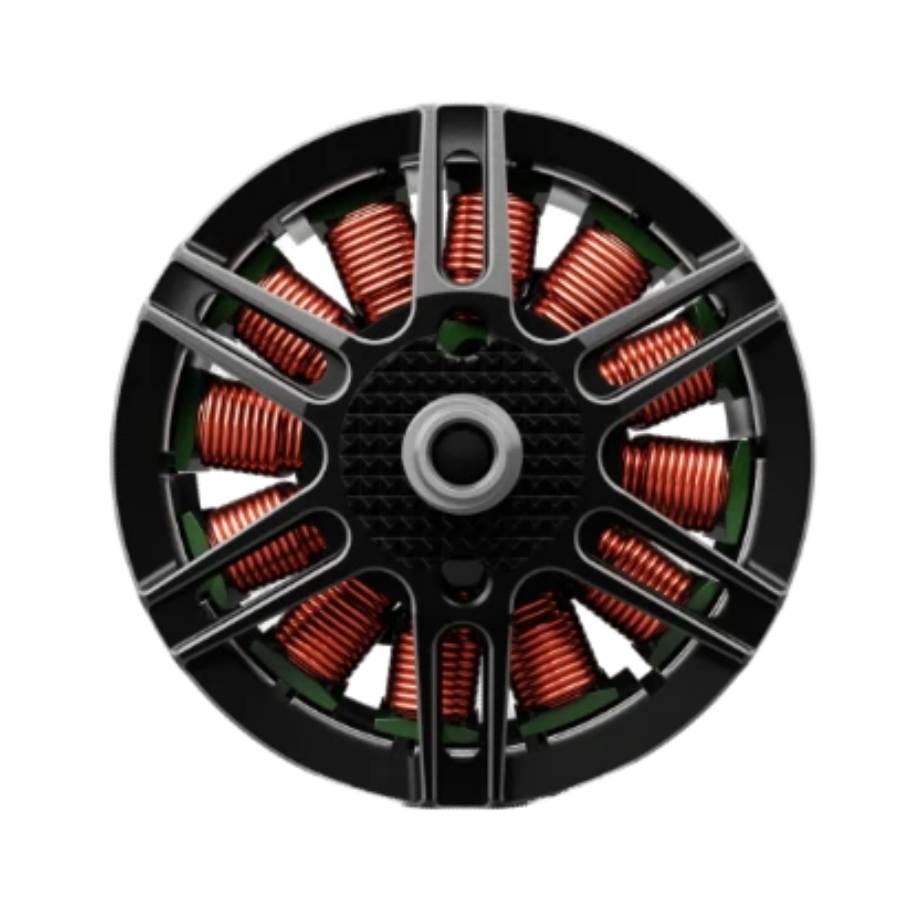

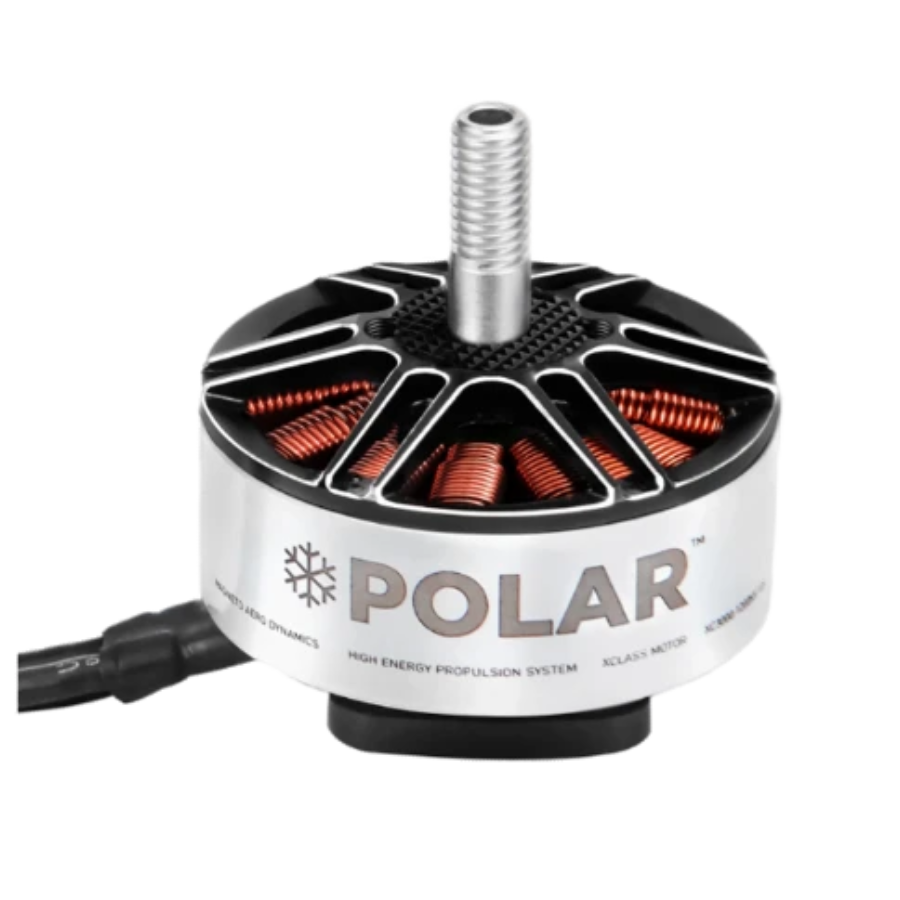

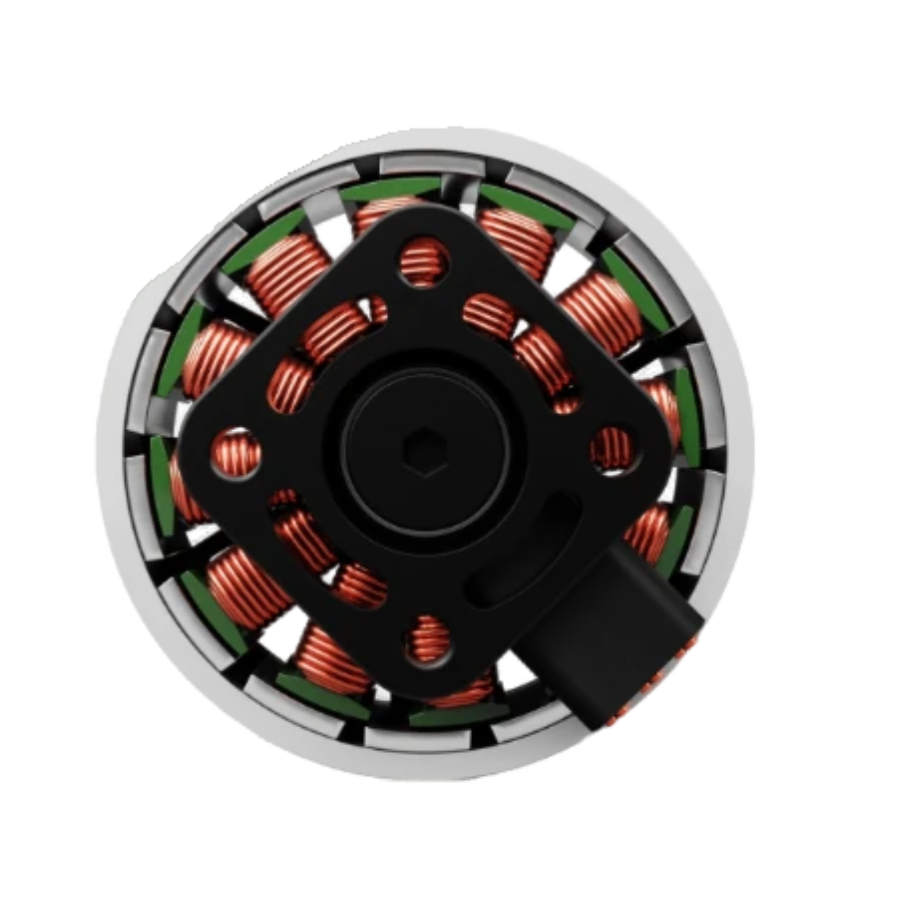

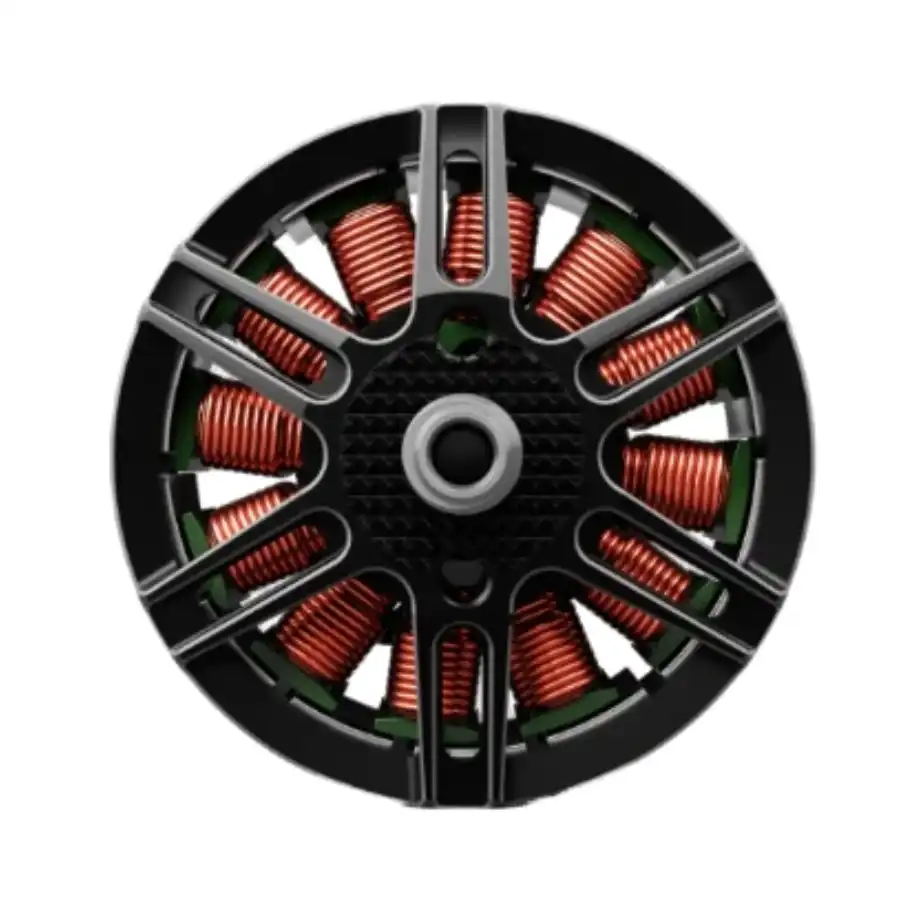

MAD – XC3000 POLAR brushless motor 1200KV (Pack Of 4)
Description:
Experience unmatched efficiency and power with the MAD XC3000 POLAR 1200KV Brushless Motors, now available in a pack of 4. Engineered for high-thrust drone applications and extreme performance enthusiasts, these motors deliver up to 2.5 kgf of thrust with impressive energy efficiency.
Designed with a precision-balanced 12N14P architecture, low internal resistance, and a lightweight 70g frame, the XC3000 ensures optimal RPM and throttle response under various conditions. With robust construction and a durable rotor, this motor is ideal for demanding drone builds, racing, and heavy-lift FPV applications. Supplied with pre-soldered silicone wires, standard mounting compatibility, and a smooth 5mm shaft, integration is hassle-free. Whether you’re upgrading your quad or building a high-thrust platform from scratch, the XC3000 delivers consistent, efficient performance.
Dimensional Diagram
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- High 1200KV Rating for superior RPM and responsiveness
- Massive 2.5 kgf Thrust Output for heavy-lift capabilities
- Lightweight Design (70g) optimized for flight efficiency
- Durable Rotor & Housing with ≤5mg rotor balance
- Precision 12N14P Motor Architecture for smooth operation
- Extended 380mm Silicone Cable for easy ESC connectivity
- High Power Handling up to 981W and 42A current
- Pack of 4 – perfect for quadcopter builds
Specification:
| Motor KV (RPM/V): | 1200KV |
|---|---|
| Model No: | XC3000 |
| Motor Type: | Brushless |
| Compatible LiPO Batteries: | 6S LiPo (22.2V – 24V) |
| Framework | Multirotor, FPV, Racing Drones, Heavy-Lift Drones |
| Shaft Diameter (mm): | 5 |
| Motor Outer Diameter(mm) | 37.5 |
| Max. Efficiency Current (A) | 10 to 20 |
| Max. Power (W) | 981 |
| Maximum Thrust (gm) | 2500 |
| No-load current (A) | 1.6 @ 10V |
| No-Load Current (mA) | 1600 |
| No of poles | 14 |
| Operating Temperature (°C): | -20 to 100 |
| Motor Size (mm): | D:35.7 × 40.55 |
Package Includes:

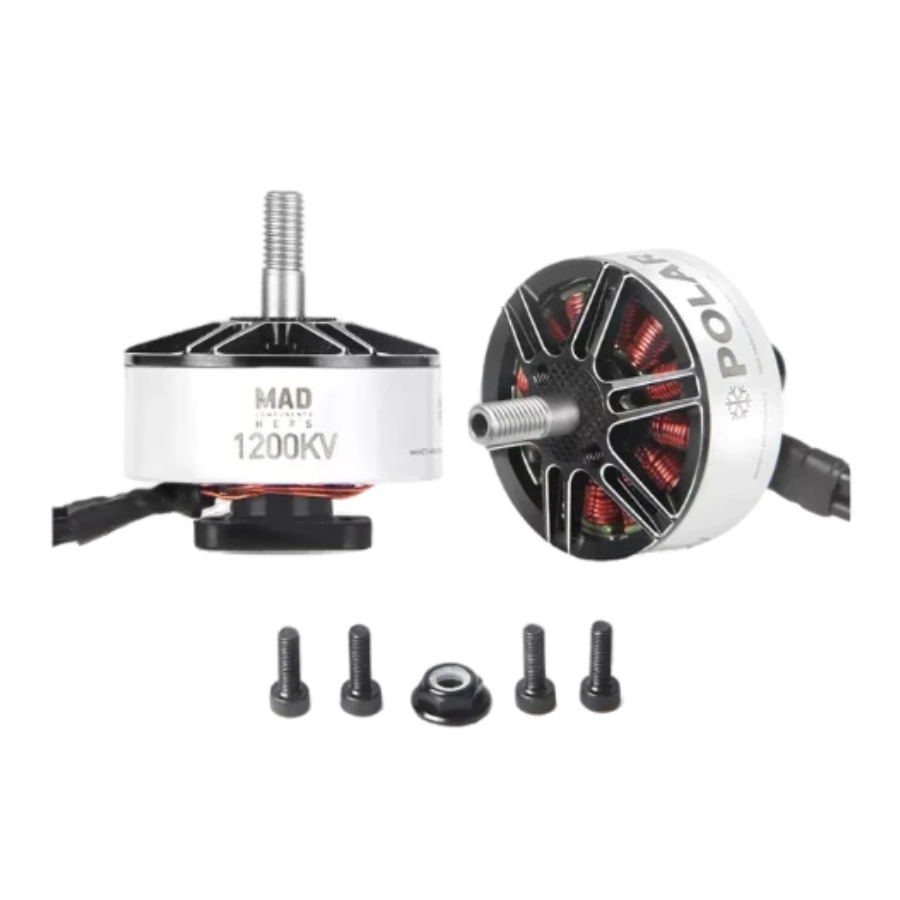

4 x MAD – XC3000 POLAR brushless motor 1200KV
1 x Accessory Set
OpenPilot vs ArduCopter: Legacy and Modern Flight Controller Stacks Compared
If you've been building drones for more than a few years, you've likely encountered both OpenPilot and ArduCopter....
Read More →
Drone PDB vs AIO: Power Distribution Board Guide
Table of Contents Understanding Drone PDB vs AIO Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Stepper Motor Resonance & Vibration: Diagnosis & Damping Tips
If your CNC machine, 3D printer, or robotic arm makes an alarming buzz or skips steps at certain...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 1200KV |
| Package Quantity | 4 pcs |
| SKU | AI8113 |
| Weight | 0.543 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD – XC3000 POLAR brushless motor 1200KV (Pack Of 4) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
