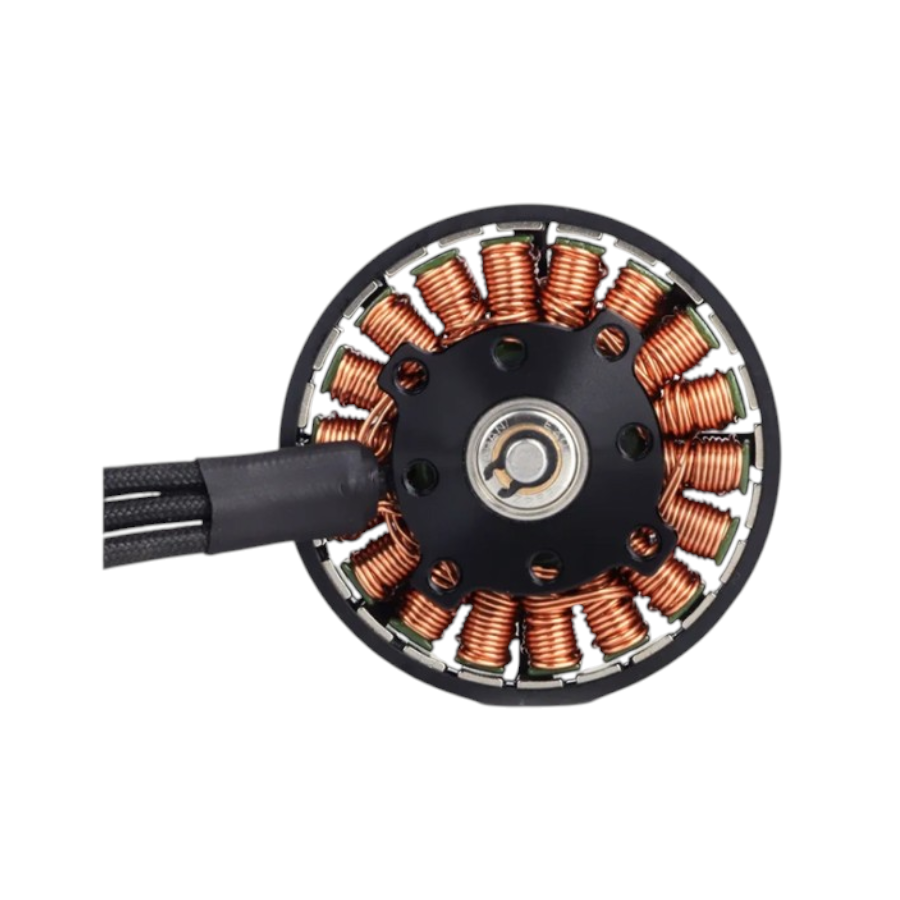

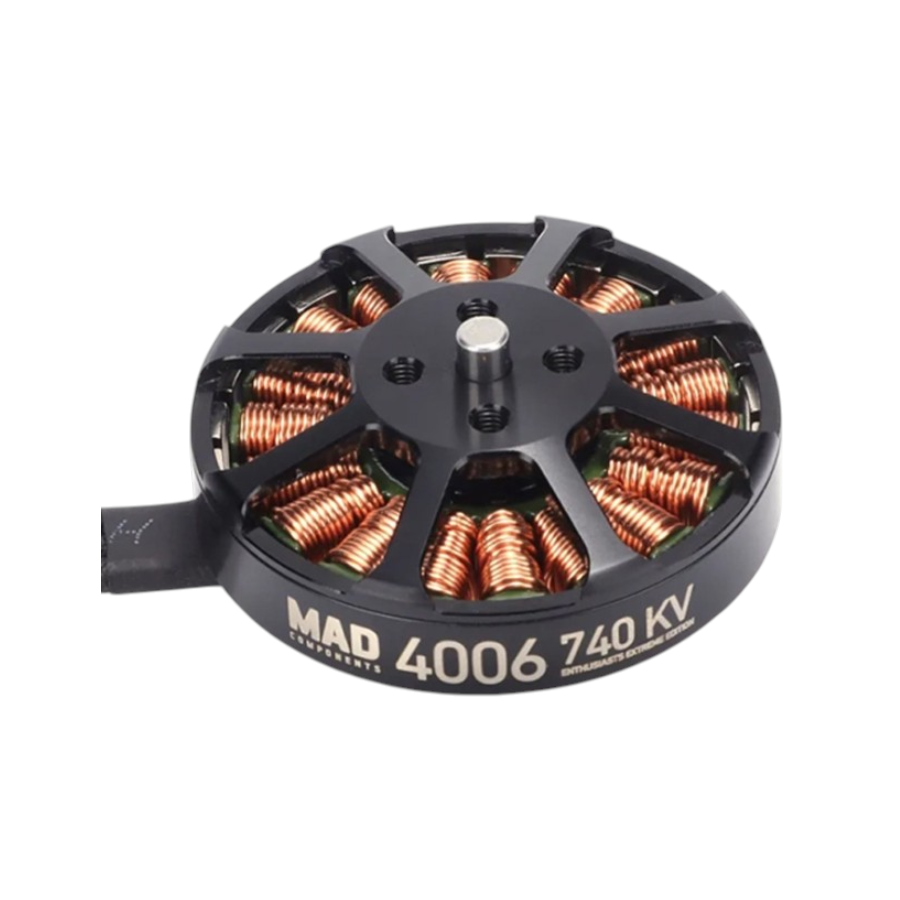

MAD Motor 4006 EEE 740 KV
Description:
The MAD Motor 4006 EEE 740 KV Drone Motor is a high-efficiency brushless motor engineered for precision drone applications, offering an unmatched thrust-to-weight ratio of 30.5:1. Weighing just 72g, it delivers up to 2.2 kgf of thrust, making it ideal for heavy-lift drones, FPV racing, and industrial UAVs. Optimized for 4S LiPo systems and compatible with 13–16” carbon fiber props, it excels in low-RPM, high-torque performance, increasing flight time while reducing vibrations to less than 5mg. Perfectly suited for cinematography, mapping, inspection, and agricultural drones, the MAD 4006 Drone Motor is built for professionals demanding efficiency, power, and long-term reliability in extreme conditions.
Features:
- High thrust-to-weight ratio (30.5:1)
- Max thrust: 2200g with only 72g motor weight
- Optimized for 4S LiPo batteries
- High-efficiency design (>81%) for longer flights
- Low-RPM high torque for heavy payloads
- Ultra-precise rotor balancing (<5mg vibration)
Specifications:
| Item Type: | Drone motor |
|---|---|
| Model No: | 4006 EEE |
| Motor KV (RPM/V): | 740 |
| Max Thrust | 2.2kg |
| Voltage Compatibility | 4s LiPo |
| Max Current (A) | 29.7 |
| Max Power Output (W) | 455 |
| Torque: | 0.39Nm |
| Compatibility: | 13–15”(Propeller) |
| Cable length (mm) | 165 |
| Shaft Diameter (mm): | 3.80 |
| Outer Diameter (mm): | 44 |
| Weight (g): | 72 |

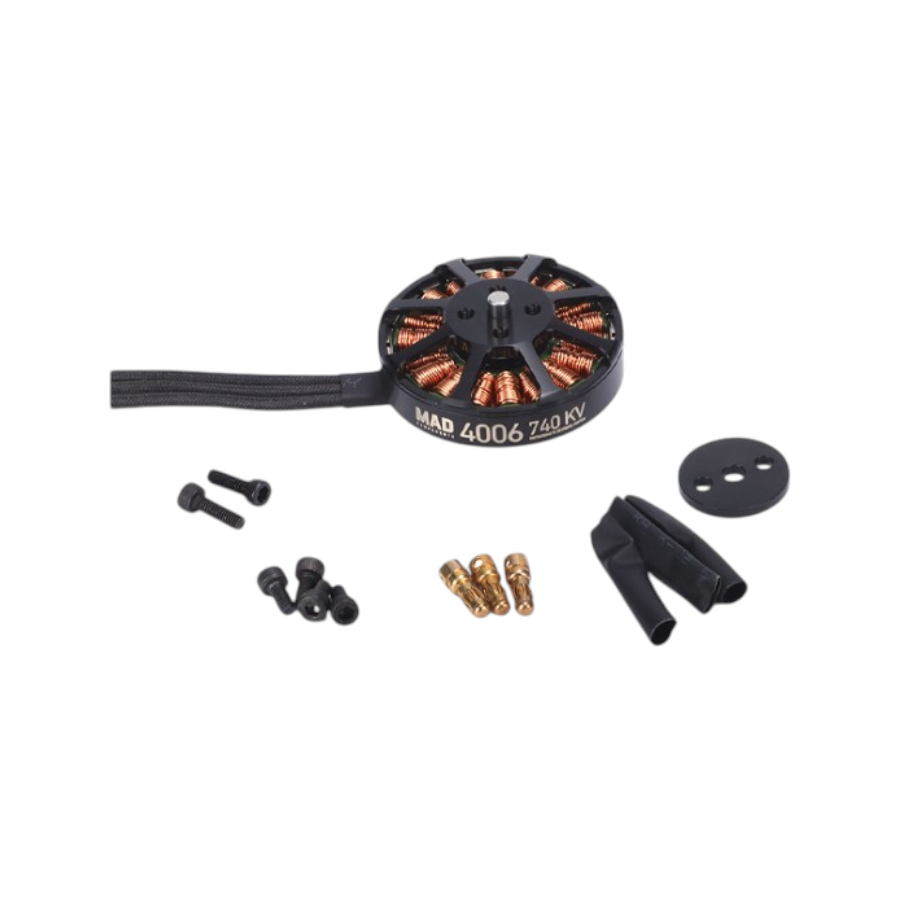

Package Includes:
1 x MAD Motor 4006 EEE 740 KV
1 x Propeller Plate
3 x 3.5mm Bullet Connector
3 x Heat Shrinkable Tube
6 x Screws
1 x Adapter Ring
Worm Gear Motor vs Planetary Gear Motor: Torque & Efficiency Compared
When building a robot, CNC machine, automated gate, or any motorised mechanism, the type of gearmotor you choose...
Read More →
MG996R Servo Motor: High Torque Projects & Control Guide
The MG996R servo motor is one of the most popular high-torque servos in the maker and robotics community....
Read More →
ExpressLRS (ELRS) Setup Guide: Low Latency Long Range RC Control
Table of ContentsIntroductionWhat Is ExpressLRS?Choosing Your ELRS HardwareFlashing ELRS FirmwareTransmitter Module SetupReceiver Setup and BindingFlight Controller ConfigurationUsing the...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 740KV |
| SKU | AI8043 |
| Weight | 72 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD Motor 4006 EEE 740 KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
