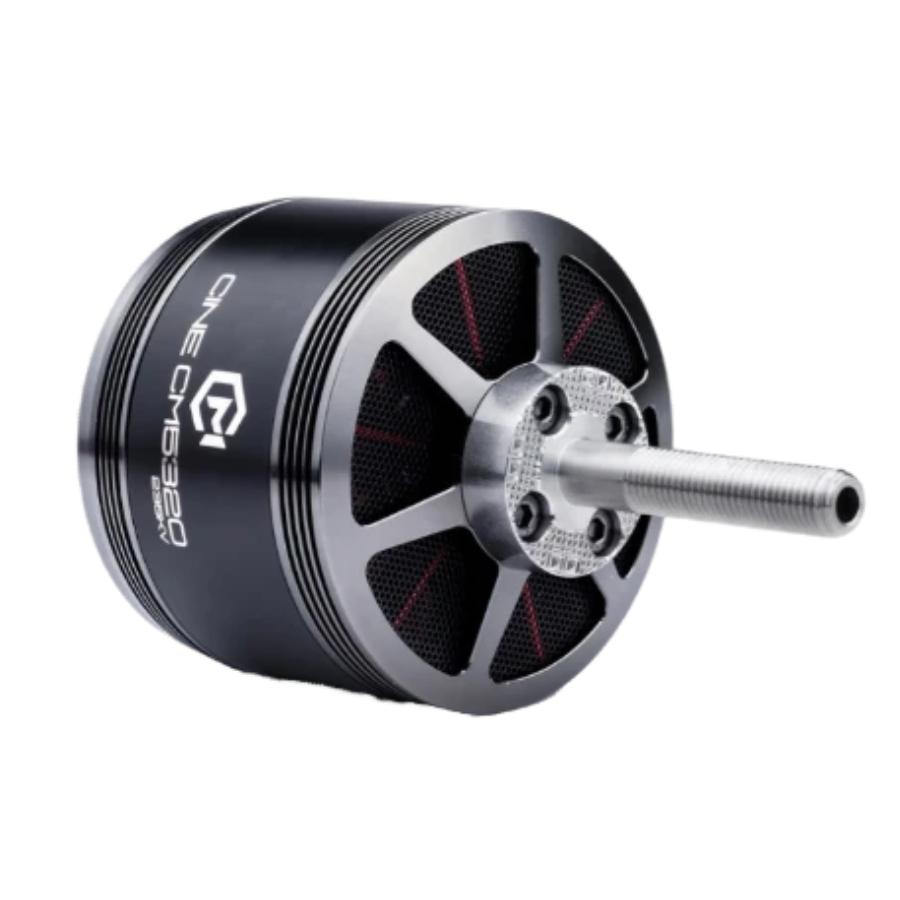

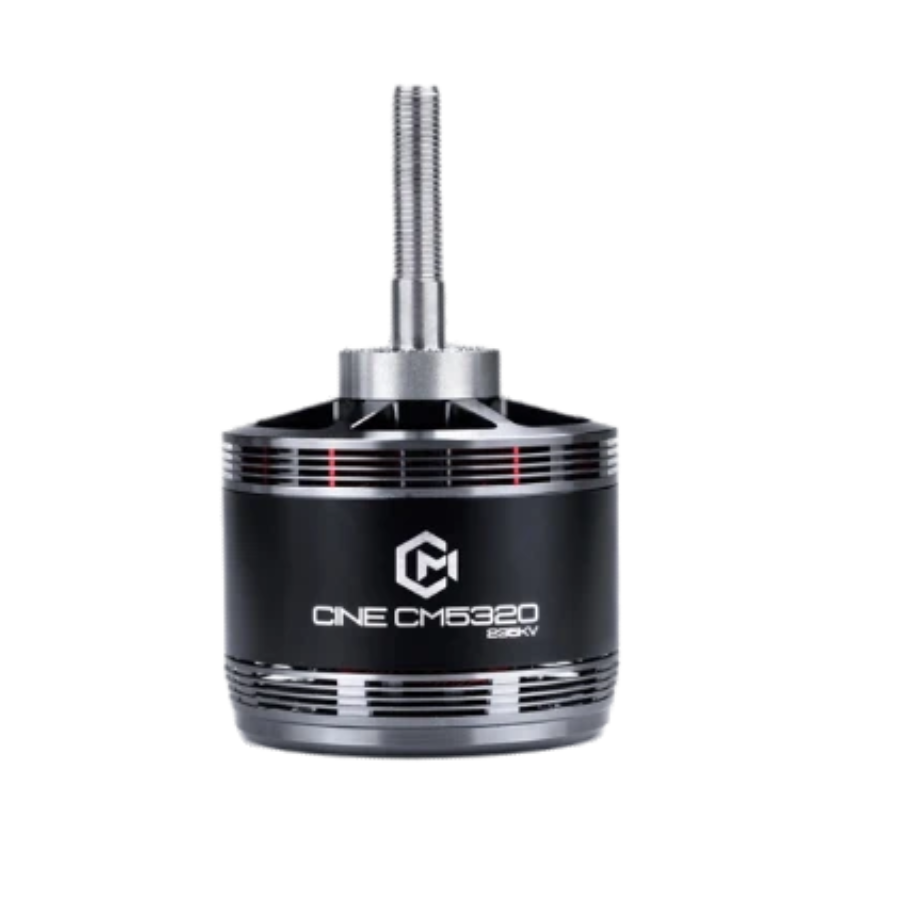

MAD CO – CINE CM5320 Brushless motor for 15-17 inch Three-blade prop long range FPV RACING Cinelifter drone 235KV
Description:
Unleash professional cinematic power with the MAD CO – CINE CM5320 Brushless motor — precision-engineered for long-range FPV racing and Cinelifter drones. Built specifically for 15-17 inch three-blade propellers, this 235KV motor delivers outstanding efficiency and stability for heavy-lift drones. Optimized for X8 coaxial setups, it incorporates advanced cooling and dust protection features for extended durability. Whether you’re capturing high-speed aerial shots or lifting cinema-grade gear, the CM5320 ensures smooth, reliable performance.
Features:

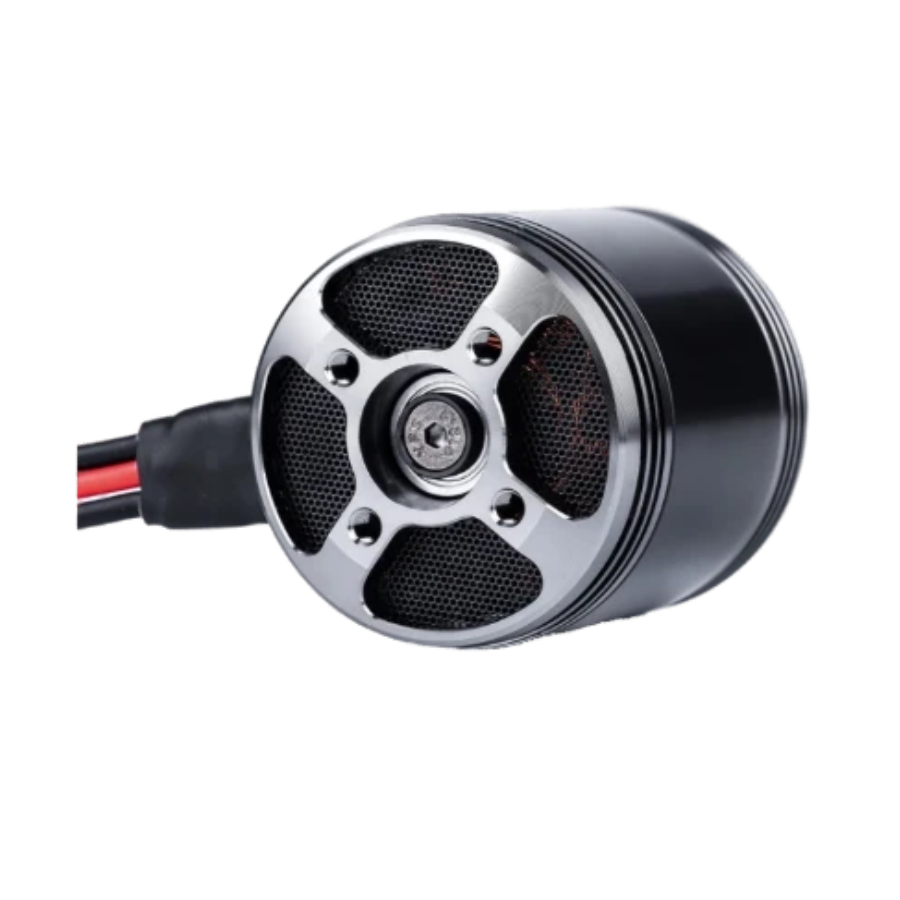

- Two ultra-thin stainless steel dust filters are added inside the stator.
- The split exhaust blade is added inside the rotor.
- Designed for 15-17 inch three-blade propellers
- 235KV rating for stable and powerful thrust
- Internal dual stainless steel dust filters
- Built-in rotor split exhaust blade for better heat dissipation
- High-quality materials for long operational life
- Ultra-smooth and quiet operation under load
Specification:
| Max Current (A) | 69.7 |
|---|---|
| Max Thrust | 9.1kg |
| Internal Resistance(mOhm) | 37.5 |
| Max. Power (W) | 3198 |
| Motor KV (RPM/V): | 235 |
| Motor Type: | Brushless Motor |
| Compatible LiPO Batteries: | 6S to 8S |
| Framework | CineLifter |
| Shaft Diameter (mm): | 6 |
| Max. Efficiency Current (A) | 25–40 |
| Maximum Thrust (gm) | Up to 8500 |
| No-load current (A) | 1.2 |
| No-Load Current (mA) | 1200 |
| Operating Temperature (°C): | -20 to 80 |
| Outer Diameter (mm): | 61.1 |
| Motor Height (mm): | 56.5 |

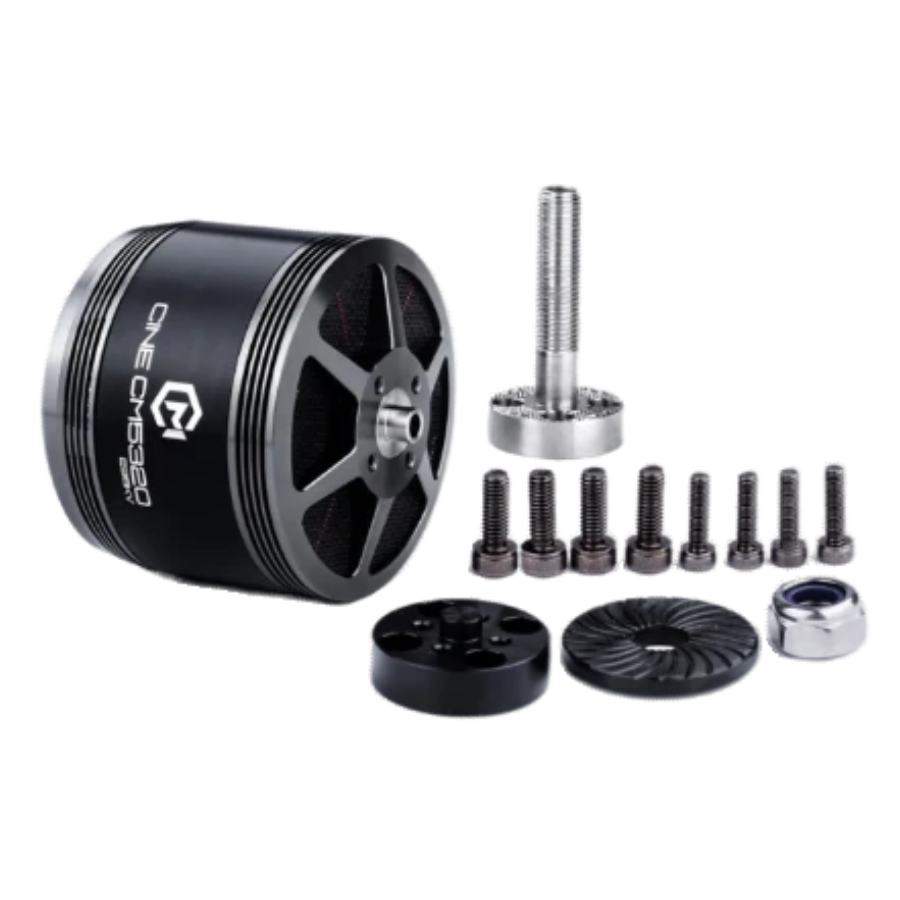

Package Includes:
1 x MAD CO – CINE CM5320 Brushless motor for 15-17 inch Three-blade prop long range FPV RACING Cinelifter drone 235KV
FPV Goggle Buying Guide 2026: DJI Goggles vs Walksnail
Table of Contents Why Your FPV Goggles Matter More Than Your Drone Analog vs Digital FPV in 2026...
Read More →
Drone Mapping with Photogrammetry in India: DroneDeploy vs WebODM Complete Guide 2025
Drone photogrammetry has transformed how Indian industries approach land surveying, construction monitoring, agricultural planning, and infrastructure inspection. Where...
Read More →
Drone Propeller Guard Design: 3D Print Safety Frames
Table of ContentsWhy Propeller Guards Matter for Indian Drone BuildersPropeller Guard Design BasicsBest 3D Printing Materials for Propeller...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| Display Size | 17" |
| KV Rating | 235KV |
| SKU | AI8135 |
| Weight | 0.997 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD CO – CINE CM5320 Brushless motor for 15-17 inch Three-blade prop long range FPV RACING Cinelifter drone 235KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
