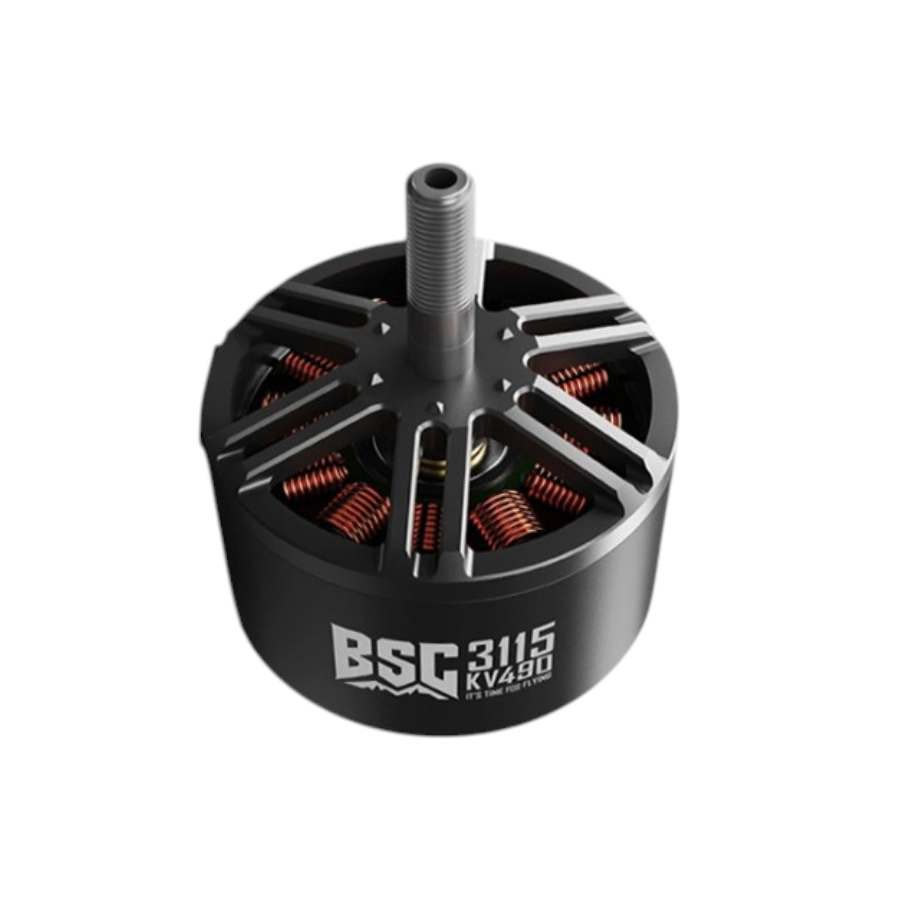

MAD CO – BSC 3115 FPV drone motor 490KV-12S
Description:
The MAD BSC 3115 FPV drone motor is engineered for high performance and efficiency, featuring a KV rating of 490. Weighing just 76 grams, this motor delivers a maximum thrust of 4.5 kgf, making it an excellent choice for FPV racing and freestyle drones. Designed with 12 pole pairs, it ensures smooth operation and enhanced responsiveness. The motor is optimized for energy efficiency, allowing for extended flight times. With a robust construction and reliable specifications, the BSC 3115 is perfect for drone enthusiasts looking to elevate their flying experience.
Features:
- High Efficiency: Designed for optimal energy use, enhancing flight time.
- Maximum Thrust: Delivers up to 4.5 kgf for impressive lift capabilities.
- 12N14P Configuration: Provides smooth operation and improved torque.
- Robust Design: Built to withstand the rigors of FPV racing and freestyle flying.
- Easy Propeller Mounting: Features M5 nut for secure propeller attachment.
Specifications:
| Motor KV (RPM/V): | 490 |
|---|---|
| Motor Type: | Brushless Motor |
| Max. Power (W) | 1991.5 |
| Maximum Thrust (gm) | 4500 |
| No-load current (A) | 0.82A/20V |
| No of poles | 12/14P |
| Internal Resistance(mOhm) | 101 |
| Max Current (A) | 41.5 |
Package includes:
1 x MAD CO – BSC 3115 FPV drone motor 490kV-6S
Stepper Motor Power Supply: Choosing Voltage & Amperage
Table of ContentsIntroductionStepper Motor Electrical BasicsUnderstanding Rated Voltage vs Operating VoltageCurrent Rating and Why It MattersThe Driver's Role...
Read More →
Stepper Motor Half-Step vs Full-Step: Resolution & Torque Trade-offs
Stepper motors are the workhorse of precise motion control — used in 3D printers, CNC routers, laser cutters,...
Read More →
How to Use Stepper Motor with Arduino: NEMA 17 + A4988 Guide
The NEMA 17 stepper motor paired with an A4988 driver is one of the most popular combinations for...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 490KV |
| SKU | AI8044 |
| Weight | 0.13 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO – BSC 3115 FPV drone motor 490KV-12S is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
